GEN-X 5-Channel Class D Amplifier | 4 x 130W RMS @ 4-Ohm + 1 x 900W RMS @ 1-Ohm
GEN-X 5-Channel Class D Amplifier | 4 x 130W RMS @ 4-Ohm + 1 x 900W RMS @ 1-Ohm
Sale / EACH
Reg.
15% OFF FOR DS18 Season Sale!
Channel: 5-Channel
Power Rating: 1 x 900 Watts | 4 x 130 Watts
-
Key Features
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessPOWER
Total Watts (Peak)
4000W
Rms Power @ 4 OHM
4 x 130W / SUB: 300W
Rms Power @ 2 OHM
4 x 220W / SUB: 600W
Rms Power @ 1 OHM
SUB: 900W
Rms Power @ 4 OHM Bridge
2 x 420W
AUDIO
Frequency Response
20Hz-20Khz
Signal To Noise Ratio
>90 dB
Efficiency @ 4 OHM
83%
Damping Factor
78
Input Impedance
22 K
Channel Separation
55 dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25 - 6 V
High Level Input
No
Selectable X-over
HPF/LPF
X-over Filter Range
HPF:10-250Hz / LPF:50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
Fixed @ 45Hz
Infrasonic Filter
10-50Hz
FEATURES
Amplifier Class
Digital (D)
Amplifier Type
5CH Full Range
Number Of Channels
5 Ch
Minimum Impedance
2ohm St / 4ohm Bridge (Puente) / 1ohm Sub
Led Indicator
Power | Protection | Clip /
Power Input Terminal Size
4 GA
Fuse Size
External / 160A
Remote Level Control
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color | Finish
Matte Black
MEASUREMENT
Overall Length
12.8" / 325mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
11.02" / 280mm
Gross Single Unit Weight
2.2Kg
EXTRA FEATURE
Input Selector
2/4/5 ch
-
Product Overview
Product Overview
DS18 G4000.5D Full-Range Class D 5-Channel Amplifier 4000W
The G4000.5D is engineered to elevate your system to unprecedented levels, daring you to create the system of your dreams.
We have designed the G Series to deliver nothing short of professional-grade sound reproduction. Rest easy knowing that the G4000.5D's stable and reliable Class D circuit design has undergone rigorous sound quality verification using AP Instruments.
Tune your frequencies just the way you like them with adjustable High Pass and Low Pass Filters, as well as Remote Level Control Knob offering you unprecedented control over your audio experience. Surface mount component technology gives you control in customizing the placement and design of the G4000.5D into your build. All of these tools ensure your system gets LOUD and stays there!
With power output settings of 420W x 2 CH bridged at 4-ohm, 220W x 4 CH at 2-ohm, and 130W x 4 CH at 4-ohm, the G4000.5D delivers the perfect balance of power and finesse, supercharging any custom build with ease.
Safeguard your equipment effectively with the G4000.5D's Protection, Clipping, and Power Indicator LED's. Stay informed and in control as these indicators alert you when your amplifier approaches its limit, protecting your investment and guaranteeing a long-lasting audio experience. The G4000.5D also features a host of advanced protective features, including short circuit, thermal, and voltage protection, ensuring the safety and longevity of your investment.
Designed for the enthusiast looking for a competitive edge, the G4000.5D delivers unrivaled power, precision, and efficiency, propelling your build to unprecedented heights.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
GEN-X 5-Channel Class D Amplifier | 4 x 130W RMS @ 4-Ohm + 1 x 900W RMS @ 1-Ohm
Related products
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channels:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channels:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channels:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Excellent power in compact size
I put it in my camper with some speakers and the 8in sub with the DS18 rev1 stereo. Everything worked great til I smelt something from the radio it self sadly. It stopped working so I hooked up the factory one and it works but I dont like the features like I did with the DS18 rev1. Idk what to do about it but overall it all works great. Any help about the radio or maybe a discount for another?
The Gen X-5 amp supplies my 6.5 dash and sound bar with plenty of power and that sub channel just slams those 12’s!!!
Awesome 😎

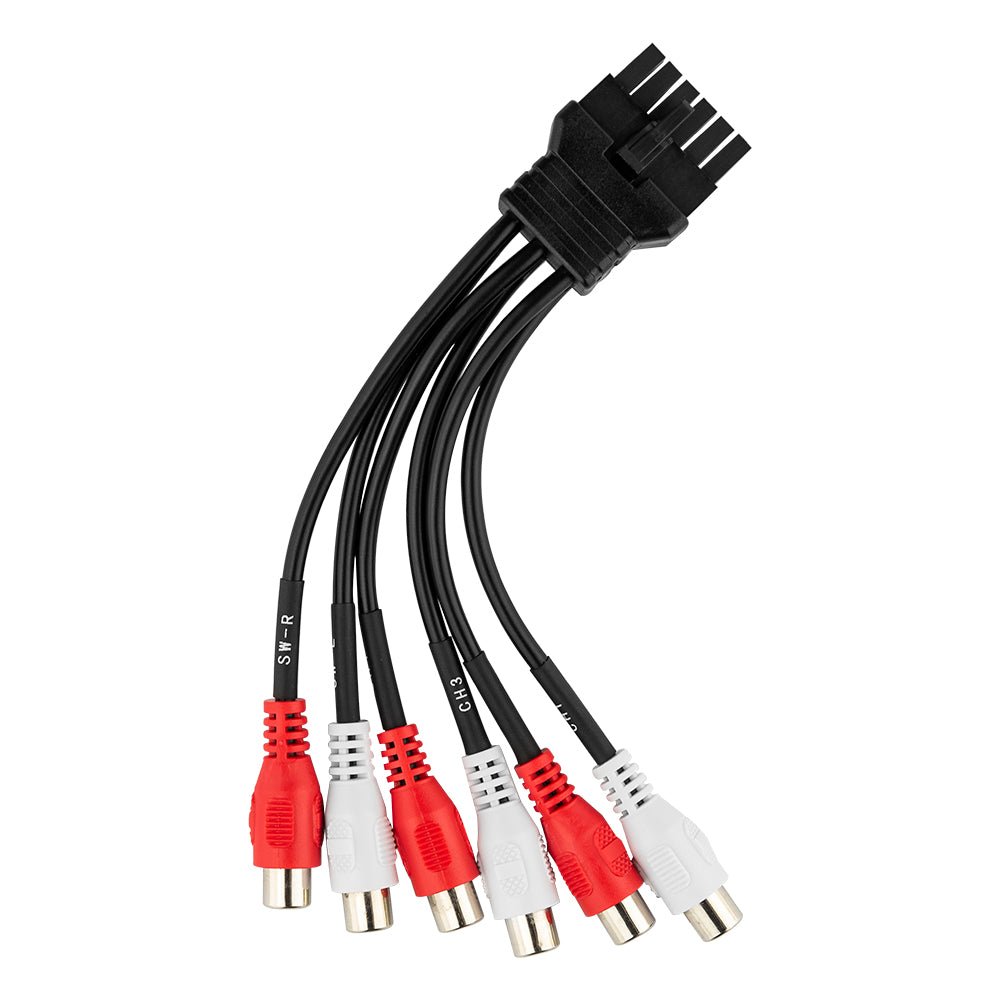

GEN-X 5-Channel Class D Amplifier 130 x 4 @ 4-Ohm + 900 x 1 @ 1-Ohm Watts Rms
Let customers speak for us
from 4386 reviewsI recently purchased the DS18 JL/JLU Exclusive Wheel Well Subwoofer Enclosure Package, and I could not be happier with it. I had already upgraded my Jeep with the Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1, and adding this subwoofer enclosure package took the entire system to another level.
The sound quality, bass response, and overall performance are exactly what I was looking for. Everything works great together, and the setup gives my Jeep a clean, powerful sound without taking away from the look or functionality of the vehicle.
I love all of the DS18 products I have purchased so far and would highly recommend them to anyone looking to upgrade their Jeep’s audio system. Great quality, great sound, and definitely worth it!
Very easy install, fits perfect under passenger seat in a 2025 Jeep Wrangler 2 door. everything sounds great.
This is great wire easy to splice easy to put connectors on all around good stuff I'd buy again
I've had this amp before but in Grey color person and sold it cause I wanted blue one to match so I like the amp small and compact
Bought the build your own kit about a month ago. Installed everything myself which was both easy and difficult. The soundbar weighs quite a bit so putting it up myself was challenging. I actually didn't need the 4 channel amp cause I was adding another sub (my mistake) Love the sound quality from the speakers. 4 subs in the bar does have some kick to them. The wiring for the RGB lights is really thin and seems cheap, kept breaking when I crimped the connectors.
Super loud and clear
Great working little amp
I purchased the EBM-FFPGLAD-4X8.LDPKG that contains 4 ZXI8.2D subs with the FRP-2.5K amp. The difference that set up makes over my previous sub box containing 6.5 inch subs is amazing. DS18 nailed it with this package. I like it when I can listen to it LOUD. I've never installed anything like this before. Wiring the subs were easy. I only wish the two output terminals in the box had push button connectors instead of the spade connectors. I would highly recommend this package to anyone.
Recently purchased and installed a ION 1600 4D. Easy install, easy tuning with hz on a test meter, and the clip lights. It allowed me to tune the amp to a clean distortion free 3/4 volume level without paying a local stereo shop. Im running 4 hertz sx 165 neo speakers 2 hertz sx 69 speakers and 2 deaf bonce apocalypse speakers all at 2ohm load stable. This little amp rocks my bike over exhaust, road noise, and other people's stereos!
These things really rock to be just $80.
just started hooking up my motorcycle audio haven't finish yet but all of my speakers look great just haven't heard them yet but will let u know
Great amp rack for the price
Love it loud.. got a full ds18 build everyone keeps asking who im rockin and how they get like me
Shelley is Running 2 of these on 18 6.5s and 2 10" Mid bass amps are awesome 👌
Always happy with whatever i get from them and they stand behind their product 💯
We are loading your cart...
