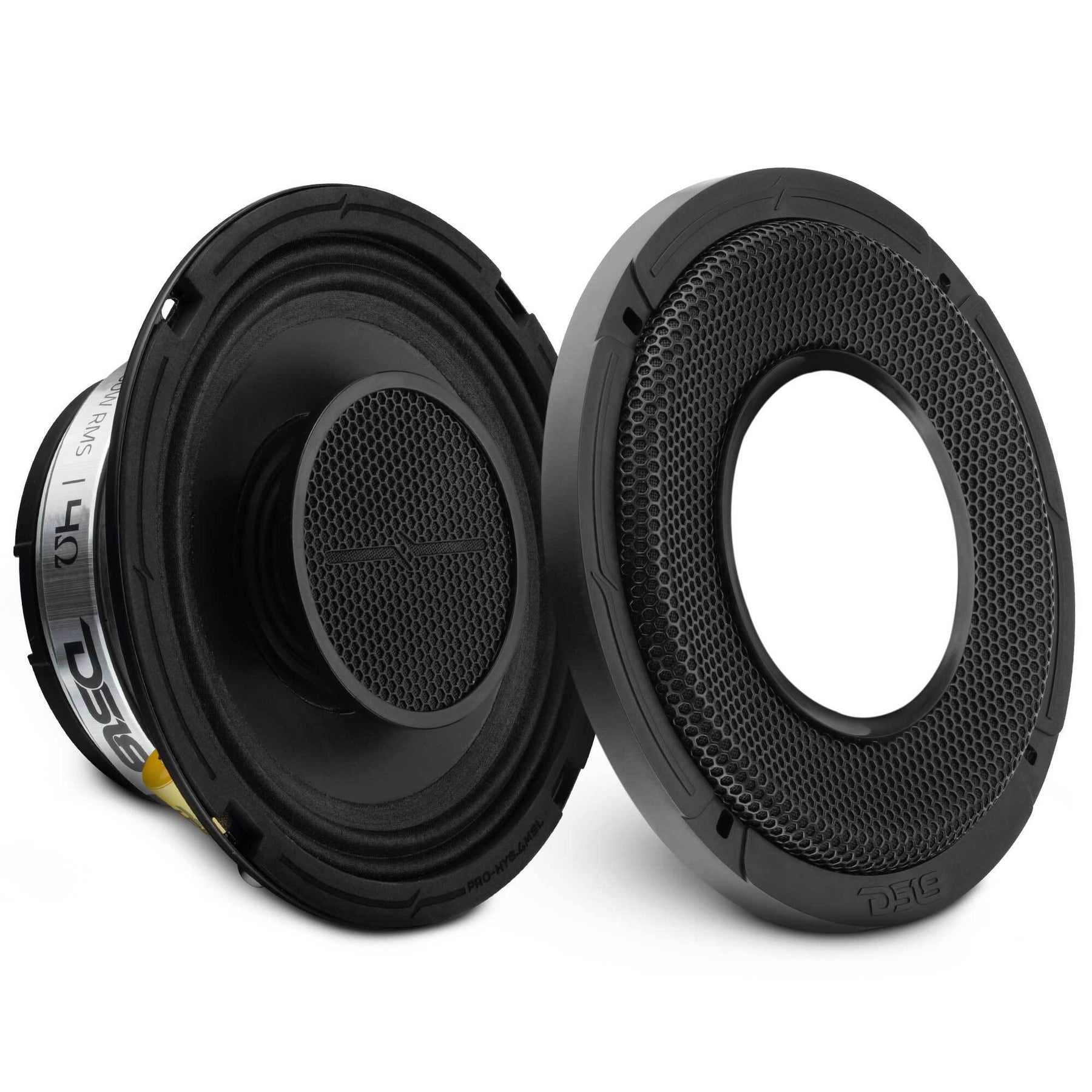

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm
Sale $56.91 / EACH
Reg.$66.95
15% OFF FOR MOVING SALE!
Size: 6.5"
Impedance: 4-Ohm
Availability:855 Items
-
Key Features
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-HY6.4MSL
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
93dB
Frequency Response
100Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
17.5 Oz
Displacement Volume
Thiele & Small Parameters
Equivalent Volume Vas
3.21L / 0.11ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
160Hz
Mechanical Factor Qms
8.12
Electrical Factor Qes
1.245
Total Factor Qts
1.086
Mechanical Mass Mms
7.452g
Mechanical Compliance Cms
182.236 mm/N
BL Factor BL
4.705
Voice Coil Inductance Le
16.78mH
Cone Area Sd
136.848 Cm2
DC Resistance Re
3.2 ohm
Mechanical Mass w/o air Mmd
8.60g
Driver Specifications
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm
Speaker Measurement
Overall Diameter
6.92" / 176mm
Overall Depth
3.52" / 89.5mm
Front Mount Baffle Cutout
5.6" / 142mm
Mounting Depth
2.77" / 70.5mm
Motor Diameter
4.33" / 110mm
Shipping Info
Gross Single Unit Weight
3.75
Single Unit Box Dimensions L x W x H (Inches)
7.25 x 7.25 x 4.25
Quantity of Units in Master Carton
8
Gross Master Carton Weight
32
Master Carton Dimensions L x W x H (Inches)
15.25 x 15.25 x 9.5
-
Product Overview
Product Overview
DS18 PRO-HY6.4MSL Perfect audio is possible with the PRO-HY6.4MSL! We've taken one of our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design.
With 300W MAX power handling and 150W RMS power handling, the PRO-HY6.4MSL gets extremely LOUD with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL’s excel in reproducing crystal-clear audio with astonishing depth and precision.
With its sleek dimensions and a mounting depth of 2.77 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications.
One of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. It also features the DS18 branding so you can show the world you like it LOUD!
Prepare to be blown away by the power, clarity, and precision of the PRO-HY6.4MSL.
