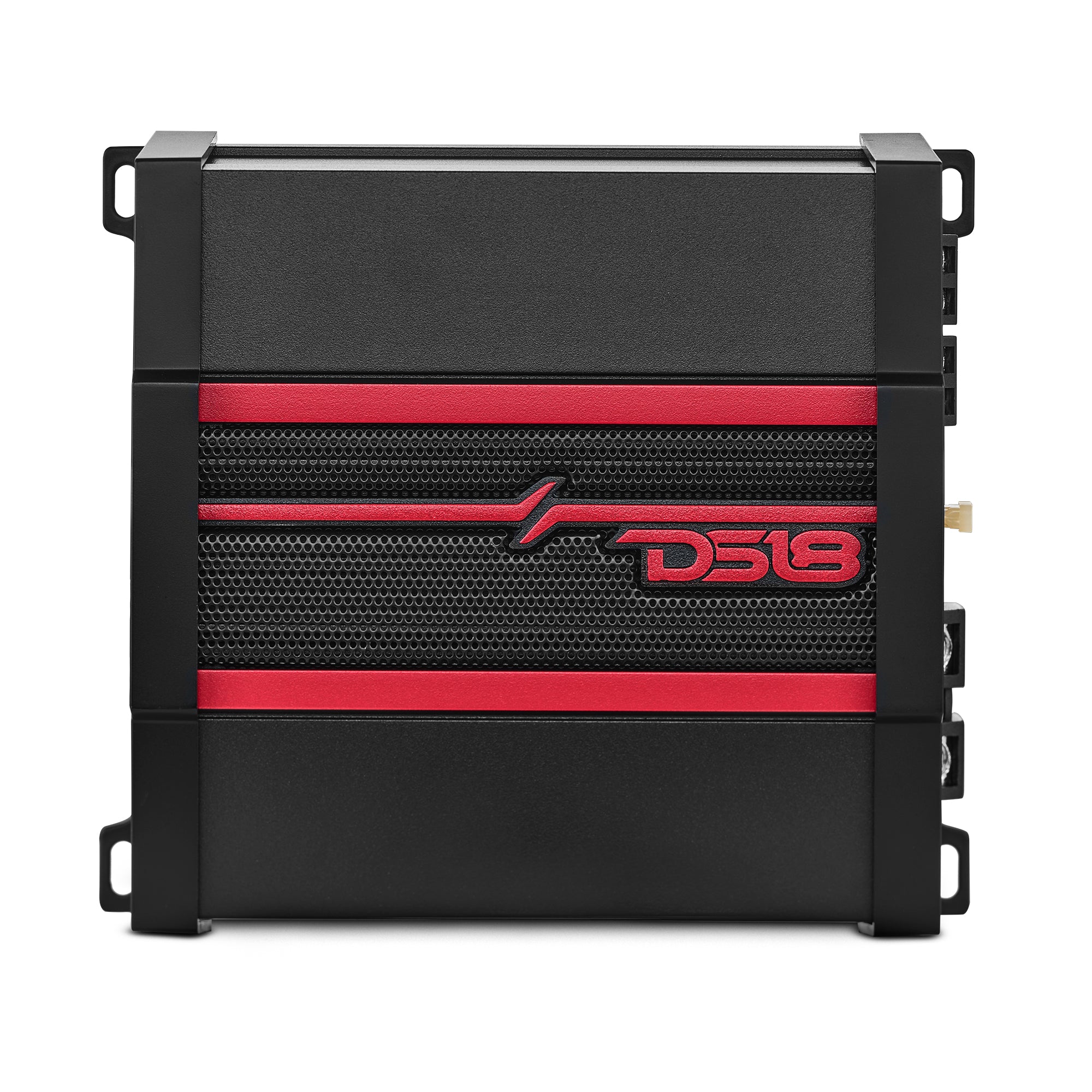

CANDY Compact Full-Range Class D 2-Channel Amplifier 800 Watts
CANDY Compact Full-Range Class D 2-Channel Amplifier 800 Watts
Sale $127.46 / EACH
Reg.$149.95
15% OFF FOR MOVING SALE!
Channel: 2 Channel
Power: 2 x 120 Watts Rms
Availability:273 Items
-
Key Features
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-X2B
Total Watts (Peak)
800W
RMS Power @ 4 Ohm
120W x 2
RMS Power @ 2 Ohm
200W x 2
RMS Power @ 1 Ohm
-
RMS Power @ 4 Ohm Bridge
350W
Audio
Frequency Response
20Hz~20KHz
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V

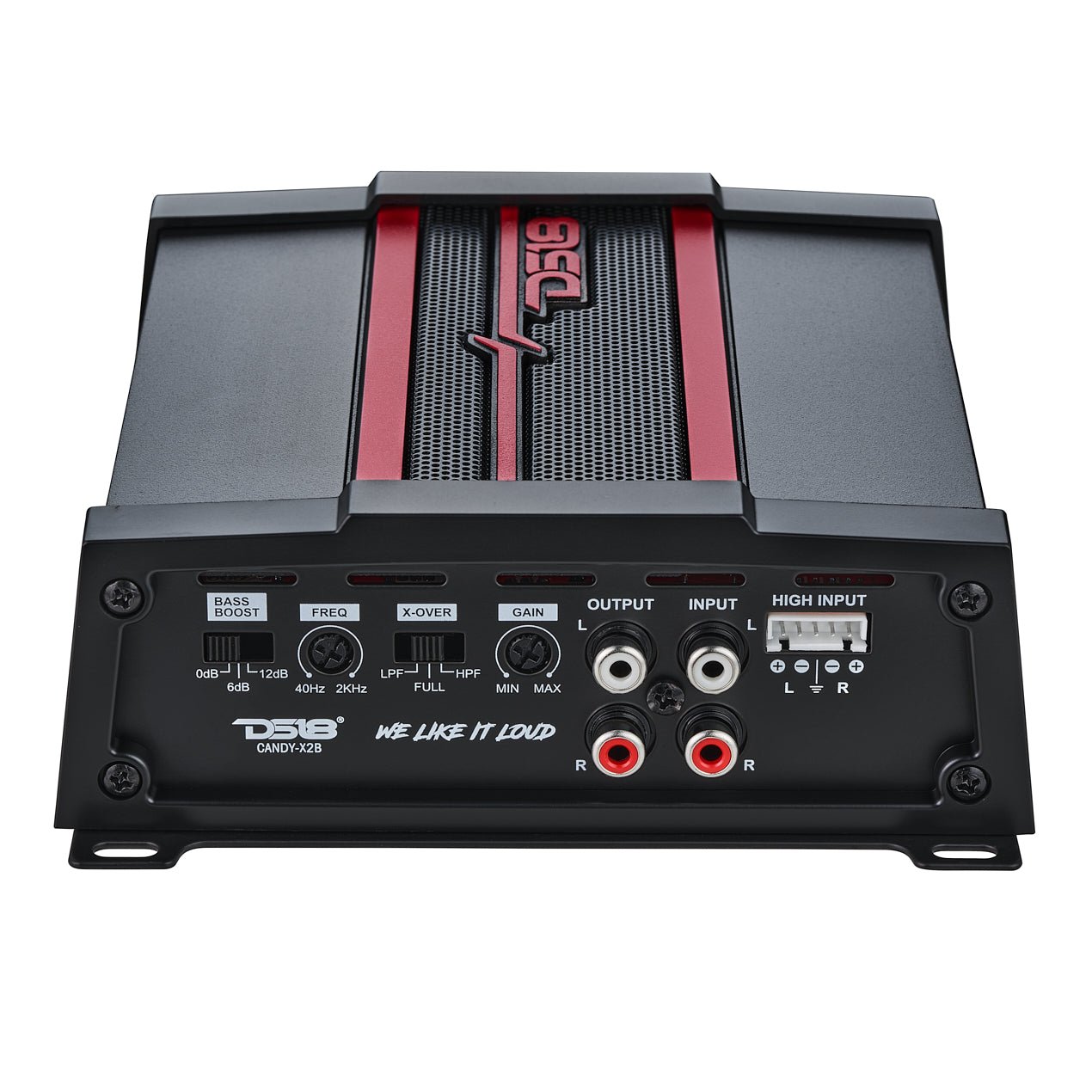

Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz~2kHz
Bass Boost Range
0/6/12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
No
Phase Selector
No
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
2 ohm St / 4 ohm Bridge
Led Indicator
Power / Protection

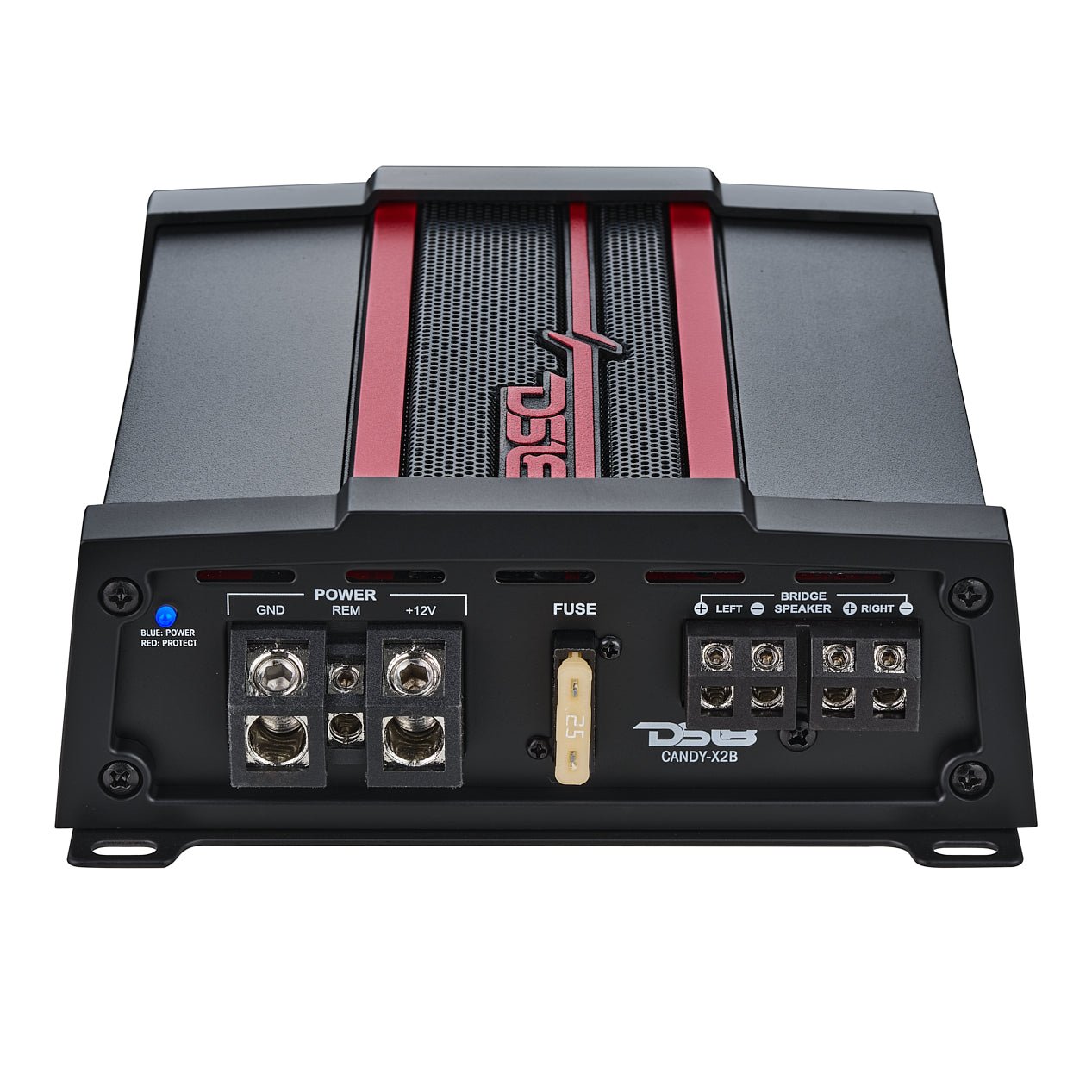

Power Input Terminal Size
4Ga
Fuse Size
25A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>158F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
Extra Features
Hi-Level Input With Auto Turn-On
Yes
Input Selector
No
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Measurement
Overall Length
6.5" / 165mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
5.27" / 134mm
Gross Single Unit Weight
1.7Kg
-
Product Overview
Product Overview
Compact Full-Range Class D 2-Channel Car Amplifier 800W
DS18’s CANDY-X2B is a compact 2-channel amplifier that delivers serious output in the tightest spaces. You can upgrade your OEM system, build a stealth install, or get sweet stereo power with deep tuning control — the CANDY-X2B does it all!
Big Power
With 200W RMS @ 2Ω, 120W RMS @ 4Ω, and 350W RMS bridged @ 4Ω, the CANDY-X2B powers mids, highs, or subs with ease. Run it in stereo or bridged — you get full-system flexibility in a 6.5" chassis.
Tuned Your Way
Adjust your crossover filters (LPF/FULL/HPF) from 40Hz–2kHz and use the Bass Boost selector (0/6/12dB) to dial in the perfect sound. Get crystal-clear clarity or pro-level punch, the CANDY-X2B gives you full control.
Ready For Your System
Thanks to its Hi-Level Inputs and Auto Turn-On, this amp integrates cleanly into factory audio systems — no remote wire needed. It’s installer-friendly and ready for your system.
Clean Power
Enjoy a 20Hz–20kHz frequency response, 0.5% THD, and >75% efficiency for crisp, distortion-free sound. Built-in protection keeps you covered from thermal overload, shorts, and voltage swings (9V–16V).
Go LOUD with the CANDY-X2B and bring full-size performance to compact, custom, or OEM setups!
