GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm

SKU: G5.7Xi
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm
GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm

GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm

SKU: G5.7Xi

$47.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 5x7"

4"
4x6"
5.25"
5x7"
6.5"
6.5" Component
6x9"
Quantity:
Notify Me When Available

  • Key Features

    • 5X7" 2-Way Coaxial
    • MAX Power: 150 Watts
    • RMS Power: 50 Watts
    • Impedance: 4 Ohm
    • Barium Ferrite & Neodymium Magnets
    • Pair ~ 85dB


  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    G5.7XI
    Nominal Diameter
    5X7" / 127x177mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    50W
    Maximum Power Handling
    150W
    Sensitivity (1w/1m)
    85dB
    Frequency Response
    40Hz-20KHz
    Recommended HI Pass Crossover
    70Hz
    Number of ways
    2
    Pair or single
    Pair
    Grill Included
    No

    WOOFER SPECS

    Voice Coil Diameter
    1" / 25.5mm
    Voice Coil Former Material
    ASV
    Winding Material
    EISV
    Cone Material
    Paper
    Surround Material
    Rubber
    Basket Material
    Steel
    Basket Color/Finish
    Black Matte
    Magnet Material
    Barium Ferrite
    Magnet Weight
    7.8Oz / 221g

    THIELE & SMALL PARAMETERS

    Equivalent Volume Vas
    6.2L / 0.21ft3
    Excursion (one way) Xmax
    2.7mm
    Free Air Resonance Fs
    82Hz
    Mechanical Factor Qms
    4.1
    Electrical Factor Qes
    2.2
    Total Factor Qts
    1.4
    Mechanical Mass Mms
    13.2g
    Mechanical Compliance Cms
    250mm/N
    Bl Factor Bl
    3.4
    Voice Coil Inductance Le
    172uH
    Cone Area Sd
    134.7cm2
    DC Resistance Re
    3.7 Ohms
    Mechanical Mass w/o air Mmd
    11.5g

    TWEETER SPECS

    Nominal Diameter
    1" / 25.5mm
    Voice Coil Diameter
    0.5" / 13.25mm
    Voice Coil Former Material
    ASV
    Winding Material
    EISVM
    Diaphragm Material
    Mylar
    Magnet Material
    Neodymium
    Magnet Weight
    1.8g

    MEASUREMENTS

    Overall Diameter
    5.57" x 7.6" / 141.5 x 193mm
    Overall Depth
    2.63" / 66.8mm
    Front Mount Baffle Cutout
    4.9" x 7" / 126 x 180mm
    Mounting Depth
    2.13" / 54mm
    Motor Diameter
    3.4" / 86mm
    Tweeter Protrusion
    0.5" / 12.8mm
    Gross Single Unit Weight
    0.68KG
    Single Unit Box Dimensions W x L x H
    235 x 85 x 310mm
    Quantity of Units in Master Carton
    10 PRS/CTN
    Gross Master Carton Weight
    18 KG
    Master Carton Dimensions W x L x H
    490 x 450 x 330mm

    Load More

  • Product Overview

    Product Overview

    DS18 G5.7XI

    2-Way Coaxial Speakers 150 Watts 4-Ohm

    The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

    The G5.7Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

    The G5.7Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.7Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
    The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 40Hz.

    These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.

    Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.7Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT

Hey {Recipient's Name},

{Your Name} wanted to help you out with some gift ideas ;)

Here's a super cool gift.

Cheers,

DS18

Imagen Product

GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm

DS18 G5.7XI GEN-X 5X7" 2-WAY COAXIAL SPEAKERS 150 WATTS 4-OHM

Related products

G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-OhmG6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-Ohm

MOVING SALE

SKU: G6.5XC
G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-Ohm

Size:

6.5" Component
15% OFF $80.71 $94.95
  • 6.5" 2-Way Component
  • MAX Power: 150 Watts
  • RMS Power: 100 Watts
  • Impedance: 4 Ohm ~ 86db
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ Crossovers & Grills Included
  • 6.5" 2-Way Component
  • MAX Power: 150 Watts
  • RMS Power: 100 Watts
  • Impedance: 4 Ohm ~ 86db
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ Crossovers & Grills Included
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-OhmGEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

MOVING SALE

SKU: G6.9Xi
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

Size:

6x9"
15% OFF $54.36 $63.95
  • 6X9" 3-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 86dB
  • 6X9" 3-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 86dB
GEN-X 4x6 2-Way Coaxial Speakers 45 Watts Rms 4-OhmGEN-X 4x6 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

MOVING SALE

SKU: G4.6Xi
GEN-X 4x6 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

Size:

4x6"
15% OFF $35.66 $41.95
  • 4X6" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB

  • 4X6" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB

GEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-OhmGEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

MOVING SALE

SKU: G5.25Xi
GEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

Size:

5.25"
15% OFF $35.66 $41.95
  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB
  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-OhmGEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm

MOVING SALE

SKU: G4Xi
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm

Size:

4"
15% OFF $32.26 $37.95
  • 4" 2-Way Coaxial
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB
  • 4" 2-Way Coaxial
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB
GEN-X 6.5" 2-Way Coaxial Speakers 50 Watts Rms 4-OhmGEN-X 6.5" 2-Way Coaxial Speakers 50 Watts Rms 4-Ohm

MOVING SALE

SKU: G6.5Xi
GEN-X 6.5" 2-Way Coaxial Speakers 50 Watts Rms 4-Ohm

Size:

6.5"
15% OFF $40.76 $47.95
  • 6.5" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 86dB
  • 6.5" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 86dB

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
25%
(1)
0%
(0)
0%
(0)
C
Caleb Posey
Pretty good for the price, few issues though

So, first off, these are not 3 way speakers. They are 2 way. Second, they don't have much bass, but the mids and highs are very clear and VERY loud. Overall a good sounding speaker, depending on car it may rattle a little bit.

K
Kevin
Great quality

Speakers are great. Fast shipping. Great price! Thanks!

E
Enrique Escobar

Arrived on time

b
brennan barnard

I am happy with the performance of the speakers, but they do get distorted.

Let customers speak for us

from 3481 reviews

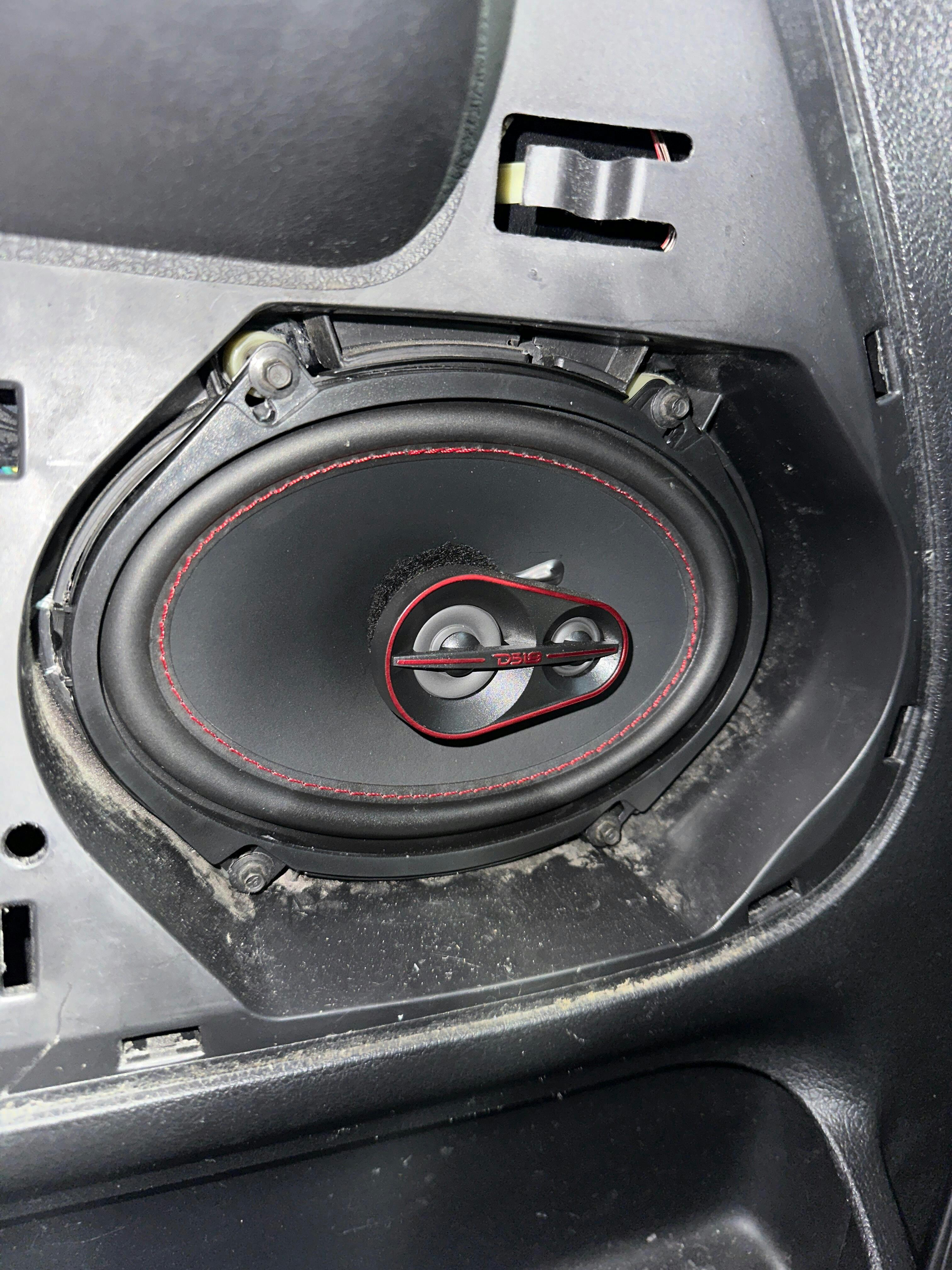

Very clear and loud. These went on a 2021 Tacoma replacing the factory jbl tweeters
