NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber

SKU: CF-65M
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber

NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber

SKU: CF-65M

Sale price$229.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 6.5"

6.5"
8"
Quantity:
  • Key Features

    • 6.5" 2-Way Marine Speaker
    • RMS Power: 100 Watts
    • Impedance: 4 Ohm
    • Ferrite & Neodymium Magnet
    • RGB LED Light ~  Metal Mesh Grill
    • Water Resistant IP65
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    CF-65M
    Nominal Diameter
    6.5" / 165mm
    Nominal Impedance
    4 ohms
    RMS Power Handling
    100W
    MAX Power Handling
    300W
    Sensitivity (1w/1m)
    91dB
    Frequency Response
    45Hz-23KHz
    Recommended HI Pass Crossover
    65 Hz

    Body / Features

    UV Compliant
    Yes, 100% Stable
    Marine Grade Type
    IP65
    RGB LED
    Yes, RGB integrated
    Grill Type
    Injection Molded Composite (ASA) with 316 Stainless Steel mesh
    Pair
    Yes
    Color / Finish
    Carbon Fiber Texture / Gloss

    Woofer Specifications

    Voice Coil Diameter
    1.2" / 30.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Injection Molded Polypropylene + UV Compliant
    Surround Material
    Butyl (Rubber)
    Basket Material
    High Temp Injection Molded Composite (ASA) with UV Protection coating
    Magnet Material
    Ferrite (Y35) + Neodymium (N35)
    Magnet Weight
    14oz+0.32oz

    Tweeter Specifications

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    PEI
    Magnet Material
    NEODYMIUM(N38H)
    Magnet Weight
    0.54oz

    Thiele & Small Parameters

    Equivalent Volume Vas
    20L / 0.708ft3
    Excursion (one way) Xmax
    8.5 mm
    Free Air Resonance Fs
    75Hz
    Mechanical Factor Qms
    7.823
    Electrical Factor Qes
    1.057
    Total Factor Qts
    0.931
    Moving Mass Mms
    4.122g
    Compliance Cms
    1.081mm/N
    Bl Factor Bl
    2.41
    Voice Coil Inductance Le
    0.543mH
    Cone Area Sd
    114.99cm2
    DC Resistance Re
    3.14 ohms
    Efficiency Bandwidth Product EBP
    70.9

    Speaker Measurement

    Overall Diameter
    6.94" / 176mm
    Overall Depth
    3.72" / 94.4mm
    Front Mount Baffle Cutout
    5.31" / 135mm
    Mounting Depth
    2.5" / 63.5mm
    Motor Diameter
    3.54" / 90mm
    Gross Single Unit Weight (lb)
    7.5
    Single Unit Box Dimensions W x L x H (Inches)
    16.75 x 8.75 x 4.75
    Quantity of Units in Master Carton
    4
    Gross Master Carton Weight (lb)
    31.5
    Master Carton Dimensions W x L x H (Inches)
    19.25 x 17.25 x 10

    Load More
  • Product Overview

    Product Overview

    DS18 CF-65M

    HYDRO 6.5” 2-Way Marine Speakers with RGB LED Lights

    DS18 offers the best in audio, and the CF-65M’s are proof of why. Rugged durability meets high-performance in this powerhouse 2-way speaker built to endure the harshest elements.

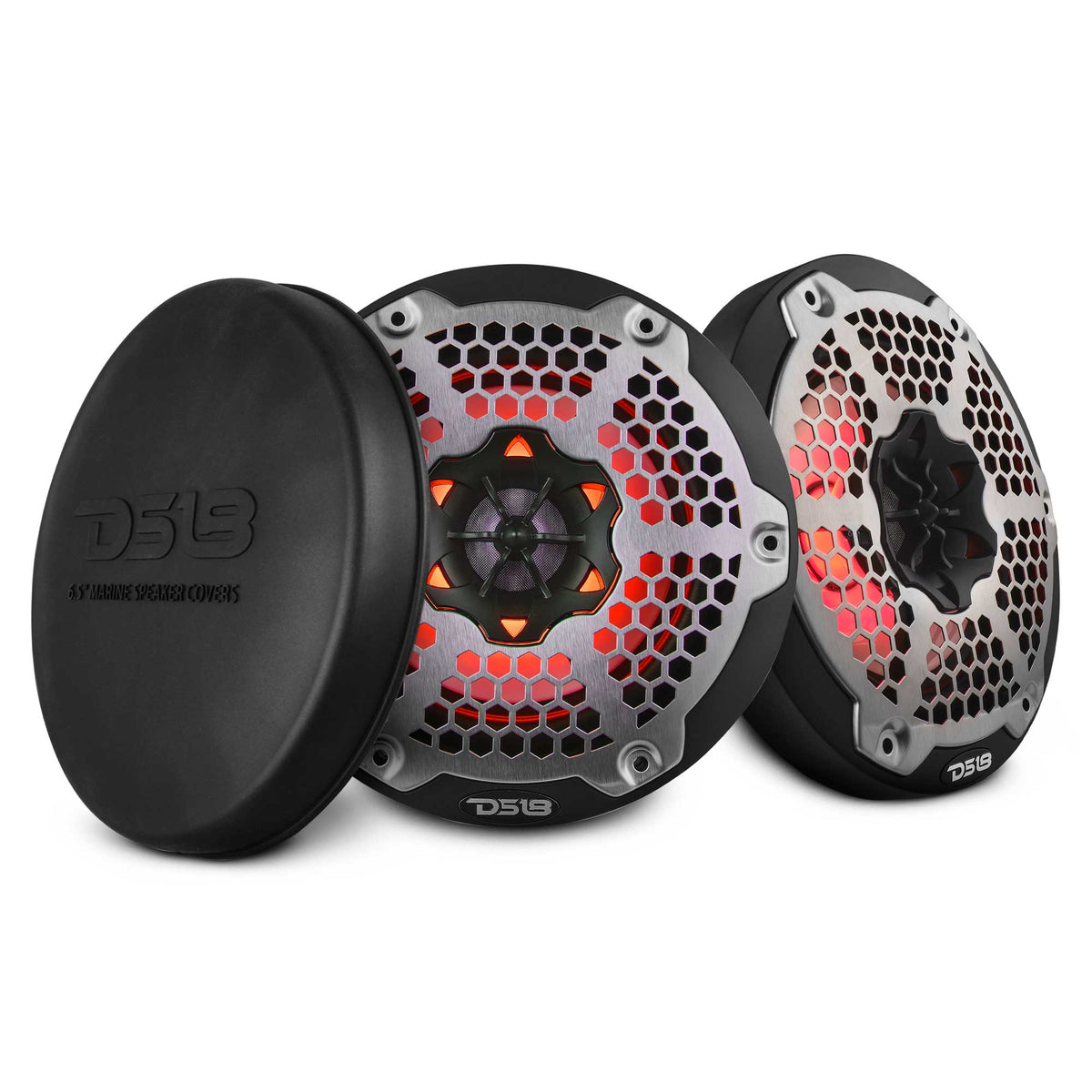

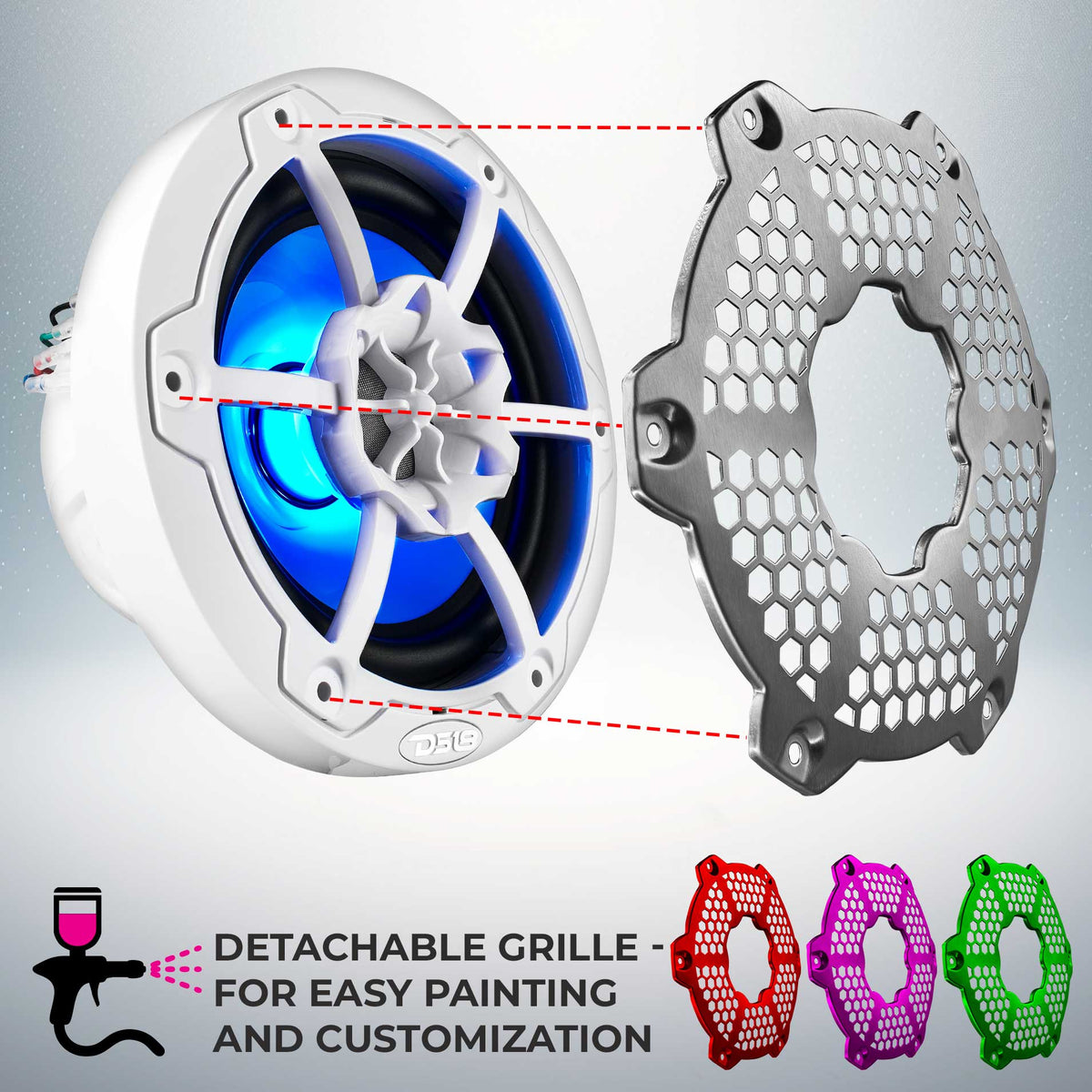

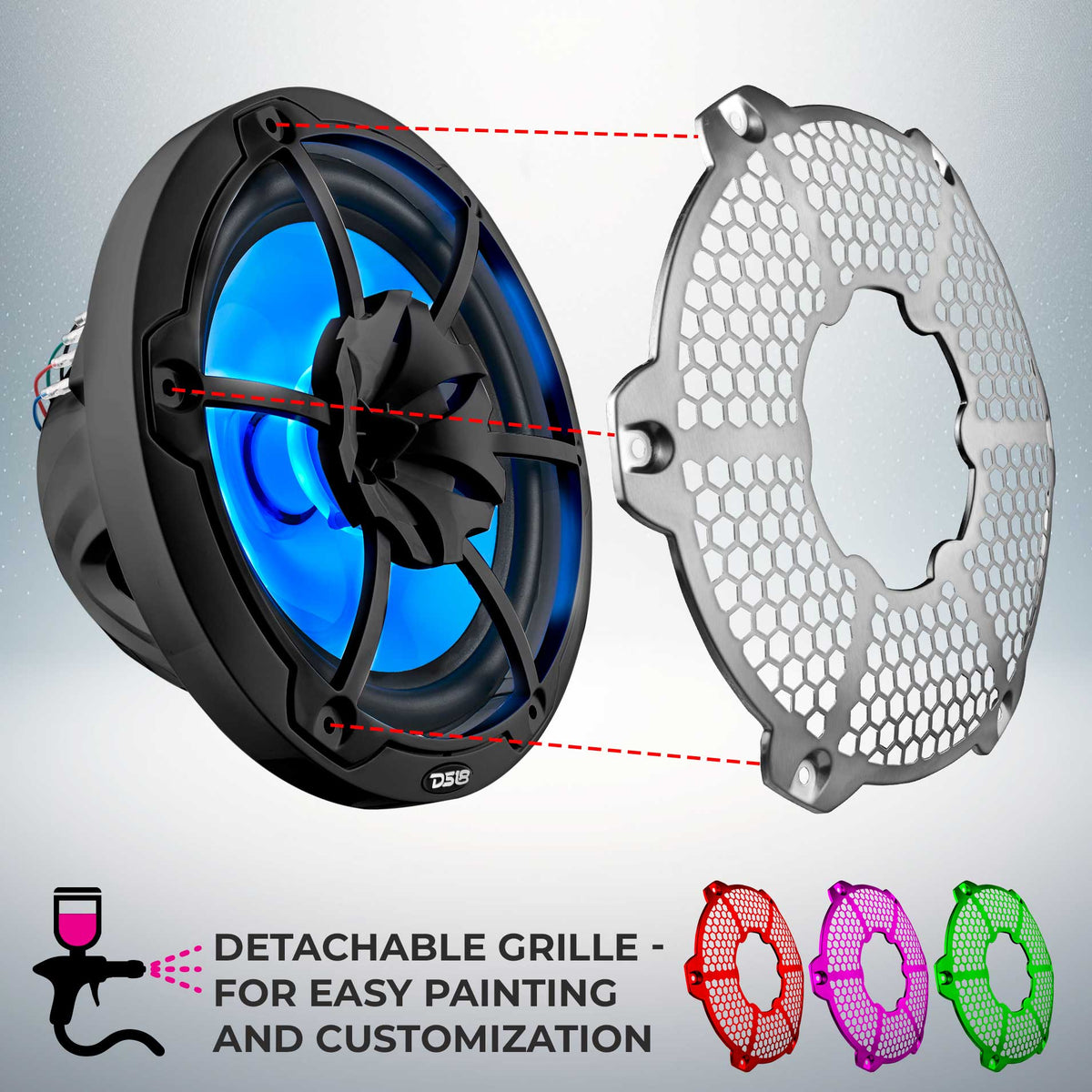

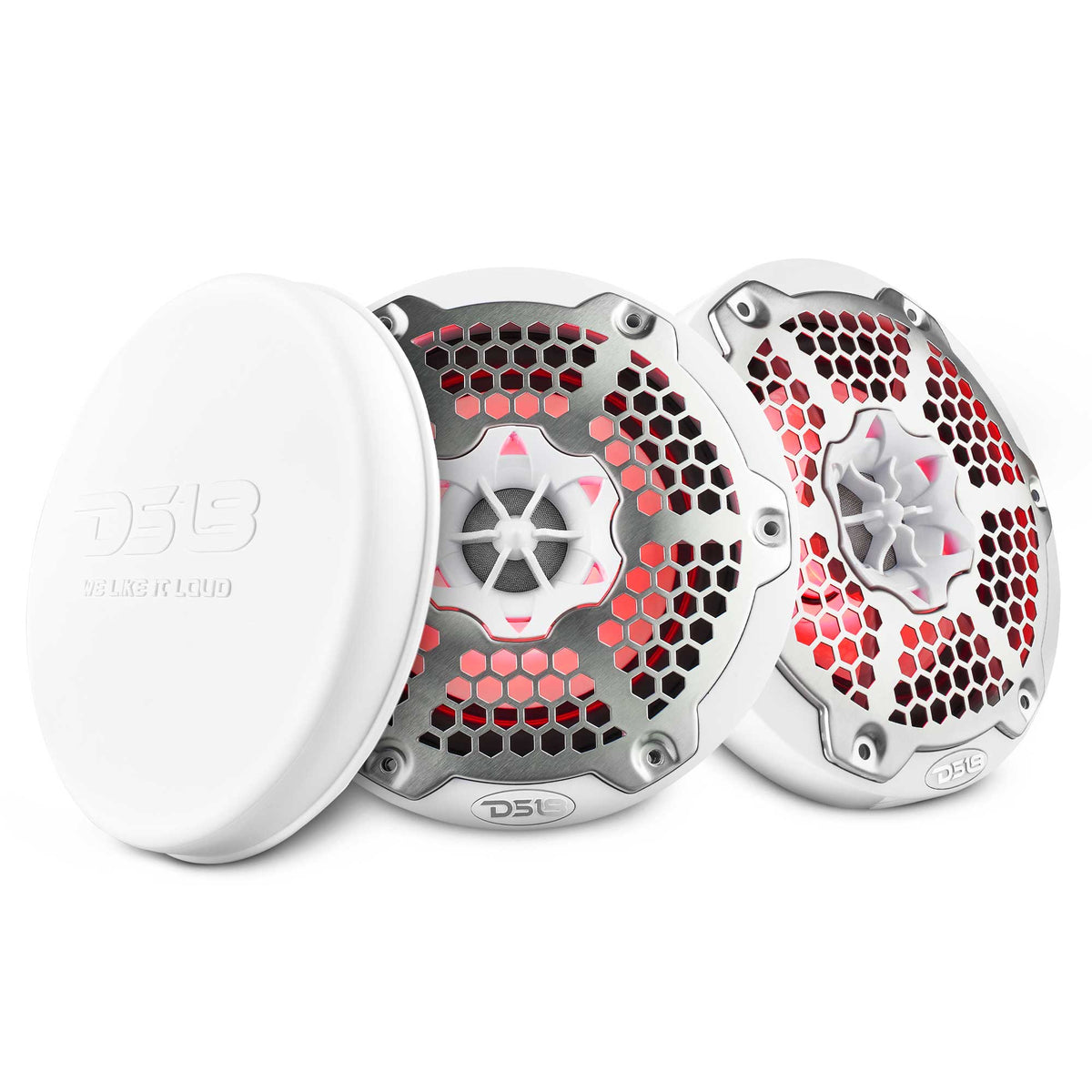

    Crafted with precision and style, featuring bold black carbon fiber texture and a detachable tough 316 metal mesh grill for ultimate durability and customization. The high-gloss basket with UV coating and high-temp injection-molded composite construction guarantees long-lasting resilience. And now, featuring a brand-new silicone cover, these speakers are fortified with even greater protection. Backed by an IP65 waterproof rating, the CF-65M handles everything nature throws your way.

    The CF-65M HYDRO handles 100W RMS and 300W MAX power, delivering clarity powered by a Y35 Ferrite Main Magnet and Reverse Neodymium technology. With 91dB sensitivity at 1w/m, every beat is crisp, every note hits, and every detail pops. Covering a frequency range from 45Hz to 23 KHz, it captures the full spectrum of your favorite tracks with unmatched depth and precision.

    Customization is limitless with Multi-Function RGB LED Lighting. Sync your vibe to DS18’s LED-BTC controller or any RF/BT/Wifi-compatible system (sold separately).

    Rugged, stylish, and engineered for excellence, DS18’s CF-65M is built for those who demand the best.
