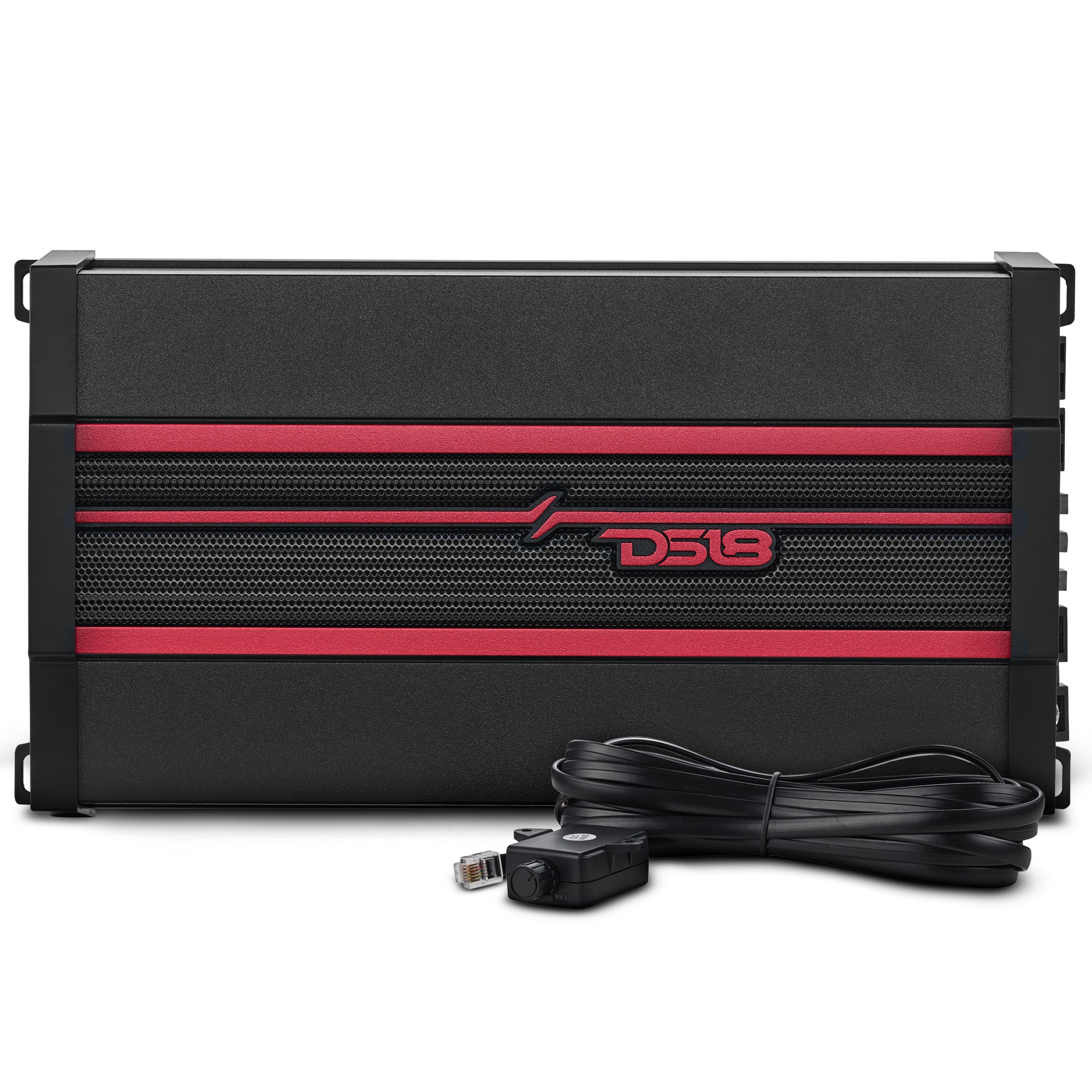

CANDY Compact Class D 1-Channel Monoblock Amplifier 3000 Watts
CANDY Compact Class D 1-Channel Monoblock Amplifier 3000 Watts
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
Channel:
Power Rating:
Channel: 1 Channel
Power: 1000 Watts Rms
Color:
-
Key Features
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-XXL1B
Total Watts (Peak)
3000W
RMS Power @ 4 Ohm
400W
RMS Power @ 2 Ohm
700W
RMS Power @ 1 Ohm
1000W
Audio
Frequency Response
20-250Hz
Signal to Noise Ratio
70 dB
Efficiency @ 4ohm
N/A
Damping Factor
N/A
Input Impedance
10K ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-150Hz
Bass Boost Range
0dB~18dB
Bass Boost Frequency
40~100Hz
Infrasonic Filter
No
Phase Selector
0~180
Features
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 ohm
Led Indicator
Power/Protect

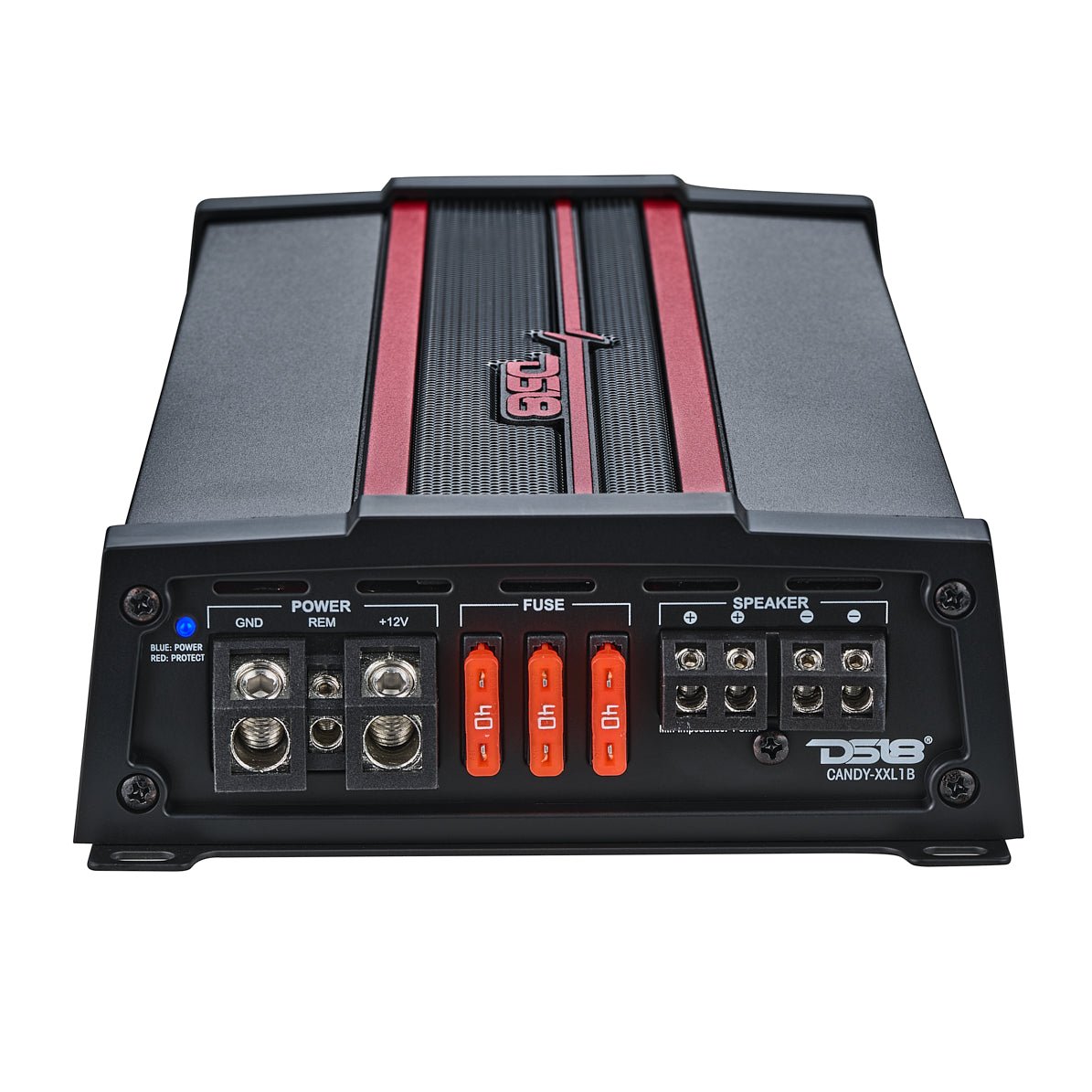

Power Input Terminal Size
4Ga
Fuse Size
40A x 3

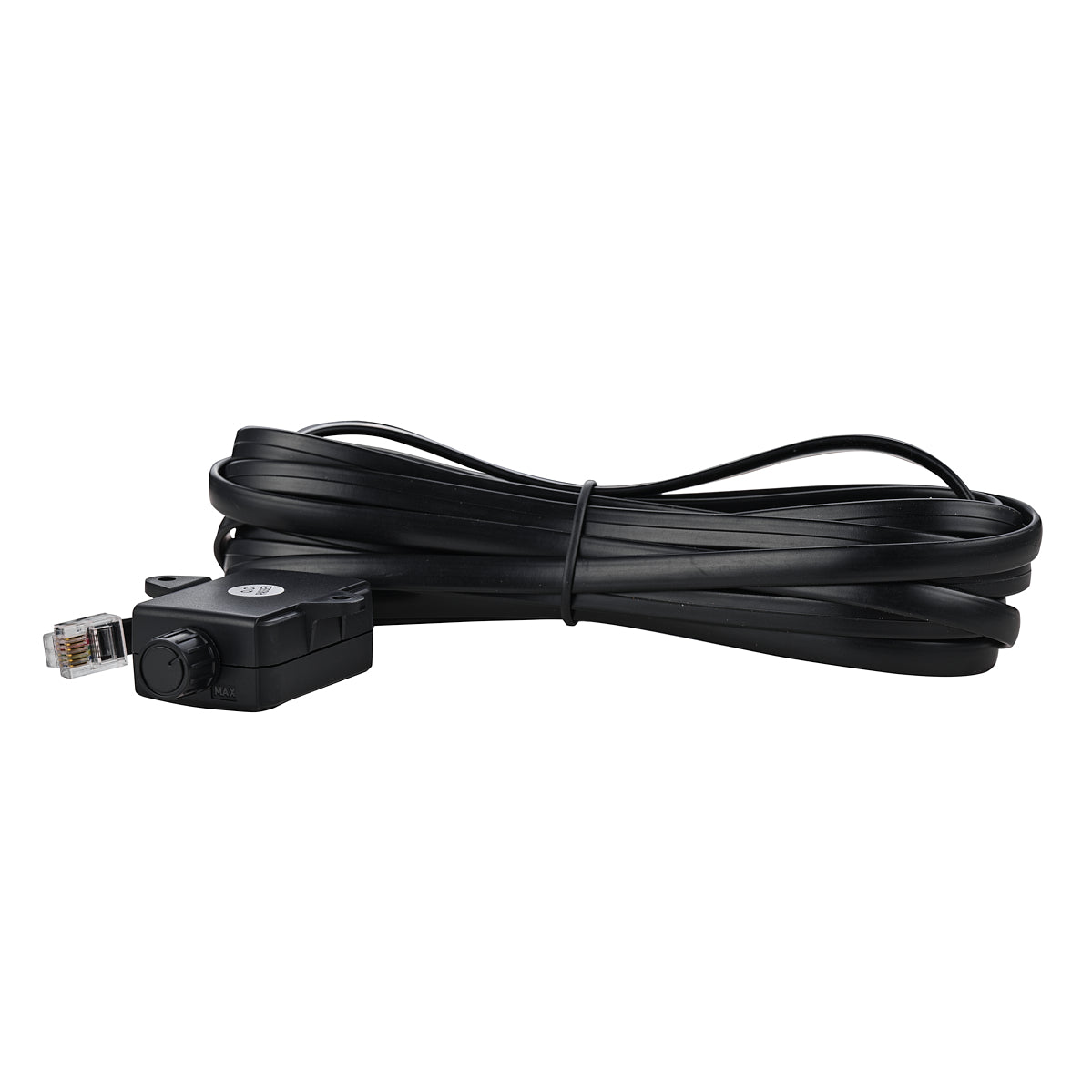

Remote Level Control
Yes / Remote Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>158F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Black Matte
Measurement
Overall Length
11" / 280mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
9.8" / 250mm
Gross Single Unit Weight
5.5
-
Product Overview
Product Overview
DS18 CANDY-XXL1B Monoblock Subwoofer Amplifier | 1000W RMS @ 1 Ohm
The XXL1B is the muscle of the CANDY series. Delivering up to 1000W RMS at 1 ohm, this amp turns your substage into a thunderous bass machine—without hogging all your system space.
Pure Output, Fully Protected
Class D architecture gives you stable output with low heat. Featuring smart thermal, overload, and voltage protections: the XXL1B stays cool and safe no matter how hard you push it.Full Bass Control

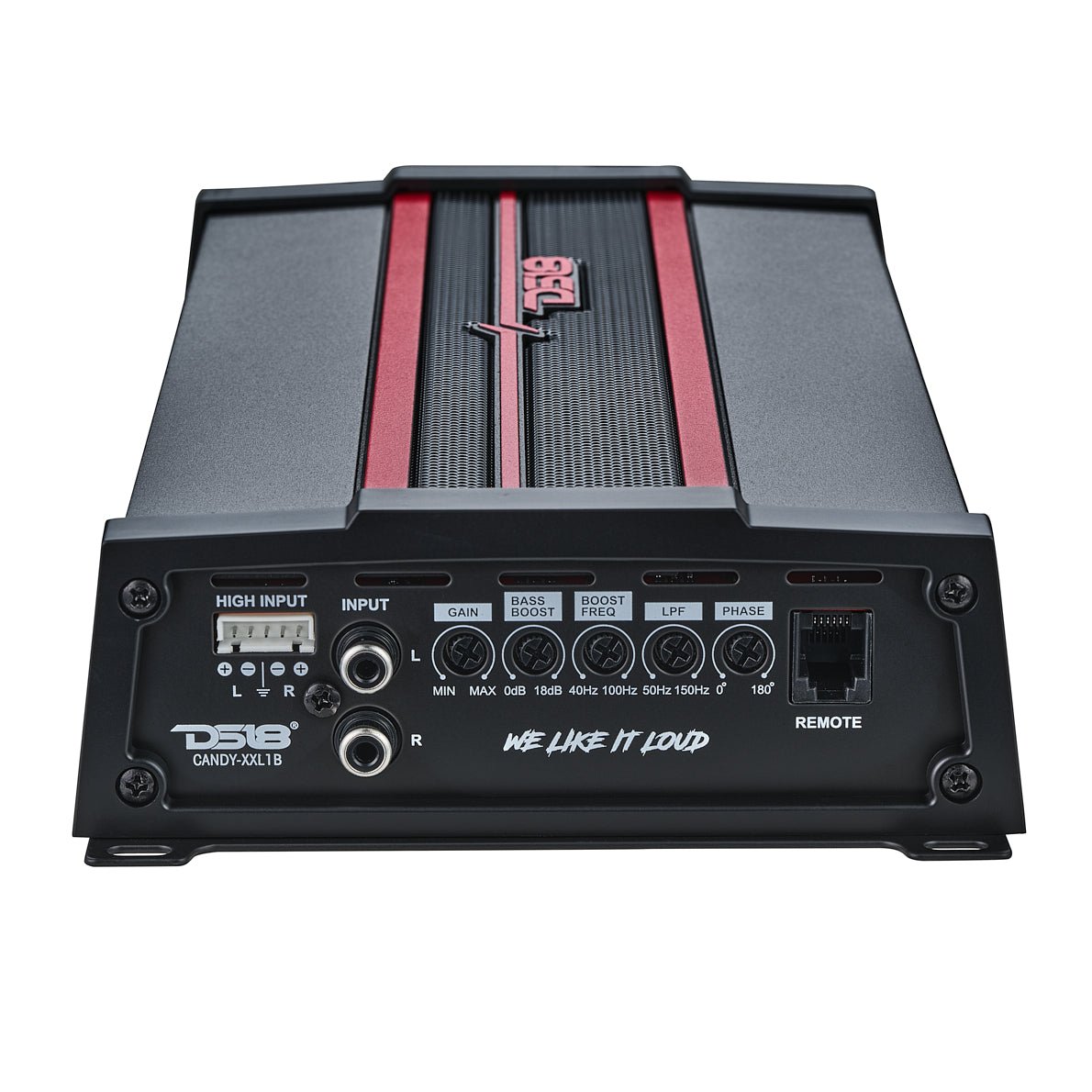

Fine-tune your setup with variable LPF (50–150Hz), bass boost (0–18dB), and a 0–180° phase switch. Remote gain control adds quick access when you need to crank the lows.Get LOUD with DS18’s XXL1B for all-out power, without losing space in your vehicle!
