CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts

SKU: CANDY-XXL4B

NEW ARRIVAL

CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts
CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts
CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts
CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts
CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts

CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts

SKU: CANDY-XXL4B

NEW ARRIVAL

Sale price$299.95
/Each
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Channel: 4 Channel

Power: 4 x 220 Watts Rms

4 x 120 Watts Rms
4 x 220 Watts Rms

Color:

Quantity:
  • Key Features

    • 4 Channel
    • Stereo Full Range
    • 2 ohm St/4 ohm Bridge
    • Class D
    • Compact Design
    • Hi-Level Input With Auto Turn-On
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    CANDY-XXL4B
    Total Watts (Peak)
    3200W
    RMS Power @ 4 Ohm
    220W x 4
    RMS Power @ 2 Ohm
    400W x 4
    RMS Power @ 4 Ohm Bridge
    750W x 2

    Audio

    Frequency Response
    20Hz~20KHz
    Signal to Noise Ratio
    70dB
    Efficiency @ 4ohm
    >75%
    Damping Factor
    26
    Input Impedance
    10K ohm
    Channel Separation
    50dB
    Total Harmonic Distortion (THD)
    0.50%
    Low Level Input Range
    0.2~6V
    High Level Input
    Yes, 2~10V
    Selectable X-Over
    LPF/FULL/HPF
    X-Over Filter Range
    40Hz~2kHz
    Bass Boost Range
    0/6/12dB
    Bass Boost Frequency
    50Hz
    Infrasonic Filter
    No
    Phase Selector
    No

    Features

    Amplifier Class
    Digital
    Amplifier Type
    Stereo Full Range
    Number of Channels
    4
    Minimum Impedance
    2 ohm St / 4 ohm Bridge
    Led Indicator
    Power / Protection
    Power Input Terminal Size
    4Ga
    Fuse Size
    50A x 2
    Remote Level Control
    No
    Cooling Fan
    No
    Voltmeter
    No
    Thermal Protection
    Yes (>158F)
    Over-Load Protection
    Yes
    DC Output Protection
    No
    Short Circuit Output Protection
    Yes
    Voltage Input Protection
    Yes (9-16v)
    Clipping Protection
    No
    Body Color / Finish
    Matte Black

    Extra Features

    Hi-Level Input With Auto Turn-On
    Yes
    Input Selector
    No
    Compact Size to easy Installation for Any Applications
    Yes

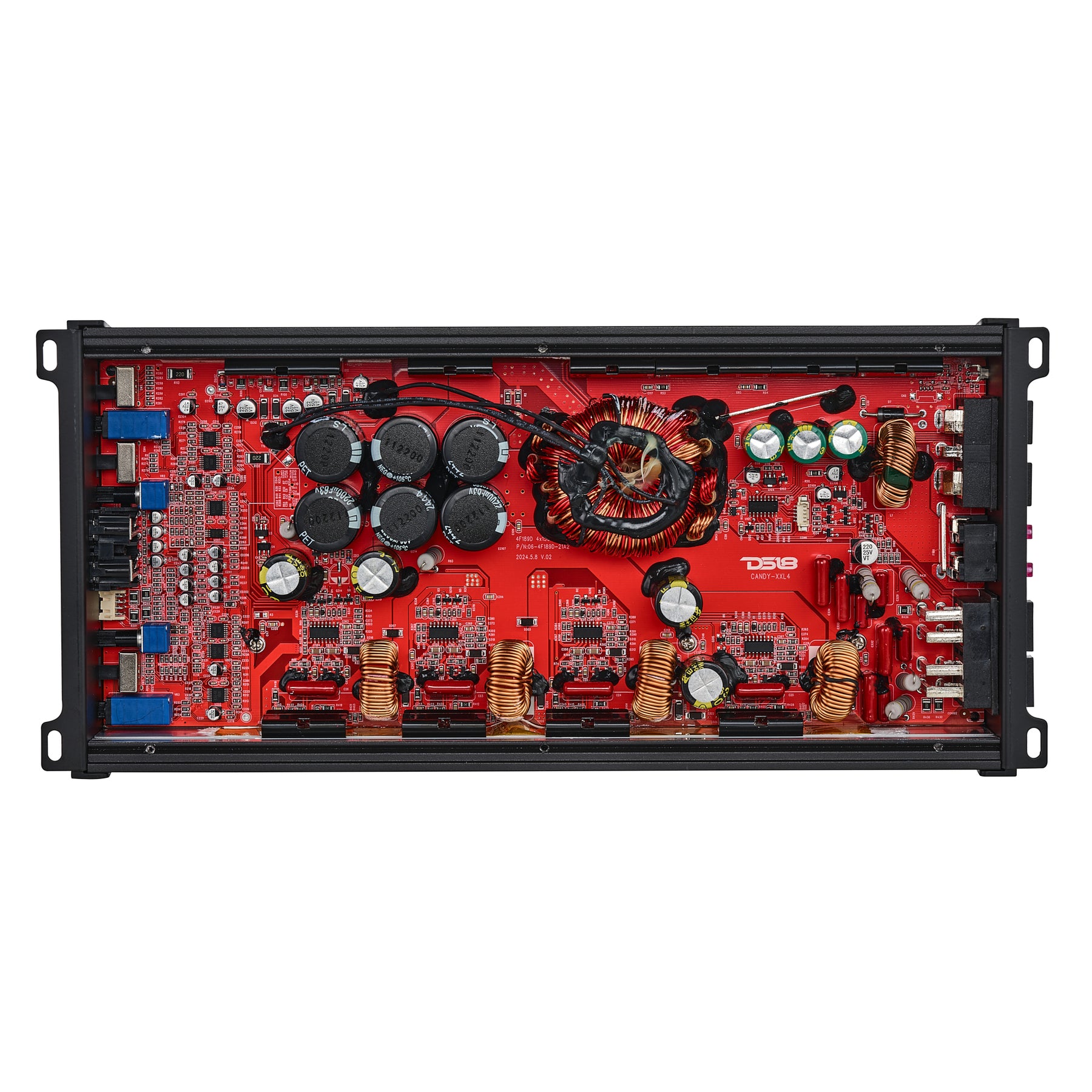

    Surface Mount Component Technology
    Yes
    Quality Control Verification using Audio Precision Instruments
    Yes

    Measurement

    Overall Length
    13" / 330mm
    Overall Width
    5.9" / 150mm
    Overall Height
    2.16" / 55mm
    Heatsink Length
    11.8" / 300mm
    Gross Single Unit Weight
    2.8Kg

    Load More
  • Product Overview

    Product Overview

    DS18 CANDY-XXL4B

    Digital 4-Channel Amplifier

    DS18’s CANDY-XXL4B is a 4-channel digital amplifier engineered for massive volume, clean signal, and pro-level tuning — all in a compact 13” footprint that hits hard and runs cool.

    Extreme Output Without the Bulk
    The CANDY-XXL4B delivers 3200W peak resulting in clean RMS output across all channels at: 4 x 220W @ 4Ω, 4 x 400W RMS @ 2Ω, and 2 x 750W @ 4Ω Bridged!

    Bridge It. Boost It. Tune It.
    Fine-tune your system with adjustable crossovers (40Hz–2kHz) and selectable bass boost (0/6/12dB).

    OEM-Ready with Pro Installer Features
    Drop it in fast with Hi-Level Inputs and Auto Turn-On — perfect for factory system upgrades. This means easy installs in tight spaces, stealth builds, or even powersports applications.

    Built to Last.
    A high-efficiency Class D design, dual 50A fuses, and full thermal, overload, and short protection make the CANDY-XXL4B ready for anything your system throws at it.

    Choose the CANDY-XXL4B when you're ready for harder, cleaner, and LOUDER sound!
