ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

Name: ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm
Brand: ZXI12.2D
SKU: ZXI12.2D
Price: 259.16 USD
Availability: InStock
Rating: 5.0 (8 reviews)

SKU: ZXI12.2D

DS18 ZXI High Excursion 12" Subwoofer 2000 Watts DVC 2-Ohms 4 Magnets audio subwoofers

ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

SKU: ZXI12.2D

$323.95

-$64.79 instant savings

$259.16 /EACH

Ships Free – Dispatches Next Business Day Within the USA

Starting at $24/mo or 0% APR with Affirm.

In stock

Size: 12"

10"

12"

15"

Impedance: 2-Ohm

2-Ohm

4-Ohm

Quantity:

Drop a Hint

Key Features
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Technical Data - Manual

DOWNLOAD THE USER MANUAL

SPECS

SKU
ZXI12.2D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
2 + 2 ohms
RMS Power Handling
1000W
Maximum Power Handling
2000W
Sensitivity (1w/1m)
89.2dB
Frequency Response
15Hz-1.7KHz
Recommended Lo Pass Crossover
90Hz

MOTOR

Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Ferrite
Magnet Weight
224 Oz (4 x 56 oz)
Displacement Volume
3.99L / 0.14 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
15.23L / 0.53ft3
Free Air Resonance Fs
31Hz
Mechanical Factor Qms
5.268
Electrical Factor Qes
0.576
Total Factor Qts
0.528
Moving Mass Mms
242.643g
Compliance Cms
0.075mm/N
Bl Factor Bl
15.55
Voice Coil Inductance Le
12.6 mH
Diaphragm Area Sd
530.93cm2
DC Resistance Re
2.0+2.0 ohms
Efficiency Bandwidth Product EBP
53.8

RECOMMENDED ENCLOSURES

Sealed Internal Volume
21.2L / 0.75ft3
Sealed Box Output Response F3
42Hz
Ported Internal Volume
39.6L / 1.4ft3
Port Size *Square (W x H x Long)
1.23" x 12.28" x 24.35" / 32.1 x 312 x 618.4mm
Port Tuning Frequency FB
32Hz
Ported Box Output Response F3
26Hz

MEASUREMENTS

Overall Diameter
12.55" / 319mm
Overall Depth
9.13" / 232mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.55" / 192mm
Motor Diameter
7.08" / 180mm
Gross Single Unit Weight
35
Dimensions W x L x H
14.5 x 14.75 x 11.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight
35
Master Carton Dimensions W x L x H
14.5 x 14.75 x 11.5

Load More Show Less
Product Overview

Product Overview

DS18 ZXI12.2D

High Excursion 12" Car Audio Subwoofer 2000W Watts 2-Ohm DVC Quad Stacked Magnets

Experience bass like never before with DS18’s ZXI12.2D: the ultimate subwoofer for enthusiasts who crave thunderous bass!
The ZXI subline is renowned for its high excursion capabilities, and the ZXI12.2D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI12.2D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI12.2D will excel in both, giving you the flexibility to optimize placement in any vehicle.
It’s dual 2-ohm configuration and 3-inch voice coils, makes the ZXI12.2D a force to be reckoned with. Handling a staggering 1000W RMS power and 2000W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.
The ZXI12.2D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI12.2D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.
Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation.

FREE SHIPPING ORDERS +$35

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Sold out

ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 2-Ohm

BLACK FRIDAY SALE

SKU: ZXI6.2D ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 2-Ohm

20% OFF $95.96 $119.95

6.5" High Excursion Subwoofer
MAX Power: 600 Watts
RMS Power: 300 Watts
Impedance: 2-Ohm 1.5" DVC
Quad Stacked Ferrite Magnet
87dB

6.5" High Excursion Subwoofer
MAX Power: 600 Watts
RMS Power: 300 Watts
Impedance: 2-Ohm 1.5" DVC
Quad Stacked Ferrite Magnet
87dB

-$18.00 instant savings

ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 4-Ohm

BLACK FRIDAY SALE

SKU: ZXI6.4D ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 4-Ohm

20% OFF $81.56 $119.95

6.5" High Excursion Subwoofer
MAX Power: 600 Watts
RMS Power: 300 Watts
Impedance: 4-Ohm 1.5" DVC
Quad Stacked Ferrite Magnet
87dB

6.5" High Excursion Subwoofer
MAX Power: 600 Watts
RMS Power: 300 Watts
Impedance: 4-Ohm 1.5" DVC
Quad Stacked Ferrite Magnet
87dB

ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 2-Ohm

BLACK FRIDAY SALE

SKU: ZXI8.2D ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 2-Ohm

Size:

Impedance:

2-Ohm

20% OFF $163.16 $203.95

8" High Excursion Subwoofer
MAX Power: 1200 Watts
RMS Power: 600 Watts
Impedance: 2-Ohm 2" DVC
Quad Stacked Ferrite Magnet
86dB

8" High Excursion Subwoofer
MAX Power: 1200 Watts
RMS Power: 600 Watts
Impedance: 2-Ohm 2" DVC
Quad Stacked Ferrite Magnet
86dB

ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 4-Ohm

BLACK FRIDAY SALE

SKU: ZXI8.4D ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 4-Ohm

Size:

Impedance:

4-Ohm

20% OFF $163.16 $203.95

8" High Excursion Subwoofer
MAX Power: 1200 Watts
RMS Power: 600 Watts
Impedance: 4-Ohm 2" DVC
Quad Stacked Ferrite Magnet
86dB

8" High Excursion Subwoofer
MAX Power: 1200 Watts
RMS Power: 600 Watts
Impedance: 4-Ohm 2" DVC
Quad Stacked Ferrite Magnet
86dB

Sold out

ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 2-Ohm

BLACK FRIDAY SALE

SKU: ZXI10.2D ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 2-Ohm

Size:

10"

Impedance:

2-Ohm

20% OFF $220.76 $275.95

10" High Excursion Subwoofer
MAX Power: 1600 Watts
RMS Power: 800 Watts
Impedance: 2-Ohm 2.5" DVC
Quad Stacked Ferrite Magnet
86dB

10" High Excursion Subwoofer
MAX Power: 1600 Watts
RMS Power: 800 Watts
Impedance: 2-Ohm 2.5" DVC
Quad Stacked Ferrite Magnet
86dB

ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 4-Ohm

BLACK FRIDAY SALE

SKU: ZXI10.4D ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 4-Ohm

Size:

10"

Impedance:

4-Ohm

20% OFF $220.76 $275.95

10" High Excursion Subwoofer
MAX Power: 1600 Watts
RMS Power: 800 Watts
Impedance: 4-Ohm 2.5" DVC
Quad Stacked Ferrite Magnet
86dB

10" High Excursion Subwoofer
MAX Power: 1600 Watts
RMS Power: 800 Watts
Impedance: 4-Ohm 2.5" DVC
Quad Stacked Ferrite Magnet
86dB

Ds18 ZXI High Excursion 12" Subwoofer 2000W Watts DVC 4-Ohms audio subwoofers

BLACK FRIDAY SALE

SKU: ZXI12.4D ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm

Size:

12"

Impedance:

4-Ohm

20% OFF $259.16 $323.95

12" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 4-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89.2dB

12" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 4-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89.2dB

ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

BLACK FRIDAY SALE

SKU: ZXI15.2D ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

Size:

15"

Impedance:

2-Ohm

20% OFF $287.96 $359.95

15" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 2-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89dB

15" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 2-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89dB

-$71.99 instant savings

ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm

BLACK FRIDAY SALE

SKU: ZXI15.4D ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm

Size:

15"

Impedance:

4-Ohm

20% OFF $230.37 $359.95

15" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 4-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89dB

15" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 4-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89dB

BLACK FRIDAY SALE

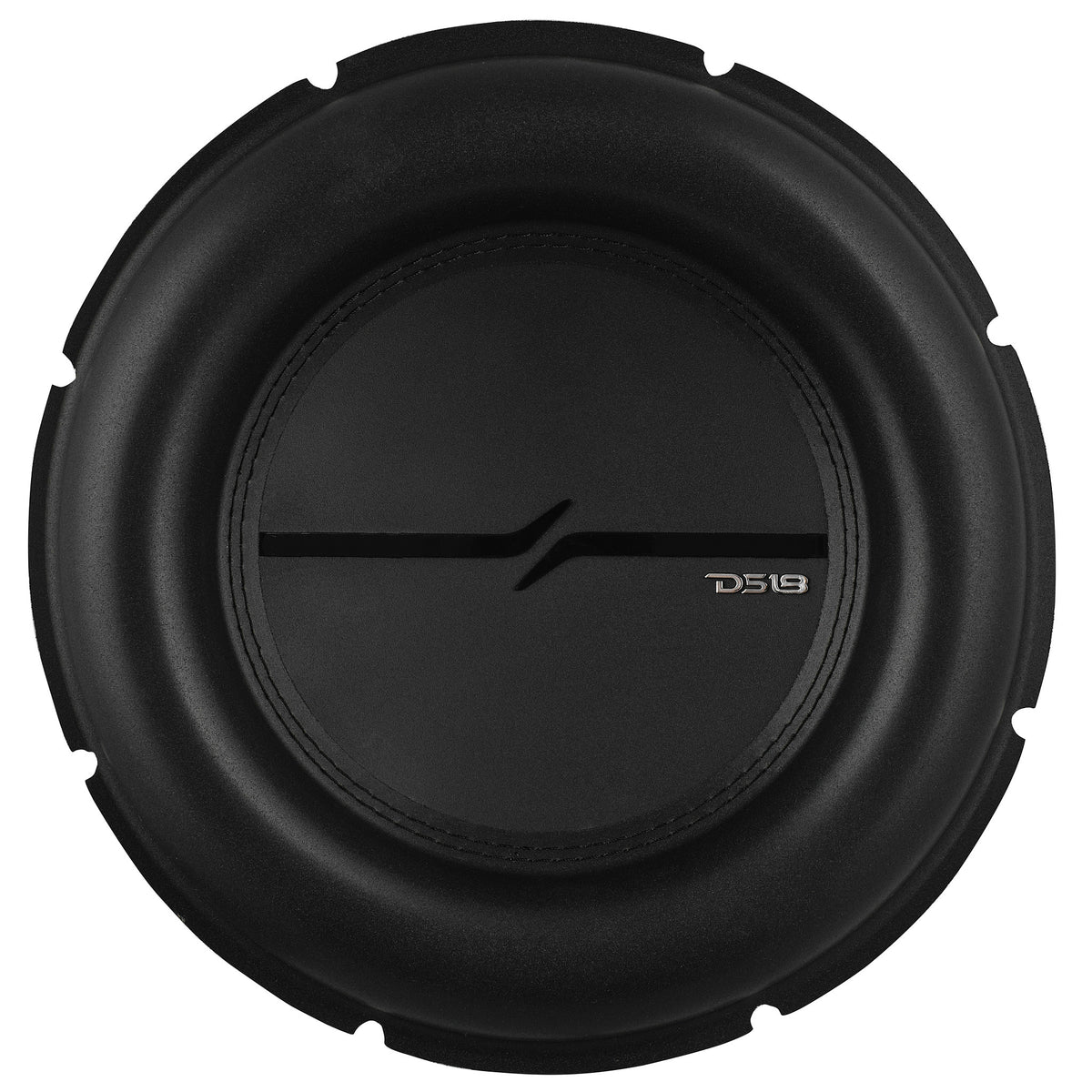

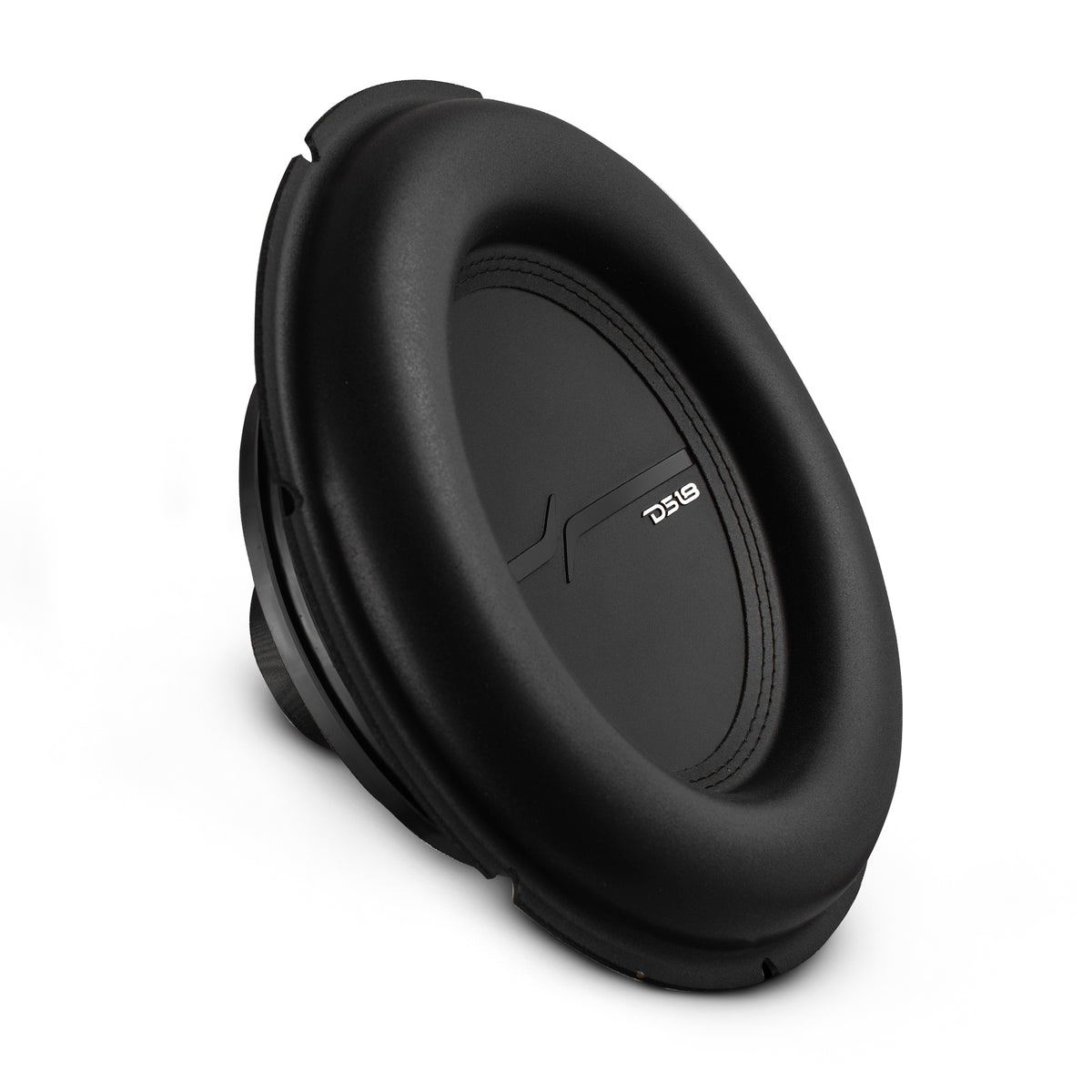

SKU: ZXI12.2DRCK Recone Kit for ZXI12.2D
