PRO-ZXI 6x9" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets 300 Watts Rms 4-Ohm







PRO-ZXI 6x9" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets 300 Watts Rms 4-Ohm
Sale $84.96 / EACH
Reg.$99.95
15% OFF FOR MOVING SALE!
Availability:98 Items
-
Key Features
- 6X9" Mid-Range W/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 98dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
PRO-ZXI694BM
Nominal Diameter
6x9" / 152.4 x 228.6mm
Nominal Impedance
4 OHMS
RMS Power Handing
300 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
98dB
Frequency Response
80Hz - 12.5KHz
Recommended Hi Pass Crossover
100 Hz
SPECS
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 + 3 Oz
THIELE & SMALL PARAMETERS
Vas
14.9L / 0.5271f
Xmax
7.2mm
Fs
100Hz
Qms
10.64
Qes
0.439
Qts
0.421
Re
3.6 ohms
MEASUREMENTS
Overall Diameter
9.43x6.57" / 240x167mm
Front Mount Baffle Cutout
8.74x6" / 222x153mm
Mounting Depth
3.38" / 86mm
Overall Depth
3.7" / 94mm
Product Weight
6 lbs
Product Dimensions
10.25 x 7.25 x 4.25
M/C Weight
49 lbs
M/C Dimensions
21 x 15.25 x 9.5
M/C QTY
8
Sold In
Piece
-
Product Overview
Product Overview
DS18 PRO-ZXI694BM 6x9” Mid-Range Loudspeaker with Bullet 600W 4-Ohm
Introducing the DS18 PRO-ZXI694BM - the ultimate audio solution for the music lover who demands nothing but the best! With its sleek black basket face and bullet dust cap, this speaker not only looks great but also sounds phenomenal, delivering clear, crisp, and powerful mid and high range frequencies with ease.
Designed with the audio enthusiast in mind, the ZXI series takes Pro Audio to new heights of elegance, clarity, and loudness. The PRO-ZXI694BM is perfect for anyone who wants unparalleled volume and sound quality without sacrificing efficiency or performance.
The bullet design of the DS18 PRO-ZXI694BM helps enhance its frequency response, which ranges between 80Hz and 12.5KHz, and improves its ability to handle mid-range frequencies. The bullet shape of the dust cap allows for smoother and more efficient sound dispersion, which helps to minimize distortion and improve clarity, even at higher volumes.
With a sensitivity rating of 98dB, this speaker is highly efficient and requires less power to achieve the same volume as less sensitive speakers. This translates to a cleaner and clearer sound with less distortion, even at high volumes.
The PRO-ZXI694BM's magnet weighs in at a light 30 Oz + 3 Oz, constructed from high-quality ferrite, ensuring that it can handle the power thrown at it efficiently. Its 3.38" mounting depth makes installation a breeze, allowing you to easily upgrade your car's audio system without breaking a sweat.
The PRO-ZXI694BM is the perfect addition to any audio system, offering a premium listening experience that is unmatched by other speakers on the market.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

PRO-ZXI 6x9" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets 300 Watts Rms 4-Ohm
Default Title
Related products
- 6.5" Mid-Range w/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 97dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 97dB
- 8" Mid-Range w/Bullet
- MAX Power: 700 Watts
- RMS Power: 350 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 99dB
- 8" Mid-Range w/Bullet
- MAX Power: 700 Watts
- RMS Power: 350 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
- 99dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB

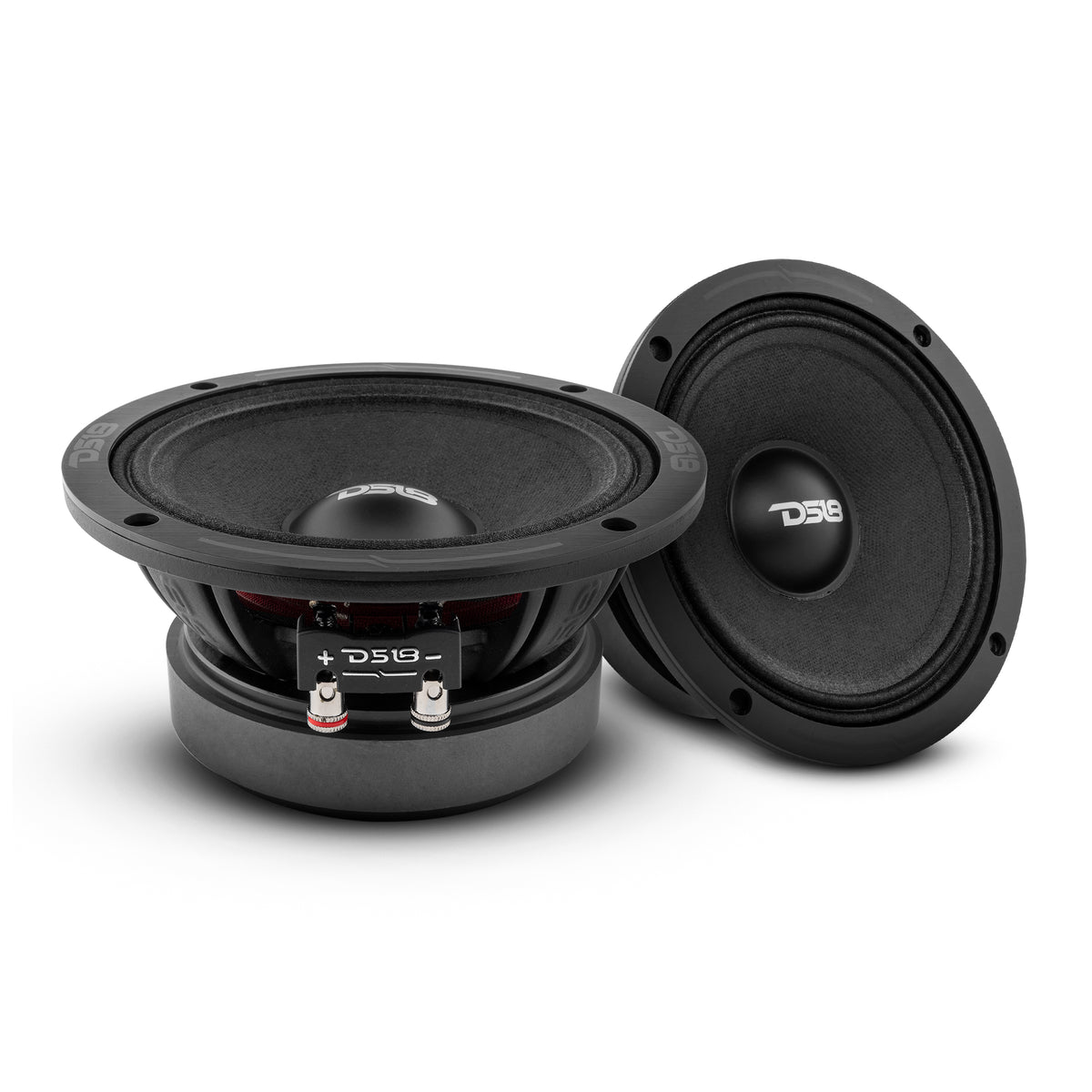

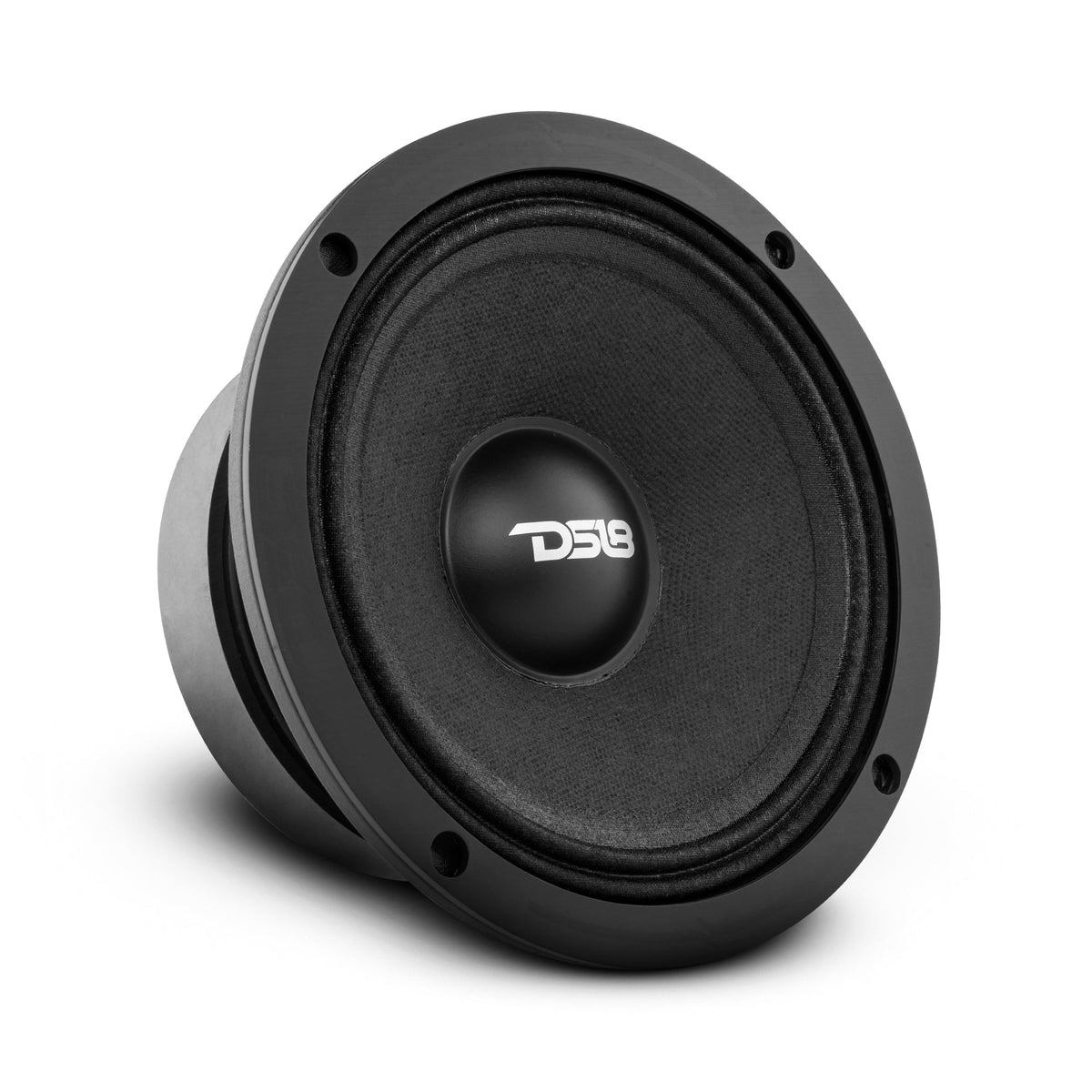

- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite & Neodymium Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite & Neodymium Magnet
- 97dB
- 8" Mid-Range
- MAX Power: 700 Watts
- RMS Power: 350 Watts
- Impedance: 8-Ohm
- Ferrite & Neodymium Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 700 Watts
- RMS Power: 350 Watts
- Impedance: 8-Ohm
- Ferrite & Neodymium Magnet
- 99dB
I upgraded my 4 door speakers along with the 4 channel 3k watt amp and these things are LOUD
Awesome sounds luv them
So far so good I'm pretty happy with the sound and quality of your speakers ...gotta say that I reluctant to buy them because of the fairly cheap cost but am more than satisfied. Let's see how they hold up🤞🤞

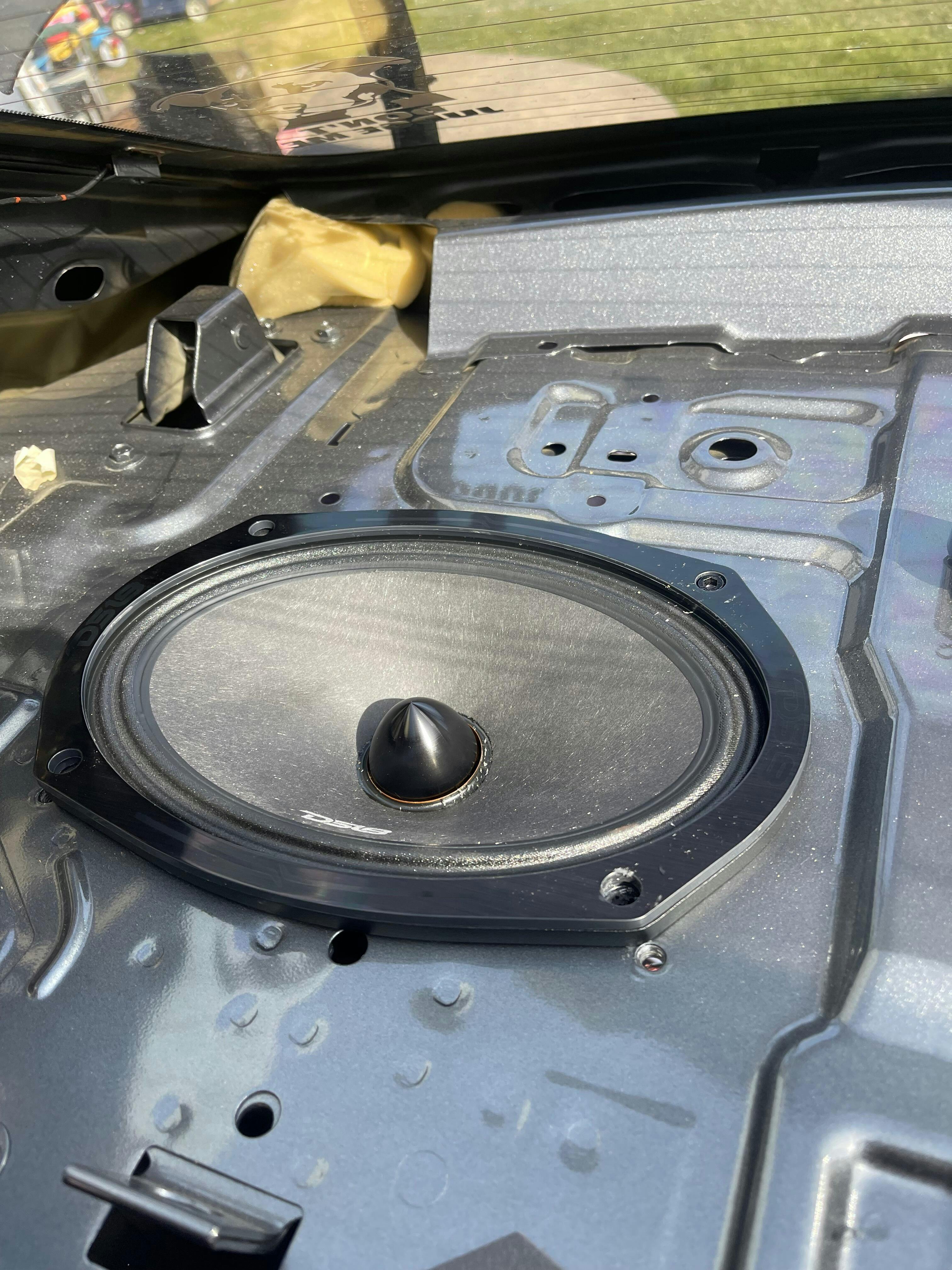

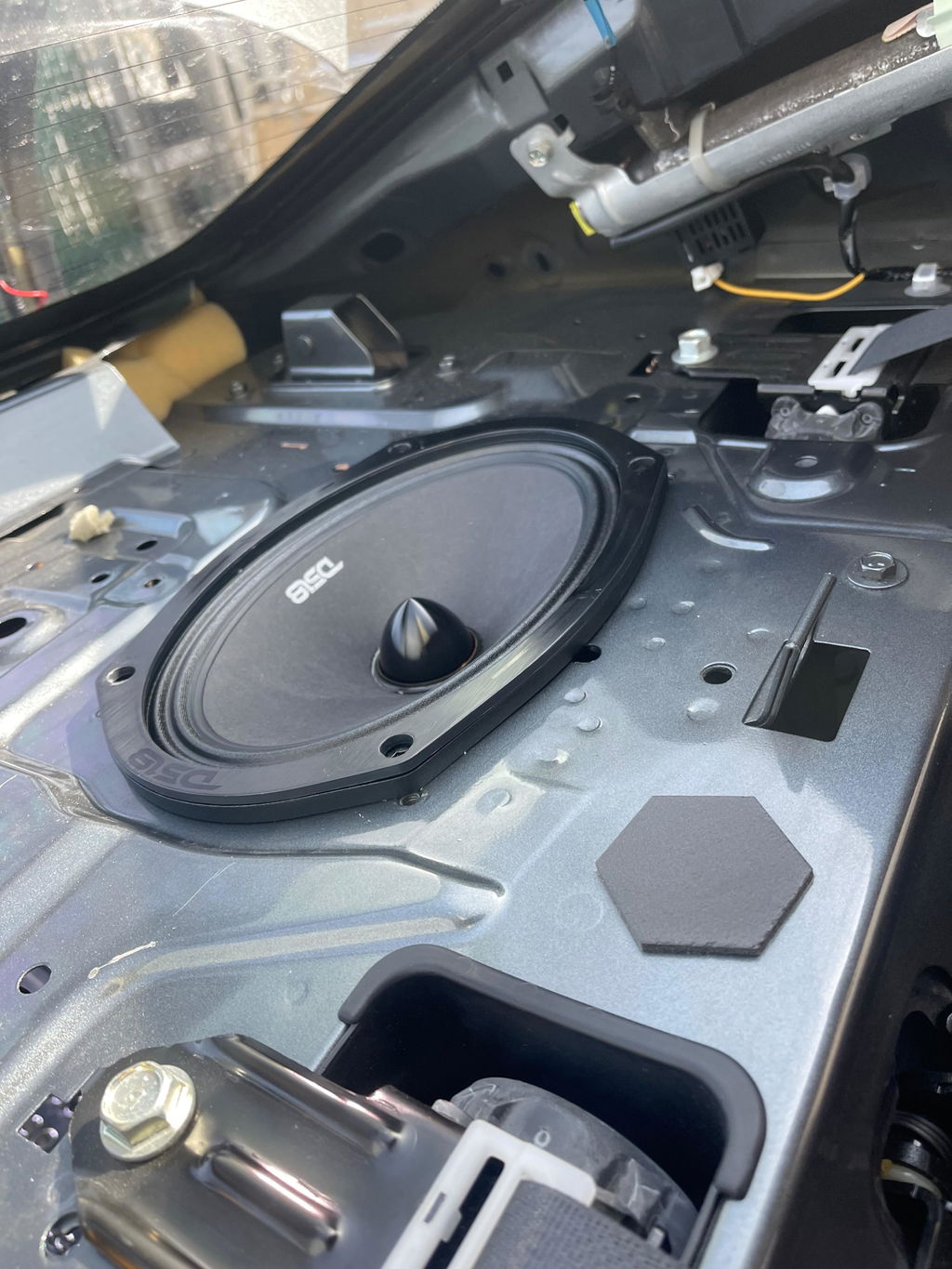

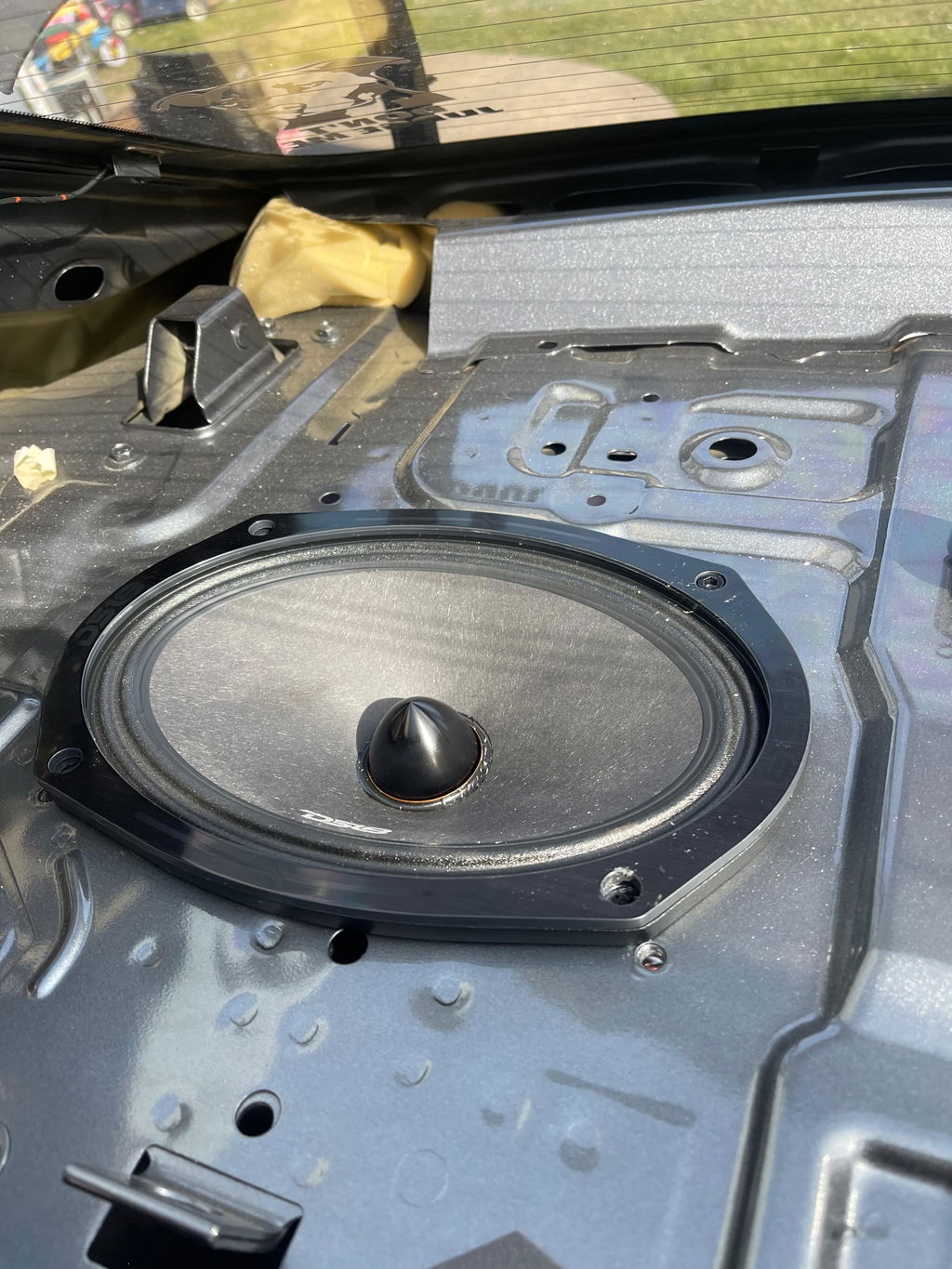

5 STAR!!! Installed these speakers in my 2019 Road Glide and I could not be happier with the clear sound!
