SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs
Exclusive SMD design with VM-1 voltmeter
Front acrylic window and digital RGB lighting
IR remote control for LED patterns and colors
Professional Tiffany
RCA terminals
Dual cooling fans
For Enhanced Performance
Korean components
OFC Internal Wiring
SPECS
SKU
SMD-2800.5
RMS Power @ 4 ohm
180W x 4 + 700W (SUB)
RMS Power @ 2 ohm
250W x 4 + 1100W (SUB)
RMS Power @ 1 ohm
1800W (SUB)
RMS Power @ 4 ohm Bridge
500W x 2 (CH1~CH4)
Audio
Frequency Response
10Hz-24KHz(CH1~CH4) / 35Hz-250Hz(SUB)
Signal to Noise Ratio
>98dB
Efficiency @ 4ohm
>60%(4CH) / >82%(SUB)
Damping Factor
250
Input Impedance
22K ohm
Channel Separation
>50dB
Total Harmonic Distortion (THD)
0.10%
Low Level Input Range
200mV-6V
High Level Input
NO
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
50Hz-2KHz
Bass Boost Range
0~9dB
Bass Boost Frequency
30Hz-60Hz
Phase Selector
0~180
Operational Voltage
8.5-16.5v
Features
Amplifier Class
Analog AB + Digital (Sub Ch)
Amplifier Type
Stereo Full-Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge + 1 ohms (Sub)
Led Indicator
Power / Protection / Clip
Power Input Terminal Size
0 AWG
Recommended Fuse Size (Not Included)
300A
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Black
Input Mode Selectable
Yes (4/5ch)
Metal Adjustment Knobs with Click Position
Yes
Professional Tiffany RCA Connectors
Yes
Remote Level Knob with Clip indicator
Yes (Metal Case)
Reliable Heavy Duty Korean Board Design
Yes
High-Power Class AB Circuit Design
Yes
Exclusive SMD design with VM-1 Voltmeter
Yes
Front Acrylic Window and Digital RGB Lighting
Yes
IR Remote Control for LED patterns and colors
Yes
Measurement
Overall Length
18.2" / 462mm
Overall Width
9.15" / 232mm
Overall Height
3" / 76mm
Heatsink Length
16.5" / 420mm
Gross Single Unit Weight
13Lb / 5.89kg
5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights
Introducing the SMD-2800.5— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, the SMD-2800.5 features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.
“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest," says Steve Meade.

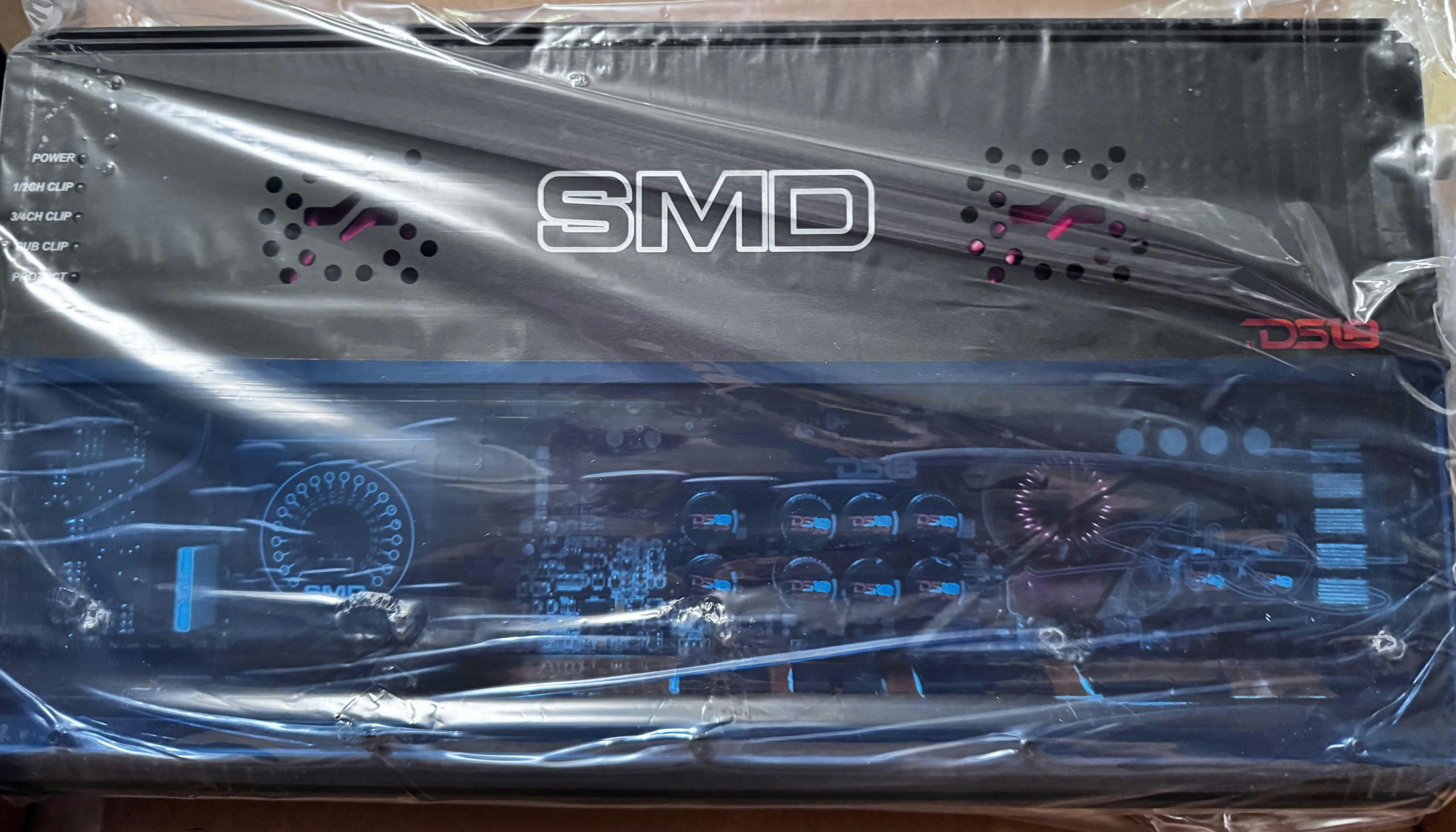

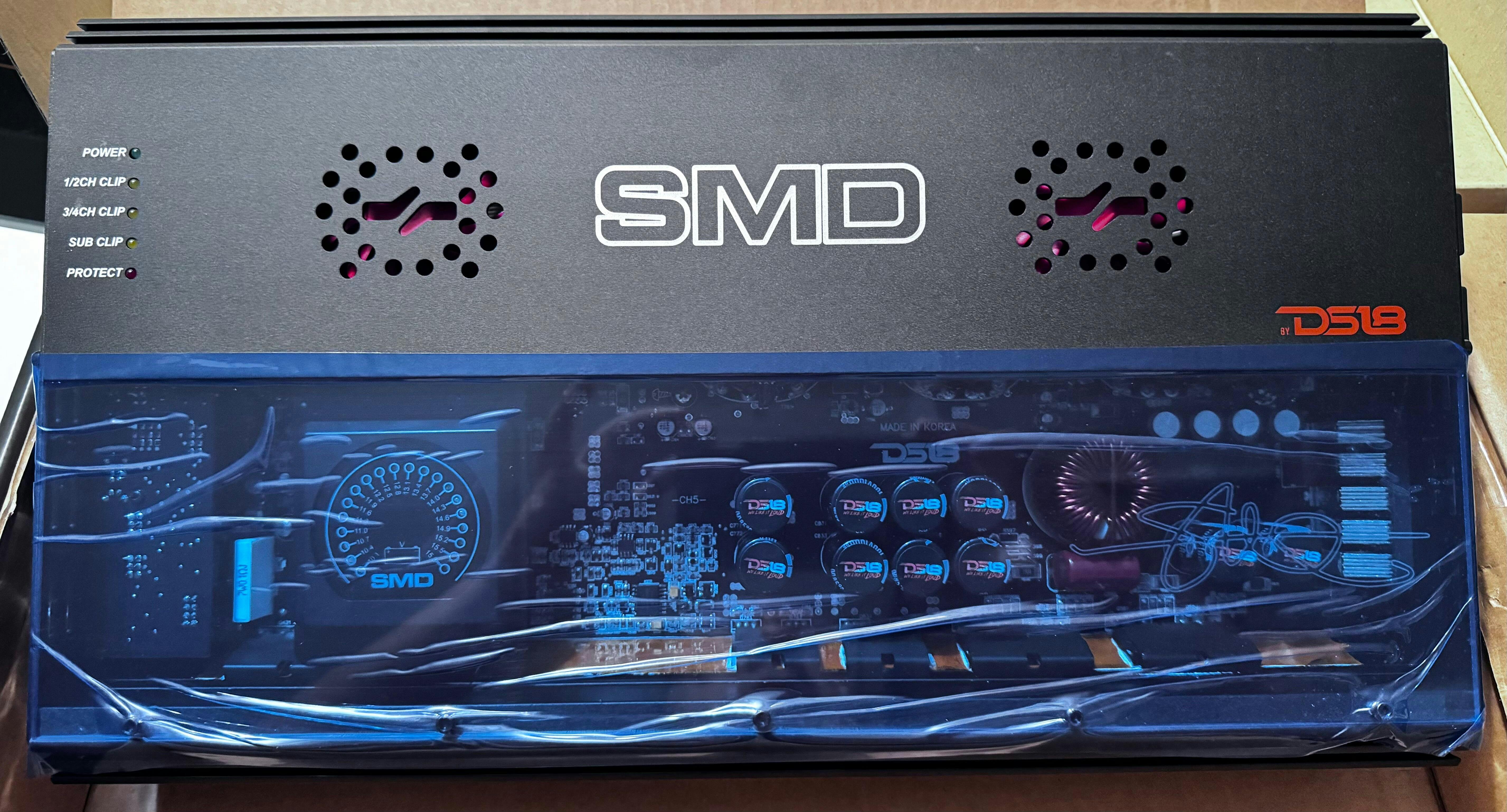

With the SMD-2800.5, we achieved that and more. What sets the SMD-2800.5 apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.
Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-2800.5 is not only visually striking but also engineered for top-tier performance. It delivers an impressive 180W x 4 + 700W (SUB) RMS at 4-ohm, 250W x 4 + 1100W (SUB) RMS at 2-ohm, and a powerful 1800W RMS (SUB) at 1-ohm. Bridging the channels offers 500W x 2 RMS for CH1~CH4, driving even the most demanding setups with ease.
The SMD-2800.5 is designed for audiophiles seeking superior sound quality across a variety of channels. As a Class AB + D amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 300A fusing requirement, it’s built for robust power delivery. Additional features include selectable 4/5 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.
Crafted with precision using only the best components, DS18’s SMD-2800.5 is a full-range amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front, rear, and subwoofer combination. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.
Push the limits of what’s possible with the SMD-2800.5’s groundbreaking design and raw power!
