EXL-X 8" Subwoofer 600 Watts Rms DVC 4-Ohms






EXL-X 8" Subwoofer 600 Watts Rms DVC 4-Ohms
Sale $193.76 / EACH
Reg.$227.95
15% OFF FOR Labor Day Sale!
Availability:3 Items
-
Key Features
- 8" Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 89dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
EXL-X8.4D
Nominal Diameter
8" / 203.2mm
Nominal Impedance
4+4 ohms
RMS Power Handling
600W
Maximum Power Handling
1200W
Sensitivity (1w/1m)
89dB
Frequency Response
38Hz-1KHz
Recommended Lo Pass Crossover
100Hz
MOTOR
Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
130 oz
Displacement Volume
N/A
THIELE & SMALL PARAMETERS
Equivalent Volume
2.8L / 0.098ft3
Free Air Resonance
70Hz
Mechanical Factor
5.206
Electrical Factor
0.803
Total Factor
0.696
Moving Mass
103.36g
Compliance
0.053mm/N
Bl Factor
9.5
Voice Coil Inductance
1.394mH
Diaphragm Area
193.59cm2
DC Resistance
3.2+3.2 ohm
Efficiency Bandwidth Product
87.1
RECOMMENDED ENCLOSURES
Sealed Internal Volume
0.3ft3
Sealed Box Output Response
60Hz
Ported Internal Volume
0.5ft3
Port Size *Square (W x H x Long)
1" x 8" x 10.56" / 25 x 203 x 268mm
Port Tuning Frequency
55Hz
Ported Box Output Response
42Hz

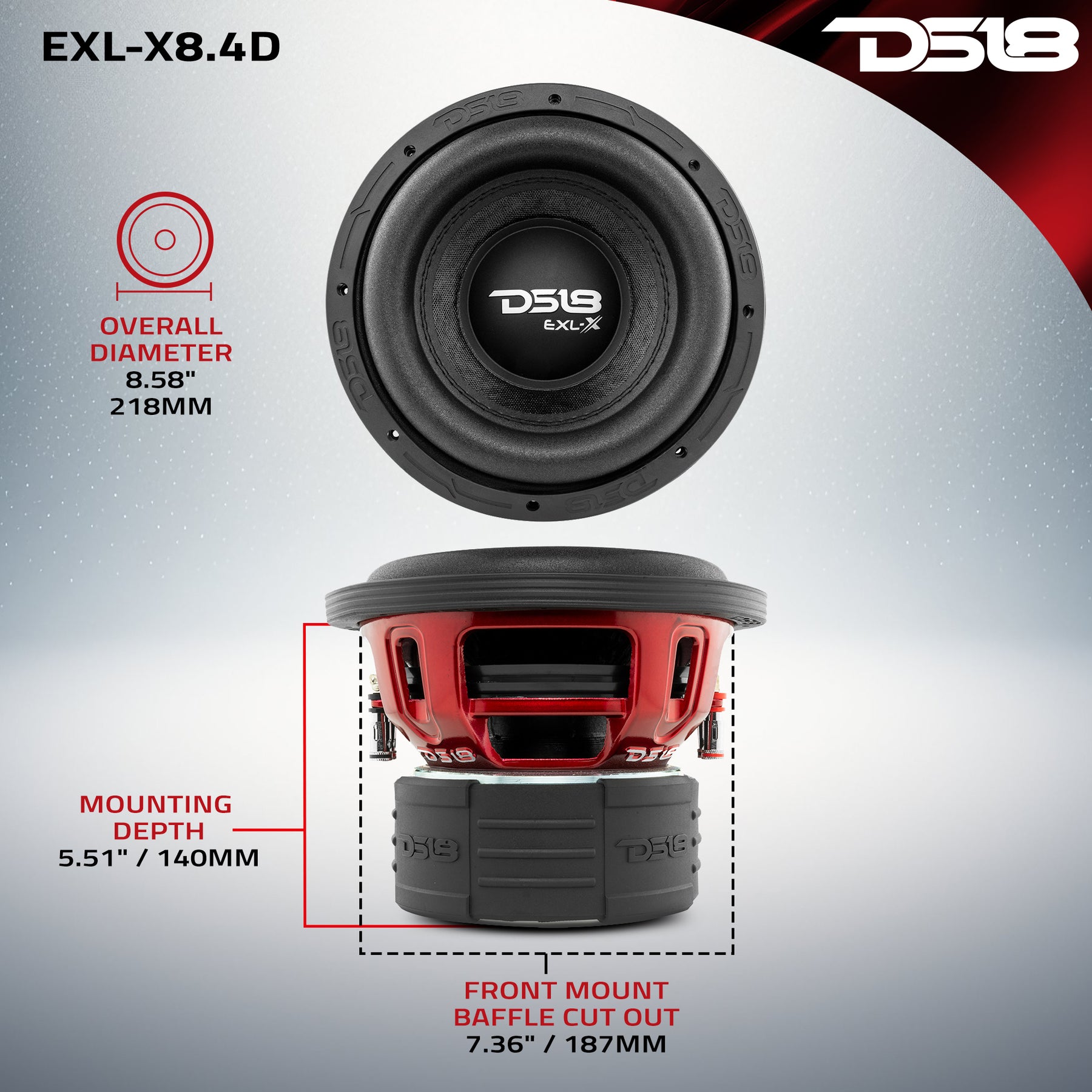

MEASUREMENTS
Overall Diameter
8.58" / 218mm
Overall Depth
6.61" / 168mm
Front Mount Baffle Cutout
7.36" / 187mm
Mounting Depth
5.51" / 140mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
16.5
Dimensions W x L x H (Inches)
9.25 x 9.25 x 7.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
33.5
M/C Dimensions W x L x H (Inches)
19.25 x 10.25 x 8.5
-
Product Overview
Product Overview
DS18 EXL-X8.4D 8" Car Subwoofer 1200 Watts 4-Ohm DVC
Prepare to be blown away by the unparalleled power and precision of DS18’s EXL-X8.4D. Its incredible features and state-of-the-art design set the new standard for competition grade subwoofers.
The private red aluminum basket showcases the unmistakable flair all DS18’s products have, but also lays a great foundation for one of our most durable subwoofers yet. The fiber glass dust cap, besides adding a touch of sophistication to the already sleek design, plays a crucial role in enhancing the overall audio quality. By protecting the subwoofer's delicate components from potential damage, it ensures consistent and reliable performance.
Don't be fooled by this subwoofers size—the EXL-X8.4D is engineered to provide big bass thanks to its full-size ferrite magnet. The high-strength foam surround firmly holds a durable pressed cone made with fiberglass, resulting in unparalleled sound reproduction. And thanks to DS18's specially designed dustpan, the EXL-X8.4D’s bass output is maximized for performance that always defies expectations.
The EXL-X8.4D is designed to produce incredibly powerful and precise bass that will make your heart race. The 2.5" voice coils and impressive 1200W MAX power handling gives the EXL-X8.4D the capability to handle frequency responses as low as 38Hz and as high as 1KHz with ease.
Versatility is key, and the EXL-X8.4D doesn't disappoint. Whether you prefer ported or sealed boxes, this subwoofer thrives in all vehicle shapes and sizes. It effortlessly adapts to your audio setup, ensuring that you can enjoy your favorite music the way it was meant to be heard—powerful, crisp, and immersive.
Unlock the true potential of your audio system with DS18’s EXL-X8.4D.
