EXL-X 12" Subwoofer 1250 Watts Rms DVC 2-Ohms

EXL-X 12" Subwoofer 1250 Watts Rms DVC 2-Ohms

Name: EXL-X 12" Subwoofer 1250 Watts Rms DVC 2-Ohms
Brand: EXL-X12.2D
SKU: EXL-X12.2D
Price: 299.95 USD
Availability: InStock
Rating: 5.0 (4 reviews)

SKU: EXL-X12.2D

$299.95

/EACH

Ships Free Next Business Day From Miami, FL, USA

12" Subwoofer
MAX Power: 2500 Watts
RMS Power: 1250 Watts
Impedance: 2-Ohm 2.57" DVC
Ferrite Magnet
88dB

In stock

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

12" DIAMETER

SUBWOOFER

2+2 OHM

VOICE COIL 2.57"

FERRITE MAGNET

NON PRESSED PAPER + GLASS FIBER CONE

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
EXL-X12.2D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
2+2 ohms
RMS Power Handling
1250W
MAX Power Handling
2500W
Sensitivity (1w/1m)
88dB
Frequency Response
30Hz-1.7KHz
Recommended Lo Pass Crossover
100Hz

MOTOR

Voice Coil Diameter
2.57" / 65.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
2 x 105 oz
Displacement Volume
3L / 0.105ft3

THIELE & SMALL PARAMETERS

Equivalent Volume
9.31L / 0.328ft3
Free Air Resonance
50Hz
Mechanical Factor
2.901
Electrical Factor
0.448
Total Factor
0.388
Moving Mass
376.997g
Compliance
0.027mm/N
Bl Factor
16.69
Voice Coil Inductance
0.561mH
Diaphragm Area
490.87cm2
DC Resistance
2+2 ohm
Efficiency Bandwidth Product
111.6

RECOMMENDED ENCLOSURES

Sealed Internal Volume
Not Recommended
Sealed Box Output Response
N/A
Ported Internal Volume
36L / 1.27ft3
Port Size *Square (W x H x Long)
1.89" x 12.28" x 13.8" / 48.1 x 312 x 351mm
Port Tuning Frequency
50Hz
Ported Box Output Response
42Hz

MEASUREMENTS

Overall Diameter
12.6" / 321mm
Overall Depth
8.14" / 207mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7" / 180mm
Motor Diameter
7.72" / 196mm
Gross Single Unit Weight (lb)
35
Dimensions W x L x H (Inches)
14.5 x 14.5 x 10.75
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
35
M/C Dimensions W x L x H (Inches)
14.5 x 14.5 x 10.75

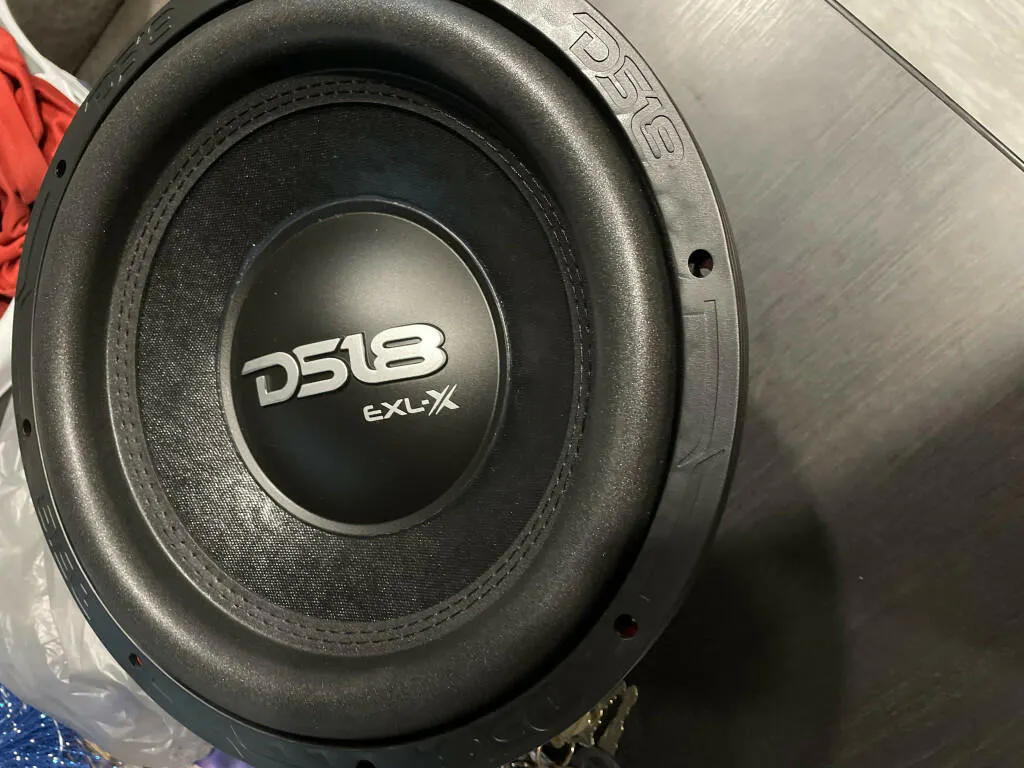

Product Overview

DS18 EXL-X12.2D

12" Car Subwoofer 2500 Watts 2-Ohm DVC

Prepare to be blown away by the unparalleled power and precision of DS18’s EXL-X12.2D. Its incredible features and state-of-the-art design set the new standard for competition grade subwoofers.

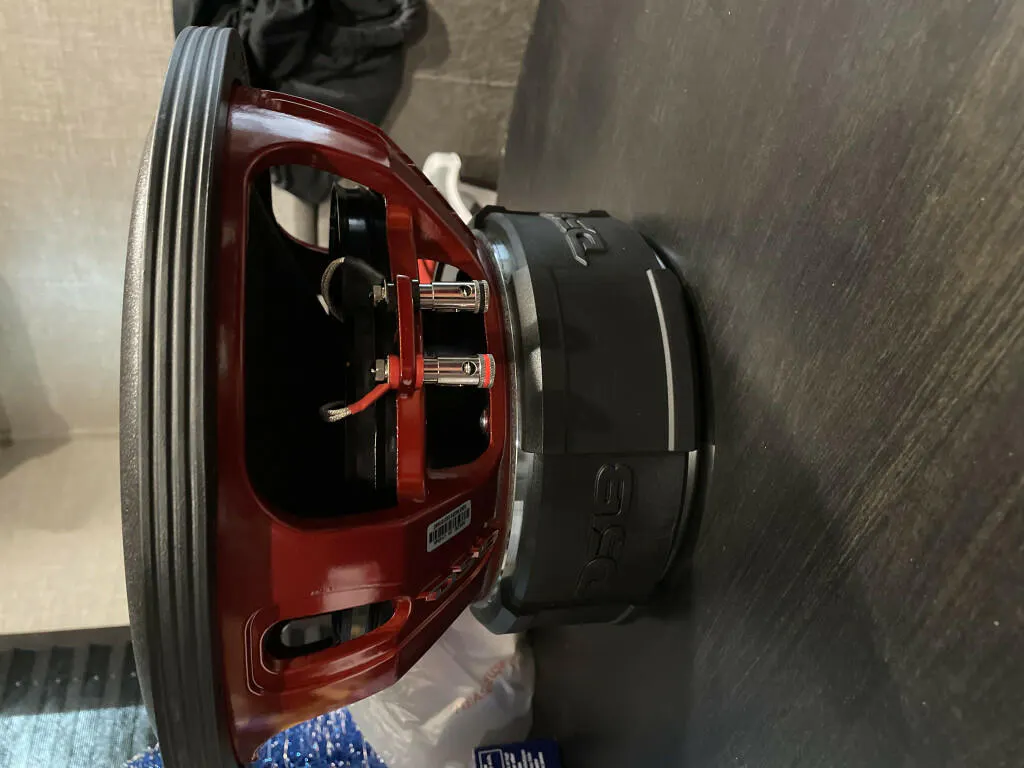

The private red aluminum basket showcases the unmistakable flair all DS18’s products have, but also lays a great foundation for one of our most durable subwoofers yet. The fiber glass dust cap, besides adding a touch of sophistication to the already sleek design, plays a crucial role in enhancing the overall audio quality. By protecting the subwoofer's delicate components from potential damage, it ensures consistent and reliable performance.
Don't be fooled by this subwoofers size—the EXL-X12.2D is engineered to provide big bass thanks to its full-size ferrite magnet. The high-strength foam surround firmly holds a durable pressed cone made with fiberglass, resulting in unparalleled sound reproduction. And thanks to DS18's specially designed dustpan, the EXL-X12.2D’s bass output is maximized for performance that always defies expectations.
The EXL-X12.2D is designed to produce incredibly powerful and precise bass that will make your heart race. The 2.57" voice coils and impressive 2500W MAX power handling gives the EXL-X12.2D the capability to handle frequency responses as low as 30Hz and as high as 1.7KHz with ease.
Versatility is key, and the EXL-X12.2D doesn't disappoint. Whether you prefer ported or sealed boxes, this subwoofer thrives in all vehicle shapes and sizes. It effortlessly adapts to your audio setup, ensuring that you can enjoy your favorite music the way it was meant to be heard—powerful, crisp, and immersive.
Unlock the true potential of your audio system with DS18’s EXL-X12.2D.
