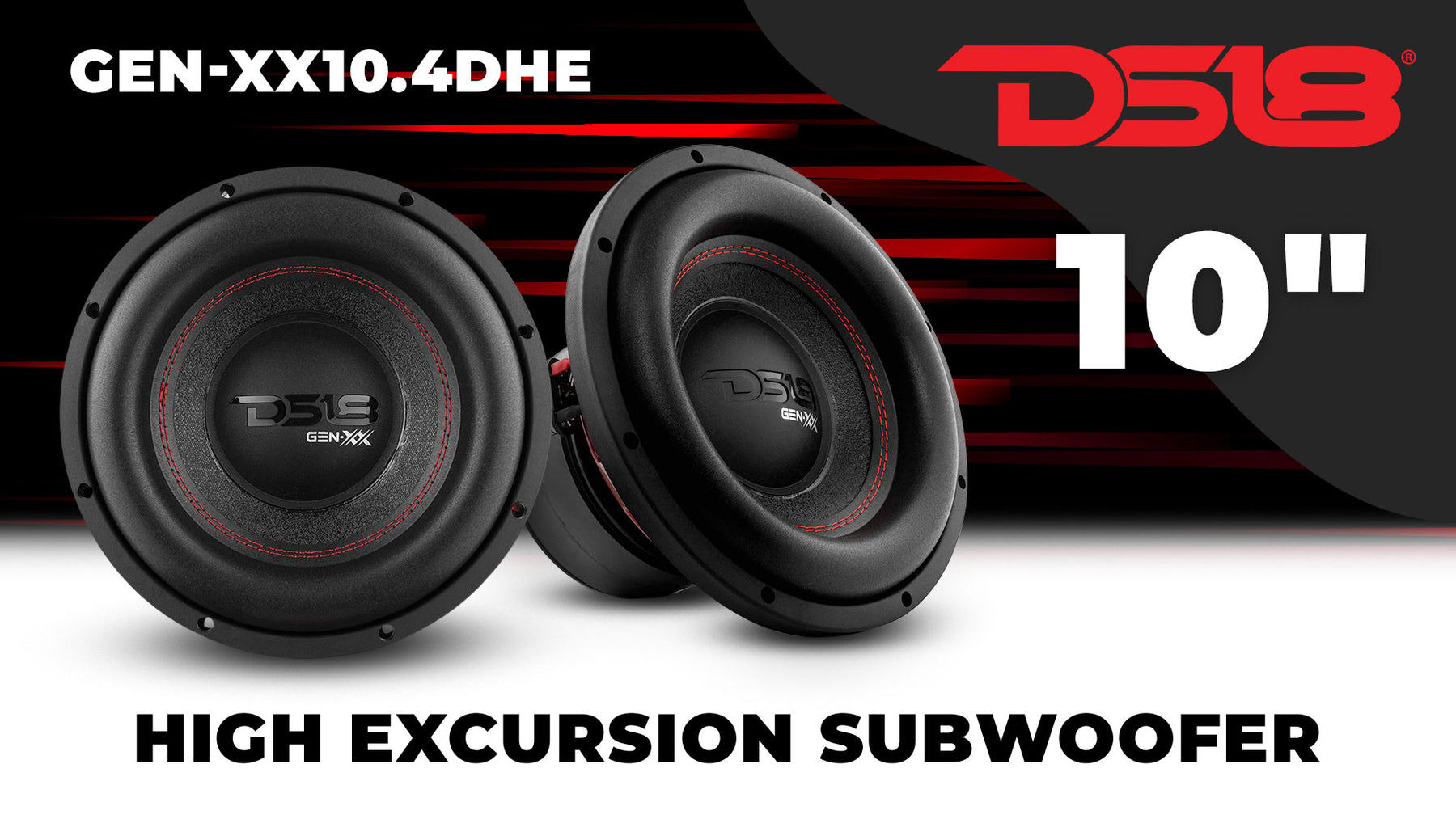

DS18 GEN-XX10.4DHE X 10" High Excursion Car Subwoofer
1000 Watts 4-Ohm DVC Double Magnet
High excursion is now the mainstream and usually this feature is very expensive, and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX10.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 500w RMS and 1000w Max this sub does not require large amounts of power to come alive and beat up the block.
- High Excursion surround for a very high amount of xmax.
- Great power handling of 500w RMS and 1000w max.
- Long three voice coil and extended magnet to accommodate the xmax increase.
- FS of 37.6 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
|Nominal Impedance||4+4 ohms|
|RMS Power Handling||500W|
|MAX Power Handling||1000W|
|Sensitivity (1w/1m)||84.6 dB|
|Frequency Response||20Hz - 1.1KHz|
|Recommended Lo Pass Crossover||90Hz|
|VC Former Material||Black Aluminum|
|Dust Cap Material||PPI|
|Basket Color/Finish||Glossy Red|
|Magnet Weight||136 Oz|
|Thiele & Small Parameters|
|Equivalent Vol||Vas 16.583L|
|Excursion (one way)||Xmax 25 mm|
|Free Air Resonance||Fs 37.6 Hz|
|Mechanical Factor||Qms 4.705|
|Electrical Factor||Qes 0.476|
|Total Factor||Qts 0.432|
|Moving Mass||Mms 166.794g|
|Bl Factor||BL 23.041N/A|
|VC Inductance||Le 0.6741mH|
|Diaphragm Area||Sd 330.64cm2|
|Dc Resistance||Re 3.2+3.2 ohms|
|Efficiency Bandwidth Product||EBP 78.99|
|Overall Diameter||10.28 / 261 mm|
|Overall Depth||7.21 / 183 mm|
|Front Mount Baffle Cutout||9.14 / 232 mm|
|Mounting Depth||6.15 / 156mm|
|Motor Diameter||6.15 / 156mm|
These subs I got hit like you wouldn’t believe. Best purchase and helped finish out my sound system in my JK.
This is the first new subwoofer I have purchased since the late 90s. I was a little nervous about purchasing from what was to me an unfamiliar brand but so far I have been extremely pleased. First thing I noticed was the appearance and build quality which are excellent. Frame has a lovely metallic red finish. The cone and surround have a really nice looking red stitch. I am using one of these in a single sealed enclosure in my 3rd Gen 4runner. Im running it with an NVX-NDA102 class D amp which is good for 500 watts at 2ohms. So far it seems like a great combo. Sound quality is great and it hammers when you ask for it. Meets or exceeds the output of my old MTX Thunder8000 10" driver. Great value at this price.
Got 2 of these in my trunk off of a weak boss amp and they still bang pretty good off of that
I put 2 in a 2.5^3 box tuned to 32hz and they absolutely pound! They sound incredibly clean. I am impressed at the way the can hit the super lows at 30hz, as well as very tightly hit transient punch notes.
