DS18 ZXI High Excursion 12" Subwoofer 2000 Watts DVC 2-Ohms 4 Magnets audio subwoofers

ZXI 12" High Excursion Subwoofer Quad Stacked Magnets 1000 Watts Rms DVC 2-Ohm

ZXI 12" High Excursion Subwoofer Quad Stacked Magnets 1000 Watts Rms DVC 2-Ohm

Name: ZXI 12" High Excursion Subwoofer Quad Stacked Magnets 1000 Watts Rms DVC 2-Ohm
Brand: ZXI12.2D
SKU: ZXI12.2D
Price: 269.95 USD
Availability: InStock
Rating: 5.0 (8 reviews)

SKU: ZXI12.2D

$269.95

/EACH

Ships Free Next Business Day From Miami, FL, USA

12" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 2-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89.2dB

In stock

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

12" DIAMETER

SUBWOOFER

2+2 OHM

VOICE COIL 2.5"

FERRITE MAGNET

HIGH EXCURSION SURROUND

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
ZXI12.2D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
2 + 2 ohms
RMS Power Handling
1000W
Maximum Power Handling
2000W
Sensitivity (1w/1m)
89.2dB
Frequency Response
15Hz-1.7KHz
Recommended Lo Pass Crossover
90Hz

MOTOR

Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Ferrite
Magnet Weight
224 Oz (4 x 56 oz)
Displacement Volume
3.99L / 0.14 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
15.23L / 0.53ft3
Free Air Resonance Fs
31Hz
Mechanical Factor Qms
5.268
Electrical Factor Qes
0.576
Total Factor Qts
0.528
Moving Mass Mms
242.643g
Compliance Cms
0.075mm/N
Bl Factor Bl
15.55
Voice Coil Inductance Le
12.6 mH
Diaphragm Area Sd
530.93cm2
DC Resistance Re
2.0+2.0 ohms
Efficiency Bandwidth Product EBP
53.8

RECOMMENDED ENCLOSURES

Sealed Internal Volume
21.2L / 0.75ft3
Sealed Box Output Response F3
42Hz
Ported Internal Volume
39.6L / 1.4ft3
Port Size *Square (W x H x Long)
1.23" x 12.28" x 24.35" / 32.1 x 312 x 618.4mm
Port Tuning Frequency FB
32Hz
Ported Box Output Response F3
26Hz

MEASUREMENTS

Overall Diameter
12.55" / 319mm
Overall Depth
9.13" / 232mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.55" / 192mm
Motor Diameter
7.08" / 180mm
Gross Single Unit Weight
35
Dimensions W x L x H
14.5 x 14.75 x 11.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight
35
Master Carton Dimensions W x L x H
14.5 x 14.75 x 11.5

Product Overview

DS18 ZXI12.2D

High Excursion 12" Car Audio Subwoofer 2000W Watts 2-Ohm DVC Quad Stacked Magnets

Experience bass like never before with DS18’s ZXI12.2D: the ultimate subwoofer for enthusiasts who crave thunderous bass!
The ZXI subline is renowned for its high excursion capabilities, and the ZXI12.2D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI12.2D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI12.2D will excel in both, giving you the flexibility to optimize placement in any vehicle.
It’s dual 2-ohm configuration and 3-inch voice coils, makes the ZXI12.2D a force to be reckoned with. Handling a staggering 1000W RMS power and 2000W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.
The ZXI12.2D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI12.2D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.
Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation.

HOLY SH*T!!

This is hands down the best sounding subwoofer I've ever heard. The bass is absolutely crispy! This bad boy hits low and hard as a mother!! I can't believe how much pressure this thing creates. I have the ZXI 2d wired to 1 ohm running on a jp23 amp in a 2 cube box tuned to 32 hrz. The amp Roughly pushes 3000 watts peak to this sub. I swear I seen the sub yawn lol. This thing takes what you give it. Again, cleanest sounding sub I've heard. Hits with lethal authority!! Love love love it

Amazing

Works great just what I was looking for

Gets Down

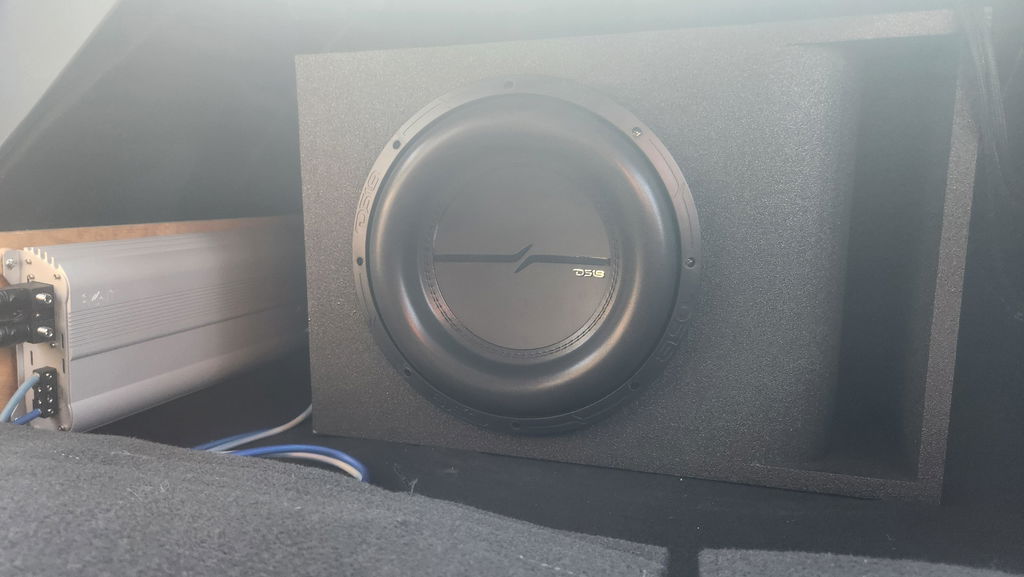

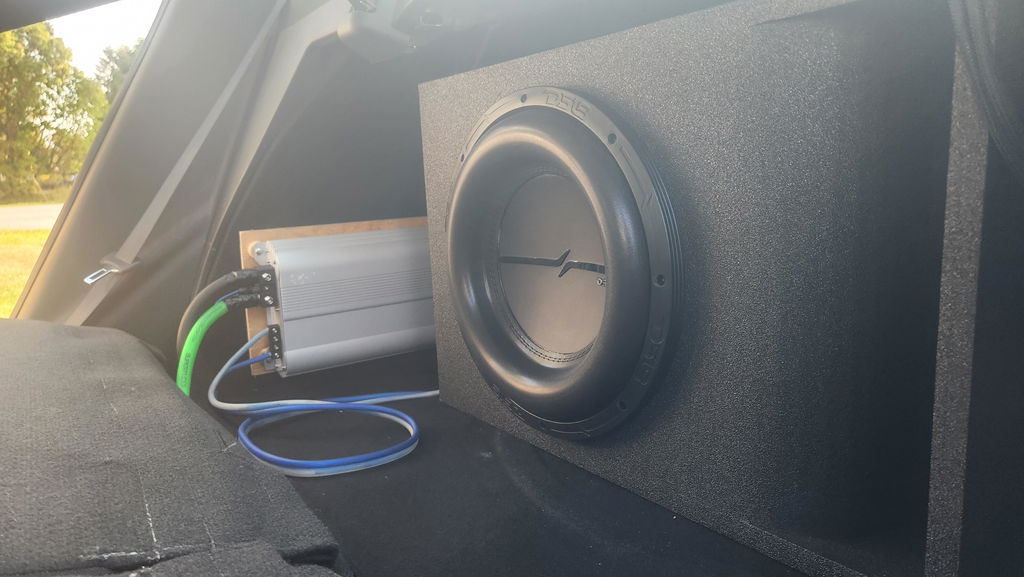

Had this sub for a couple days, very happy and satisfied with my purchase. Love the specs, the look and the thick surround. Picked it specially based on the frequency range. Built my own box tuned to about 28Hz and it dips! Was previously running an 18” and it feels deeper.
