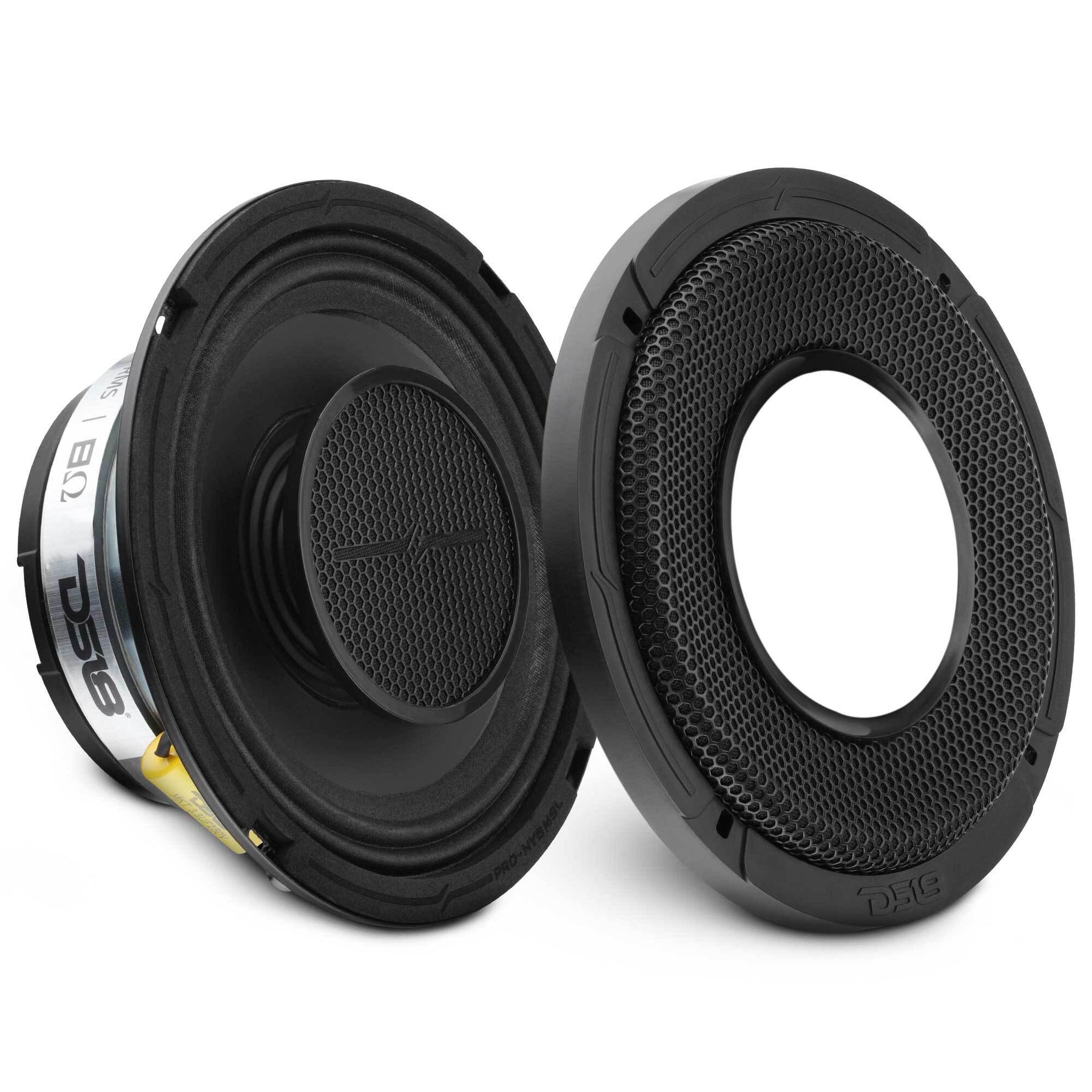

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 8-Ohm








PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 8-Ohm
Sale / EACH
Reg.
15% OFF FOR MOVING SALE!
-
Key Features
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
PRO-HY6MSL
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
8 Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
93dB
Frequency Response
120Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
17.5 Oz
Displacement Volume
Thiele & Small Parameters
Equivalent Volume Vas
3.45L / 0.121ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
161Hz
Mechanical Factor Qms
7.653
Electrical Factor Qes
1.496
Total Factor Qts
1.252
Mechanical Mass Mms
6.875g
Mechanical Compliance Cms
129.952 mm/N
BL Factor BL
5.621
Voice Coil Inductance Le
10.78mH
Cone Area Sd
136.848 Cm2
DC Resistance Re
6.5 ohm
Mechanical Mass w/o air Mmd
5.955g
Driver Specifications
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm
Speaker Measurement
Overall Diameter
6.92" / 176mm
Overall Depth
3.52" / 89.5mm
Front Mount Baffle Cutout
5.6" / 142mm
Mounting Depth
2.77" / 70.5mm
Motor Diameter
4.33" / 110mm
Shipping Info
Gross Single Unit Weight
3.75
Single Unit Box Dimensions L x W x H (Inches)
7.25 x 7.25 x 4.25
Quantity of Units in Master Carton
8
Gross Master Carton Weight
32
Master Carton Dimensions L x W x H (Inches)
15.25 x 15.25 x 9.5
-
Product Overview
Product Overview
DS18 PRO-HY6MSL 6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
Get LOUD in tight spaces with DS18’s PRO-HY6MSL—the slim-mount hybrid speaker made for motorcycles, ATVs, Slingshots, and more.
Hybrid Power in a Compact Package
The PRO-HY6MSL combines a powerful 6.5” midrange woofer with a 1” titanium compression driver horn, packing serious output into a slim 2.77” mounting depth. This speaker cuts through wind noise or engine rumble LOUD and clear with 150W RMS / 300W MAX power handling and a bold 93dB sensitivity across 120Hz-20KHz.High-End Components, No Compromise
Crafted with a paper cone, cloth surround, and a 1.5” KSV voice coil, this loudspeaker delivers smooth midrange and vocal response. The steel basket and 17.5oz ferrite magnet give it structure and strength, while the titanium diaphragm and neodymium motor in the horn ensure razor-sharp highs that carry far and stay crisp. This 8-ohm setup gives you more flexibility when building or expanding multi-speaker systems.Designed for Real Riders
This speaker is for real riders who want clean sound in performance machines. If your vehicle has room for 6.5’s, the PRO-HY6MSL belongs in it.
