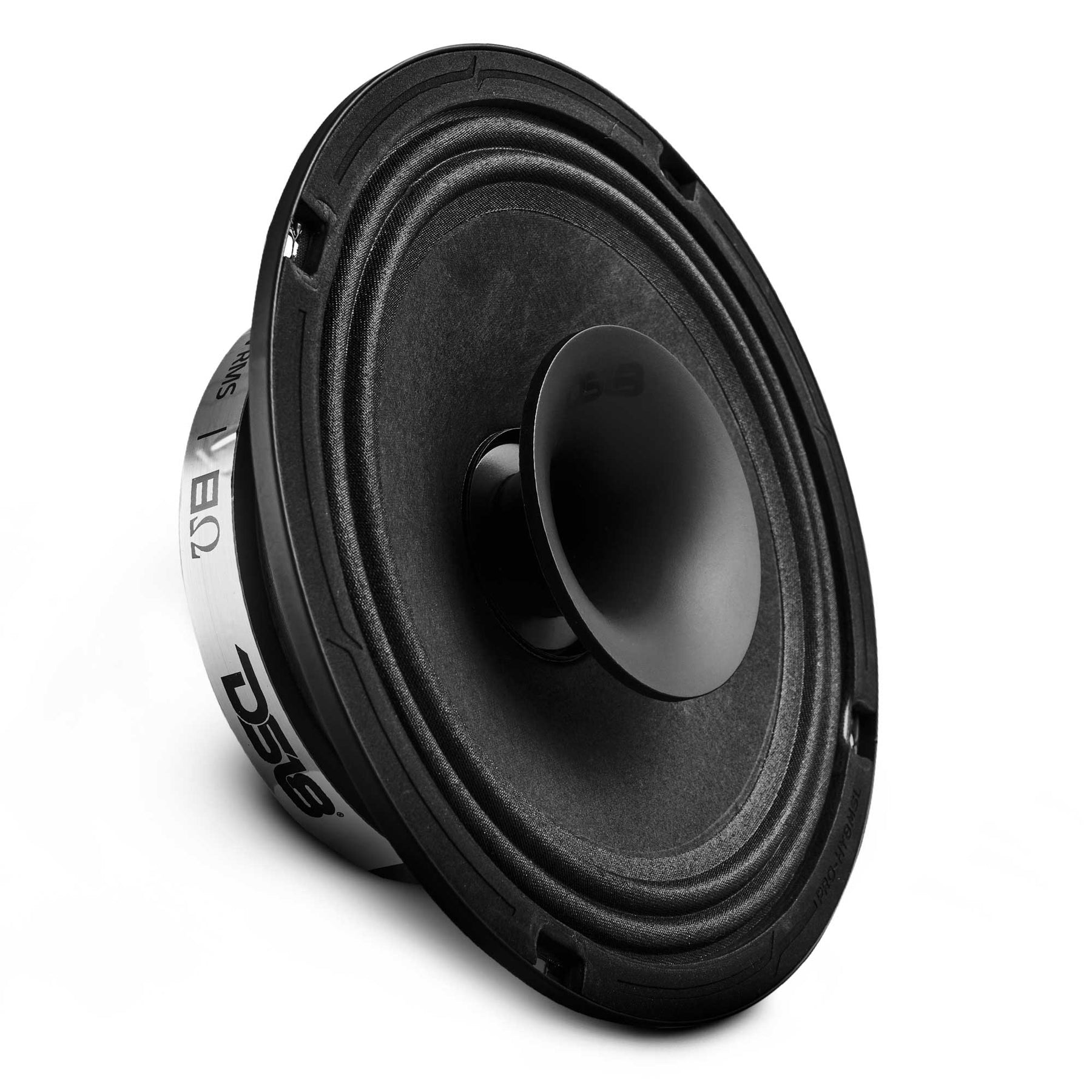

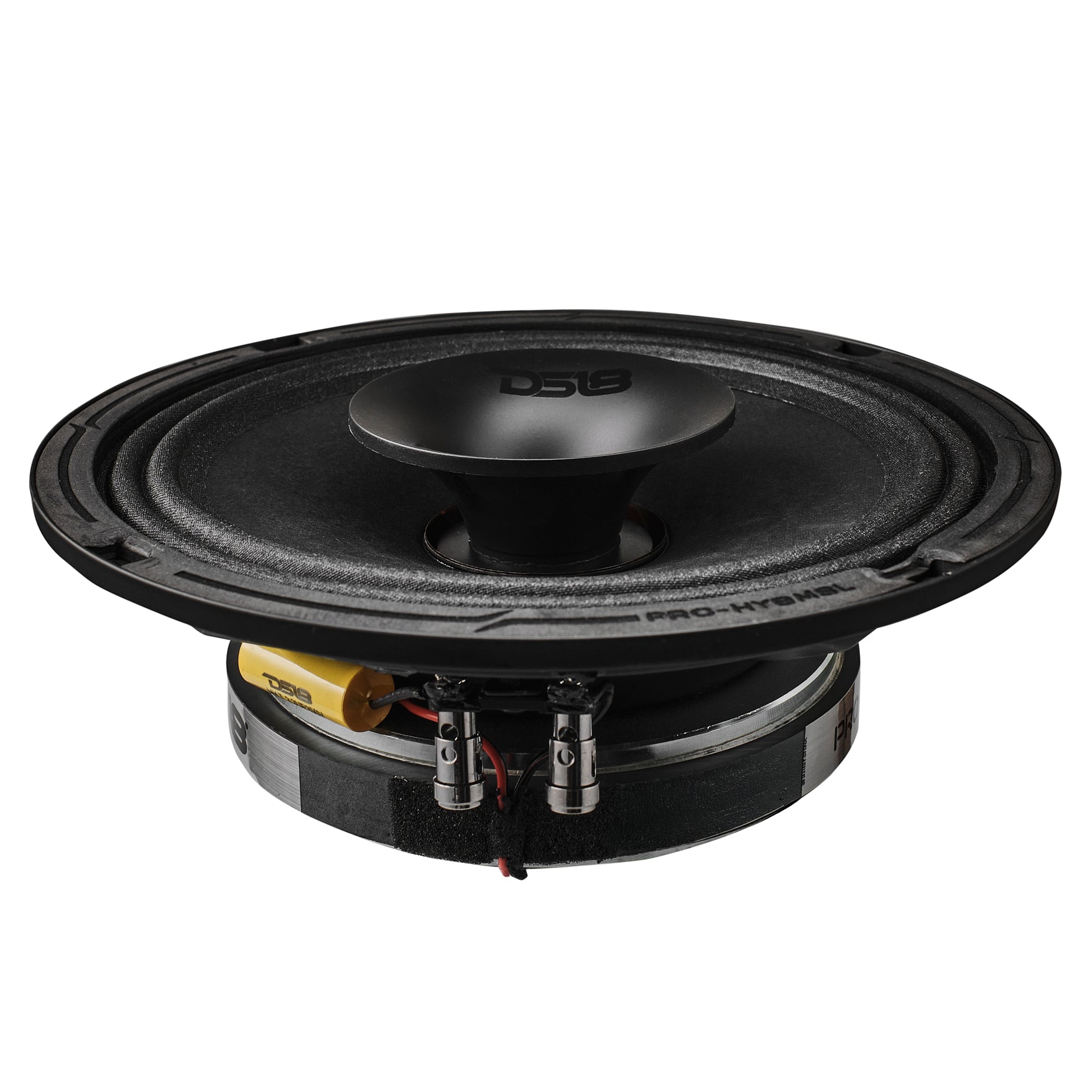

PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm

SKU: PRO-HY8MSL
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm
PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm

PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm

SKU: PRO-HY8MSL

Sale price$76.95
/EACH
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 8"

Impedance: 8-Ohm

4-Ohm
8-Ohm
Quantity:
  • Key Features

    • 8" Shallow Hybrid Coaxial Mid-Range w/Driver
    • RMS Power: 200 Watts(400 Watts Peak)
    • Impedance: 8 Ohm
    • Ferrite & Neodymium Magnets

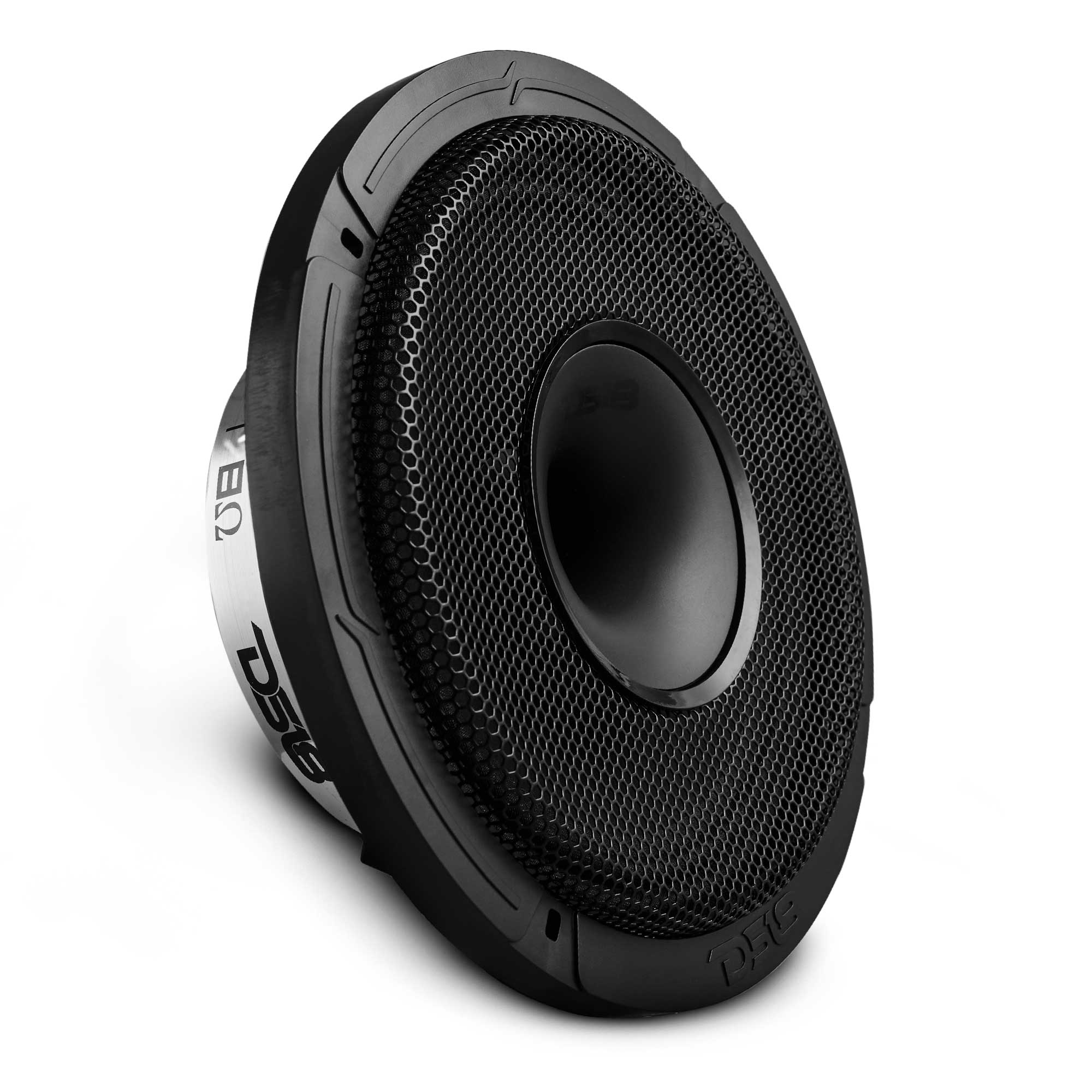

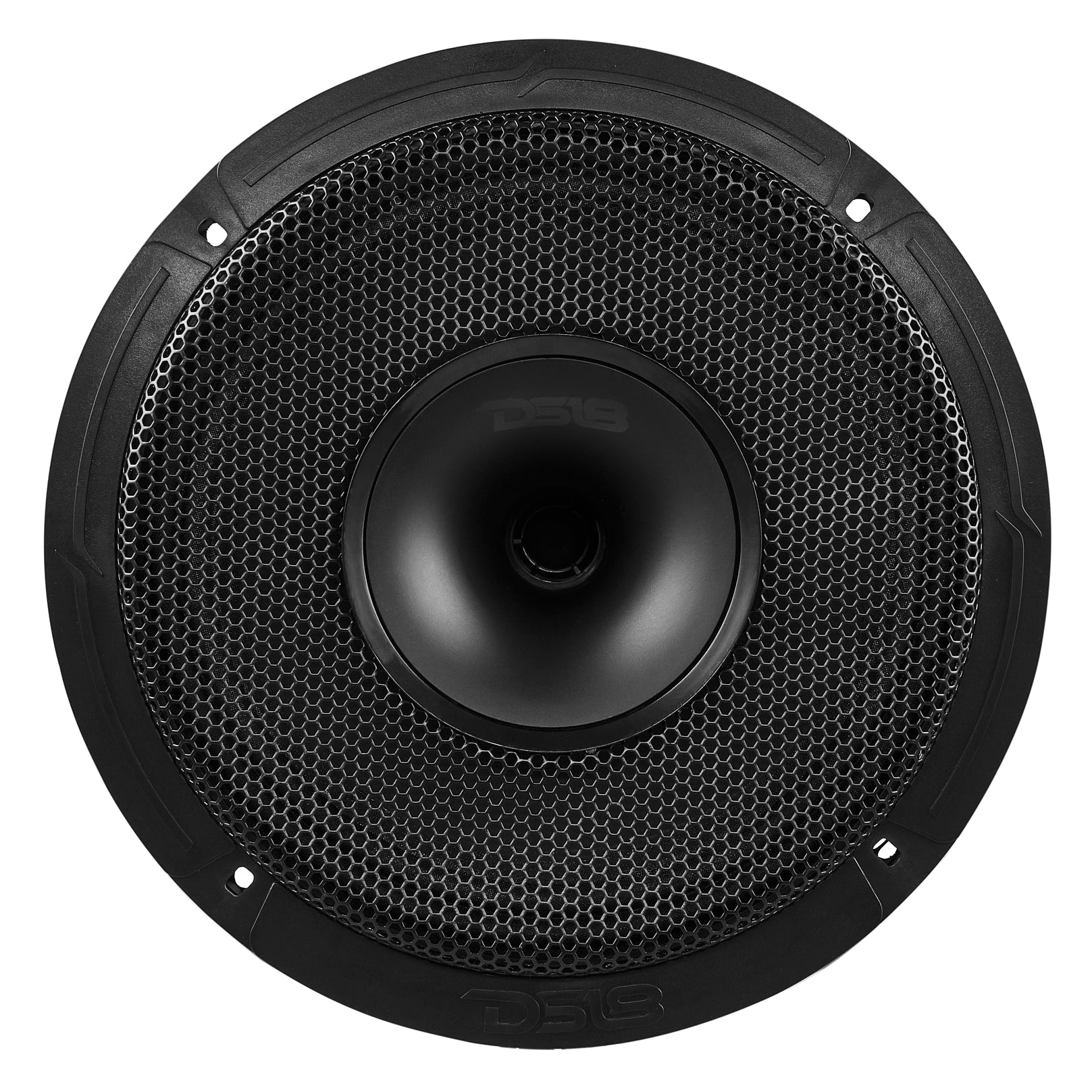

    • With Grill
    • 98dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    PRO-HY8MSL
    Nominal Diameter
    8" / 203.2mm
    Nominal Impedance
    8 Ohm
    RMS Power Handling
    200W
    MAX Power Handling
    400W
    Sensitivity (1w/1m)
    98dB
    Frequency Response
    100Hz - 20Khz
    Recommended HI Pass Crossover
    120Hz
    Number of ways
    2 ways
    Pair or Single
    Single
    Grill Included
    Yes

    Woofer Specifications

    Voice Coil Diameter
    2" / 50.8mm
    Voice Coil Former Material
    KSV
    Winding Material
    CCAW
    Cone Material
    Paper
    Surround Material
    Cloth
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Ferrite
    Magnet Weight
    29.5 Oz

    Thiele & Small Parameters

    Equivalent Volume Vas
    7.85L / 0.277ft3
    Excursion (one way) Xmax
    2mm
    Free Air Resonance Fs
    114Hz
    Mechanical Factor Qms
    6.282
    Electrical Factor Qes
    0.984
    Total Factor Qts
    0.851
    Mechanical Mass Mms
    16.357g
    Mechanical Compliance Cms
    118.033 mm/N
    BL Factor BL
    8.817
    Voice Coil Inductance Le
    12.06mH
    Cone Area Sd
    216.424 Cm2
    DC Resistance Re
    6.5 ohm
    Mechanical Mass w/o air Mmd
    14.527g

    Driver Specifications

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Titanium
    Magnet Material
    Neodymium
    Horn Diameter
    3" / 76.2mm

    Speaker Measurement

    Overall Diameter
    8.2" / 209mm
    Overall Depth
    4" / 102.5mm
    Front Mount Baffle Cutout
    7.16" / 182mm
    Mounting Depth
    3.15" / 80mm
    Motor Diameter
    5.27" / 134mm

    Shipping Info

    Gross Single Unit Weight
    5.75
    Single Unit Box Dimensions L x W x H (Inches)
    9 x 9 x 4.75
    Quantity of Units in Master Carton
    8
    Gross Master Carton Weight
    49
    Master Carton Dimensions L x W x H (Inches)
    18.5 x 18.5 x 10.25

    Load More
  • Product Overview

    Product Overview

    DS18 PRO-HY8MSL

    8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn

    Make your system LOUD again with DS18’s PRO-HY8MSL!

    Combining an 8” mid-range speaker with a 1” compression driver horn, this 8-ohm powerhouse is built for clarity and volume in a sleek design that fits anywhere!

    Upgraded with a thunderous 98dB sensitivity, 400W MAX, 200W RMS and a frequency range of 100Hz–20KHz, the PRO-HY8MSL dominates any soundstage using precision and projection. The titanium diaphragm and neodymium driver ensure ultra-fast, responsive performance, while the integrated horn directs and amplifies sound to perfection.

    Designed for versatility with a sleek 3.11” mounting depth, it’s the perfect fit for tight spaces without compromising performance.

    Are you ready to get LOUD? Upgrade with the PRO-HY8MSL today!
