ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm

SKU: ZXI-654
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm

ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm

SKU: ZXI-654

$94.95
/PAIR
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Size: 6.5"

3.5"
4"
4x6"
5.25"
6.5"
6.5" Component Set
5x7"
6x9"
Quantity:

  • Key Features

    • 6.5" 2-Way Coaxial
    • MAX Power: 240 Watts
    • RMS Power: 80 Watts
    • Impedance: 4 Ohm
    • Barium Ferrite & Neodymium Magnets
    • Pair ~ 87dB

  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    ZXI-654
    Nominal Diameter
    6.5 Inches
    Nominal Impedance
    4 ohm
    RMS Power Handing
    80 WATTS
    MAX Power Handing
    240 WATTS
    Sensitivity
    89 dB
    Frequency Response
    40 Hz - 20 KHz
    Recommended HI Pass
    60 Hz
    Speaker Type
    2-Way

    MIDRANGE

    Voice Coil Diameter
    25.5 mm (1 inch)
    Voice Coil Former Material
    KSV
    Winding Material
    EISV
    Cone Material
    Glass fiber
    Surround Material
    Rubber
    Basket Material
    Steel
    Magnet Material
    Barium Ferrite
    Magnet Weight
    14.46 oz / 410 g

    TWEETER

    Nominal Diameter
    25.4 mm (1 inch)
    Voice Coil Diameter
    20.4 mm (0.8 inch)
    Voice Coil Former Material
    KSV
    Winding Material
    EISVM
    Diaphragm Material
    PEI
    Magnet Material
    Neodymium
    Magnet Weight
    8.5 g / 0.3 oz

    THIELE & SMALL PARAMETERS

    Vas
    10.84 LTR
    Xmax
    2.7 mm
    Fs
    64 Hz
    Qms
    9.44
    Qes
    0.79
    Qts
    0.73
    Mms
    13.72 g
    Cms
    444 mm / N
    BL
    5.1
    Le
    228 mH
    Sd
    131 cm2
    Re
    3.5 ohm
    Mmd
    12 g

    MEASUREMENTS

    Overall Diameter
    6.50 inch (165 mm)
    Overall Depth
    72 mm (2.83 inch)
    Front Mount Baffle Cutout
    141 mm (5.55 inch)
    Mounting Depth
    60 mm (2.36 inch)
    Motor Diameter
    94 mm (3.70 inch)
    Product Weight
    5.5 lbs
    Product Dimensions
    15.75 x 7.75 x 3.75
    M/C Weight
    35 lbs
    M/C Dimensions
    16.5 x 16.75 x 12.25
    M/C QTY
    6
    Sold In
    Pair

    Load More

  • Product Overview

    Product Overview

    DS18 ZXI-654

    Kevlar 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm

    Experience music like never before with the DS18 ZXI-654 - the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. This speaker is designed to deliver powerful sound with little to no distortion, ensuring an enhanced listening experience that will leave you wanting more.

    The ZXI-654 features a Kevlar cone woofer with a rubber surround, the perfect combination for delivering precise and punchy bass responses. Kevlar is a durable and lightweight material that is commonly used in bulletproof vests: but is ideal for creating speaker cones due to its excellent strength-to-weight ratio. Combined with the rubber surround the ZXI-654 comes with reduces unwanted vibrations, resulting in a cleaner and more accurate sound.

    The 2-way design on the ZXI-654 equips the 6.5” woofer with a 1” Neodymium Magnet Tweeter, which delivers unmatched clarity and detail in the higher end of the frequency range. Neodymium magnets are known for their lightweight and powerful properties, allowing the speaker to reproduce accurate high frequencies without increasing the overall weight of the speaker resulting in a more balanced and natural sound.

    With frequency responses ranging from 40Hz – 20KHz, the ZXI-654 is built to deliver clear and powerful sound across the entire frequency spectrum.

    No matter where your car takes you, DS18’s ZXI-654 will immerse you in the music like never before. Upgrade with DS18’s ZXI-654 and experience the difference today.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT

Hey {Recipient's Name},

{Your Name} wanted to help you out with some gift ideas ;)

Here's a super cool gift.

Cheers,

DS18

Imagen Product

ZXI 6.5" 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm

DS18 ZXI Series Speakers

Related products

ZXI 5x7" 2-Way Coaxial Speakers with Kevlar Cone 70 Watts Rms 4-OhmZXI 5x7" 2-Way Coaxial Speakers with Kevlar Cone 70 Watts Rms 4-Ohm
SKU: ZXI-574
ZXI 5x7" 2-Way Coaxial Speakers with Kevlar Cone 70 Watts Rms 4-Ohm

Size:

5x7"
$119.95
  • 5X7" 2-Way Coaxial
  • MAX Power: 210 Watts
  • RMS Power: 70 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 91dB
  • 5X7" 2-Way Coaxial
  • MAX Power: 210 Watts
  • RMS Power: 70 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 91dB
ZXI 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-OhmZXI 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm
SKU: ZXI-694
ZXI 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm

Size:

6x9"
$143.95
  • 6X9" 2-Way Coaxial
  • MAX Power: 360 Watts
  • RMS Power: 120 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 92dB
  • 6X9" 2-Way Coaxial
  • MAX Power: 360 Watts
  • RMS Power: 120 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 92dB
ZXI 6.5" 2- Way Component Speaker System with Kevlar Cone 120 Watts Rms 4-OhmZXI 6.5" 2- Way Component Speaker System with Kevlar Cone 120 Watts Rms 4-Ohm
SKU: ZXI-62C
ZXI 6.5" 2- Way Component Speaker System with Kevlar Cone 120 Watts Rms 4-Ohm

Size:

6.5" Component Set
$167.95
  • 6.5" 2-Way Component
  • MAX Power: 240 Watts
  • RMS Power: 120 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ Crossover ~ 88dB
  • 6.5" 2-Way Component
  • MAX Power: 240 Watts
  • RMS Power: 120 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ Crossover ~ 88dB
ZXI 4" 2-Way Coaxial Speakers with Kevlar Cone 50 Watts Rms 4-OhmZXI 4" 2-Way Coaxial Speakers with Kevlar Cone 50 Watts Rms 4-Ohm
SKU: ZXI-44
ZXI 4" 2-Way Coaxial Speakers with Kevlar Cone 50 Watts Rms 4-Ohm

Size:

4"
$80.95
  • 4" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 88dB
  • 4" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 88dB
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-OhmZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
SKU: ZXI-5254
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm

Size:

5.25"
$83.95
  • 5.25" 2-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 89dB
  • 5.25" 2-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 89dB
ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-OhmZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
SKU: ZXI-464
ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm

Size:

4x6"
$95.95
  • 4X6" 2-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 87dB
  • 4X6" 2-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 87dB
ZXI 3.5" Full-Range Speakers with Kevlar Cone 40 Watts Rms 4-OhmZXI 3.5" Full-Range Speakers with Kevlar Cone 40 Watts Rms 4-Ohm
SKU: ZXI-354
ZXI 3.5" Full-Range Speakers with Kevlar Cone 40 Watts Rms 4-Ohm

Size:

3.5"
$59.95
  • 3.5" Mid-Range
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite Magnet
  • Pair ~ 86dB
  • 3.5" Mid-Range
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite Magnet
  • Pair ~ 86dB

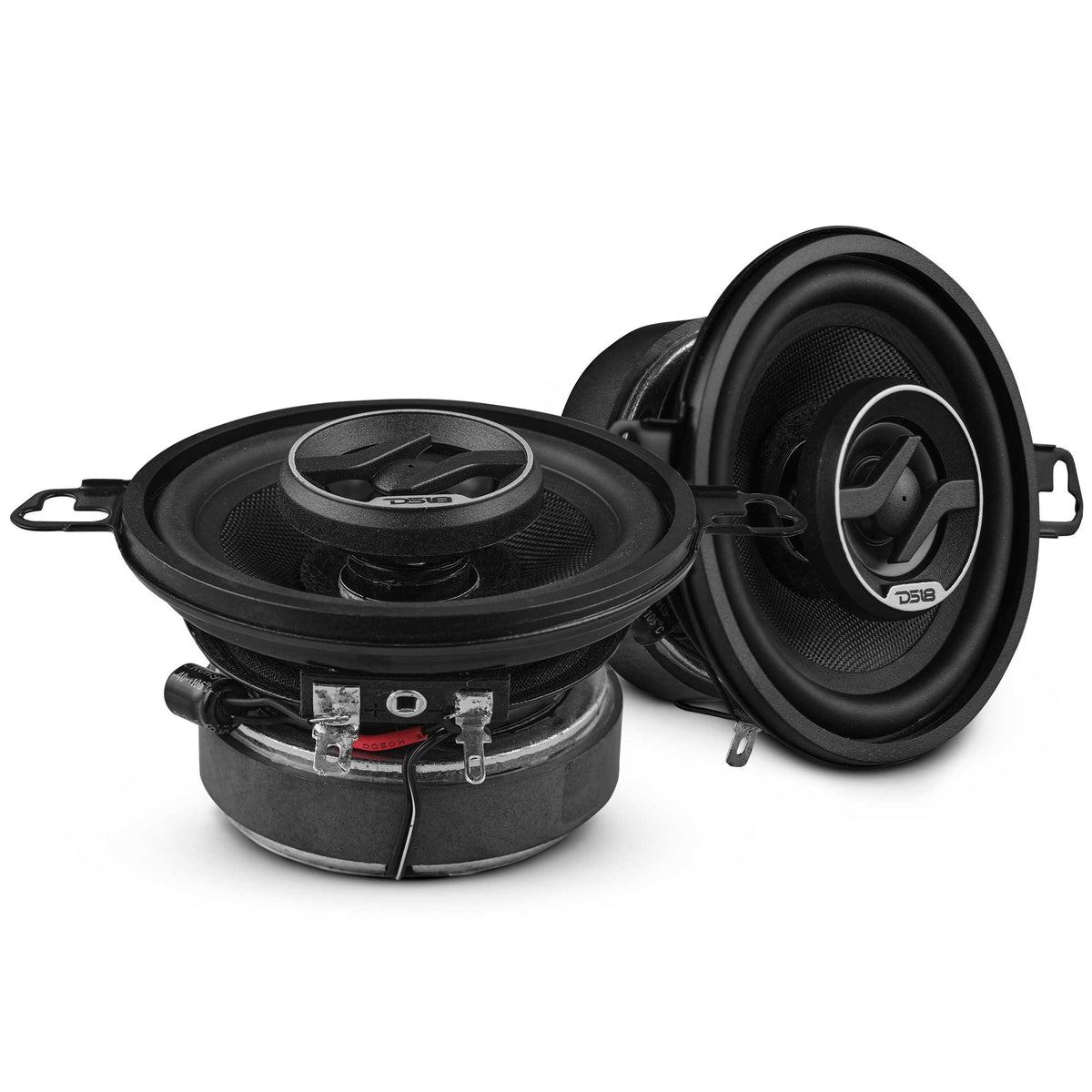

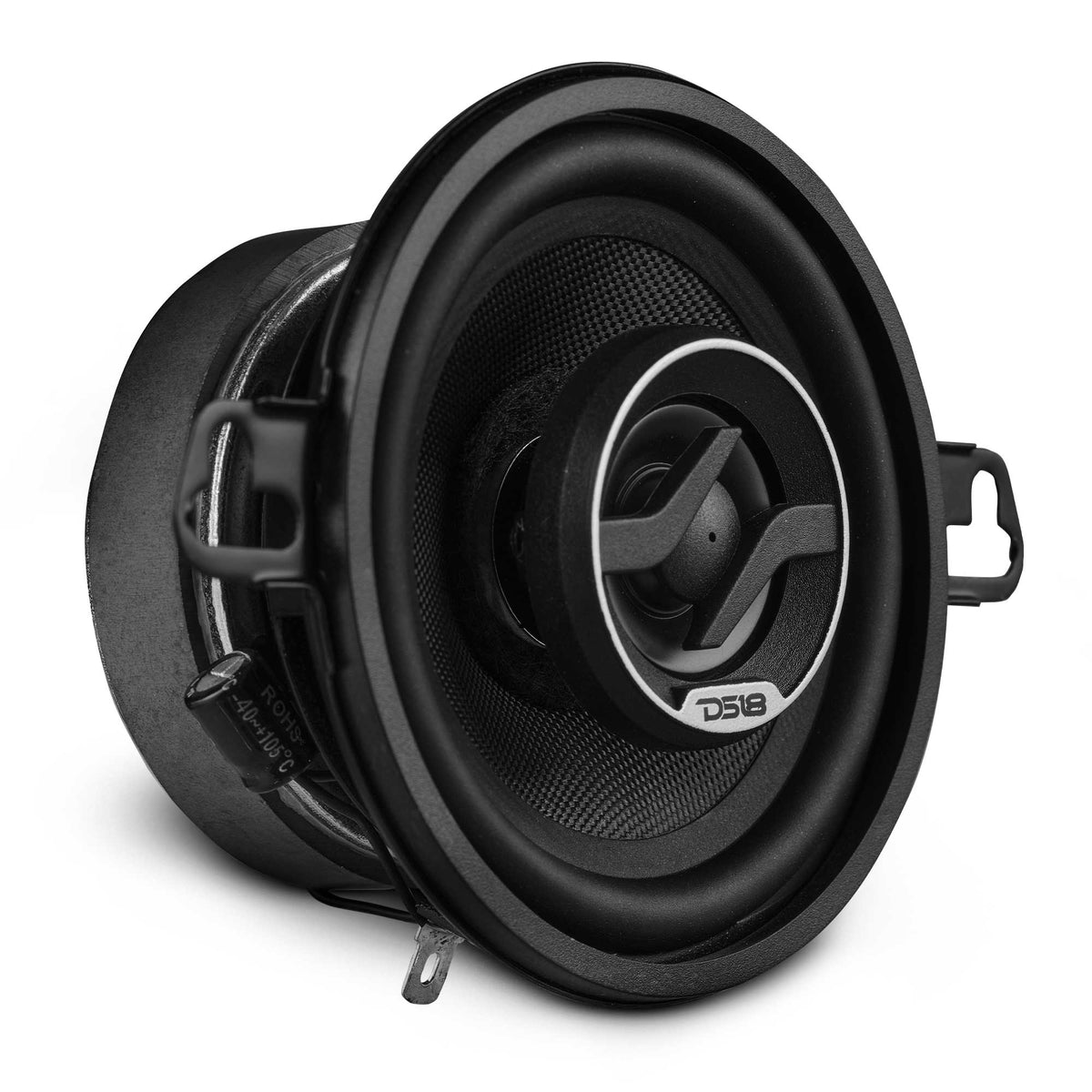

3.5” 2-Way Full-Range Coaxial Speaker 4 Ohm3.5” 2-Way Full-Range Coaxial Speaker 4 Ohm
