ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm

SKU: ZXI-5254
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm
DS18 ELITE 5.25" 2-Way Coaxial Speakers with Kevlar Cone 180 Watts 4-Ohms (Sold as pairs) car audio stereo speakers
ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm

ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 60 Watts Rms 4-Ohm

SKU: ZXI-5254

Sale price$83.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 5.25"

Quantity:
  • Key Features

    • 5.25" 2-Way Coaxial
    • MAX Power: 180 Watts
    • RMS Power: 60 Watts
    • Impedance: 4 Ohm
    • Barium Ferrite & Neodymium Magnets
    • Pair ~ 89dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    ZXI-5254
    Nominal Diameter
    5.25 Inches
    Nominal Impedance
    4 ohm
    RMS Power Handing
    60 WATTS
    MAX Power Handing
    180 WATTS
    Sensitivity
    89 dB
    Frequency Response
    40 Hz - 20 KHz
    Recommended HI Pass
    60 Hz
    Speaker Type
    2-Way

    MIDRANGE

    Voice Coil Diameter
    25.5 mm (1 inch)
    Voice Coil Former Material
    KSV
    Winding Material
    EISV
    Cone Material
    Glass fiber
    Surround Material
    Rubber
    Basket Material
    Steel
    Magnet Material
    Barium Ferrite
    Magnet Weight
    10.9 oz / 310 g

    TWEETER

    Nominal Diameter
    25.4 mm (1 inch)
    Voice Coil Diameter
    20.4 mm (0.8 inch)
    Voice Coil Former Material
    KSV
    Winding Material
    EISVM
    Diaphragm Material
    PEI
    Magnet Material
    Neodymium
    Magnet Weight
    8.5 g / 0.3 oz

    THIELE & SMALL PARAMETERS

    Vas
    4.86 LTR
    Xmax
    2.3 mm
    Fs
    77 Hz
    Qms
    8.39
    Qes
    0.87
    Qts
    0.79
    Mms
    9.93 g
    Cms
    457 mm / N
    BL
    4.321
    Le
    216 mH
    Sd
    86.5 cm2
    Re
    3.5 ohm
    Mmd
    9.0 g

    MEASUREMENTS

    Overall Diameter
    5.08 inch (129 mm)
    Overall Depth
    71 mm (2.80 inch)
    Front Mount Baffle Cutout
    113 mm (4.45 inch)
    Mounting Depth
    58 mm (2.28 inch)
    Motor Diameter
    84 mm (3.31 inch)
    Product Weight
    4.5 lbs
    Product Dimensions
    14.25 x 7 x 3.5
    M/C Weight
    27 lbs
    M/C Dimensions
    15 x 15 x 11
    M/C QTY
    6
    Sold In
    Pair

    Load More
  • Product Overview

    Product Overview

    DS18 ZXI-5254

    Kevlar 5.25" 2-Way Coaxial Car Speaker 180 Watts 4-Ohm

    Experience music like never before with the DS18 ZXI-5254 - the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. This speaker is designed to deliver powerful sound with little to no distortion, ensuring an enhanced listening experience that will leave you wanting more.

    The ZXI-5254 features a Kevlar cone woofer with a rubber surround, the perfect combination for delivering precise and punchy bass responses. Kevlar is a durable and lightweight material that is commonly used in bulletproof vests: but is ideal for creating speaker cones due to its excellent strength-to-weight ratio. Combined with the rubber surround the ZXI-5254 comes with reduces unwanted vibrations, resulting in a cleaner and more accurate sound.

    The 2-way design on the ZXI-5254 equips the 5.25” woofer with a 1” Neodymium Magnet Tweeter, which delivers unmatched clarity and detail in the higher end of the frequency range. Neodymium magnets are known for their lightweight and powerful properties, allowing the speaker to reproduce accurate high frequencies without increasing the overall weight of the speaker resulting in a more balanced and natural sound.

    With frequency responses ranging from 40Hz – 20KHz, the ZXI-5254 is built to deliver clear and powerful sound across the entire frequency spectrum.

    No matter where your car takes you, DS18’s ZXI-5254 will immerse you in the music like never before. Upgrade with DS18’s ZXI-5254 and experience the difference today.

FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
DS18 ZXI Series Speakers

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Shane Jumonville
Best sound for the money

Will replace all speakers in my car with DS18

D
DeJuan Young
ZXI 5.25 Speakers

They sound like hot sex in the Sleeper of a Kenworth W900L. Will fill the rest of the Truck with ‘em. 😎🚛💨

T
Troy Banks

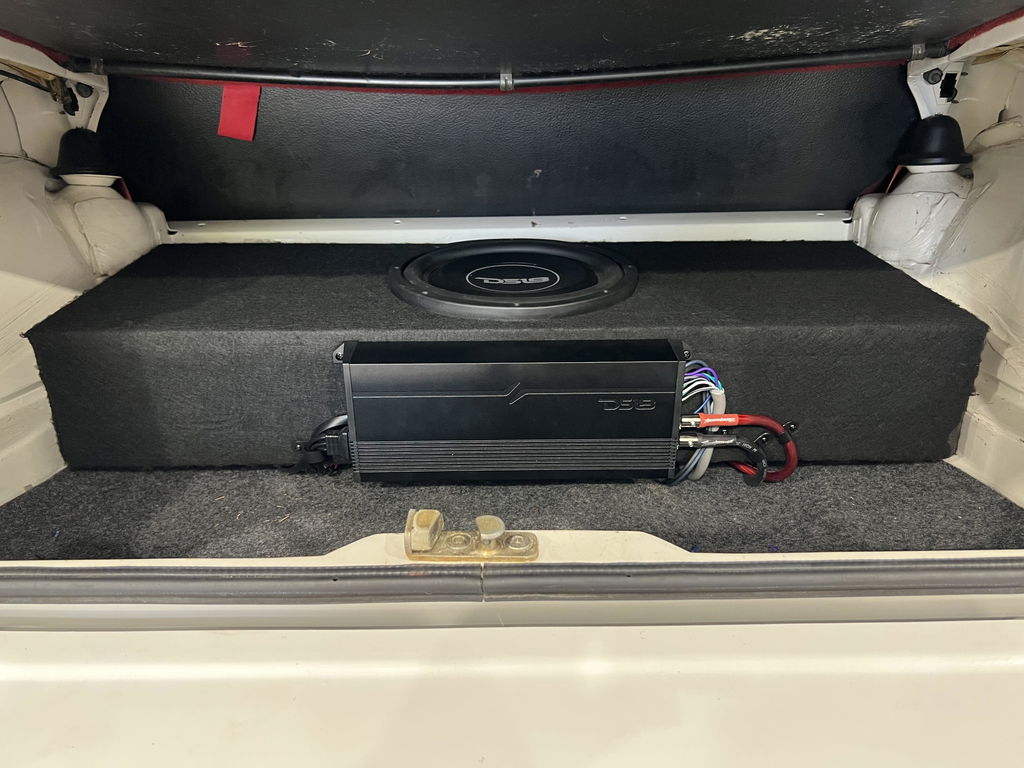

1990 vw cabriolet stereo install

Installed a set of 4x6 in front doors. Set of 5.25 in rear panels. A 10 inch shallow mount sub. Powered by the 4000.5 amp. Was skeptical on the sound that would come from smaller speakers. But was very impressed. I just purchased another complete set of DS18 equipment for my 1989 Toyota Landcruiser.
Thanks
Troy Banks
