CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
Channel:
Power Rating:
Channel: 5 Channel
Power: 4 x 120 Watts + 220 Watts (SUB)
Color:
-
Key Features
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-X5B
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
120W x 4 + 220W (Sub)
RMS Power @ 2 Ohm
200W x 4 + 360W (Sub)
RMS Power @ 1 Ohm
500W (Sub)
RMS Power @ 4 Ohm Bridge
350W x 2
Audio
Frequency Response
20Hz~20KHz / 20Hz~250Hz (Sub)
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V
Selectable X-Over
FULL/HPF - Fixed LPF (Sub)
X-Over Filter Range
40Hz~250Hz / 50Hz~150Hz (Sub)
Bass Boost Range
6dB/12dB
Bass Boost Frequency
50Hz
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 ohm St / 4 ohm Bridge + 1 ohm (Sub)
Led Indicator
Power / Protection
Power Input Terminal Size
4Ga
Fuse Size
40A x 2
Remote Level Control
Yes / Remote Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>180F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
Extra Features
Hi-Level Input With Auto Turn-On
Yes
Input Selector
Yes (4/5 Channels)
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Measurement
Overall Length
11" / 280mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
9.8" / 250mm
Gross Single Unit Weight
2Kg
-
Product Overview
Product Overview
DS18 CANDY-X5B 5-Channel Full Range + Subwoofer Amplifier | 2000W Peak
DS18’s CANDY-X5B is your all-in-one 5-channel amplifier built for massive power in a compact footprint. This amp drives your mids, highs, and subwoofer without eating up space.
Small Size. Big Performance
The CANDY-X5B delivers 2000W peak power resulting in clean, efficient RMS output across all channels: 4 x 120W at 4Ω, 4 x 200W at 2Ω, and 4 x 140W at 4Ω bridged — plus a dedicated subwoofer channel pushing 1 x 210W at 4Ω, 1 x 360W at 2Ω, and 1 x 500W at 1Ω.Built-In Sub Channel with Full Control
A dedicated 500W subwoofer channel means you don’t need a separate mono amp. Selectable LPF, bass boost, and phase control let you dial in tight, deep bass just the way you like it.Runs Cool. Hits Hard
Thanks to its Class D design and >75% efficiency at 4 ohms, this amp stays cool under pressure — perfect for custom installs in tight or hidden spaces.Plug In. Power Up. Ride Out
OEM-ready with Hi-Level inputs and Auto Turn-On, the CANDY-X5B makes installation smooth. It also includes a remote bass knob, so you can adjust your sub levels on the fly.DS18 Durability
Protected against heat, shorts, and voltage swings (9V–16V), this amp is built with Surface Mount Technology and tested for peak precision using Audio Precision gear.Upgrade to the CANDY-X5B and power your entire system!
Complete your System
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
Related products
Channels:
Power Rating:
Channel:
Power:
Color:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channels:
Power Rating:
Channel:
Power:
Color:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channels:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channels:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channels:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channels:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channels:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channels:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channels:
Power Rating:
Channel:
Power:
Color:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
Channels:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channels:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channels:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channels:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channels:
Power Rating:
Channel:
Power:
Color:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channels:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channels:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channels:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channels:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channels:
Power Rating:
Channel:
Power:
Color:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts

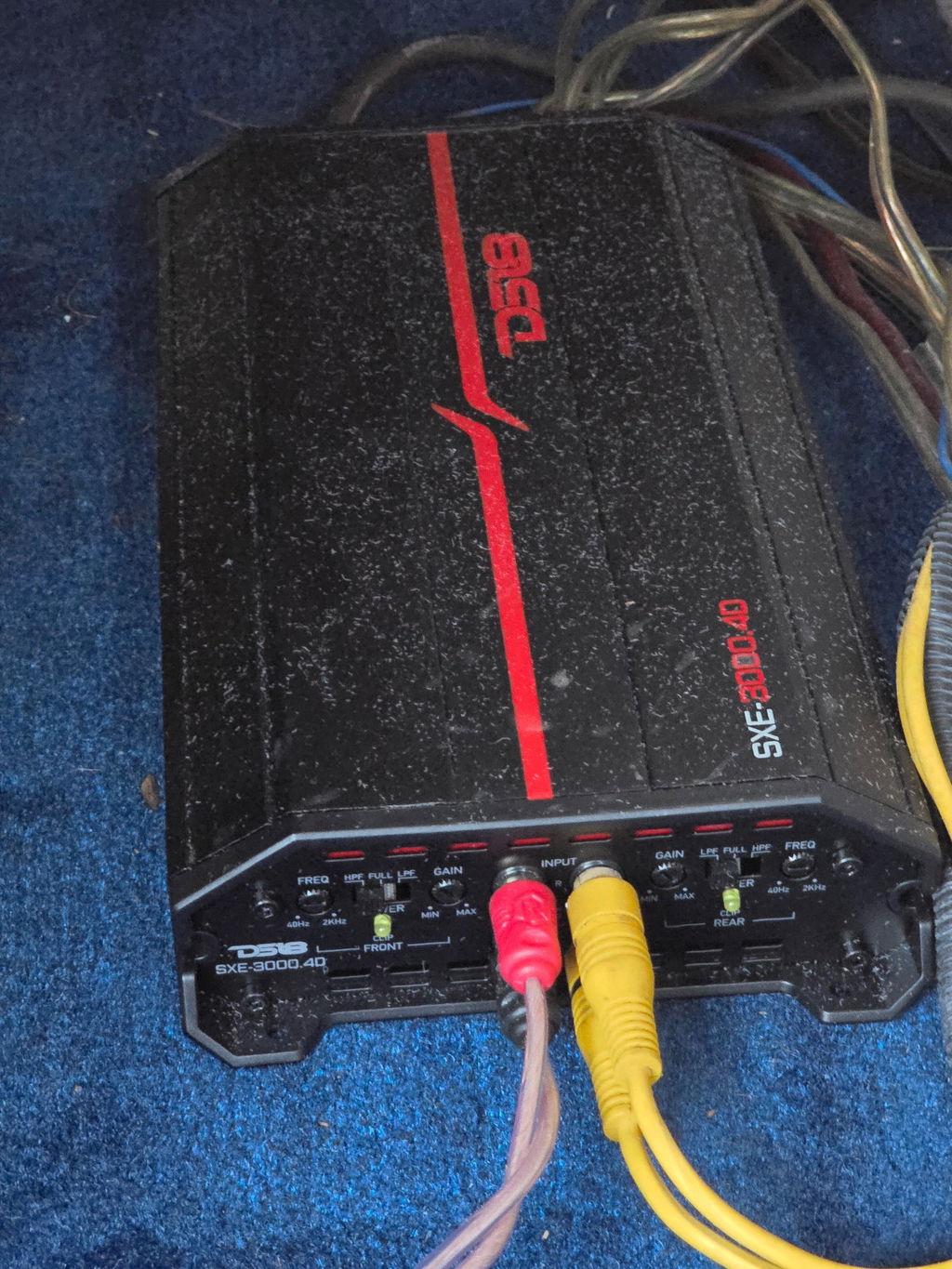

I love this amp its output is crazy but i do perfer cooler fan on the amp but the is great crazy loud hard pouding bass almost blow my sub
Love these amps have the second one in my bike, not a problem with DS18 Hurricane Michael ruined it, but I replaced it. The latest is for my 91 Chevy truck.
Kick ass .. the best ..
They sent the wrong Amplifier and I had to convince them o refund the price difference. Maybe the next order will be better.
Let customers speak for us
from 4134 reviewsI started using DS18 a couple years ago. Ever since, I’ve stuck with them and recommended them to everyone needing audio. I swear by this company and will continue to do so as every product is beyond my expectations. Whether it’s as small as fuses or wiring or as big as full audio setups, batteries or subs, they’ve always gone above and beyond to help me get where I want to be with sound. Quality is better than most. Many people say “why didn’t you go with JBL, they’ve been around longer.” In return, I’ll tell them they’re overpriced and overrated. DS18 is 100% the way to go for your audio needs!
Got two of these bad boys in my truck. Ported in from the bed. They sound amazing. Only issue I had were soldering on voice coils broke and it cost my some money on install. But highly recommend these loud *!@ speakers for anyone who wants to annoy the neighbors. Just verify your connections
Works great. Does exactly what it said it would.
The speakers were shipped out fast, with a very fast delivery time. They sound better than I could have expected. I definitely plan on buying some more for my system!!
Had to tune it down a little. It is capable of getting to loud. Lol
Speakers sound great but don’t drop them…. I apparently had slick fingers that day and dropped it. Messed the speaker up unfortunately but still sounds ok lol. Will order another eventually
I had an issue with my amp, called customer service and he was able to walk me through the repair/return process. My amp was back to me before I knew it. Very good experience all the way around!!
Before putting my system together i watched countless hours of subwoofer reviews and read an obsurd amount of articles. I was on a budget when i went to my local wholesaler who I'd been buying car audio parts from for quite a while. He suggested these zxi12.2d subs. I wasnt sold tho, i went home looked em up and found mixed reviews. The following weekend i went back to store. Dude told me he would give me a deal on 2 of them in a matched ported ported box. I figured I'd give it a try. I hooked these bad boys up to a 2ohm 3k mono amp and was more than pleasantly surprised by how far the lows were hitting, how loud it was for just 2 12"s in a Yukon at that. The power rating seems vastly underrated as others have mentioned, i feel like i put these 2 12s on a 5k or 8k amp to really see them at full potential. Im at 3/4 max power on my amp cant turn it up anymore due to distore from the amp, not clipping on the subs. If anyone has tested these to full clipping and knows the max power they can take constitently in an everyday driver lmk pls. These guys are underrated in the bass head world. Im currently using their zxi 6.5 components on a amp as well for clear and of course loud mids and highs. Thx for the quality products.
Easy install. Great sound. Runs with JBL 2"throat and sounds the same. I do remove the phase plug. It is good at distance but not as bright
Kit is perfect. I had way more wire than needed which was great and really aided in being able to tuck everything neatly. Came with everything you’re gonna need to get ur amp goin.
Don’t even have any other upgrades yet other than these speakers and already noticed a huge difference.
We are loading your cart...
Password Required
Please enter the password to access this page.
