CANDY Compact Full-Range Class D 4-Channel Amplifier 1600 Watts
SOLD OUT
CANDY Compact Full-Range Class D 4-Channel Amplifier 1600 Watts
SOLD OUT
Sale / EACH
Reg.
15% OFF FOR 4TH OF JULY SALE!
-
Key Features
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-X4B
Total Watts (Peak)
1600W
RMS Power @ 4 Ohm
120W x 4
RMS Power @ 2 Ohm
200W x 4
RMS Power @ 4 Ohm Bridge
350W x 2
Audio
Frequency Response
20Hz-20Khz
Signal to Noise Ratio
>70 dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50 dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz-2kHz
Bass Boost Range
0dB~12dB
Bass Boost Frequency
Fixed 50Hz
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 ohm
Led Indicator
Power / Protection
Power Input Terminal Size
4Ga
Fuse Size
25A x 2
Remote Level Control
No
Cooling Fan
No
Thermal Protection
Yes (>158F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Black Matte
Measurement
Overall Length
8.3" / 211mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 47.5mm
Heatsink Length
7" / 228mm
Gross Single Unit Weight
3
-
Product Overview
Product Overview
DS18 CANDY-X4B 4-Channel Digital Amplifier
Give your system some flavor with the CANDY-X4B! Designed for power and precision, this high-performance car amplifier is perfect for any demanding system.
With a peak power of 1600W and RMS power ratings of 4 x 120W at 4 ohm, 4 x 200W at 2 ohm, and 2 x 350W at 4 ohm bridge: you can trust the CANDY-X4B to push your audio system past its full potential.
Built with advanced features like high-level input terminals and auto turn-on/off functionality, this digital amplifier ensures seamless integration with any car audio setup. The versatile crossover options (LPF/FULL/HPF) and adjustable frequency range (40Hz to 2kHz) offer you complete control over your sound. Plus, the bass boost feature, adjustable from 0dB to +12dB, ensures that every beat is hard and sweet!
Compact in size yet robust in performance, DS18’s CANDY-X4B is easy to install and fits perfect into any vehicle. User safety and product reliability are paramount with the CANDY-X4B. It’s protection features include thermal, overload, and short circuit output protection.
Crank up the flavor with the CANDY-X4B - upgrade now for power that never fades!
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
CANDY Compact Full-Range Class D 4-Channel Amplifier 1600 Watts
Related products
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
4TH OF JULY SALE
Channel:
Power:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
4TH OF JULY SALE
Channel:
Power:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
4TH OF JULY SALE
Channel:
Power:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
4TH OF JULY SALE
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
4TH OF JULY SALE
Channel:
Power:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
4TH OF JULY SALE
Channel:
Power:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
4TH OF JULY SALE
Channel:
Power:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
4TH OF JULY SALE
Channel:
Power:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
4TH OF JULY SALE
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
4TH OF JULY SALE
Channel:
Power:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
4TH OF JULY SALE
Channel:
Power:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
4TH OF JULY SALE
Channel:
Power:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
4TH OF JULY SALE
Channel:
Power:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
4TH OF JULY SALE
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
4TH OF JULY SALE
Channel:
Power:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
4TH OF JULY SALE
Channel:
Power:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
4TH OF JULY SALE
Channel:
Power:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Channel:
Power:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
4TH OF JULY SALE
Channel:
Power:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), Input Selector
- Remote Subwoofer Level Control Included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
4TH OF JULY SALE
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
nice product we like it loud 💯 nice and compact
Awesome
Is great is a good deal I recommend

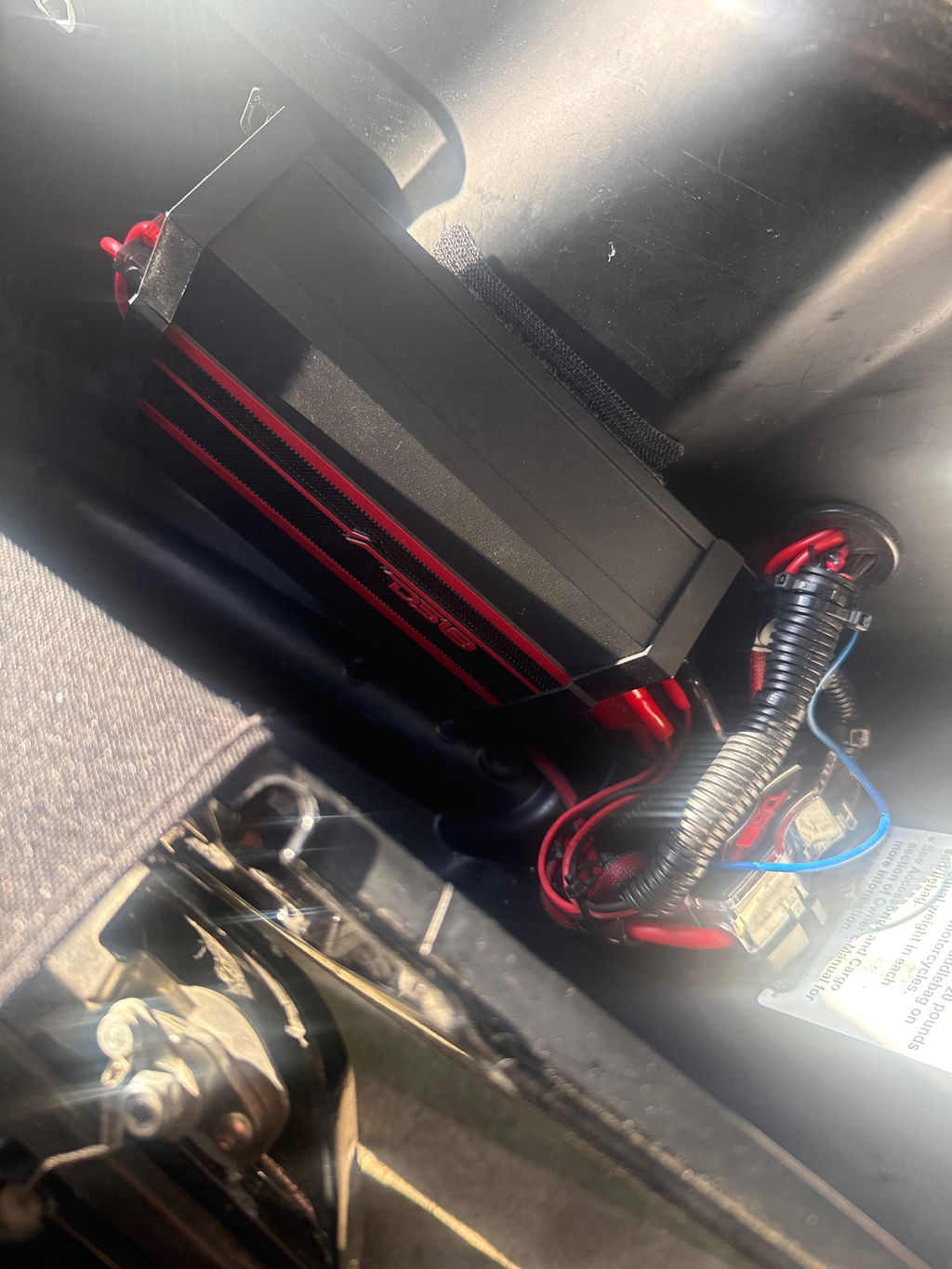

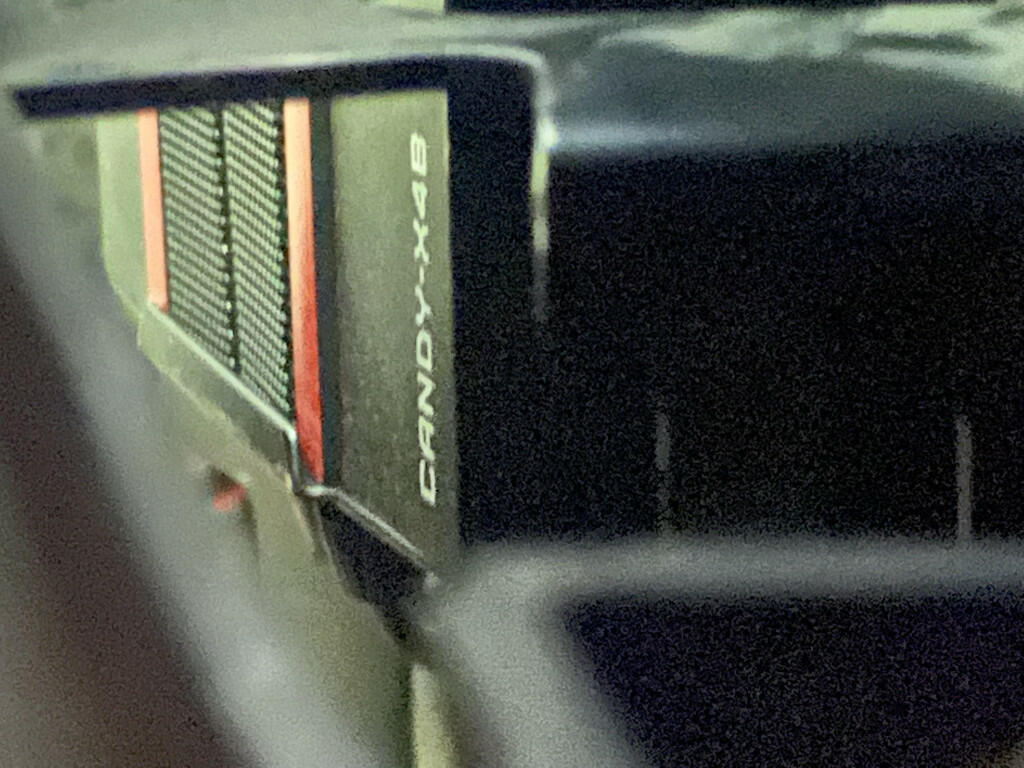

Purchased the DS18 Candy X4B amplifier to power my DS18 6”& 8” Hydro Tower speakers on my Polaris Rzr, this amp did not disappoint! The amp has PLENTY of power without distorting the music quality. Also it’s small and fits almost anywhere which is a plus.

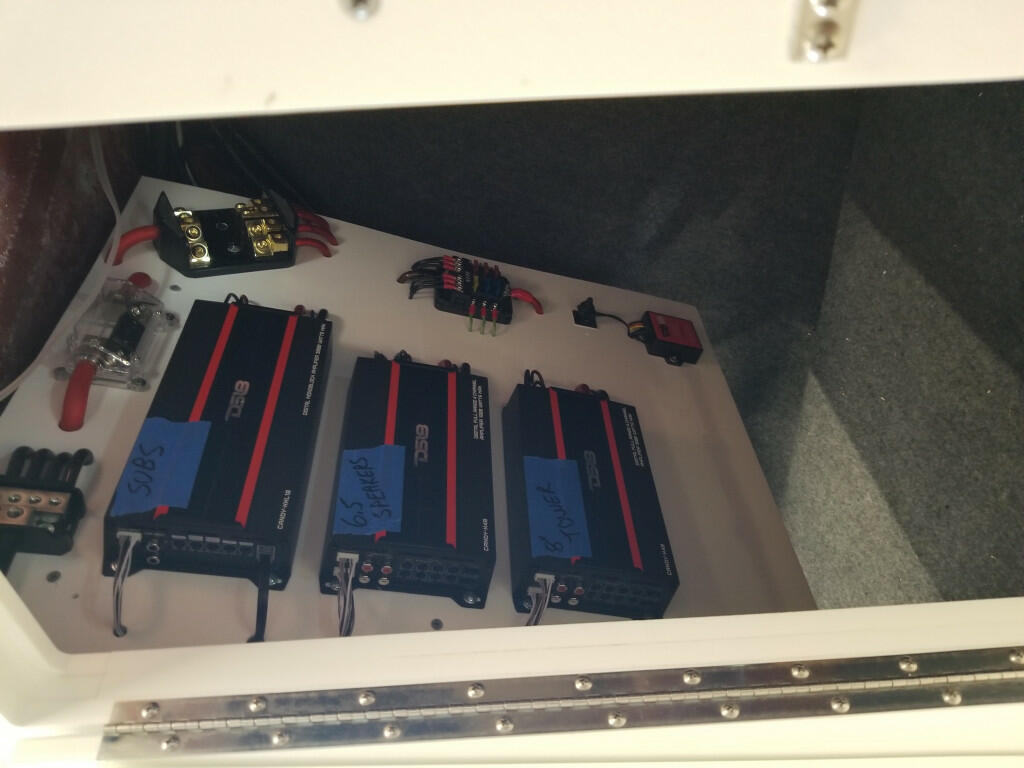

I have two of them installed in my 2022 Yamaha AR250 boat. One powers the 6.5 speakers and the other is bridged powering the tower speakers. They are nice and compact with tons of power output. Made a nice little amp rack to mount them in behind the helm. It worked out great and looks pretty good to.
Let customers speak for us
from 4402 reviewsA+
I had switched out my factory to kickers and my friend had DS18. Which his was much clearer. So I switched out the dash, knees, and soundbar and it so clear. Now I need to switch out the sub.
They are a great JL OEM replacement sound quality is great
Let me start by saying this, I sold my kidney on the black market and bought 26 of these. I put them in my nans sprinter van. I may or may not have given her a heart attack before being launched at Mach Jesus towards the sun. Its getting a little hot but hey.... it was worth the bump session
PRO 6.5" Shallow Neodymium Full-Range Loudspeaker 150 Watts Rms 4-Ohm
Sounds great and hits hard! App is easy to connect to for the lights
I swapped out my stock speakers and used these ds18 speakers. Only issue was that I had to use a heat gun to heat up the inside plastic housing on one side to to make just a little more room so the speaker would fit into place. Make sure your speed control settings are on and adjusted upward. I can now hear my audio when traveling down the road. They have good clean clear crisp sound. I would recommend them.
i’m very pleased with my product very nice sound quality and build it was recommended by a lot of car audio guys.
I purchased these to replace a pair of Focal 6.5" door speakers. The sound is extremely clear and the voice coils are extremely louder than my old 6.5" speakers. I also have the ZXI 6x9's. I finally have highs that aren't drownded out by my subs. Thanks DS18!!
I have a 2018 Wrangler JL… these speakers were a fantastic addition to my DS18 build! I used these as a replacement to the dash tweeters to add more bang and they delivered!
PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm
Sound bar was very easy to install and fit perfectly in place, this bar replaced the stock bar in a 2025 Jeep 2 door Wrangler.
I did need an AMP to power and use it.
Looks good, Sounds good, Fits good.
I recently purchased the DS18 JL/JLU Exclusive Wheel Well Subwoofer Enclosure Package, and I could not be happier with it. I had already upgraded my Jeep with the Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1, and adding this subwoofer enclosure package took the entire system to another level.
The sound quality, bass response, and overall performance are exactly what I was looking for. Everything works great together, and the setup gives my Jeep a clean, powerful sound without taking away from the look or functionality of the vehicle.
I love all of the DS18 products I have purchased so far and would highly recommend them to anyone looking to upgrade their Jeep’s audio system. Great quality, great sound, and definitely worth it!
Very easy install, fits perfect under passenger seat in a 2025 Jeep Wrangler 2 door. everything sounds great.
We are loading your cart...
