PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm








PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm
Sale $68.81 / EACH
Reg.$80.95
15% OFF FOR MOVING SALE!
-
Key Features
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
PRO-HY6.4MSL
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
93dB
Frequency Response
100Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
17.5 Oz
Displacement Volume
Thiele & Small Parameters
Equivalent Volume Vas
3.21L / 0.11ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
160Hz
Mechanical Factor Qms
8.12
Electrical Factor Qes
1.245
Total Factor Qts
1.086
Mechanical Mass Mms
7.452g
Mechanical Compliance Cms
182.236 mm/N
BL Factor BL
4.705
Voice Coil Inductance Le
16.78mH
Cone Area Sd
136.848 Cm2
DC Resistance Re
3.2 ohm
Mechanical Mass w/o air Mmd
8.60g
Driver Specifications
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm
Speaker Measurement
Overall Diameter
6.92" / 176mm
Overall Depth
3.52" / 89.5mm
Front Mount Baffle Cutout
5.6" / 142mm
Mounting Depth
2.77" / 70.5mm
Motor Diameter
4.33" / 110mm
Shipping Info
Gross Single Unit Weight
3.75
Single Unit Box Dimensions L x W x H (Inches)
7.25 x 7.25 x 4.25
Quantity of Units in Master Carton
8
Gross Master Carton Weight
32
Master Carton Dimensions L x W x H (Inches)
15.25 x 15.25 x 9.5
-
Product Overview
Product Overview
DS18 PRO-HY6.4MSL Perfect audio is possible with the PRO-HY6.4MSL! We've taken one of our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design.
With 300W MAX power handling and 150W RMS power handling, the PRO-HY6.4MSL gets extremely LOUD with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL’s excel in reproducing crystal-clear audio with astonishing depth and precision.
With its sleek dimensions and a mounting depth of 2.77 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications.
One of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. It also features the DS18 branding so you can show the world you like it LOUD!
Prepare to be blown away by the power, clarity, and precision of the PRO-HY6.4MSL.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm
Default Title
Related products
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
Impedance:
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
- 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 93dB
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 8 Ohm
- Ferrite & Neodymium Magnets
- With Grill
- 98dB
Size:
Impedance:
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets
- With Grill
- Easily Repaired With The PRO-HY/VC
Size:
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Size:
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Size:
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Size:
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
Size:
- 10" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
- 10" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
Size:
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
Size:
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Size:
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Size:
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
- 8" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IP55
- Easily Repaired With The PRO-HY/VC
Size:
- 10" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
- 10" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
- 1" Replacement Diaphragm
- Titanium
- Impedance: 4 Ohm
- For: HY Series Loudspeaker/Driver
- Single
- 1" Replacement Diaphragm
- Titanium
- Impedance: 4 Ohm
- For: HY Series Loudspeaker/Driver
- Single
Very loud
These speakers are nice and loud. Clear mids and highs. Can hear at any speed.
Really really loud and crisp and clear. Can’t complain, I paired these with my amp/dsp and it’s great. Will be buying more products.
Really brought out the highs in jeep sound bar.
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm
Let customers speak for us
from 3574 reviewsPRO-X 6.5" Mid-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm

Good sounding radio

NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber

I have these speakers installed in my Ford Ranger, and they sound phenomenal when paired with the IDs18 head unit. My only wish is that there was a 6x8 model in this series to better fill the speaker area.

Really love ds18 they do what they suppose to do clarity at its best

4-GA CCA Amplifier Installation Kit - RED

DS18 HYDRO CLP3 Clamp Adaptors 2.25", 2.5", 2.75", 3" (Single Clamp)

Anthony provided a more than exceptional hand in determining what was the best set up for my jet ski as well as listening to my needs. I felt as if he was not trying to sell me the highest priced product but the best product for the price range I was looking for. I will be using and recommending DS18 as long as Anthony is the person we deal with. It was a great pleasure
Anthony provided a more than exceptional hand in determining what was the best set up for my jet ski as well as listening to my needs. I felt as if he was not trying to sell me the highest priced product but the best product for the price range I was looking for. I will be using and recommending DS18 as long as Anthony is the person we deal with. It was a great pleasure
High Volt 7-Band Equalizer with High Level Input and Auto Turn On

I purchased (2) 6.5 Ds18 speakers for my Can Am Ryker 900 & I will say that I am very pleased with loud smooth sound. My friends tell me that they can hear me coming from the top of my street !! These speakers will not disappoint you

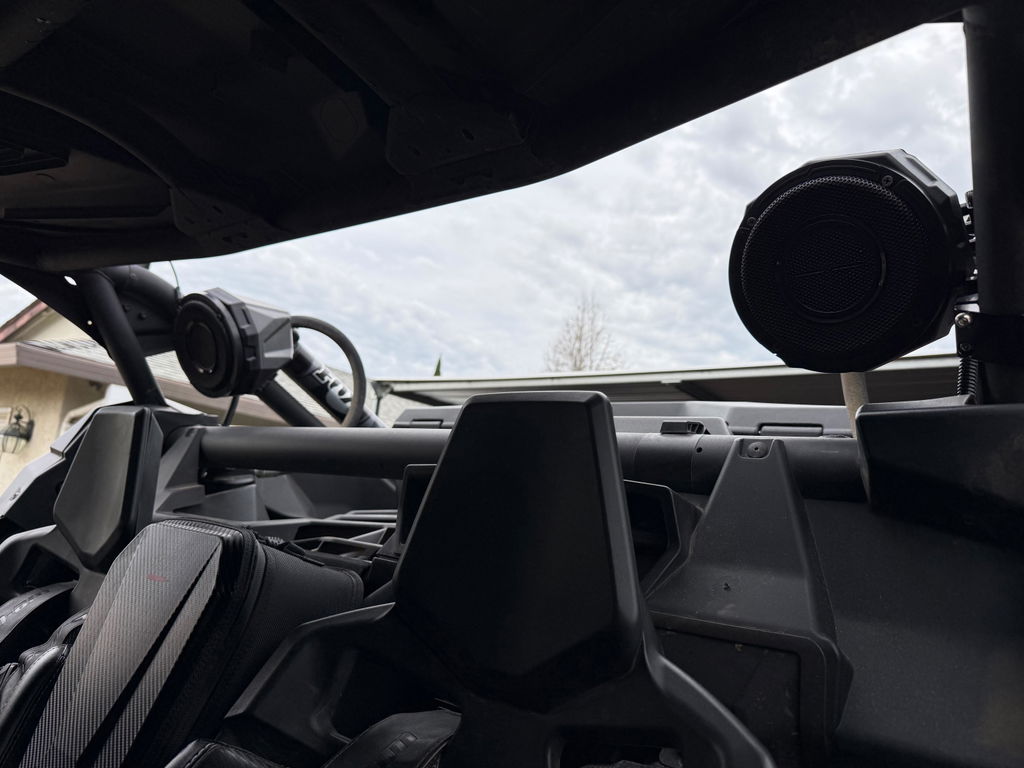

Only bad thing was my kit I bought was missing the Head Unit protective cover, but I called them and got a REAL PERSON on the phone and they are send me the cover at no charge. The speakers and head unit are very nice quality and have really clean sound. Perfect for my Can Am Maverick X3. I want to add two my 6.5" speaker to make it a little louder. DS18 is one of the best audio companies i have come across, great sound and really good quality materials used. For the bang for buck I would recommend DS18 to EVERYONE. Thank You

Awesome sounds luv them

Sound good in my single cab chebby

The amp work great I had to upgrade my alternator today
