PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm
PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm
Sale $96.86 / EACH
Reg.$113.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 6X9" Coaxial Water Resistant Mid-Range
- RMS Power: 275 Watts (550W Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Built-in Tweeter with Grill
- 98dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-ZT69
Nominal Diameter
6x9”
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
98dB
Frequency Response
60Hz-22KHz
Recommended Hi Pass Crossover
80 Hz
MIDRANGE
Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite
TWEETER
Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
ALUMINUM ALLOY
Magnet Weight
0.44 oz
Magnet Material
NEODYMIUM (N38H)
THIELE & SMALL PARAMETERS
Vas
14.6927 LTR
Xmax
16 mm
Fs
85 Hz
Qms
3.906
Qes
0.639
Qts
0.549
Re
3.2 ohms
MEASUREMENTS
Overall Diameter
260 x 180 mm (10.24 x 7.09”)
Front Mount Baffle Cutout
219 x 150 mm (8.62 x 5.91”)
Mounting Depth
85 mm (3.35”)
Overall Depth
97 mm ( 3.81”)
-
Product Overview
Product Overview
DS18 PRO-ZT69 6x9” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550W 4-Ohm
Experience earth-shaking sound with the PRO-ZT69: a 2-way mid-range built for raw power, accurate reproduction, and crystal-clear clarity across the entire frequency range—all packed into a rugged, water-resistant coaxial.
Insane Power
Handling an RMS power of 275W and a MAX power of 550W, the PRO-ZT69 reaches volumes that will take your breath away. With a 4-Ohm impedance for easy installation and an ultra-sensitive 98dB rating, you’re guaranteed powerful output at lower power levels.Wide Frequency Range
With an impressive frequency response of 60Hz - 22KHz, the PRO-ZT69 captures every nuance across the entire audio spectrum. The integrated tweeter refines the balance between highs and lows, creating a smooth listening experience every session.Deep, Impactful Bass
Engineered with a robust ferrite magnet, the 6x9" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for forceful impact in your low-end.Bullet Tweeter Power
The built-in bullet tweeter is powered by a high-performance neodymium magnet, delivering crisp, ultra-clear highs efficiently. Designed for peak performance, this tweeter ensures every detail in your music is heard clearly.Protective Grill Included
No need to worry about accidental scuffs or kicks—the rugged grill shields against potential damage, while the water-resistant cone guarantees reliable performance even in damp environments.Transform your system with the PRO-ZT69 and experience audio the way it was meant to be heard!
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm
Default Title
Related products
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Impedance:
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
Size:
Impedance:
- 4" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
- 4" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
Size:
Impedance:
- 4x6" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
- 4x6" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
Size:
Impedance:
- 5.25" Mid-Range w/Bullet
- MAX Power: 300 Watts
- RMS Power: 150 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 93dB
- 5.25" Mid-Range w/Bullet
- MAX Power: 300 Watts
- RMS Power: 150 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 93dB
Channel:
Power Rating:
Size:
Impedance:
Color:
- 5x7" Mid-Range w/Bullet
- MAX Power: 350 Watts
- RMS Power: 175 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 94dB
- 5x7" Mid-Range w/Bullet
- MAX Power: 350 Watts
- RMS Power: 175 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 94dB
Size:
Impedance:
- 6.5" Mid-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
Size:
Impedance:
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
Size:
Impedance:
- 8" Mid-Range w/Bullet
- MAX Power: 550 Watts
- RMS Power: 275 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
- 8" Mid-Range w/Bullet
- MAX Power: 550 Watts
- RMS Power: 275 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
Size:
Impedance:
- 10" Mid-Range W/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 10" Mid-Range W/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
Size:
Impedance:
- 6.5 Mid-Range w/ Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
- 6.5 Mid-Range w/ Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
Size:
Impedance:
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
Size:
Impedance:
- High-Temp Voice Coil
- Aluminum Bullet Tweeter
- 8-Ohm Load
- Steel Basket With Gloss Red Finish
- 97dB Sensitivity
- High-Temp Voice Coil
- Aluminum Bullet Tweeter
- 8-Ohm Load
- Steel Basket With Gloss Red Finish
- 97dB Sensitivity
- 4" High Compression Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 111dB
- Neodymium Magnet
- Easily Repaired With The
- 4" High Compression Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 111dB
- Neodymium Magnet
- Easily Repaired With The
Channel:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channel:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channel:
Power Rating:
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Channel:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ GREEN
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ GREEN
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ BLUE
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ BLUE
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Purple
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Purple
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Yellow
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Yellow
I got 2 6.5 up front and 2 6x9 in my lids in the rear of my 24 road glide police edition. The sound great! The sound quality is top notch. I wanna run some 8 inch subs in my bags to give me more bass. Ds18 hook me up so I can do a sound video on YouTube with my guy baggers and burban. Lol
I use them in my Harley saddlebags paired with a 1200 watt Soundigital amp and these things are powerful. Well worth it.
Very satisfied with DS18 amp and speakers
This is my second set and they show no mercy when it comes to loud , I love em😎

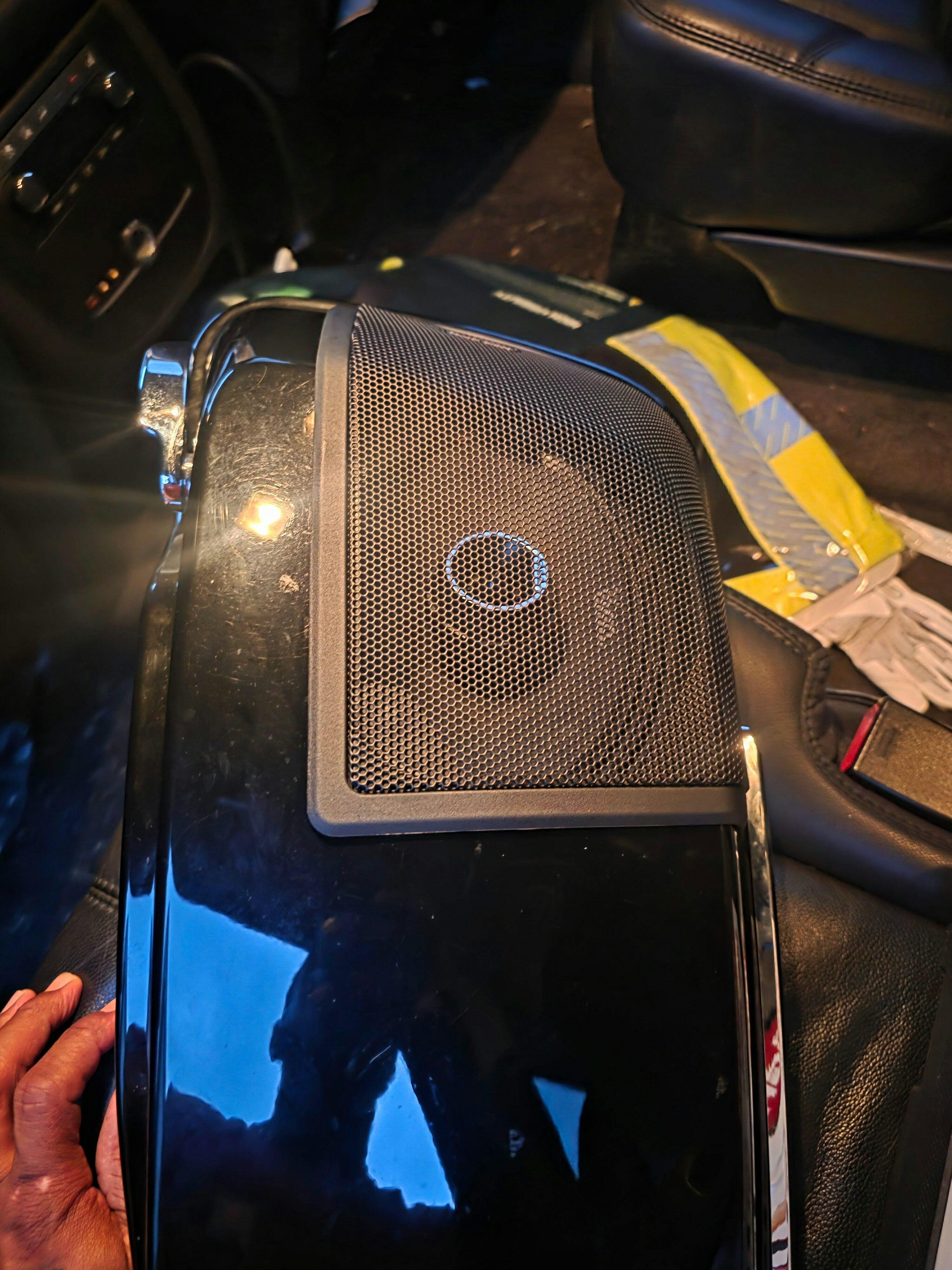

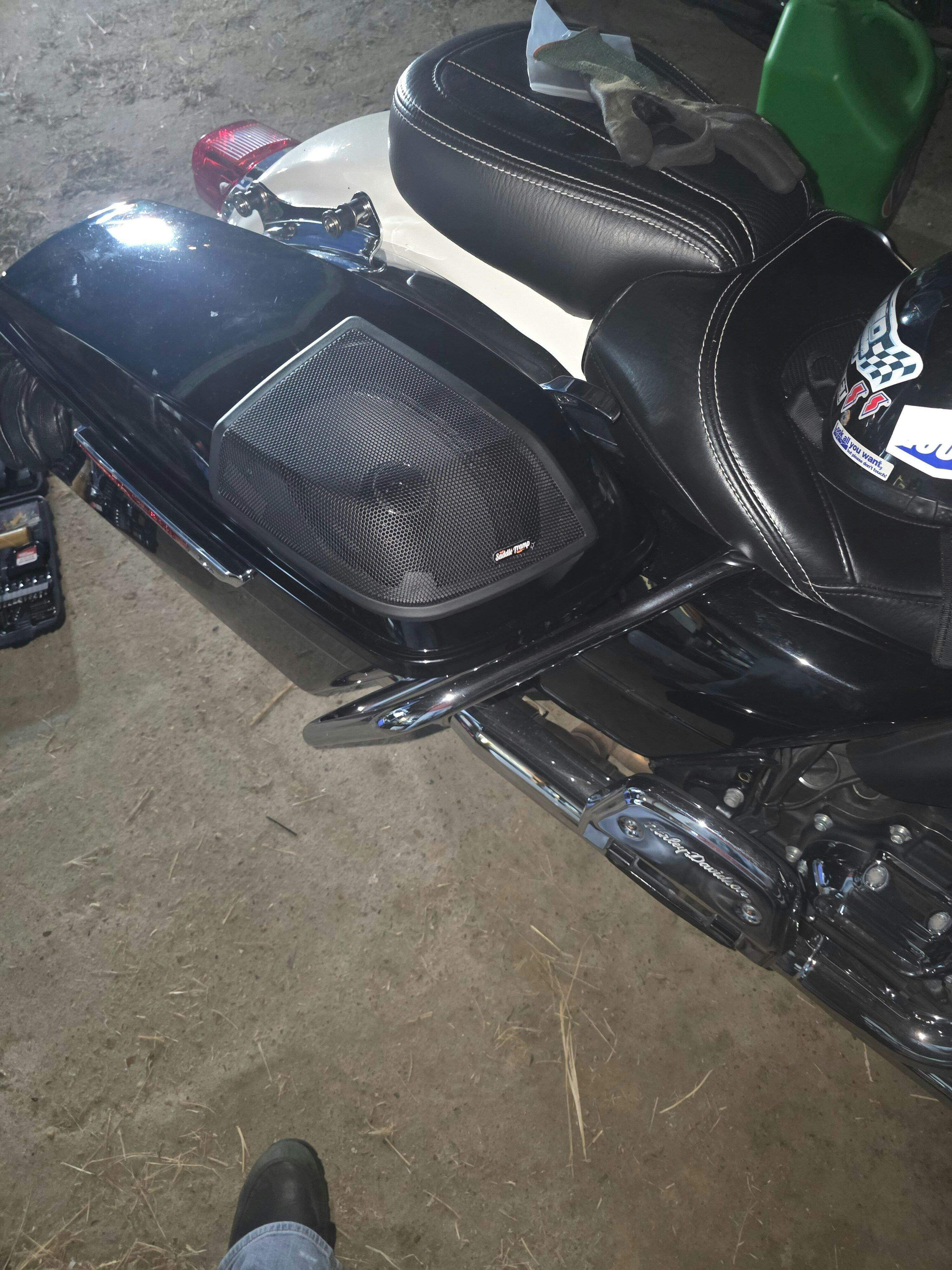

I install these with hertz or precision power 6x9 cut kits in saddlebags. Great power handling, crystal clear sound, amazing volume, awesome tone. I'd put them up against the best from the other big names in motorcycle audio, and they always win!
Let customers speak for us
from 3893 reviewsBought this QUALITY CABLE for INSTALLING ALPINE AMP-ONLY Cable U can find with ANGLED RCA - very HAPPY:)
I bought these speakers to fit in the back doors of my 05 Chevrolet crew cab pickup they work great. They Give me more base which paired perfectly with the DS18s and tweets, I have in the front doors just what it needed.
Thanks DS18
I Like it Loud!
NO more then you pay for these they are the perfect upgrade!
Great service and fast wow thank you for packing it up really appreciate the team at the warehouse and sending my shipment with Care. Can’t wait to do the install on my Slingshot. This is gonna sound super loud thank you Team. Really appreciate you guys.
I have been looking for a 2 ohm speaker for my set up foud this one and l love it sounds really good and takes a ton of power
These evl 12s are where it’s at..build the box to specs like it says..hardest hitting subs I’ve bought to date
sound great look good even though you can’t see them in my truck
Fit & finish is very good bought them for my saddle bags on my 2000 road king installed your amp also combined with these speakers Wow very happy with the sound & performance $ well spent if I choose to add any more speakers I will definitely go with Ds18 in the future TY
Alot of sound for something small love it
Best loudspeakers🔥
I previously purchased a JBL rally bar 36 inch and was highly disappointed so I reached out to Anthony at DS 18 directly. He hooked me up with a set of 8 inch tower speakers 500 W he gave me a matching amp that I needed and a head unit, their customer service, especially Anthony walked me through the whole process of tuning my amp And system. It was so loud that we had to un bridge and just hook it up to 2 Channels Way more than I ever expected to get.the JBL rally bar. I couldn’t even hear the music over the motor running in the background very pleased with the product couldn’t be happier
NXL 8-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 8 x 150 Watts RMS @ 4-Ohm
Wanted to add more power to my mids. Great bit and works great
