GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

SKU: G6.9Xi
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm
GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

SKU: G6.9Xi

Sale price$63.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 6x9"

Quantity:
  • Key Features

    • 6X9" 3-Way Coaxial
    • MAX Power: 180 Watts
    • RMS Power: 60 Watts
    • Impedance: 4 Ohm
    • Barium Ferrite & Neodymium Magnets
    • Pair ~ 86dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    G6.9XI
    Nominal Diameter
    6X9" / 152x228mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    60W
    Maximum Power Handling
    180W
    Sensitivity (1w/1m)
    86dB
    Frequency Response
    35Hz-20KHz
    Recommended HI Pass Crossover
    50Hz
    Number of ways
    3
    Pair or single
    Pair
    Grill Included
    Yes

    WOOFER SPECS

    Voice Coil Diameter
    1" / 25.5mm
    Voice Coil Former Material
    ASV
    Winding Material
    EISV
    Cone Material
    Paper
    Surround Material
    Rubber
    Basket Material
    Steel
    Basket Color/Finish
    Black Matte
    Magnet Material
    Barium Ferrite
    Magnet Weight
    15.7Oz / 445g

    THIELE & SMALL PARAMETERS

    Equivalent Volume Vas
    14.3L / 0.5ft3
    Excursion (one way) Xmax
    3.3mm
    Free Air Resonance Fs
    68Hz
    Mechanical Factor Qms
    4.8
    Electrical Factor Qes
    1.97
    Total Factor Qts
    1.4
    Mechanical Mass Mms
    23.8g
    Mechanical Compliance Cms
    248mm/N
    BL Factor BL
    4.2
    Voice Coil Inductance Le
    197uH
    Cone Area Sd
    202cm2
    DC Resistance Re
    3.7 Ohms
    Mechanical Mass w/o air Mmd
    20.5g

    TWEETER SPECS

    Nominal Diameter
    Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
    Voice Coil Diameter
    Tw1: 0.6" / 17mm Tw2: Peizo
    Voice Coil Former Material
    Tw1: PESV Tw2: N/A
    Winding Material
    Tw1: EISVM Tw2: N/A
    Diaphragm Material
    Tw1: Mylar Tw2: Mylar
    Magnet Material
    Tw1: Barium Ferrite Tw2: N/A
    Magnet Weight
    Tw1: 34g Tw2: N/A

    SPEAKER MEASUREMENTS

    Overall Diameter
    6.4" x 9.2" / 163 x 234mm
    Overall Depth
    3.85" / 97.8mm
    Overall Diameter (With Grill)
    7.24" x 10.4" / 184 x 264mm
    Overall Depth (With Grill)
    4.15" / 105.5mm
    Front Mount Baffle Cutout
    5.9 x 8.66" / 150 x 220mm
    Mounting Depth
    2.95" / 75mm
    Motor Diameter
    4.17" / 106mm
    Tweeter Protrusion
    0.9" / 22.8mm
    Gross Single Unit Weight
    1.25KG
    Single Unit Box Dimensions W x L x H
    305 x 125 x 375mm
    Quantity of Units in Master Carton
    5 PRS/CTN
    Gross Master Carton Weight
    15.5KG
    Master Carton Dimensions W x L x H
    650 x 320 x 390mm

    Load More
  • Product Overview

    Product Overview

    DS18 G6.9XI

    3-Way Coaxial Speakers 180 Watts 4-Ohm

    The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

    The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

    The G6.9Xi is notable for its 3-way design consisting of a woofer, a mid-range driver, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.9Xi's 3-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
    The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.

    These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.

    Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.9Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
DS18 G6.9XI GEN-X 6X9" 3-WAY COAXIAL SPEAKERS 180 WATTS 4-OHM

Customer Reviews

Based on 9 reviews
89%
(8)
0%
(0)
0%
(0)
0%
(0)
11%
(1)
J
Joe Rose

They sound amazing recommend yall to everyone

E
Erik Laureano

Sound great

J
Jermaine Willis
Perfect

I love the way it sounds you will forever have a customer

G
Gavin

Worked very well for the price

A
Andrew Adkins
One of the best cheap upgrades for a vehicle

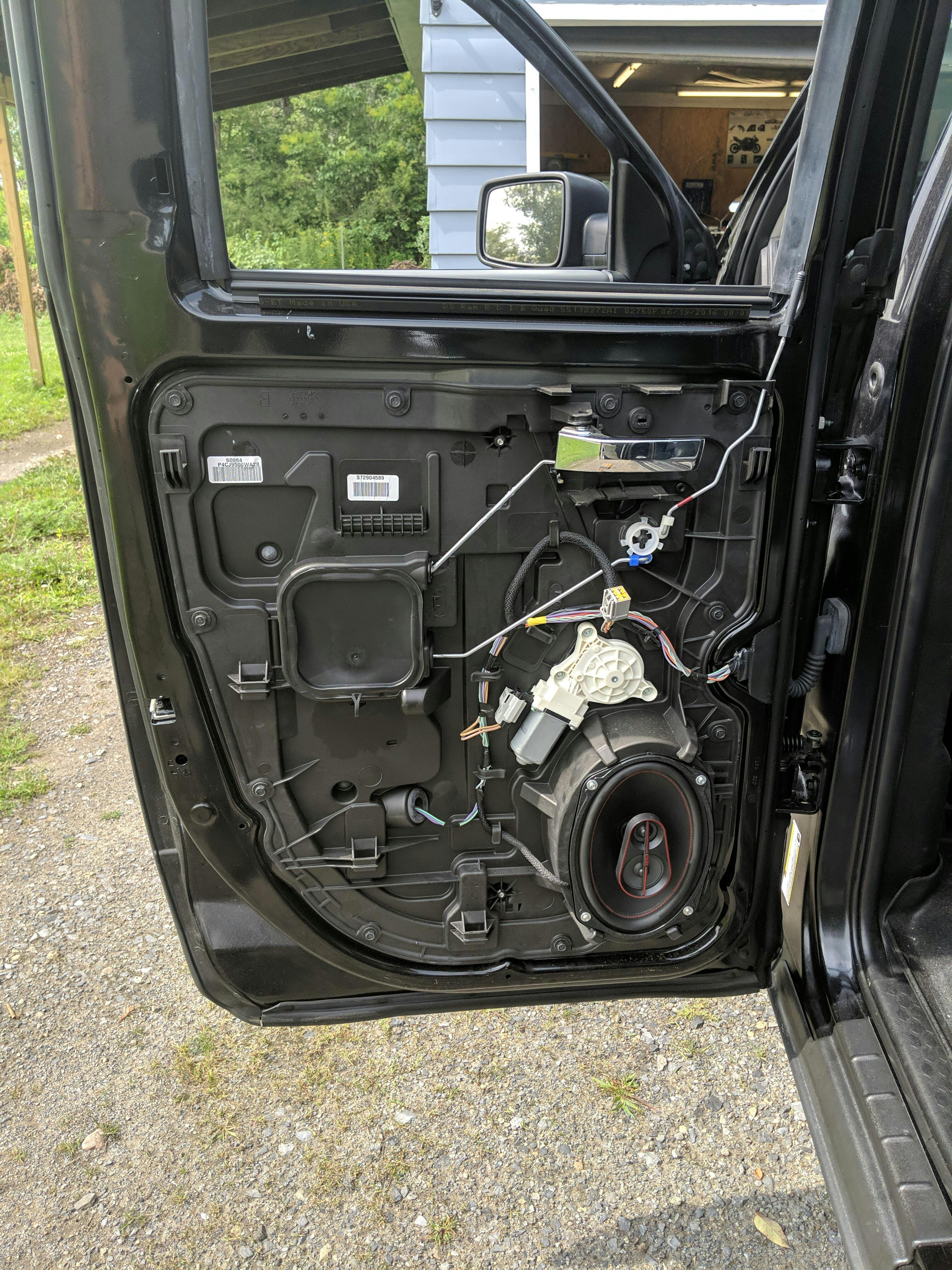

Perfect upgrade from installation to sound quality, everything was perfect. Installation was as simple as taking your door panel off, splicing 2 wires, and putting the panel back on. Sound quality is amazing whether you're listening to bass bumping hip hop, or some chill country music. The only con I have with these is at 45/50 volume, the bass will make the voice start fading. That may honestly just be an issue with my amp or tuner, but my volume on 44 still shakes my mirrors and I just have 4 door speakers.
