GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm

SKU: G4Xi
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm
GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm

GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm

SKU: G4Xi

Sale price$37.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Size: 4"

Quantity:
  • Key Features

    • 4" 2-Way Coaxial
    • MAX Power: 120 Watts
    • RMS Power: 40 Watts
    • Impedance: 4 Ohm
    • Barium Ferrite & Neodymium Magnets
    • Pair ~ 84dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    G4XI
    Nominal Diameter
    4" / 101mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    40W
    Maximum Power Handling
    120W
    Sensitivity (1w/1m)
    84dB
    Frequency Response
    80Hz-20KHz
    Recommended HI Pass Crossover
    90Hz
    Number of ways
    2
    Pair or single
    Pair
    Grill Included
    Yes

    WOOFER SPECS

    Voice Coil Diameter
    1" / 25.5mm
    Voice Coil Former Material
    ASV
    Winding Material
    EISV
    Cone Material
    Paper
    Surround Material
    Rubber
    Basket Material
    Steel
    Basket Color/Finish
    Black Matte
    Magnet Material
    Barium Ferrite
    Magnet Weight
    5.3Oz / 150g

    THIELE & SMALL PARAMETERS

    Equivalent Volume Vas
    1.59L / 0.018ft3
    Excursion (one way) Xmax
    2.2mm
    Free Air Resonance Fs
    105Hz
    Mechanical Factor Qms
    3.2
    Electrical Factor Qes
    1.27
    Total Factor Qts
    1.03
    Moving Mass Mms
    6.5g
    Compliance Cms
    238mm/N
    Bl Factor Bl
    3.2
    Voice Coil Inductance Le
    151uH
    Cone Area Sd
    55.4cm2
    DC Resistance Re
    3.7 Ohms
    Mechanical Mass Mmd
    5.5g

    TWEETER SPECS

    Nominal Diameter
    1" / 25.5mm
    Voice Coil Diameter
    0.5" / 13.25mm
    Voice Coil Former Material
    ASV
    Winding Material
    EISVM
    Diaphragm Material
    Mylar
    Magnet Material
    Neodymium
    Magnet Weight
    1.8g

    MEASUREMENTS

    Overall Diameter
    4" / 103.5mm
    Overall Depth
    2.4" / 60.8mm
    Overall Diameter with Grill
    5.28" / 134mm
    Overall Depth with Grill
    2.46" / 62.6mm
    Front Mount Baffle Cutout
    3.6" / 92mm
    Mounting Depth
    1.7" / 43.5mm
    Motor Diameter
    3" / 76mm
    Tweeter Protrusion
    0.68" / 17.3mm
    Gross Single Unit Weight
    0.45 KG
    Single Unit Box Dimensions W x L x H
    155 x 80 x 355mm
    Quantity of Units in Master Carton
    10 PRS/CTN
    Gross Master Carton Weight
    12.5 KG
    Master Carton Dimensions W x L x H
    431 x 330 x 330mm

    Load More
  • Product Overview

    Product Overview

    DS18 G4XI

    2-Way Coaxial Speakers 120 Watts 4-Ohm

    The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

    The G4Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

    The G4Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G4Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
    The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 80Hz.

    These speakers get loud extremely easily with a MAX Power Handling of 120W and RMS Power Handling of 40W.

    Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G4Xi will deliver. Order yours today and take the first step towards audio perfection on the road.



FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
DS18 G4XI GEN-X 4" 2-WAY COAXIAL SPEAKERS 120 WATTS 4-OHM

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
20%
(1)
0%
(0)
0%
(0)
N
Nikolai Jaremka
Great Price, Great sound!

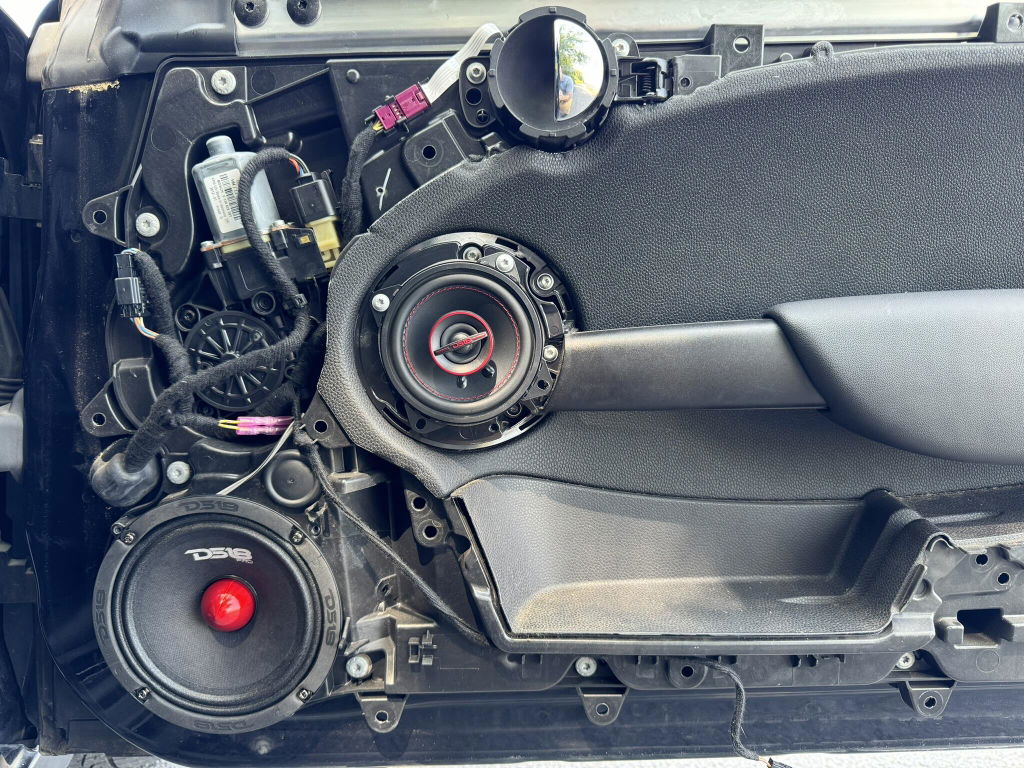

Installed along with a couple PRO-GM6.4B into my Mini Cooper. Currently running both off the stock HiFi amp. Speakers match specs perfectly, and sound fantastic compared to the OEM speakers. Loud and clean running off the factory amp. DS18 has won my future business!
