ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm
ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm
Sale $305.96 / EACH
Reg.$359.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
ZXI15.4D
Nominal Diameter
15" / 381mm
Nominal Impedance
4 + 4 ohms
RMS Power Handling
1000W
Maximum Power Handling
2000W
Sensitivity (1w/1m)
89dB
Frequency Response
15-900Hz
Recommended Lo Pass Crossover
90Hz
MOTOR
Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Ferrite
Magnet Weight
232 Oz (4 x 58 oz)
Displacement Volume
5.82L / 0.2ft3
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
77.82L / 2.748ft3
Free Air Resonance Fs
28Hz
Mechanical Factor Qms
7.641
Electrical Factor Qes
0.632
Total Factor Qts
0.516
Moving Mass Mms
351.991g
Compliance Cms
0.085mm/N
Bl Factor Bl
27.244
Voice Coil Inductance Le
63.14 mH
Diaphragm Area Sd
804.25cm2
DC Resistance Re
3.6+3.6 ohms
Efficiency Bandwidth Product EBP
44.3
RECOMMENDED ENCLOSURES
Sealed Internal Volume
56.6L / 2ft3
Sealed Box Output Response F3
32Hz
Ported Internal Volume
79.3L / 2.8ft3
Port Size *Square (W x H x Long)
1.6" x 15" x 23.46" / 40.6 x 381 x 595.9mm
Port Tuning Frequency FB
28Hz
Ported Box Output Response F3
25Hz

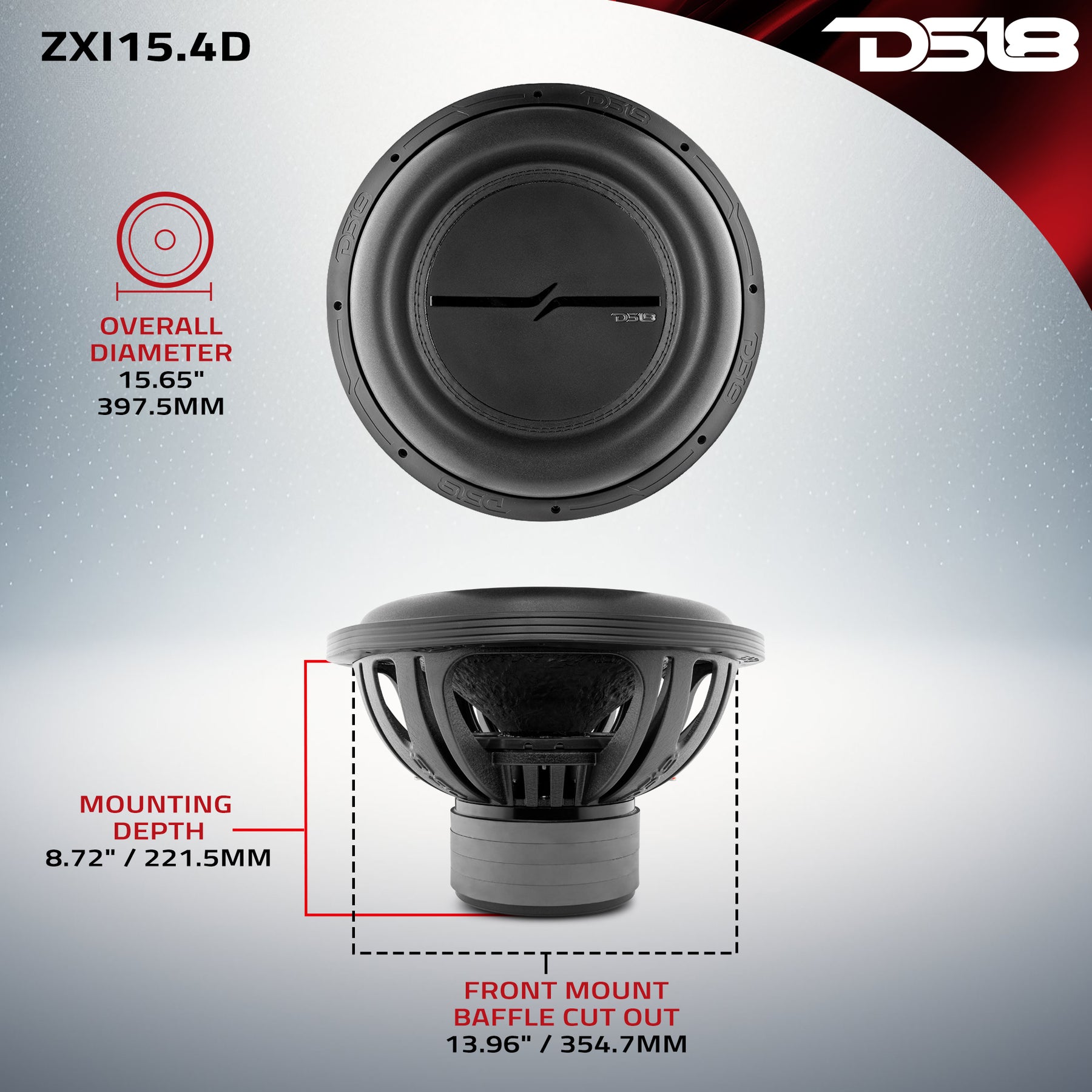

MEASUREMENTS
Overall Diameter
15.65" / 397.5mm
Overall Depth
10.51" / 267mm
Front Mount Baffle Cutout
13.96" / 354.7mm
Mounting Depth
8.72" / 221.5mm
Motor Diameter
7.48" / 190mm
Gross Single Unit Weight
39
Dimensions W x L x H
17.5 x 17.5 x 13
Quantity of Units in Master Carton
1
Gross Master Carton Weight
39
Master Carton Dimensions W x L x H
17.5 x 17.5 x 13
-
Product Overview
Product Overview
DS18 ZXI15.4D High Excursion 15" Car Audio Subwoofer 2000W Watts 4-Ohm DVC Quad Stacked Magnets
Experience bass like never before with DS18’s ZXI15.4D: the ultimate subwoofer for enthusiasts who crave thunderous bass!
The ZXI subline is renowned for its high excursion capabilities, and the ZXI15.4D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI15.4D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI15.4D will excel in both, giving you the flexibility to optimize placement in any vehicle.
It’s dual 4-ohm configuration and 3-inch voice coils, makes the ZXI15.4D a force to be reckoned with. Handling a staggering 1000W RMS power and 2000W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.
The ZXI15.4D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI15.4D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.
Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
ZXI 15" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm
Default Title
Related products
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:

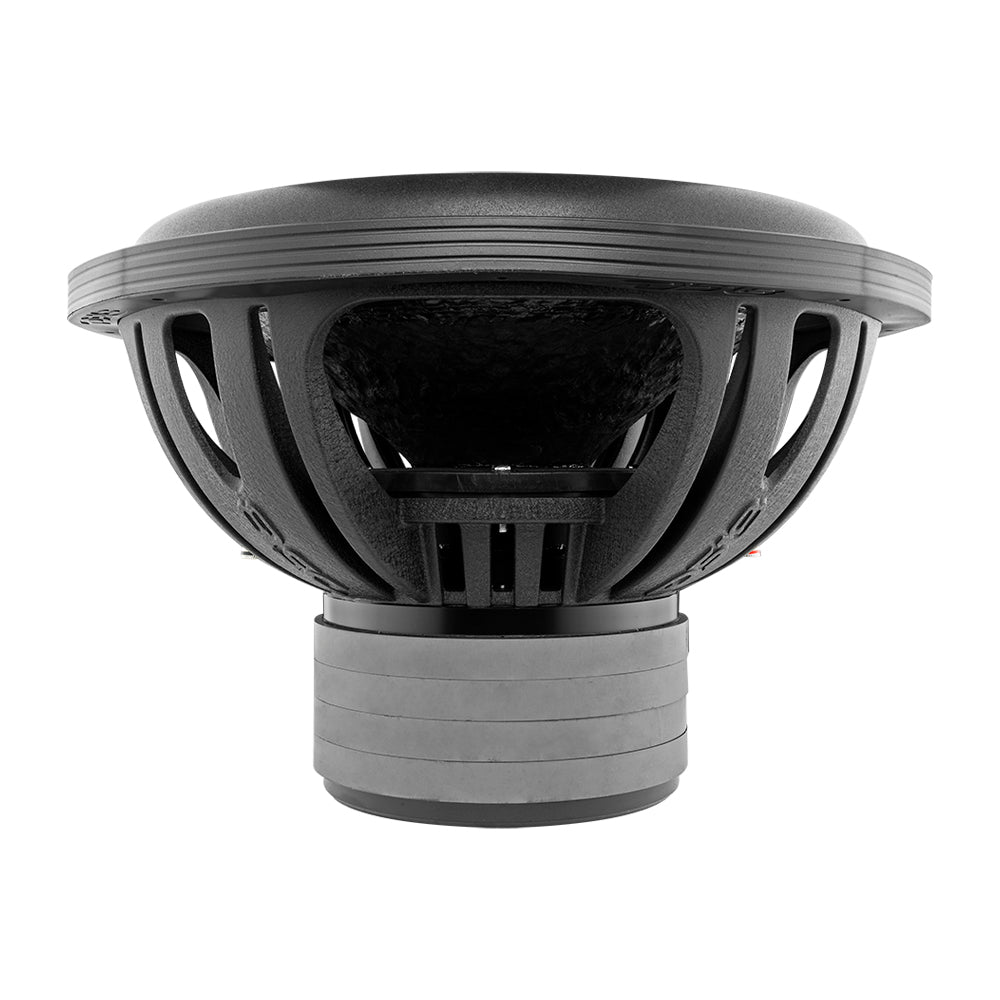

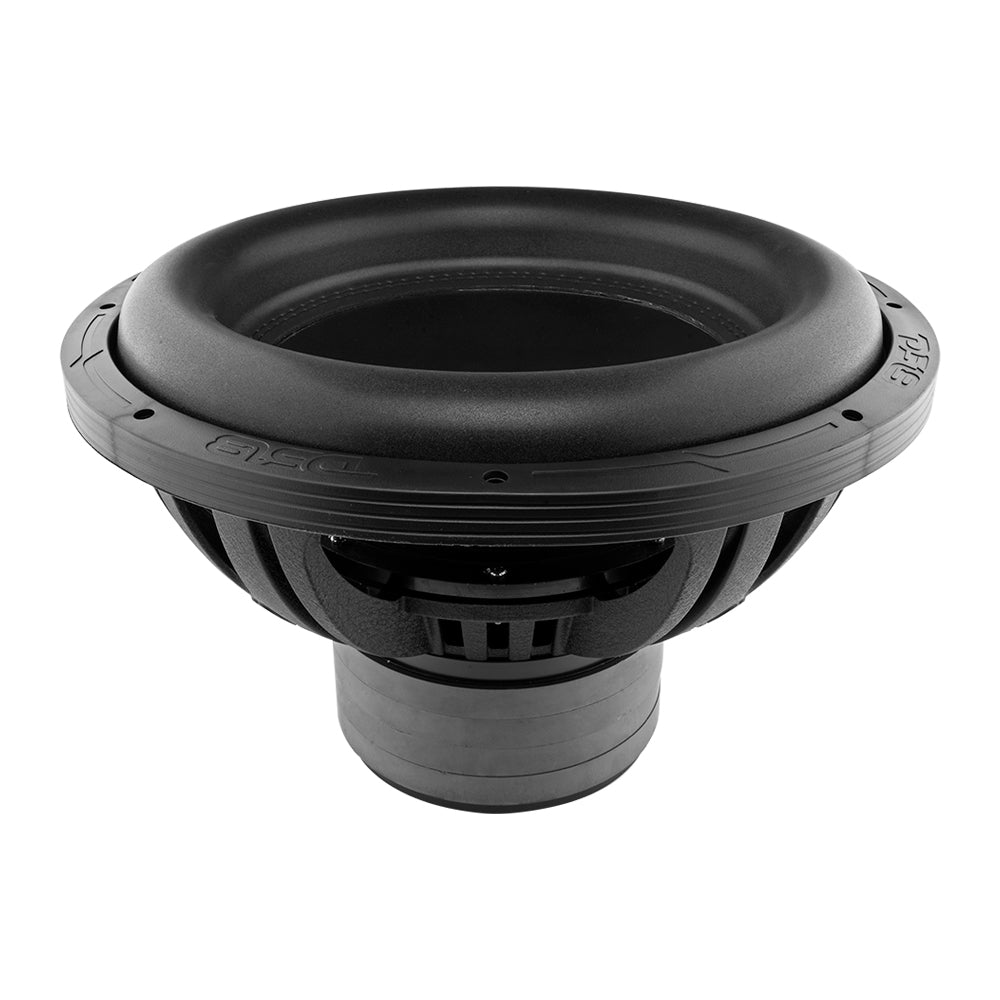

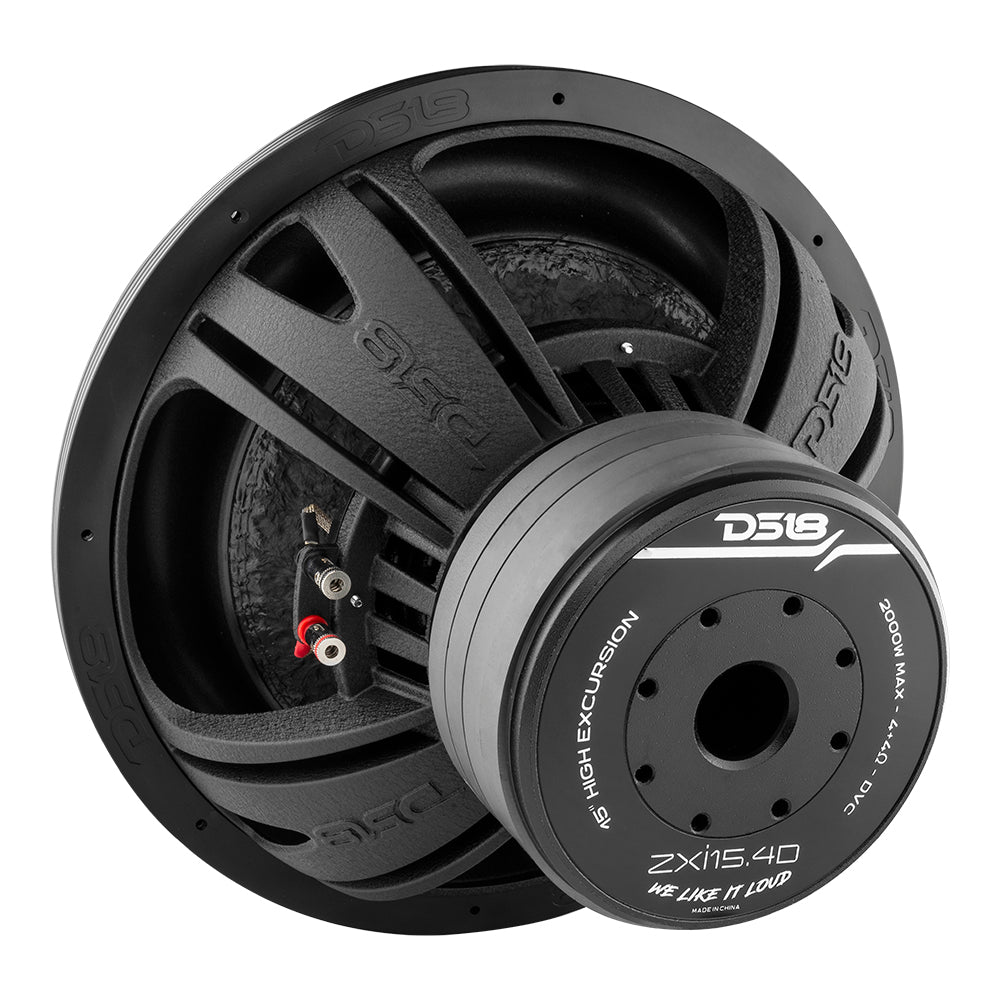

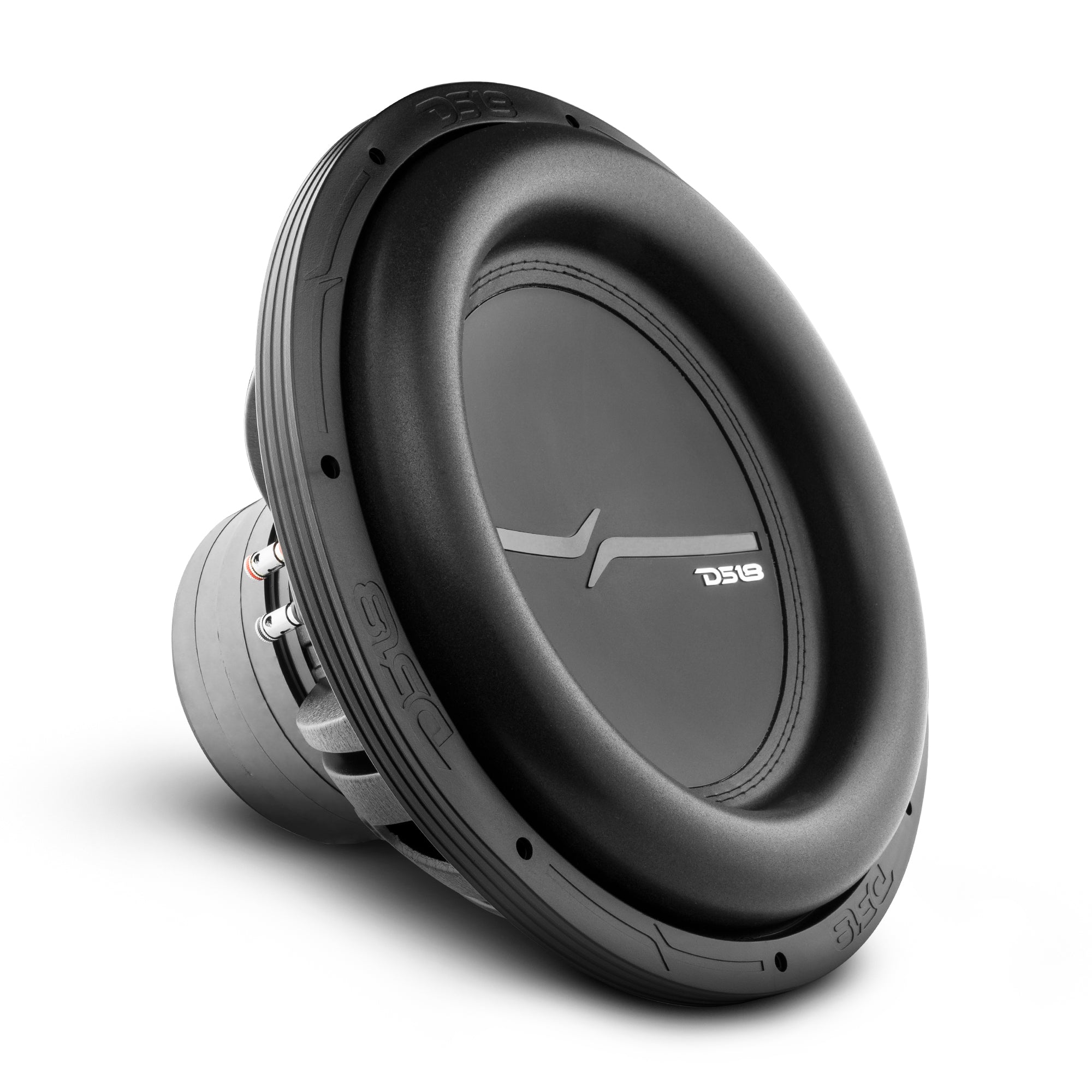

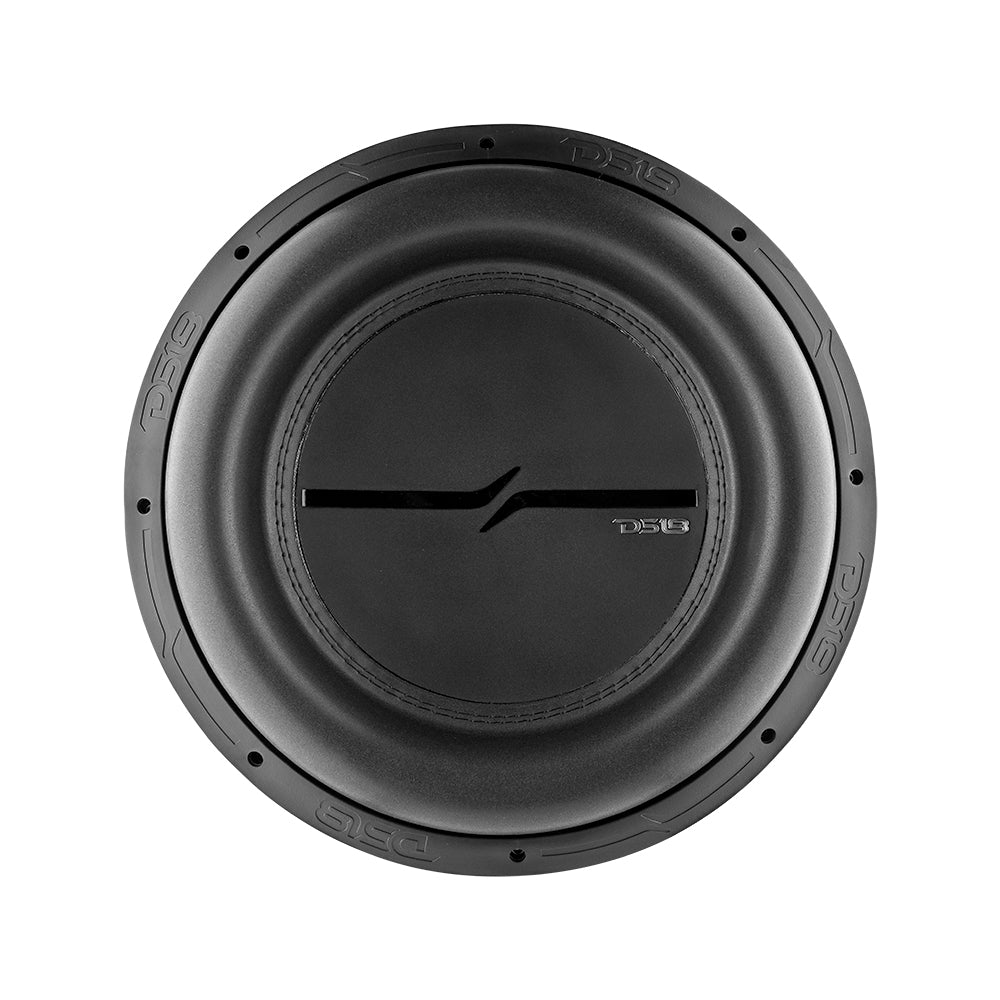

- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
Let customers speak for us
from 3895 reviewsFantastic product. The sound quality just makes trips in the Jeep never long enough... world of difference.
The install was as easy as any modification that I've ever done to my 4runner. The units are well constructed, look good and are a very noticeable improvement over the stock tweeters. Price was very competitive to other brands that required a bit more work to have installed.
Bought this QUALITY CABLE for INSTALLING ALPINE AMP-ONLY Cable U can find with ANGLED RCA - very HAPPY:)
I bought these speakers to fit in the back doors of my 05 Chevrolet crew cab pickup they work great. They Give me more base which paired perfectly with the DS18s and tweets, I have in the front doors just what it needed.
Thanks DS18
I Like it Loud!
NO more then you pay for these they are the perfect upgrade!
Great service and fast wow thank you for packing it up really appreciate the team at the warehouse and sending my shipment with Care. Can’t wait to do the install on my Slingshot. This is gonna sound super loud thank you Team. Really appreciate you guys.
I have been looking for a 2 ohm speaker for my set up foud this one and l love it sounds really good and takes a ton of power
These evl 12s are where it’s at..build the box to specs like it says..hardest hitting subs I’ve bought to date
sound great look good even though you can’t see them in my truck
Fit & finish is very good bought them for my saddle bags on my 2000 road king installed your amp also combined with these speakers Wow very happy with the sound & performance $ well spent if I choose to add any more speakers I will definitely go with Ds18 in the future TY
Alot of sound for something small love it
Best loudspeakers🔥
I previously purchased a JBL rally bar 36 inch and was highly disappointed so I reached out to Anthony at DS 18 directly. He hooked me up with a set of 8 inch tower speakers 500 W he gave me a matching amp that I needed and a head unit, their customer service, especially Anthony walked me through the whole process of tuning my amp And system. It was so loud that we had to un bridge and just hook it up to 2 Channels Way more than I ever expected to get.the JBL rally bar. I couldn’t even hear the music over the motor running in the background very pleased with the product couldn’t be happier
