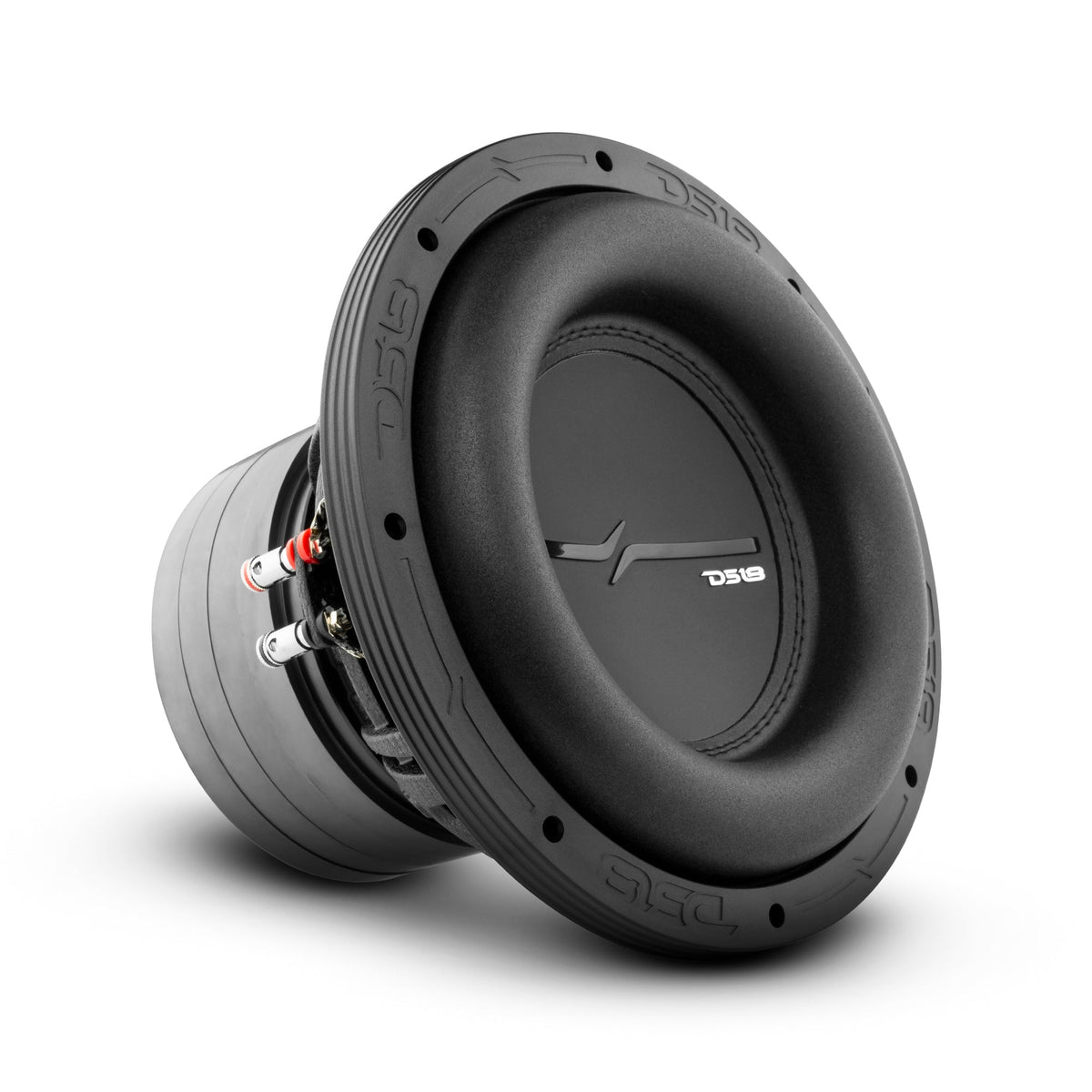

ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 4-Ohm
ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 4-Ohm
Sale $234.56 / EACH
Reg.$275.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
ZXI10.4D
Nominal Diameter
10" / 254mm
Nominal Impedance
4 + 4 ohms
RMS Power Handling
800W
Maximum Power Handling
1600W
Sensitivity (1w/1m)
86dB
Frequency Response
20-900Hz
Recommended Lo Pass Crossover
90Hz
MOTOR
Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Ferrite
Magnet Weight
196 Oz (4 x 49 oz)
Displacement Volume
2.23L / 0.078ft3
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
16.84L / 0.594ft3
Free Air Resonance Fs
29Hz
Mechanical Factor Qms
5.169
Electrical Factor Qes
0.473
Total Factor Qts
0.432
Moving Mass Mms
237.173g
Compliance Cms
0.109mm/N
Bl Factor Bl
27.387
Voice Coil Inductance Le
63.69 mH
Diaphragm Area Sd
330.06cm2
DC Resistance Re
3.4+3.4 ohm
Efficiency Bandwidth Product EBP
61.3
RECOMMENDED ENCLOSURES
Sealed Internal Volume
14.2L / 0.5ft3
Sealed Box Output Response F3
41.5Hz
Ported Internal Volume
35.4L / 1.25ft3
Port Size *Square (W x H x Long)
1.16" x 10.31 x 24.49" / 29.5 x 262 x 622.1mm
Port Tuning Frequency FB
30Hz
Ported Box Output Response F3
24Hz
MEASUREMENTS
Overall Diameter
10.96" / 278.5mm
Overall Depth
8.34" / 212mm
Front Mount Baffle Cutout
9.36" / 237.7mm
Mounting Depth
6.91" / 175.5mm
Motor Diameter
6.69" / 170mm
Gross Single Unit Weight
26.5
Dimensions W x L x H
12 x 12 x 9.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight
55
Master Carton Dimensions W x L x H
12.5 x 12.5 x 20.25
-
Product Overview
Product Overview
DS18 ZXI10.4D High Excursion 10" Car Audio Subwoofer 1600W Watts 4-Ohm DVC Quad Stacked Magnets
Experience bass like never before with DS18’s ZXI10.4D: the ultimate subwoofer for enthusiasts who crave thunderous bass!
The ZXI subline is renowned for its high excursion capabilities, and the ZXI10.4D is no exception. This subwoofer handles wattage as high as 1600W while delivering smooth ultra-low frequency responses. The ZXI10.4D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI10.4D will excel in both, giving you the flexibility to optimize placement in any vehicle.
It’s dual 4-ohm configuration and 2.5-inch voice coils, makes the ZXI10.4D a force to be reckoned with. Handling a staggering 800W RMS power and 1600W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.
The ZXI10.4D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI10.4D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.
Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
ZXI 10" High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 4-Ohm
Default Title
Related products

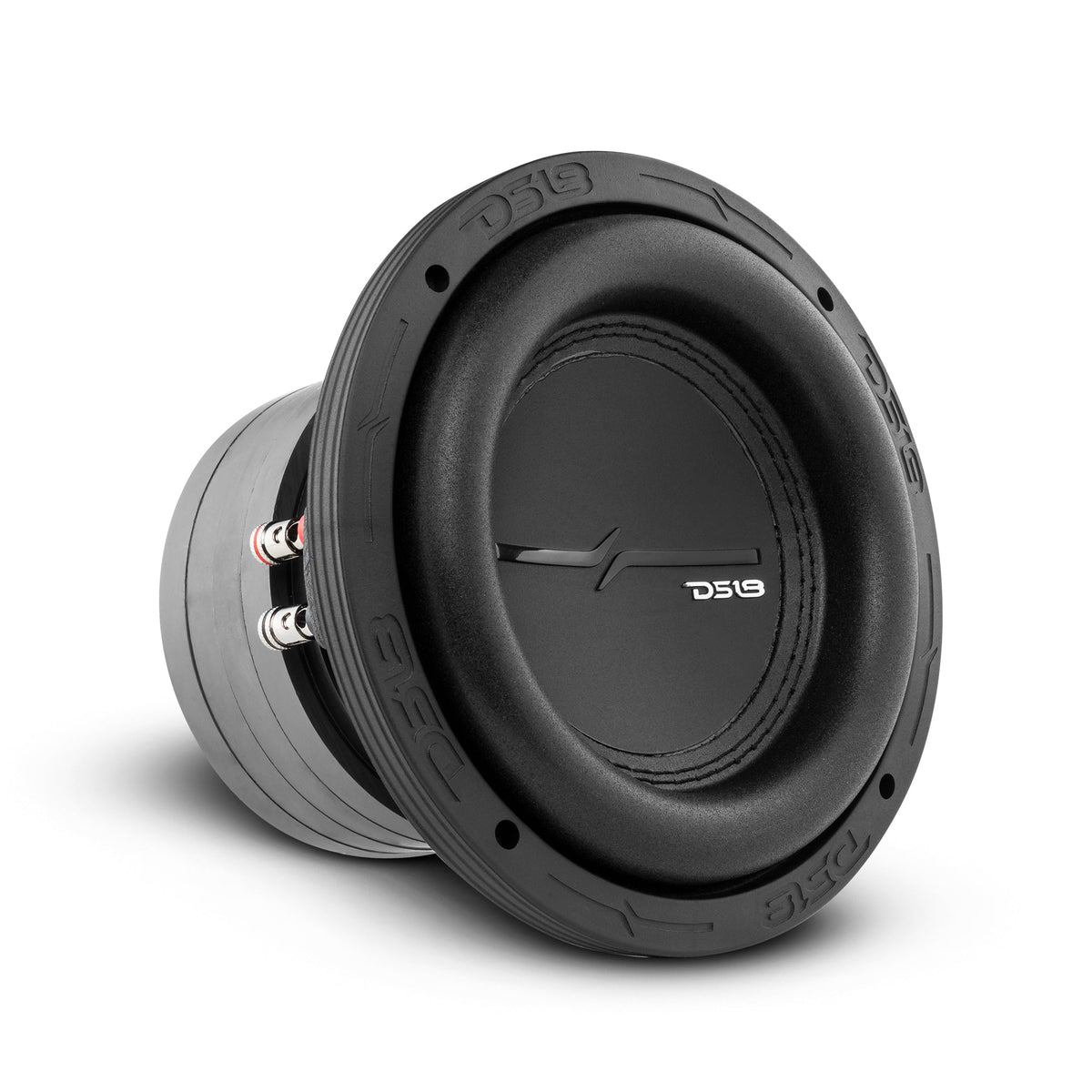

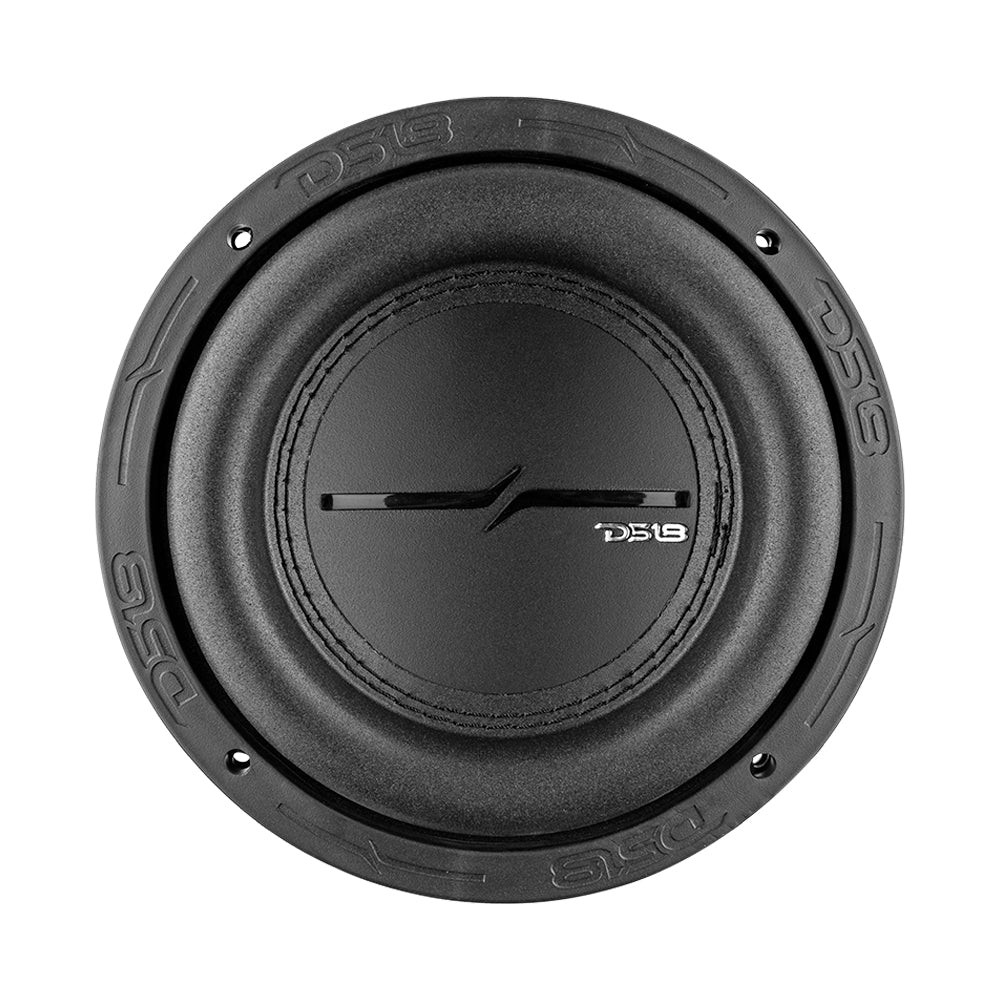

- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB

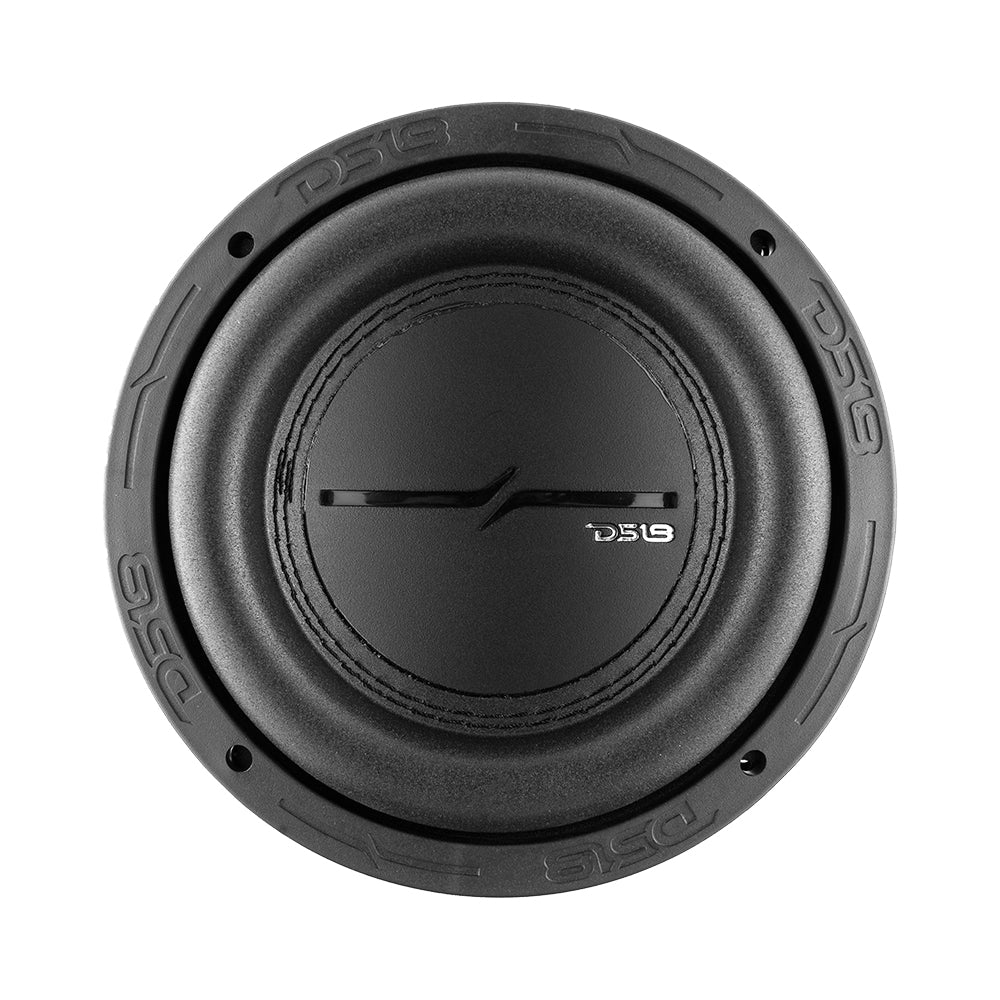

- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
- 6.5" High Excursion Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Quad Stacked Ferrite Magnet
- 87dB
Size:
Impedance:

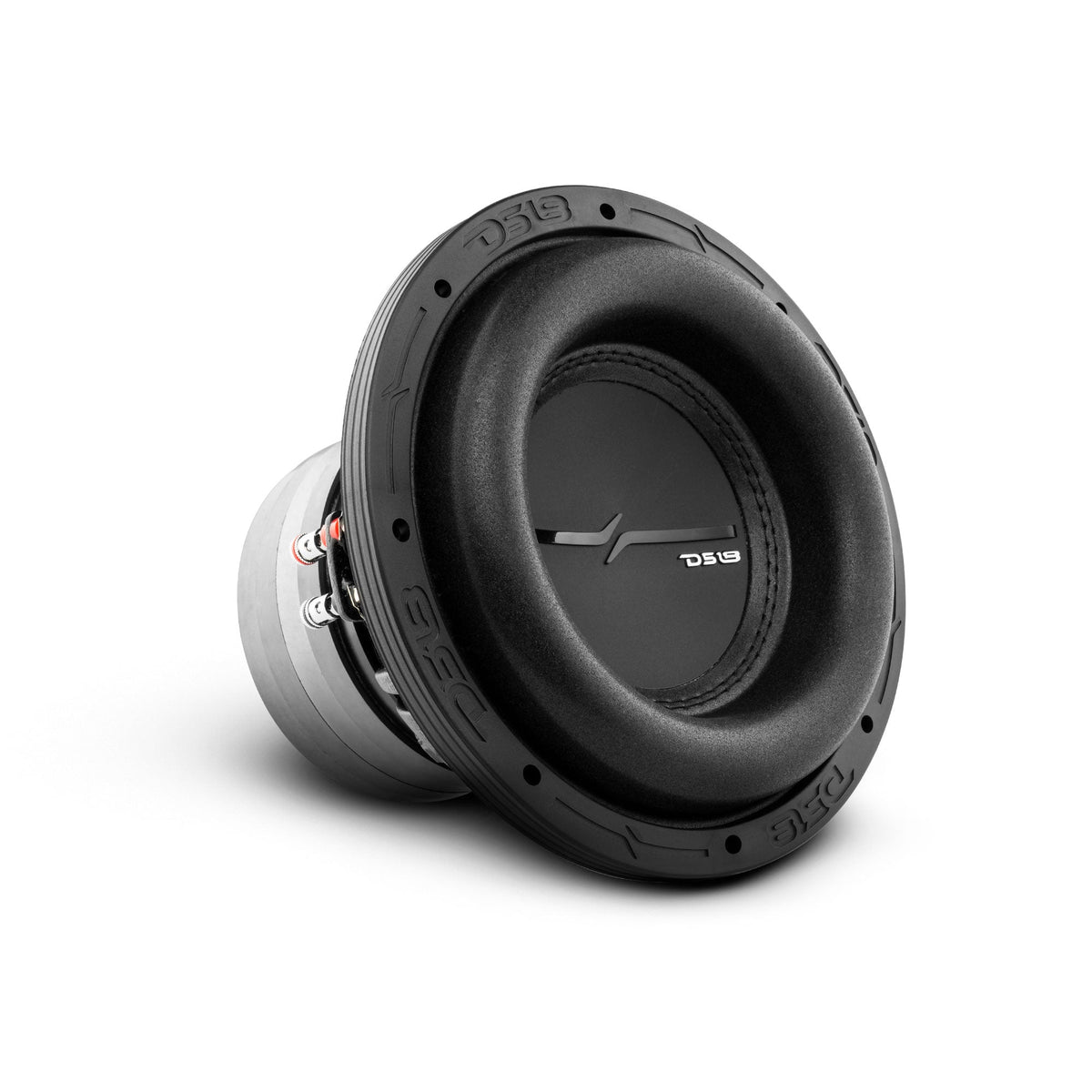

- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:

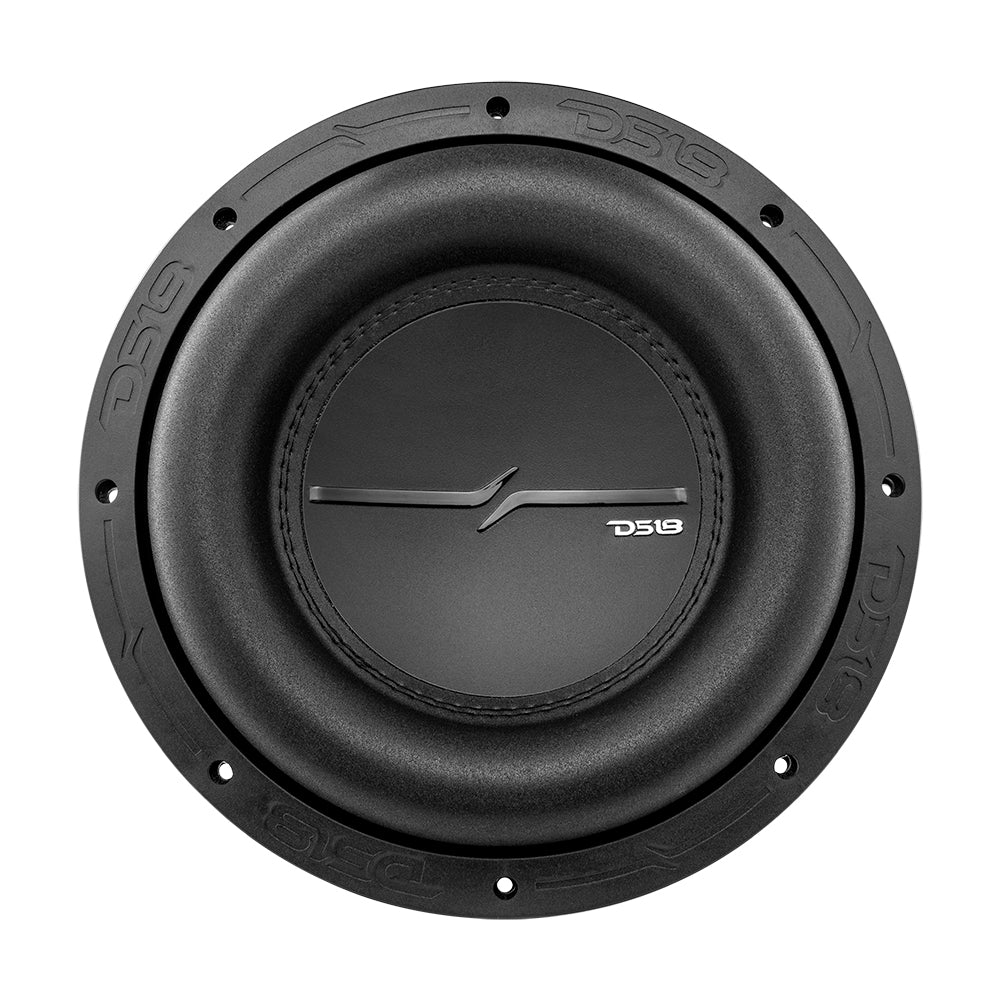

- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:

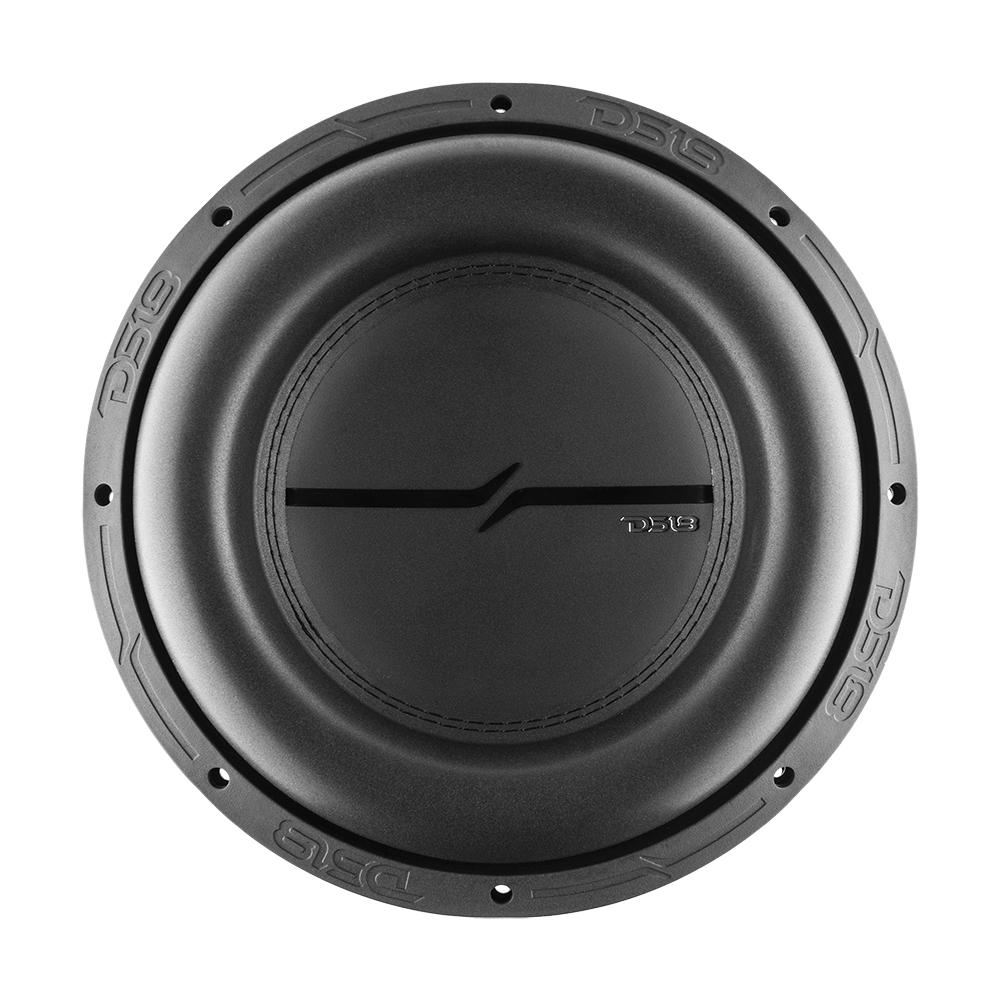

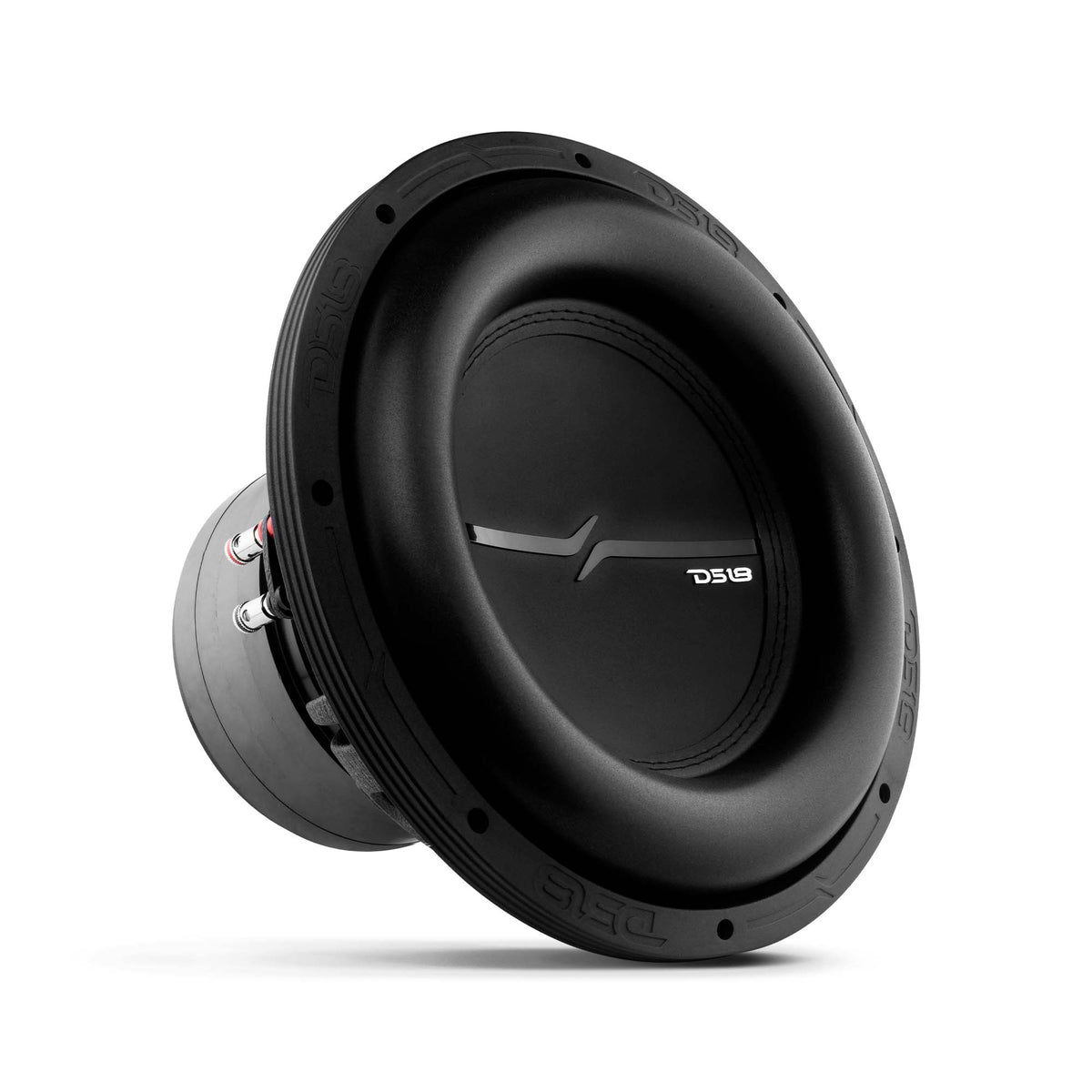

- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:

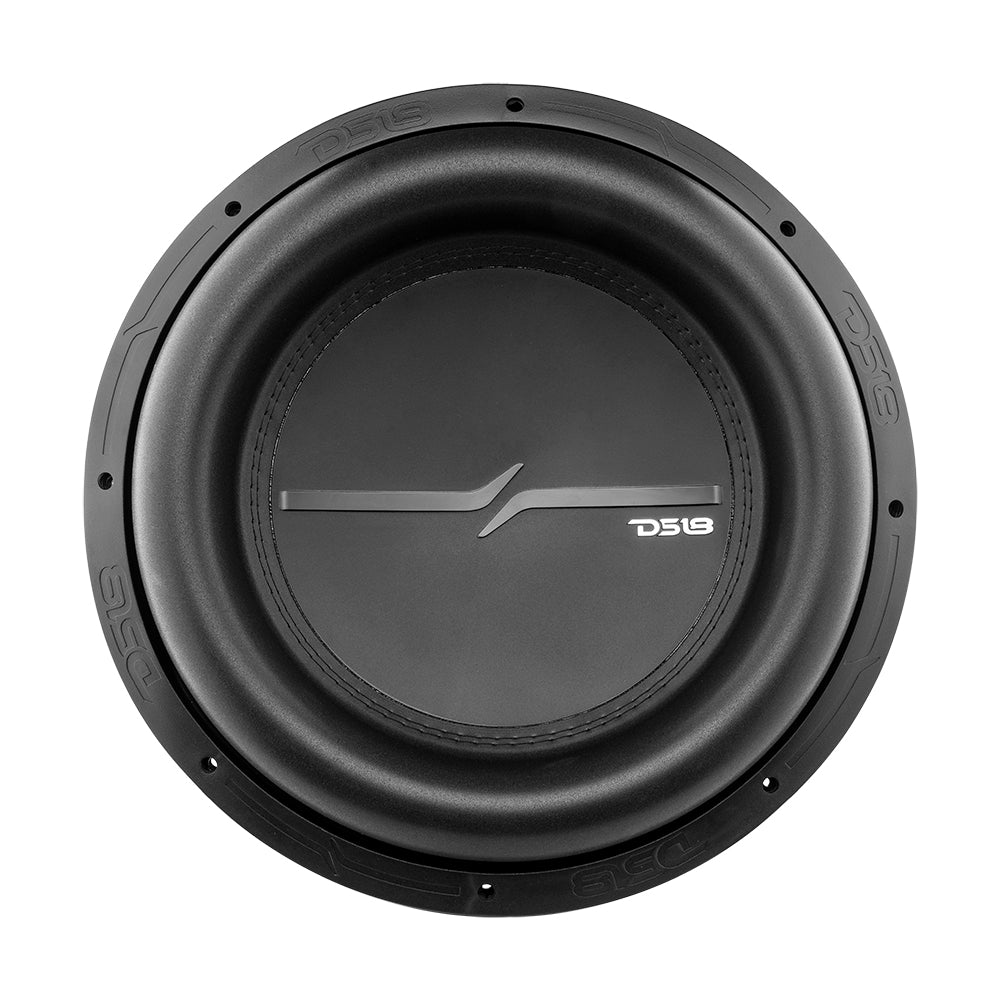

- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
- 15" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 2-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89dB
Size:
Impedance:

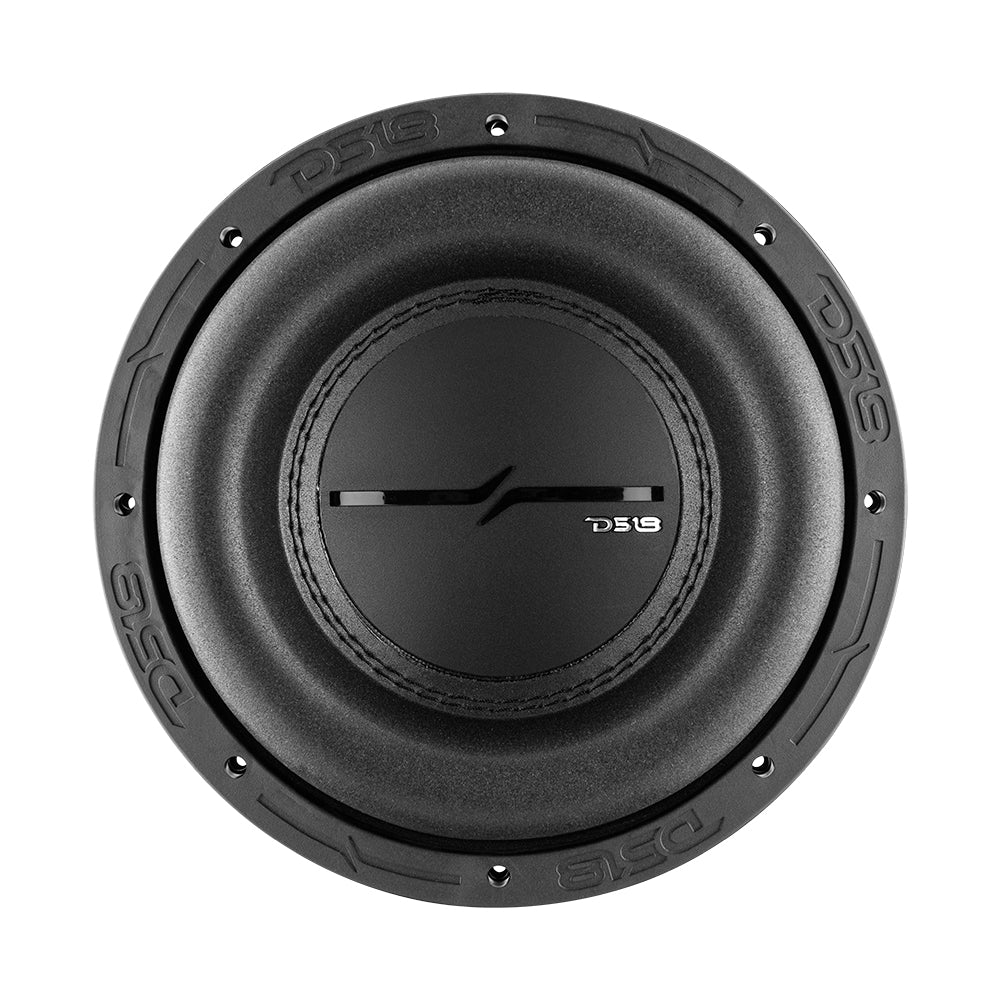

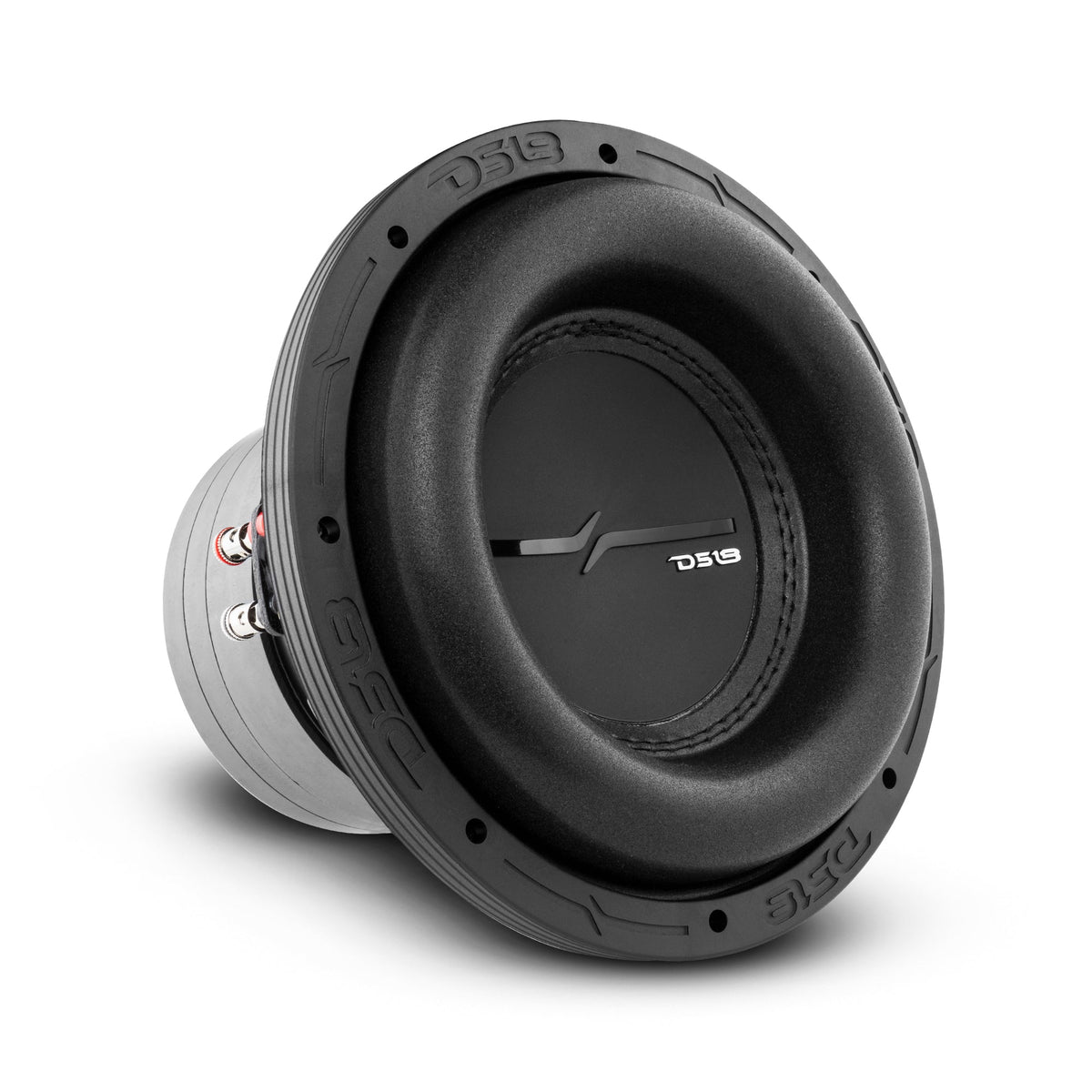

- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Size:
Impedance:

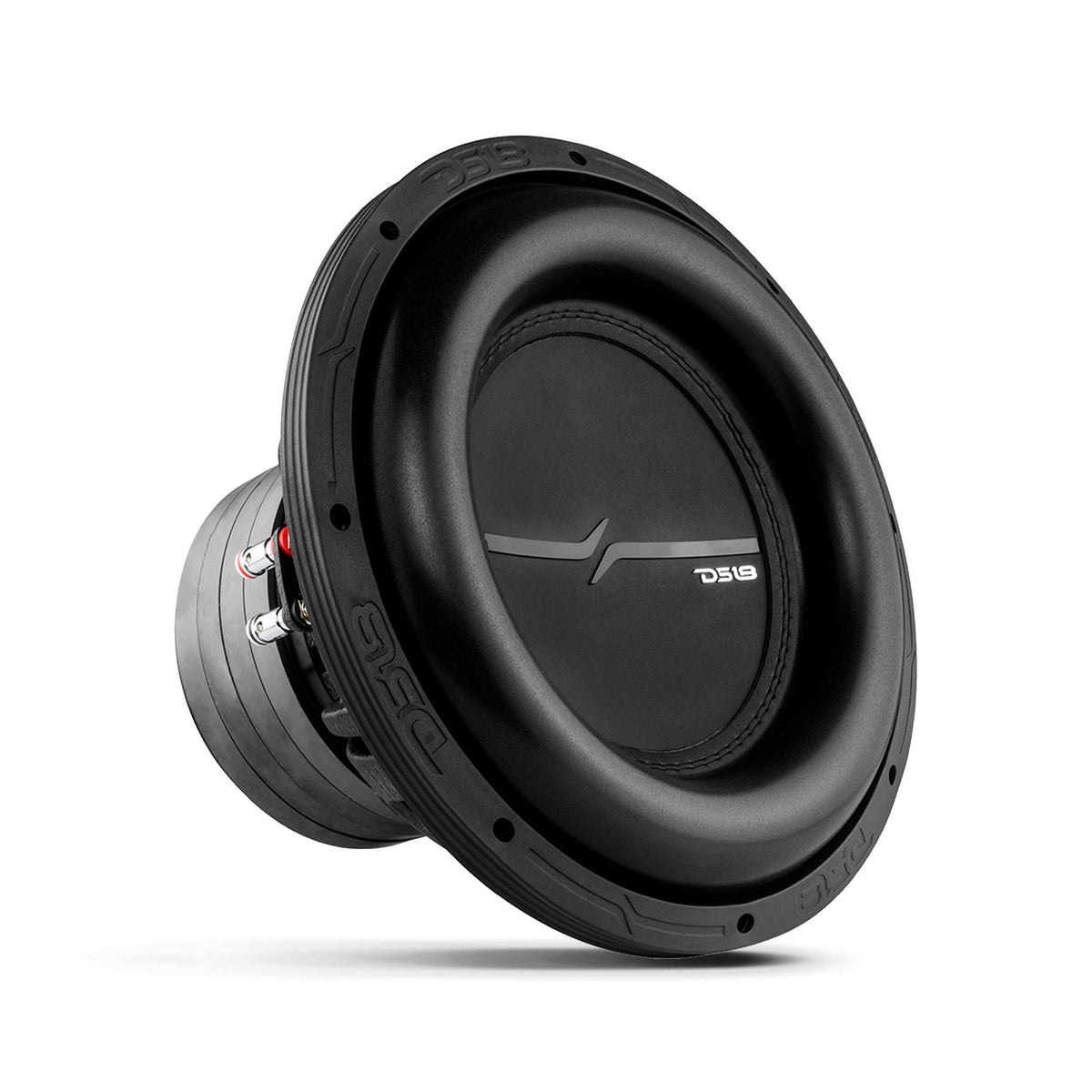

- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC
- Quad Stacked Ferrite Magnet
- 89.2dB
Size:
Impedance:

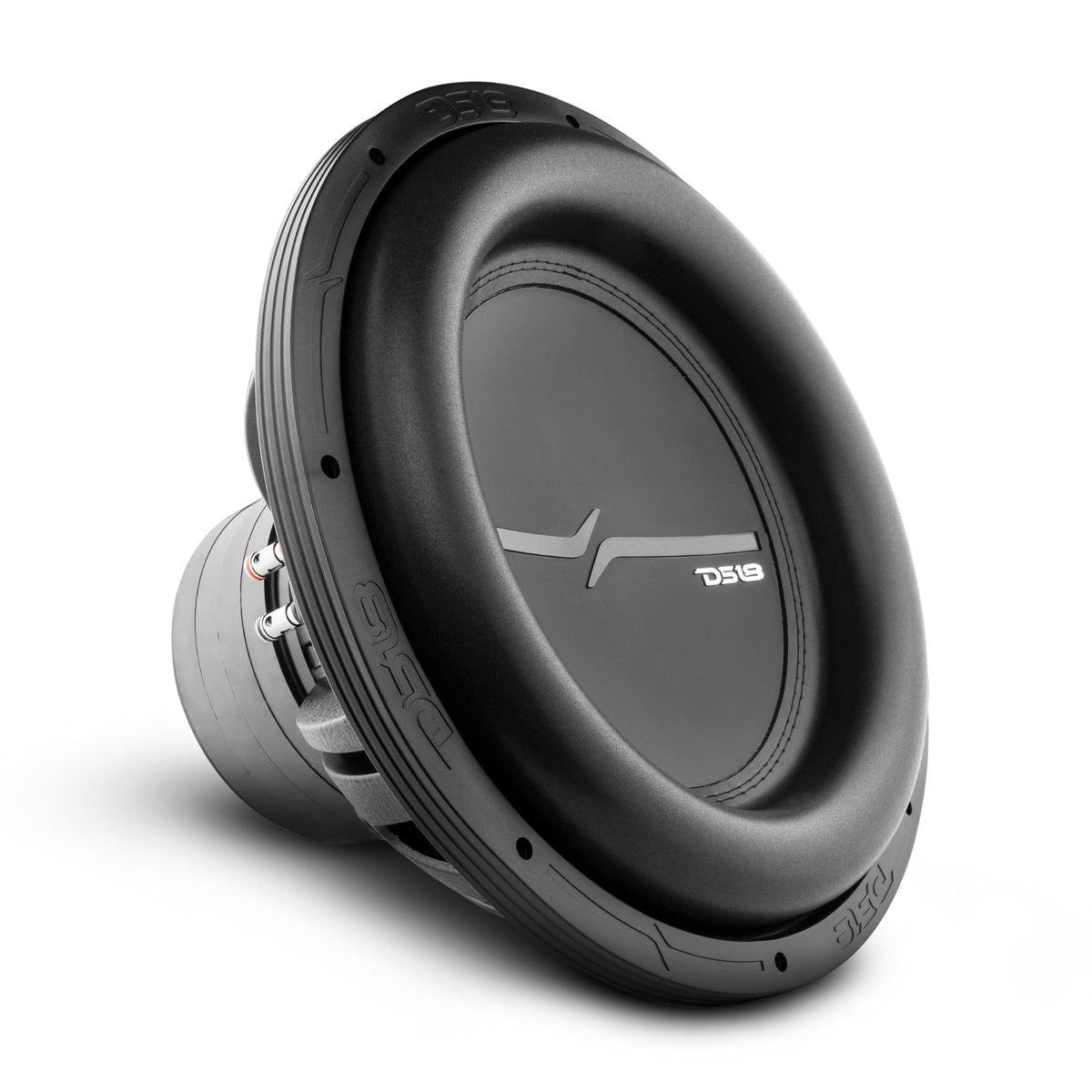

- 15" High Excursion Subwoofer
