ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
SOLD OUT
ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
SOLD OUT
Sale $158.36 / EACH
Reg.$197.95
20% OFF FOR BLACK FRIDAY SALE!
-
Key Features
- 12" Subwoofer
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 82dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
ZR12.2D
Nominal Diameter
12" / 305mm
Nominal Impedance
2 + 2 Ohm
RMS Power Handling
750W
Maximum Power Handling
1500W
Sensitivity (1w/1m)
82 dB
Frequency Response
25-200Hz
Recommended Lo Pass Crossover
90Hz
MOTOR
Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.07 ft3
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
21.2 L
Free Air Resonance Fs
26 Hz
Mechanical Factor Qms
4.8
Electrical Factor Qes
0.84
Total Factor Qts
0.71
Moving Mass Mms
299.7g
Compliance Cms
61.9? m/N
Bl Factor BI
8.6
Voice Coil Inductance Le
567.3m mH
Diaphragm Area Sd
502.73 Cm2
DC Resistance Re
1.8 + 1.8 Ohm
Efficiency Bandwidth Product EBP
30.9
MEASUREMENTS
Overall Diameter
12.36" / 314mm
Overall Depth
7.55" / 192mm
Front Mount Baffle Cutout
11.2" / 284mm
Mounting Depth
6.6" / 168mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
18.5
Dimensions W x L x H (Inches)
13.25 x 13.25 x 8.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
39
M/C Dimensions W x L x H (Inches)
14 x 14 x 18.25
-
Product Overview
Product Overview
DS18 ZR12.2D 12” Car Subwoofer 1500W 2-Ohm DVC
Introducing the DS18 ZR12.2D, a true powerhouse designed to deliver mind-blowing bass and precision performance.
The ZR subline is renowned for its exceptional performance, and the ZR12.2D is no exception. With a robust 1500W of MAX power handling and 750W of RMS power handling, the ZR12.2D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 2+2 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.
With DS18’s ZR12.2D, you don't just get exceptional performance; you also get unmatched style and unbreakable durability. The ZR12.2D features a strong stamped basket that not only provides structural integrity but also showcases show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. Its matte black finish adds a touch of elegance, making it a visually stunning addition to any car audio setup.
With a frequency response ranging from 25Hz to 200Hz and a sensitivity of 82 dB, the ZR12.2D captures every nuance of your music, delivering it with crystal-clear precision. The recommended low-pass crossover of 90Hz ensures seamless integration with your existing audio system, allowing your music to shine in all its glory.
With its striking design, exceptional performance, and versatility, the ZR12.2D is the perfect choice for car audio enthusiasts who demand nothing but the best.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
Default Title
Related products
BLACK FRIDAY SALE

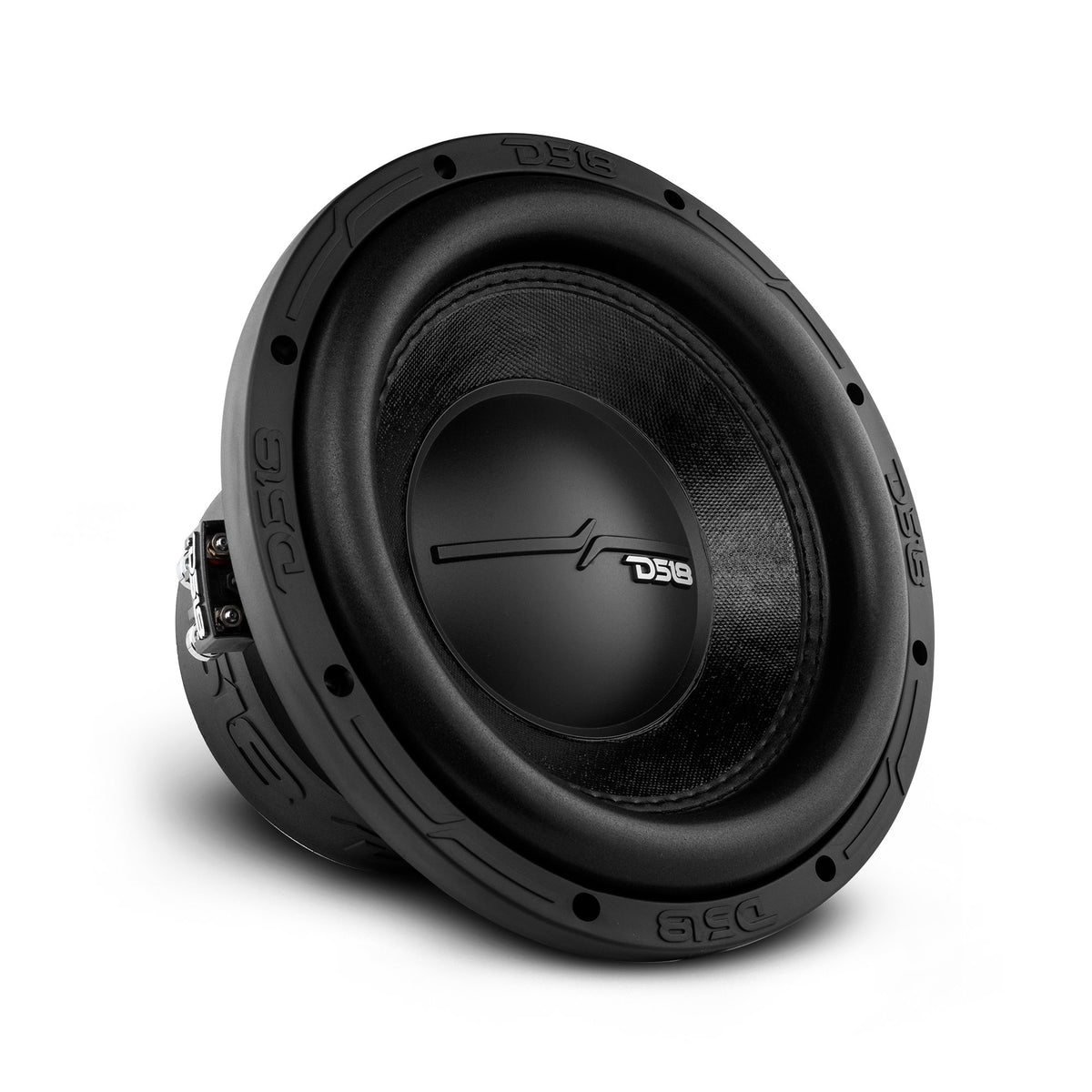

- 10" Subwoofer
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 81dB
- 10" Subwoofer
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 81dB
BLACK FRIDAY SALE

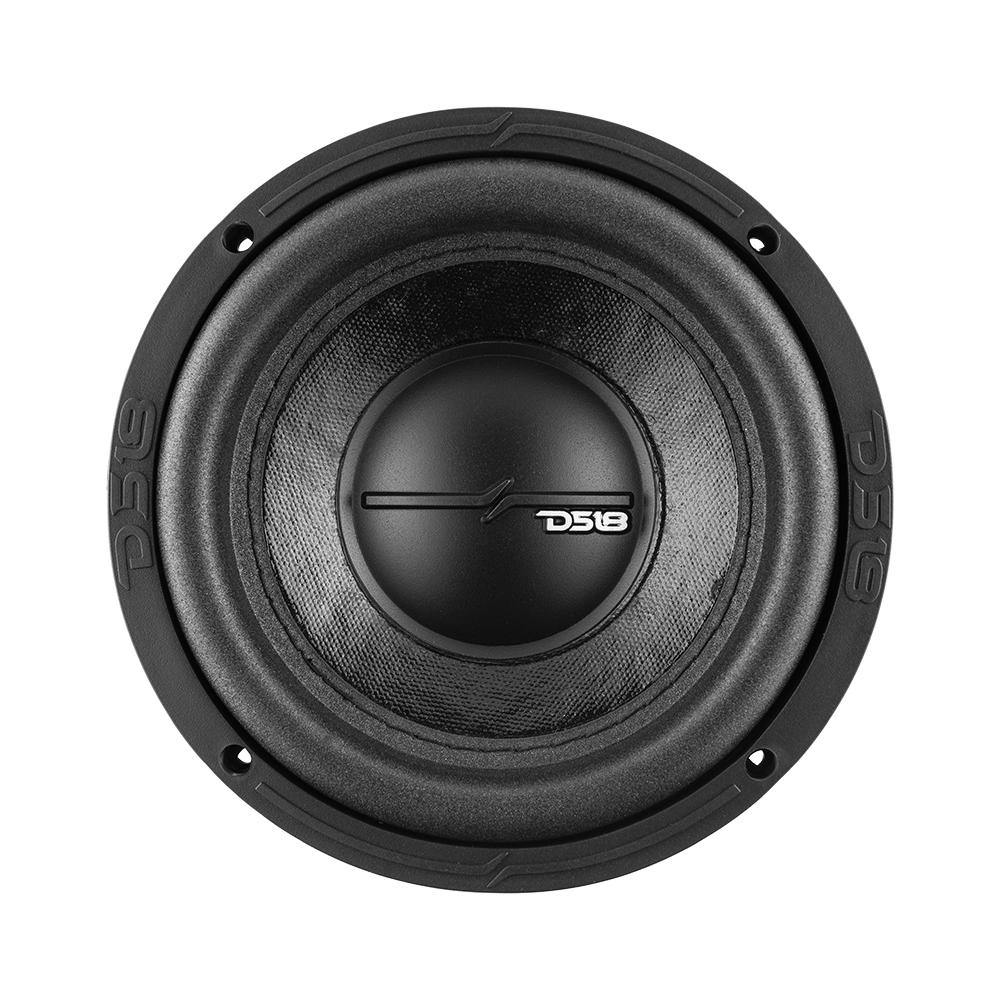

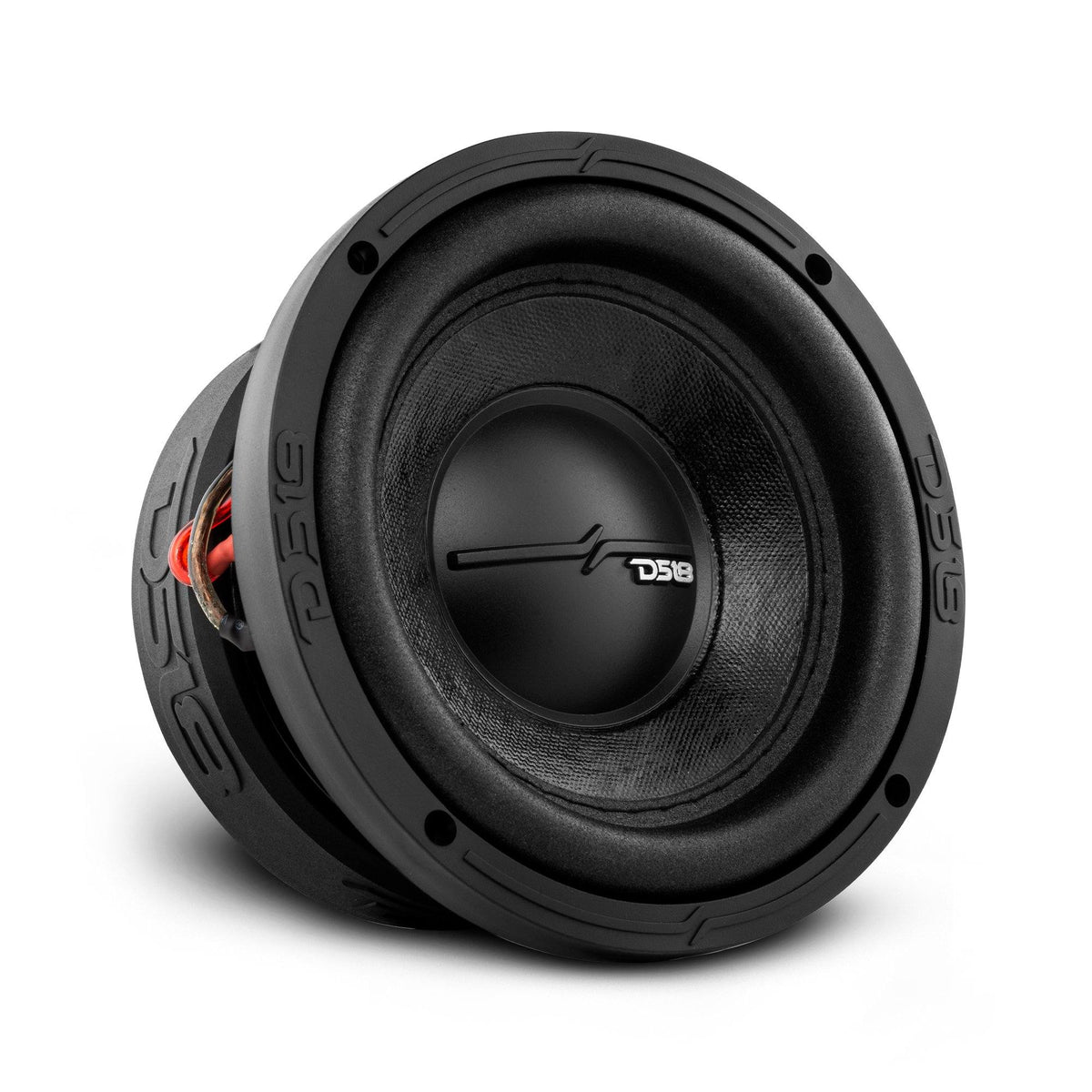

- 6.5" Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Ferrite Magnet
- 82dB
- 6.5" Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Ferrite Magnet
- 82dB
BLACK FRIDAY SALE

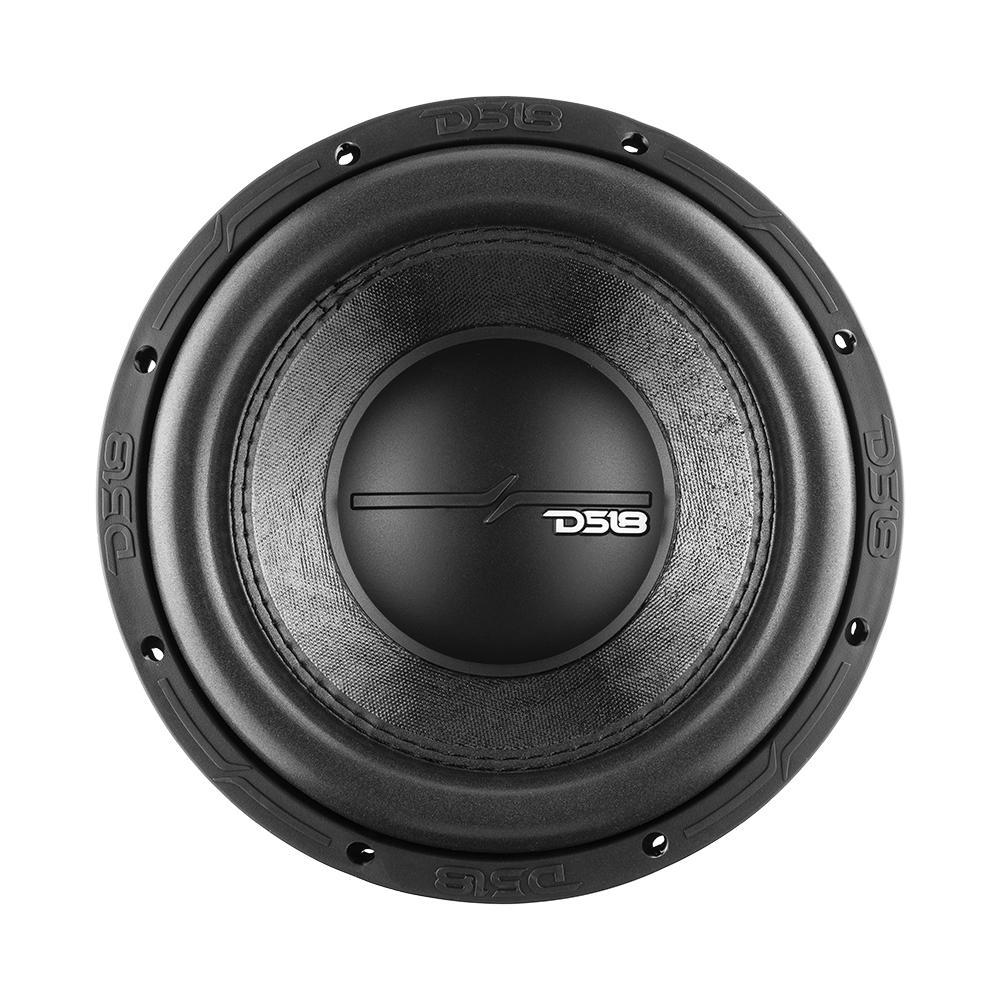

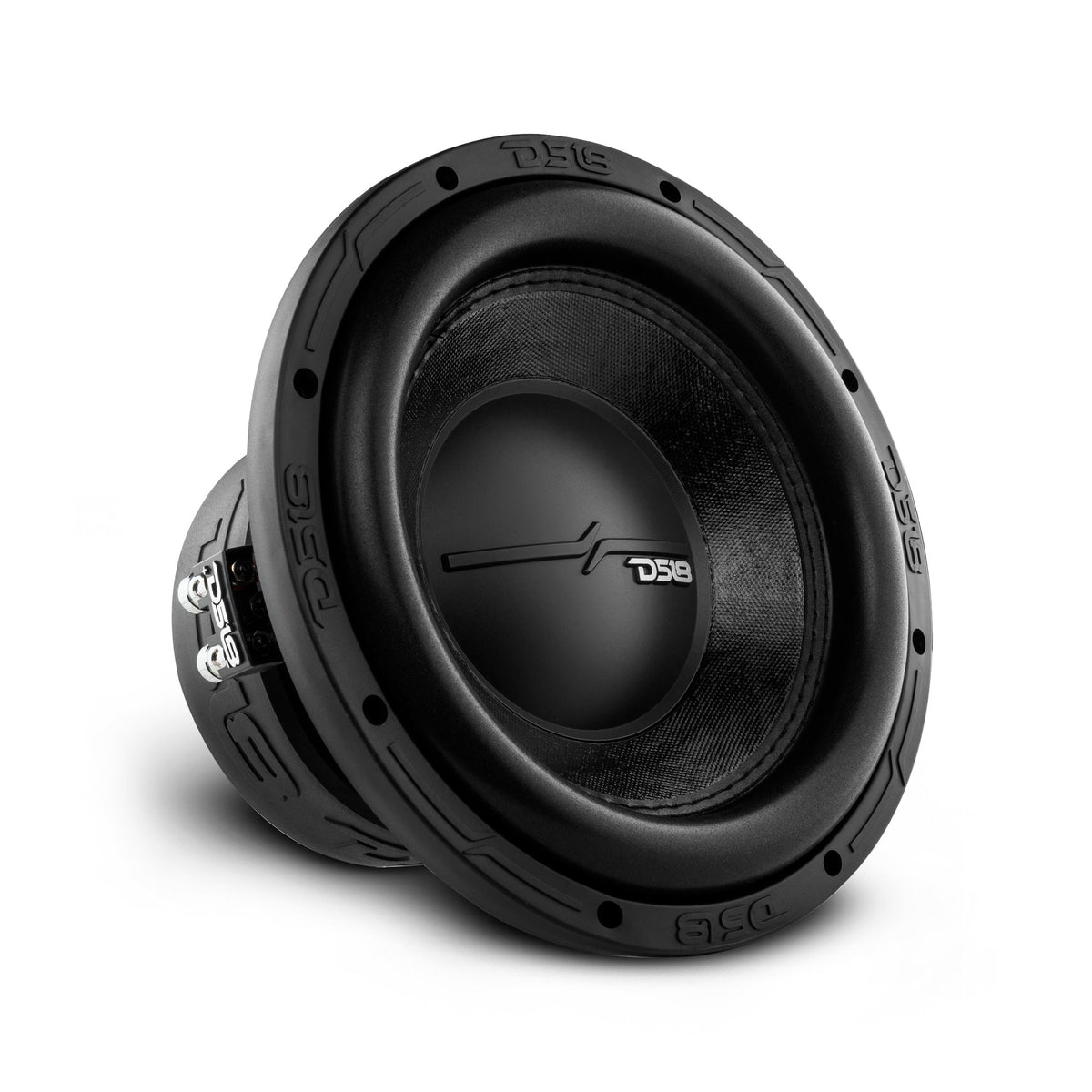

- 10" Subwoofer
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 81dB
- 10" Subwoofer
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 81dB
BLACK FRIDAY SALE

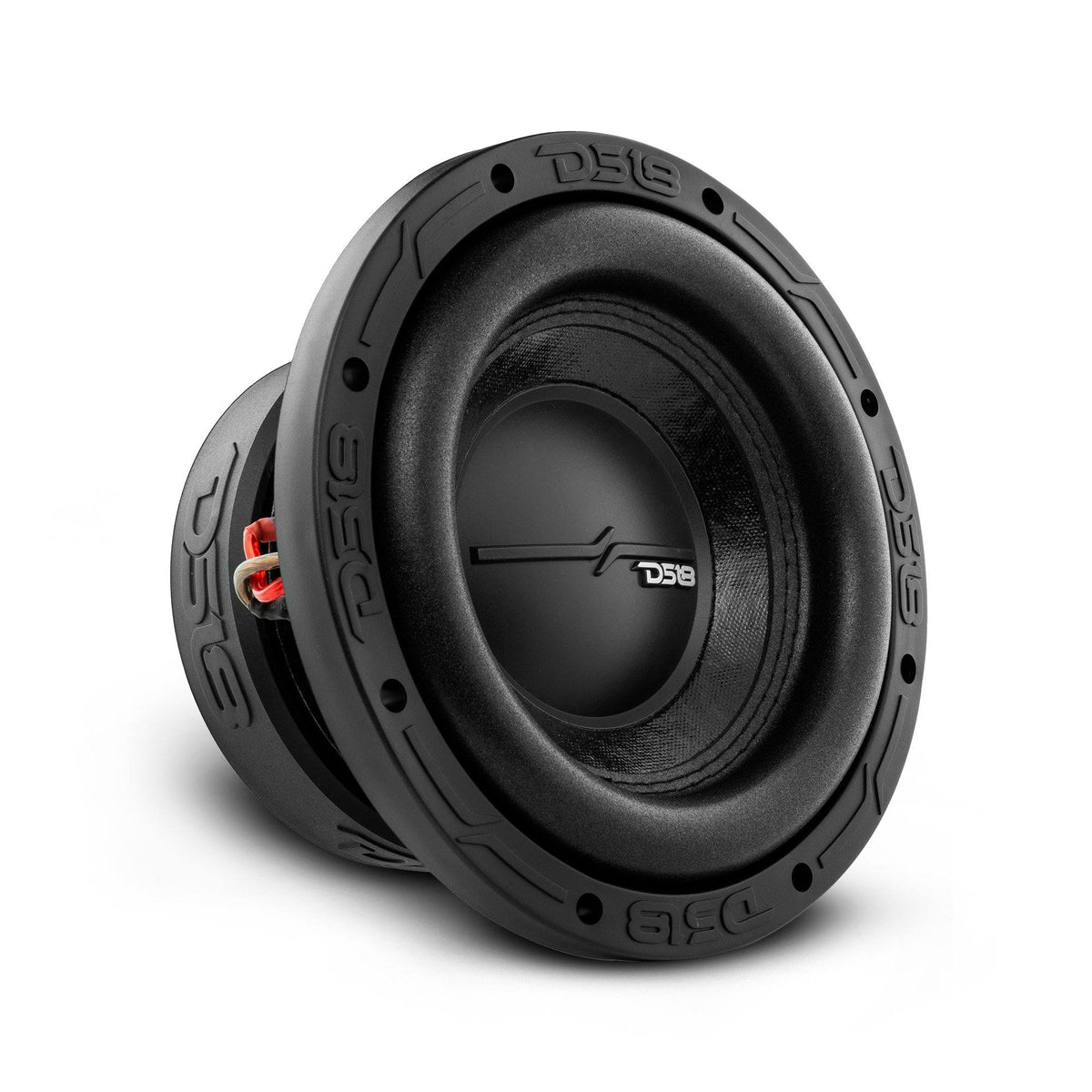

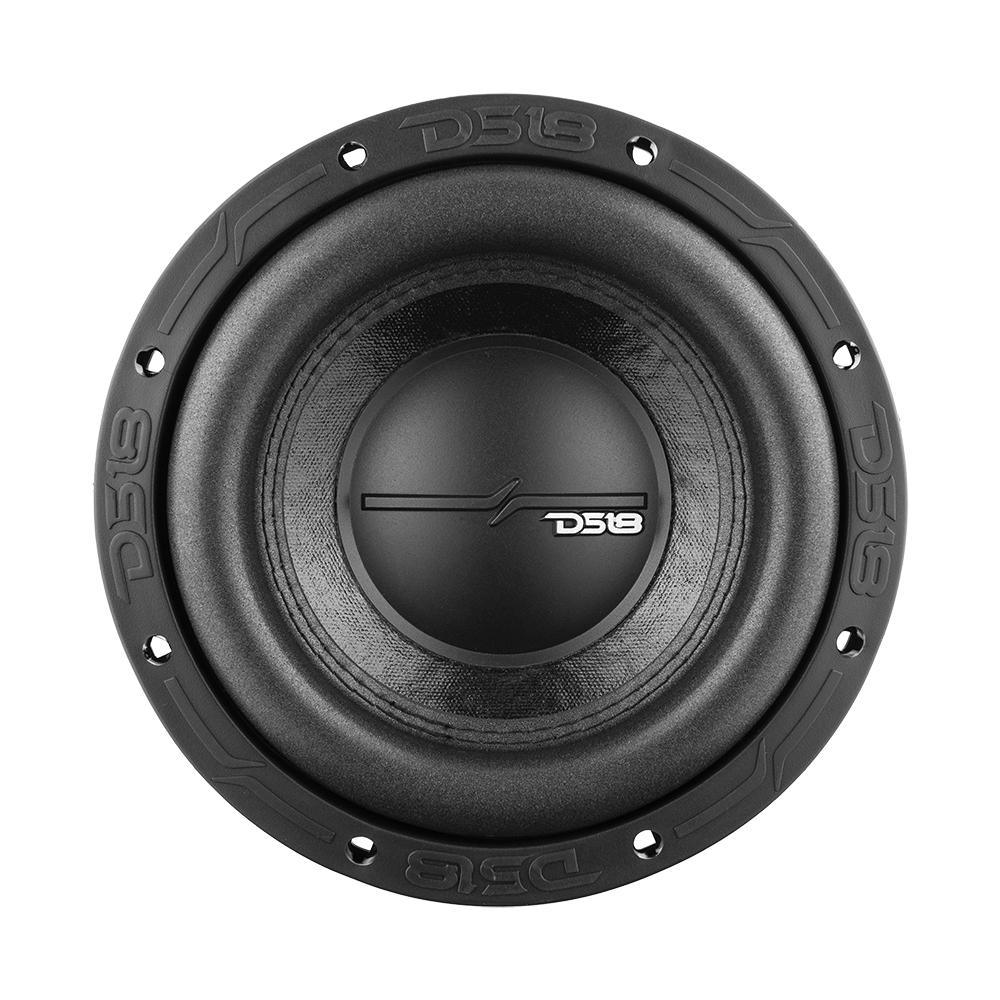

- 8" Subwoofer
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 82dB
- 8" Subwoofer
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 82dB
BLACK FRIDAY SALE

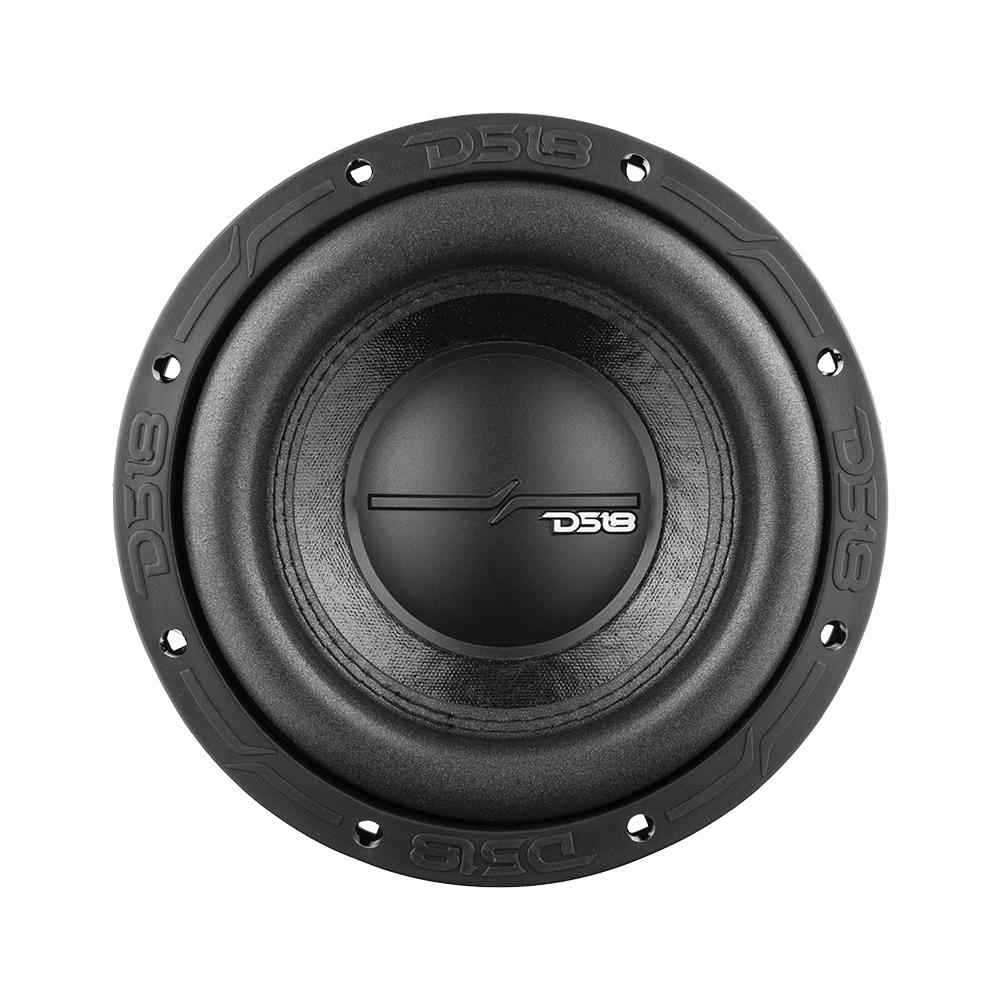

- 8" Subwoofer
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 2-Ohm 2" DVC
- Ferrite Magnet
- 82dB
- 8" Subwoofer
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 2-Ohm 2" DVC
- Ferrite Magnet
- 82dB
BLACK FRIDAY SALE
- 6.5" Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Ferrite Magnet
- 82dB
- 6.5" Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm 1.5" DVC
- Ferrite Magnet
- 82dB
BLACK FRIDAY SALE

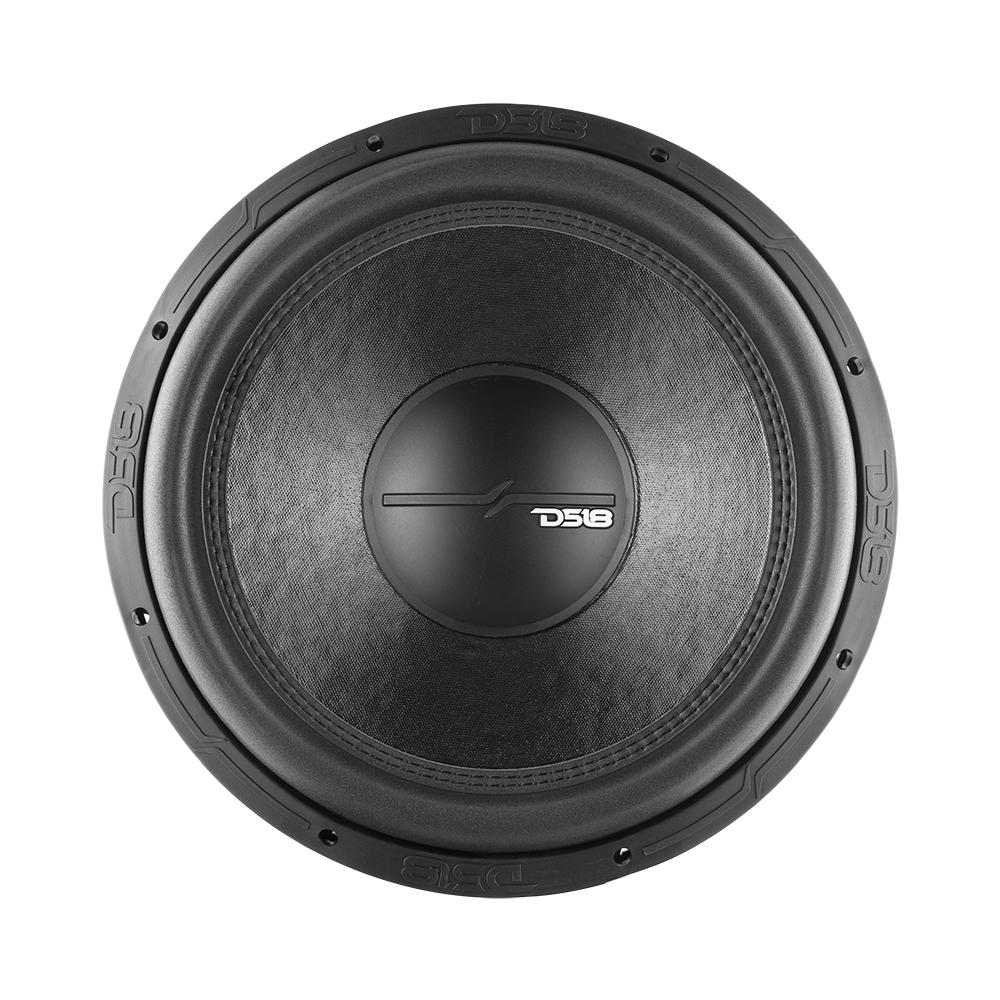

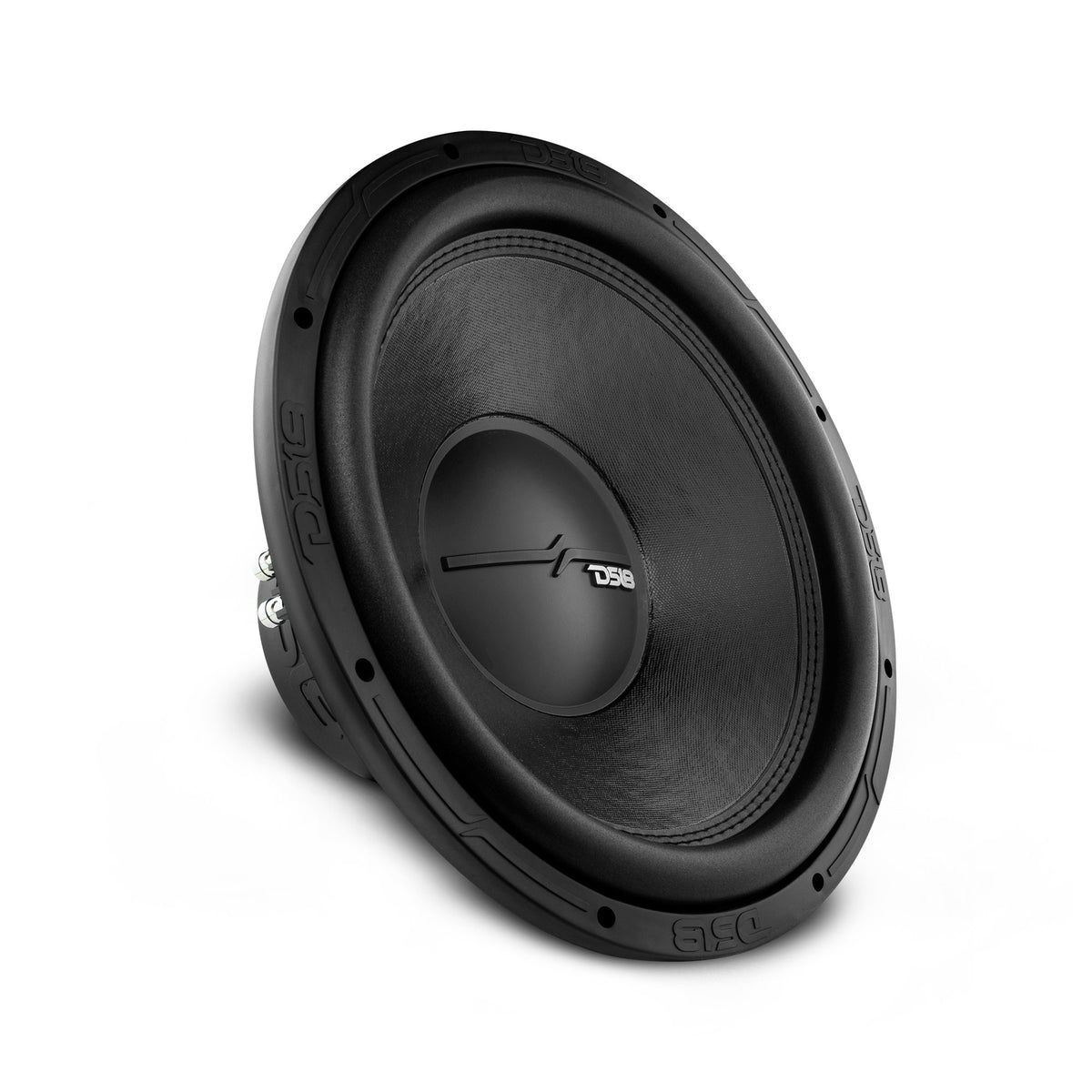

- 15" Subwoofer
