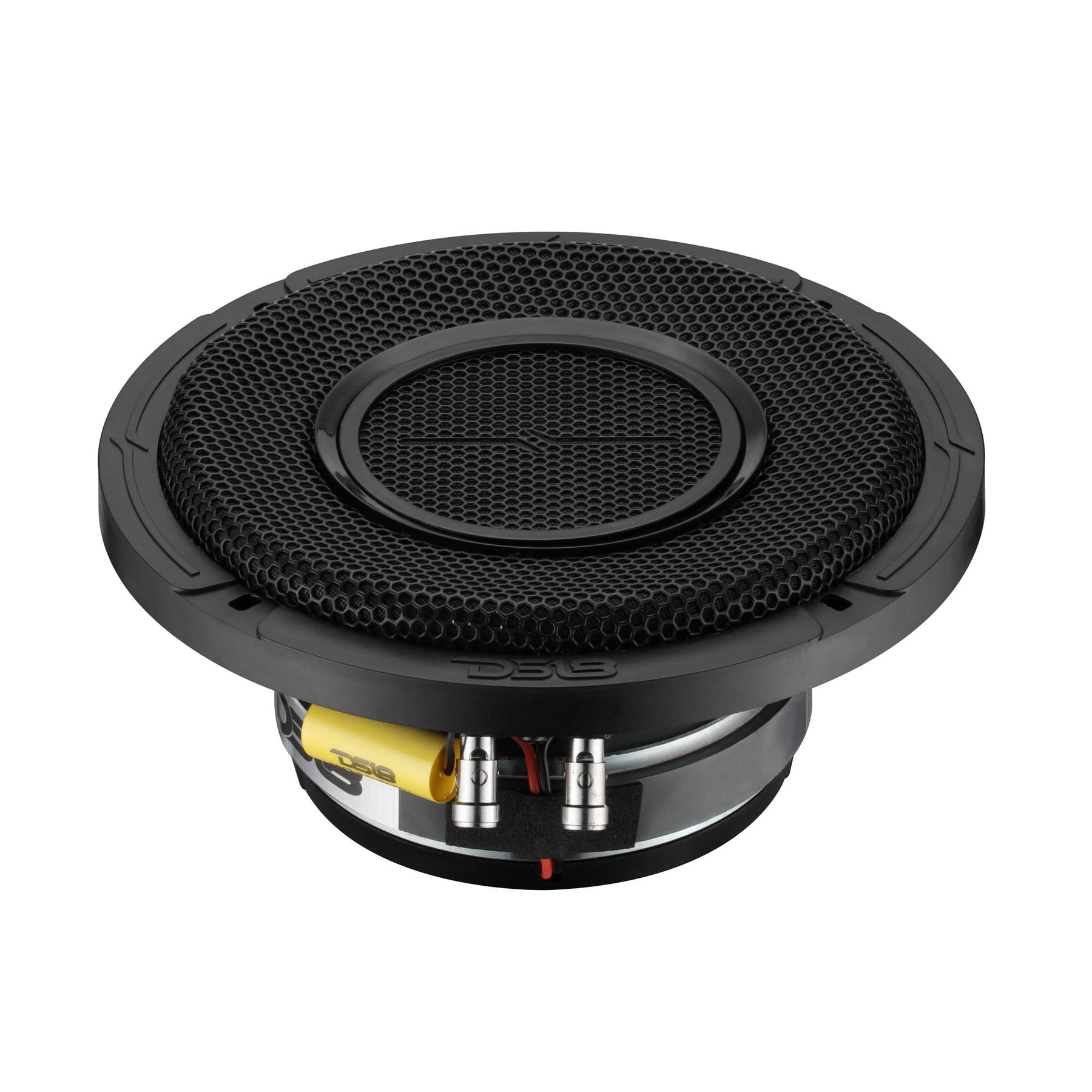

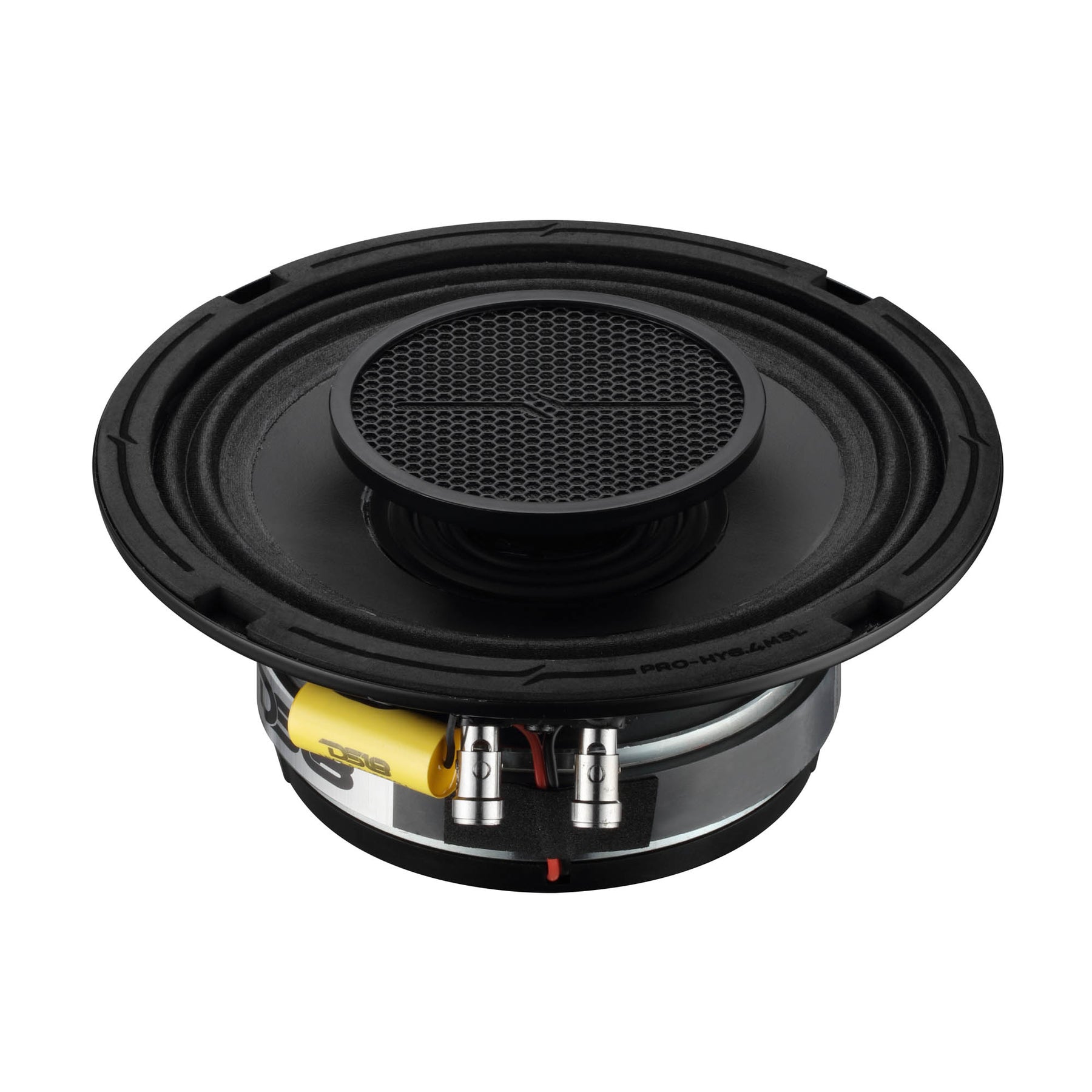

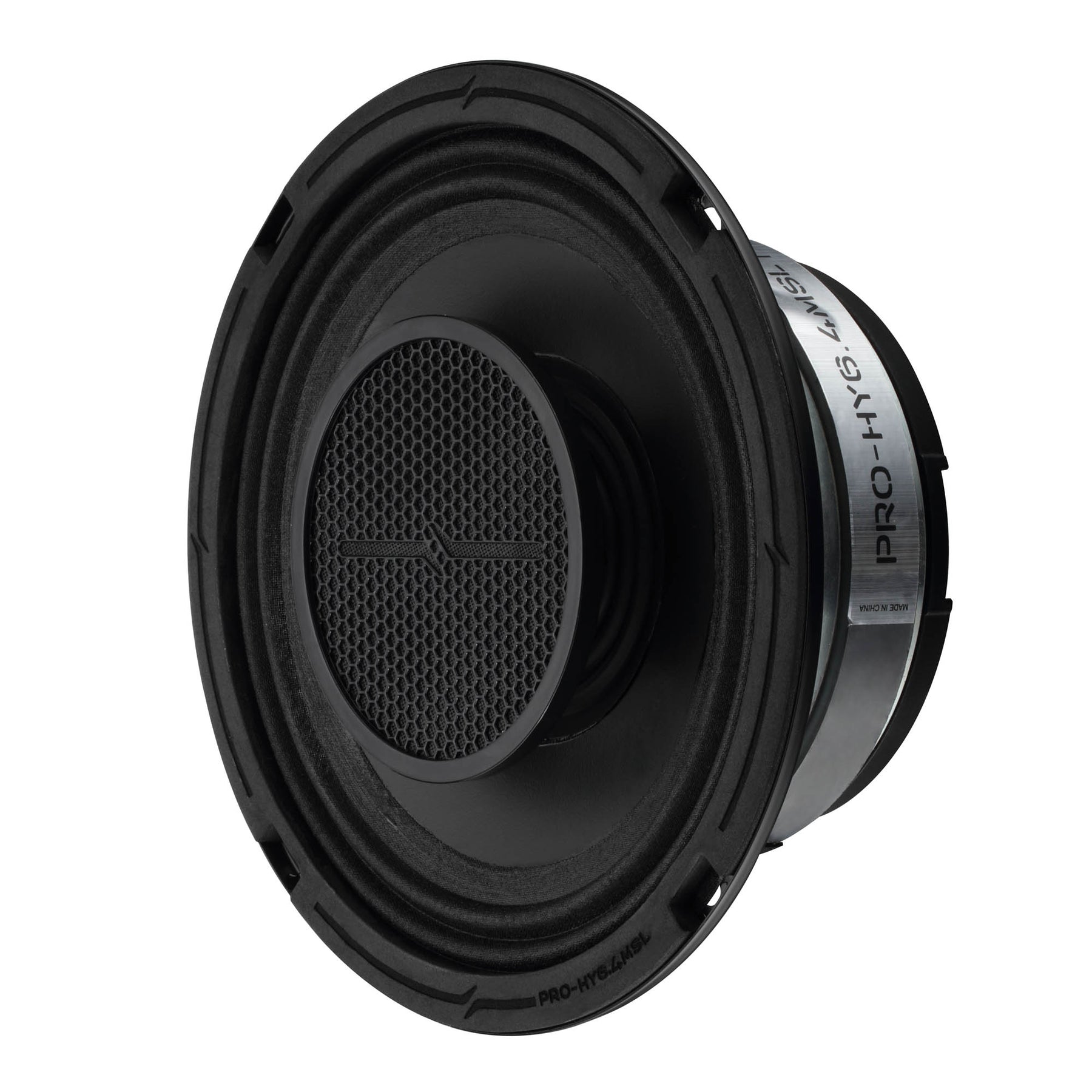

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm

SKU: PRO-HY6.4MSL
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm
PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 4-Ohm

SKU: PRO-HY6.4MSL

Sale price$79.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Size: 6.5"

Impedance: 4-Ohm

Color:

Quantity:
  • Key Features

    • 6.5” Slim Hybrid Loudspeaker
    • 150W RMS / 300W MAX
    • 1” Titanium Compression Driver
    • IP65 Rated + Grille w/ Water/Sun Protection Cloth
    • Neodymium Driver Magnet / Ferrite Woofer Magnet
    • Mounting Depth: 2.82”
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    PRO-HY6.4MSL
    Nominal Diameter
    6.5" / 165.1mm
    Nominal Impedance
    4 Ohm
    RMS Power Handling
    150W
    MAX Power Handling
    300W
    Sensitivity (1w/1m)
    93dB
    Frequency Response
    100Hz-20Khz
    Recommended HI Pass Crossover
    140Hz
    Number of ways
    2 ways
    Pair or Single
    Single
    Grill Included
    Yes

    Woofer Specifications

    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    KSV
    Winding Material
    CCAW
    Cone Material
    Water-Resistant Paper
    Surround Material
    Treated Cloth
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Ferrite
    Magnet Weight
    19.5 Oz

    Thiele & Small Parameters

    Equivalent Volume Vas
    9.42L / 0.3327ft3
    Excursion (one way) Xmax
    1.5mm
    Free Air Resonance Fs
    160Hz
    Mechanical Factor Qms
    6.605
    Electrical Factor Qes
    1.296
    Total Factor Qts
    1.086
    Mechanical Mass Mms
    2.734g
    Mechanical Compliance Cms
    0.358mm/N
    BL Factor BL
    2.668
    Voice Coil Inductance Le
    0.05892mH
    Cone Area Sd
    136.848 Cm2
    DC Resistance Re
    3.2 ohm
    Mechanical Mass w/o air Mmd
    23.2g

    Driver Specifications

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Titanium
    Magnet Material
    Neodymium
    Horn Diameter
    3.15" / 80 mm

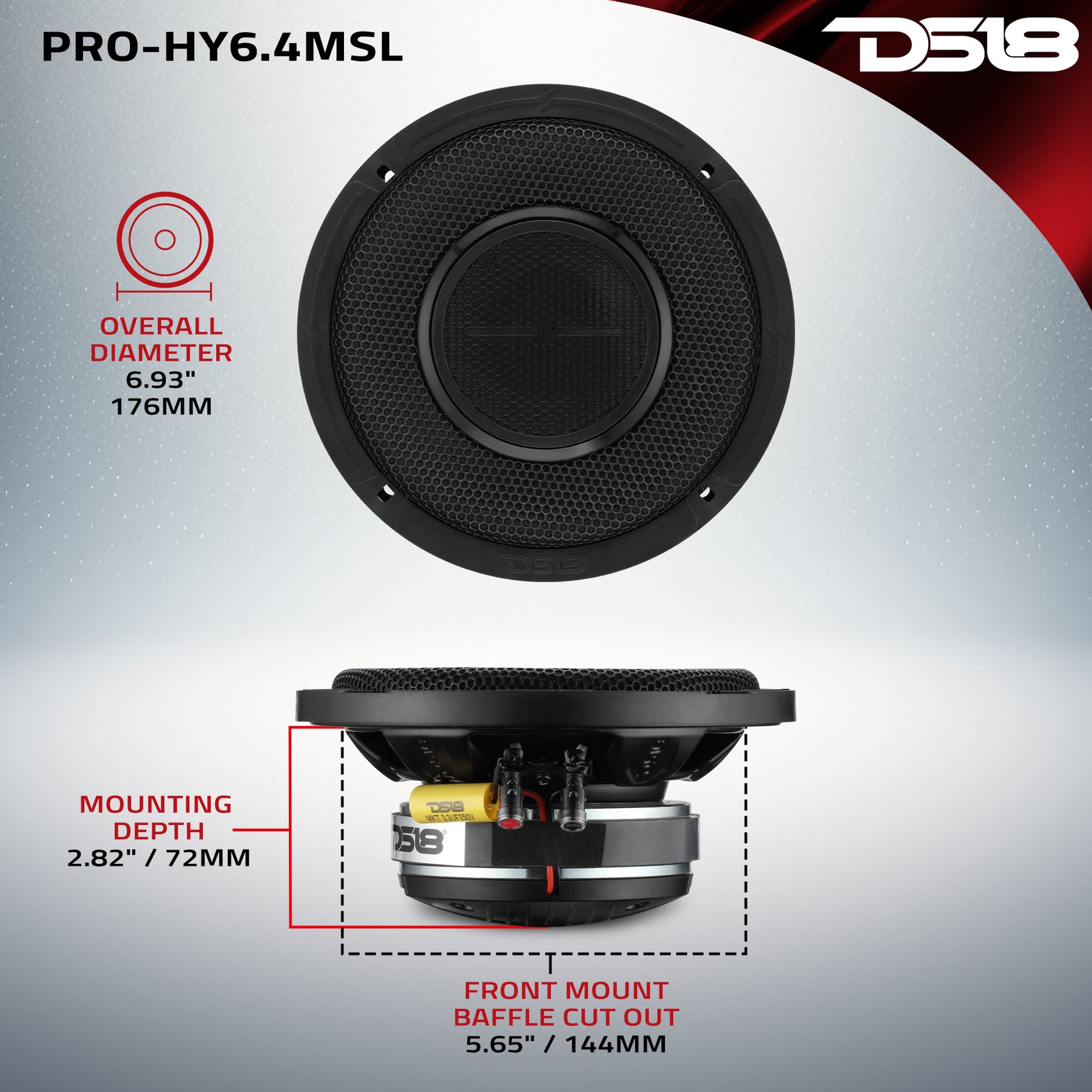

    Speaker Measurement

    Overall Diameter
    6.92" / 176mm
    Overall Depth
    3.52" / 89.5mm
    Front Mount Baffle Cutout
    5.6" / 142mm
    Mounting Depth
    2.82" / 72mm
    Motor Diameter
    4.33" / 110mm

    Shipping Info

    Gross Single Unit Weight
    3.75
    Single Unit Box Dimensions L x W x H (Inches)
    7.25 x 7.25 x 4.25
    Quantity of Units in Master Carton
    8
    Gross Master Carton Weight
    32
    Master Carton Dimensions L x W x H (Inches)
    15.25 x 15.25 x 9.5

    Load More
  • Product Overview

    Product Overview

    6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn

    The PRO-HY6.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.

    HYBRID DESIGN FOR FULL-RANGE SOUND
    This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 150W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.


    SHALLOW MOUNT. BIG SOUND.
    With a mounting depth of only 2.82”, the PRO-HY6.4MSL is perfect for motorcycles, UTVs, SXS, Slingshots, and Jeep pods. It fits in tight panels and fairings while still delivering 97dB sensitivity for serious volume at any power level.


    IP65 WATER-RESISTANT + SUN PROTECTED
    The PRO-HY6.4MSL features upgraded treated cloth surrounds and a water-resistant cone. The included grille now has a sun- and water-protective cloth backing, and the entire speaker is IP65 rated to withstand anything you run into on- or off-road


    NEODYMIUM DRIVER + 3” HORN FOR MAX OUTPUT
    Inside the 1” titanium compression driver is a neodymium motor, giving you fast, accurate highs in a compact form. The 3” horn helps project sound clearly through wind and road noise so your music cuts through—on the move or at full throttle.


    4Ω COMPATIBILITY FOR EASY SYSTEM MATCHING
    With a 4Ω impedance, the PRO-HY6.4MSL is easy to pair with aftermarket amps and crossovers. Upgrading your factory pods or building a custom system? It’s ready to get loud!


    The PRO-HY6.4MSL is slim enough to fit anywhere, loud enough to lead, and built tough enough to survive your wildest rides.
