IXS Shallow-Mount 10" Fiber Glass Subwoofer 600 Watts Rms DVC 2-Ohm





IXS Shallow-Mount 10" Fiber Glass Subwoofer 600 Watts Rms DVC 2-Ohm
Sale $203.96 / EACH
Reg.$239.95
15% OFF FOR 4th of July Sale!
Availability:237 Items
-
Key Features
- 10" Shallow Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 84dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
IXS10.2D
Nominal Diameter
10" / 254mm
Nominal Impedance
2+2 ohms
RMS Power Handling
600w
Maximum Power Handling
1200w
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz
MOTOR
Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fiberglass
Surround Material
Stitched rubber
Basket Material
Aluminum
Basket Color/Finish
Corrugated Black
Magnet Material
Ferrite
Magnet Weight
62 Oz
Displacement Volume
0.9L / 0.032ft3
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
13.95L / 0.49ft3
Free Air Resonance Fs
38 Hz
Mechanical Factor Qms
5.88
Electrical Factor Qes
0.87
Total Factor Qts
0.76
Moving Mass Mms
200 g
Compliance Cms
88.46 mm/N
Bl Factor BI
13.97
Voice Coil Inductance Le
4.58 mH
Diaphragm Area Sd
333.29 cm2
DC Resistance Re
1.8+1.8 ohms
Efficiency Bandwidth Product EBP
43.6
RECOMMENDED ENCLOSURES
Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44Hz
MEASUREMENT
Overall Diameter
10.63" / 270 mm
Overall Depth
4.48" / 114 mm
Front Mount Baffle Cutout
9.25" / 235 mm
Mounting Depth
3.66" / 93 mm
Motor Diameter
6" / 154 mm
Gross Single Unit Weight (lb)
15
Single Unit Box Dimensions W x L x H (Inches)
11.25 x 11.25 x 5.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
31
Master Carton Dimensions W x L x H (Inches)
12 x 12 x 12.5
-
Product Overview
Product Overview
DS18 IXS10.2D 10” Car Subwoofer 1200W 2-Ohm DVC Shallow Mount
Engineered with uncompromising precision and cutting-edge technology, the IXS10.2D is specifically designed to revolutionize your car audio experience.
Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. Available in both 10 and 12-inch variants, these subwoofers come with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.
With impressive power handling capabilities rated at 600W RMS and 1200W MAX, the IXS10.2D delivers thunderous bass and dynamic performance. The IXS10.2D covers an extensive frequency range (20 – 800Hz) , capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 84dB the IXS10.2D means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.
The dual voice coil configuration on the IXS10.2D offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. Even with its shallow mount size, this subwoofer fits snug in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 2+2-ohm impedance of the IXS10.4D allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS10.2D’s performance and bass response.
Get ready to feel the bass like never before with the DS18 IXS10.2D—where power meets precision, and excellence becomes the new standard.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

IXS Shallow-Mount 10" Fiber Glass Subwoofer 600 Watts Rms DVC 2-Ohm
Default Title
Related products
- 10" Shallow Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2.5" SVC
- Ferrite Magnet
- 84dB
- 10" Shallow Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2.5" SVC
- Ferrite Magnet
- 84dB
- 10" Shallow Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 84dB
- 10" Shallow Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 84dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 85dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 85dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 85dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" DVC
- Ferrite Magnet
- 85dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" SVC
- Ferrite Magnet
- 85dB
- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" SVC
- Ferrite Magnet
- 85dB

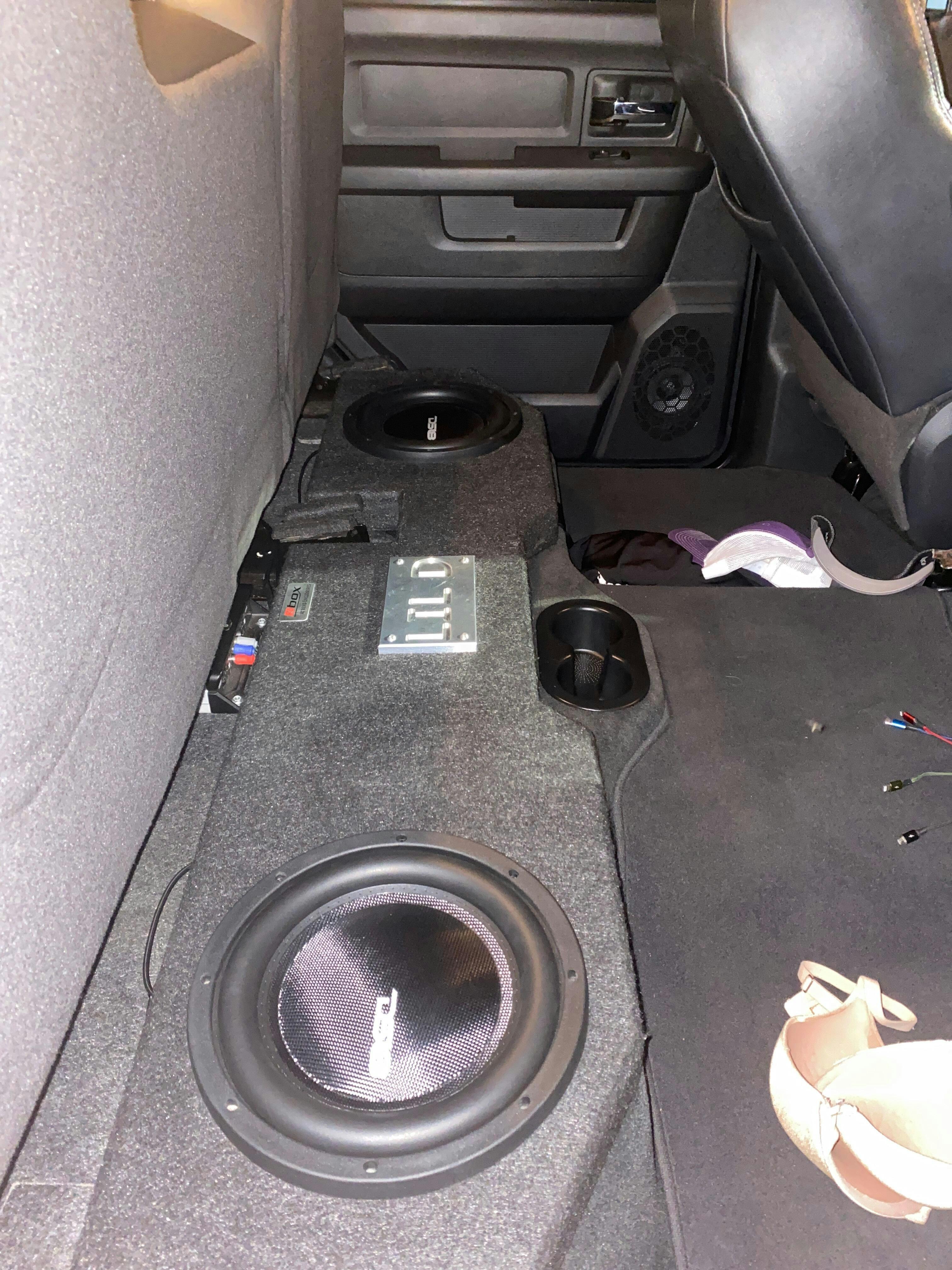

Put these in my ram 1500 under the rear seats, I don’t have much space, these bump. Great travel/clean cut base/they look nice. Currently have them hooked up to a 800x1 kicker amp on a low setting for break in and am going to put in ds18’s 2500x1 amp, they can take a lot of abuse, personally I’d say best shallow mounting sub for the money, I’ve been thru a few! Hit like there a big magnet deep mounting sub!
