CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts





CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
Sale $305.96 / EACH
Reg.$359.95
15% OFF FOR Labor Day Sale!
Channel: 5 Channel
Power: 4 x 120 Watts + 220 Watts (SUB)
Availability:510 Items
-
Key Features
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
CANDY-X5B
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
120W x 4 + 220W (Sub)
RMS Power @ 2 Ohm
200W x 4 + 360W (Sub)
RMS Power @ 1 Ohm
500W (Sub)
RMS Power @ 4 Ohm Bridge
350W x 2
Audio
Frequency Response
20Hz~20KHz / 20Hz~250Hz (Sub)
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V
Selectable X-Over
FULL/HPF - Fixed LPF (Sub)
X-Over Filter Range
40Hz~250Hz / 50Hz~150Hz (Sub)
Bass Boost Range
6dB/12dB
Bass Boost Frequency
50Hz
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 ohm St / 4 ohm Bridge + 1 ohm (Sub)
Led Indicator
Power / Protection
Power Input Terminal Size
4Ga
Fuse Size
40A x 2
Remote Level Control
Yes / Remote Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>180F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
Extra Features
Hi-Level Input With Auto Turn-On
Yes
Input Selector
Yes (4/5 Channels)
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Measurement
Overall Length
11" / 280mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
9.8" / 250mm
Gross Single Unit Weight
2Kg
-
Product Overview
Product Overview
DS18 CANDY-X5B 5-Channel Full Range + Subwoofer Amplifier | 2000W Peak
DS18’s CANDY-X5B is your all-in-one 5-channel amplifier built for massive power in a compact footprint. This amp drives your mids, highs, and subwoofer without eating up space.
Small Size. Big Performance
The CANDY-X5B delivers 2000W peak power resulting in clean, efficient RMS output across all channels: 4 x 120W at 4Ω, 4 x 200W at 2Ω, and 4 x 140W at 4Ω bridged — plus a dedicated subwoofer channel pushing 1 x 210W at 4Ω, 1 x 360W at 2Ω, and 1 x 500W at 1Ω.Built-In Sub Channel with Full Control
A dedicated 500W subwoofer channel means you don’t need a separate mono amp. Selectable LPF, bass boost, and phase control let you dial in tight, deep bass just the way you like it.Runs Cool. Hits Hard
Thanks to its Class D design and >75% efficiency at 4 ohms, this amp stays cool under pressure — perfect for custom installs in tight or hidden spaces.Plug In. Power Up. Ride Out
OEM-ready with Hi-Level inputs and Auto Turn-On, the CANDY-X5B makes installation smooth. It also includes a remote bass knob, so you can adjust your sub levels on the fly.DS18 Durability
Protected against heat, shorts, and voltage swings (9V–16V), this amp is built with Surface Mount Technology and tested for peak precision using Audio Precision gear.Upgrade to the CANDY-X5B and power your entire system!




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
Default Title
Related products
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On

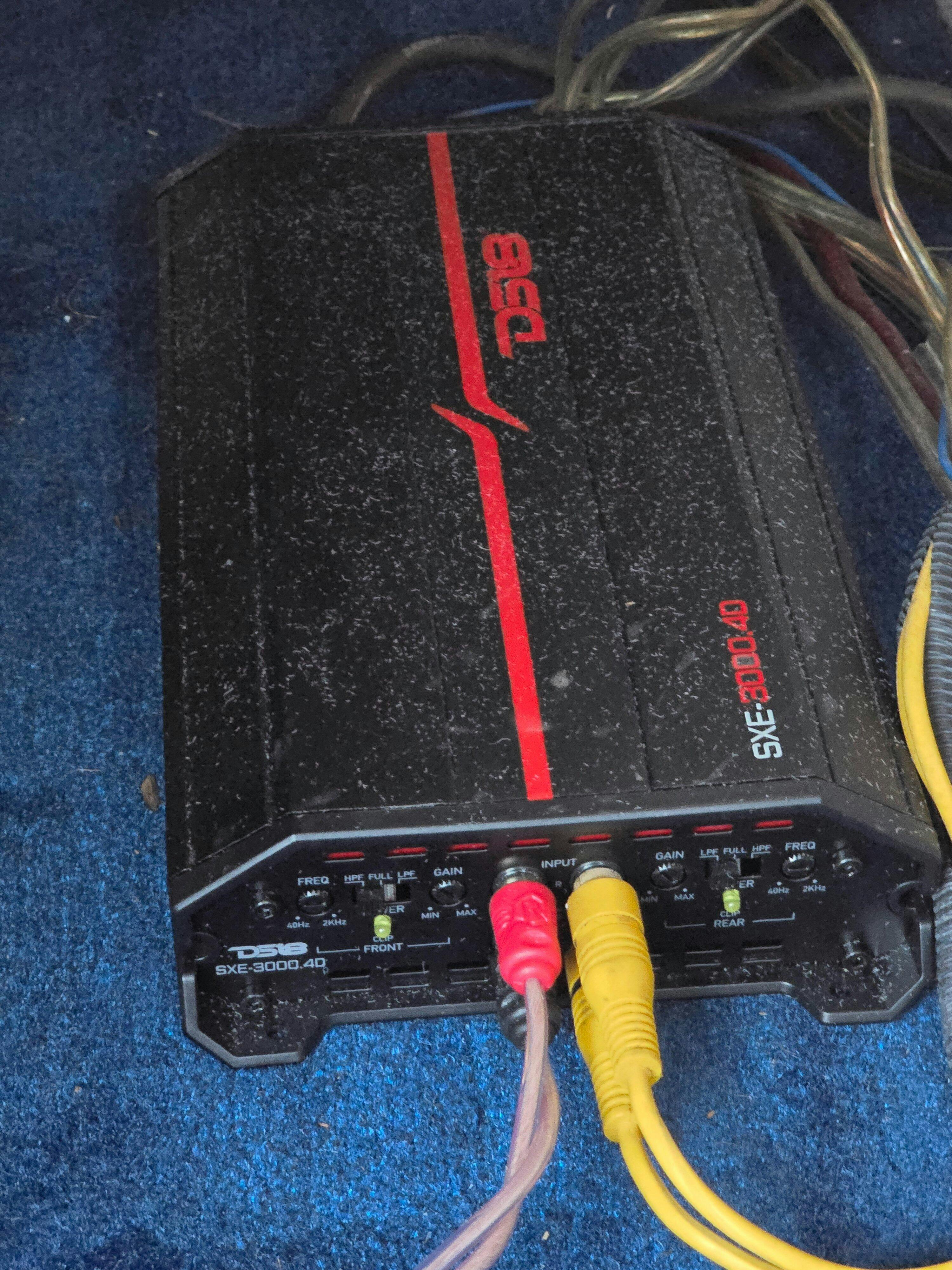

I love this amp its output is crazy but i do perfer cooler fan on the amp but the is great crazy loud hard pouding bass almost blow my sub
Love these amps have the second one in my bike, not a problem with DS18 Hurricane Michael ruined it, but I replaced it. The latest is for my 91 Chevy truck.
Kick ass .. the best ..
Let customers speak for us
from 3892 reviewsI bought these speakers to fit in the back doors of my 05 Chevrolet crew cab pickup they work great. They Give me more base which paired perfectly with the DS18s and tweets, I have in the front doors just what it needed.
Thanks DS18
I Like it Loud!

NO more then you pay for these they are the perfect upgrade!

Great service and fast wow thank you for packing it up really appreciate the team at the warehouse and sending my shipment with Care. Can’t wait to do the install on my Slingshot. This is gonna sound super loud thank you Team. Really appreciate you guys.

I have been looking for a 2 ohm speaker for my set up foud this one and l love it sounds really good and takes a ton of power

These evl 12s are where it’s at..build the box to specs like it says..hardest hitting subs I’ve bought to date

sound great look good even though you can’t see them in my truck

Fit & finish is very good bought them for my saddle bags on my 2000 road king installed your amp also combined with these speakers Wow very happy with the sound & performance $ well spent if I choose to add any more speakers I will definitely go with Ds18 in the future TY

Alot of sound for something small love it

Best loudspeakers🔥

I previously purchased a JBL rally bar 36 inch and was highly disappointed so I reached out to Anthony at DS 18 directly. He hooked me up with a set of 8 inch tower speakers 500 W he gave me a matching amp that I needed and a head unit, their customer service, especially Anthony walked me through the whole process of tuning my amp And system. It was so loud that we had to un bridge and just hook it up to 2 Channels Way more than I ever expected to get.the JBL rally bar. I couldn’t even hear the music over the motor running in the background very pleased with the product couldn’t be happier
NXL 8-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 8 x 150 Watts RMS @ 4-Ohm

Wanted to add more power to my mids. Great bit and works great

You will not believe how these tweeters sound .... Dont let the price fool you
