6.9" Touchscreen Mechless Double-DIN Headunit with Bluetooth, USB and Mirror Link
SOLD OUT
6.9" Touchscreen Mechless Double-DIN Headunit with Bluetooth, USB and Mirror Link
SOLD OUT
Sale $173.36 / EACH
Reg.$203.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
DDX6.9ML
Rated power source
14.4V DC (10.8V to 15V operation)
Maximum Current Consumption
10 Amp
Dimensions (W x H x D)
Chassis: 178mm x 100mm x 165mm Bezel frame: 170mm x 96mm x 5mm
Weight
820 grams
Display
Screen Size / Aspect Ratio
6.9 inch / Wide 16:9
Pixels
1024 x 600
Display Type
TFT / WSVGA / Capacitive Touch Screen
Temperature Operation
-20C to +60C (14F to 140F)
Audio
Maximum Power Output
40W X 4 Ch / 4 ohm
Continuous Power Output
15W x 4 Ch / 4 ohm
Pre-output Level
4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer
16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
Gain
+/- 12dB
Audio Control
Volume / Balance / Fader /Loudness
Tuner
Frequency Range
FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory
30 Stations (18 FM/12 AM)
Region
Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment
LOC (On/Off) / ST (On/Off)
USB / SD Player
Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported
1080P Video
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (USB)
Number of USB Ports
2 (1 x Front, 1 x Rear)
Connectivity
Bluetooth Version / Services
V4.1 / Audio Streaming / Hands Free calls
Camera Input
RCA Analog Video up to HD 720p (Front/Rear)
Video Output
Dual RCA (1 Volt/75 ohm)
A/V Aux Input
Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone
3.5mm Jack external MIC Input
Remote Control
Frontal IR Receptor / Wired (3.5mm jack) Input
-
Product Overview
Product Overview
DS18 DDX6.9ML 6.9" Double Din Digital Media Receiver Mech-Less Player, Touchscreen, Bluetooth, USB, Mirror Link
Thanks to DS18’s DDX6.9ML you and everyone in the vehicle can enjoy crisp visuals and goose bump worthy sound quality.
Maneuvering through the options is easy with the touch screen controls giving you absolute control over all your media.

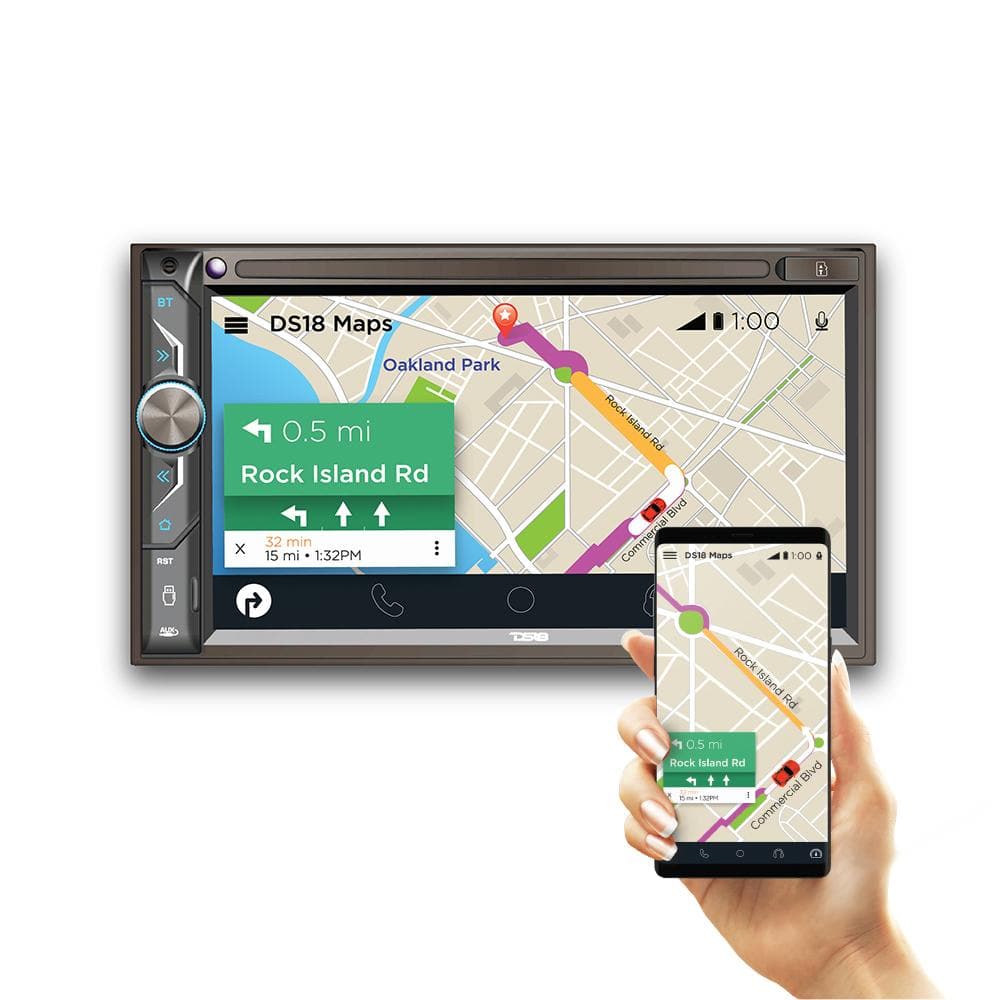

This receiver has everything you need to bring your multimedia dreams to life: including Mirror Link, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.
The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer tunes your sound to your tastes easily. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts (7V for subwoofers) so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available.
