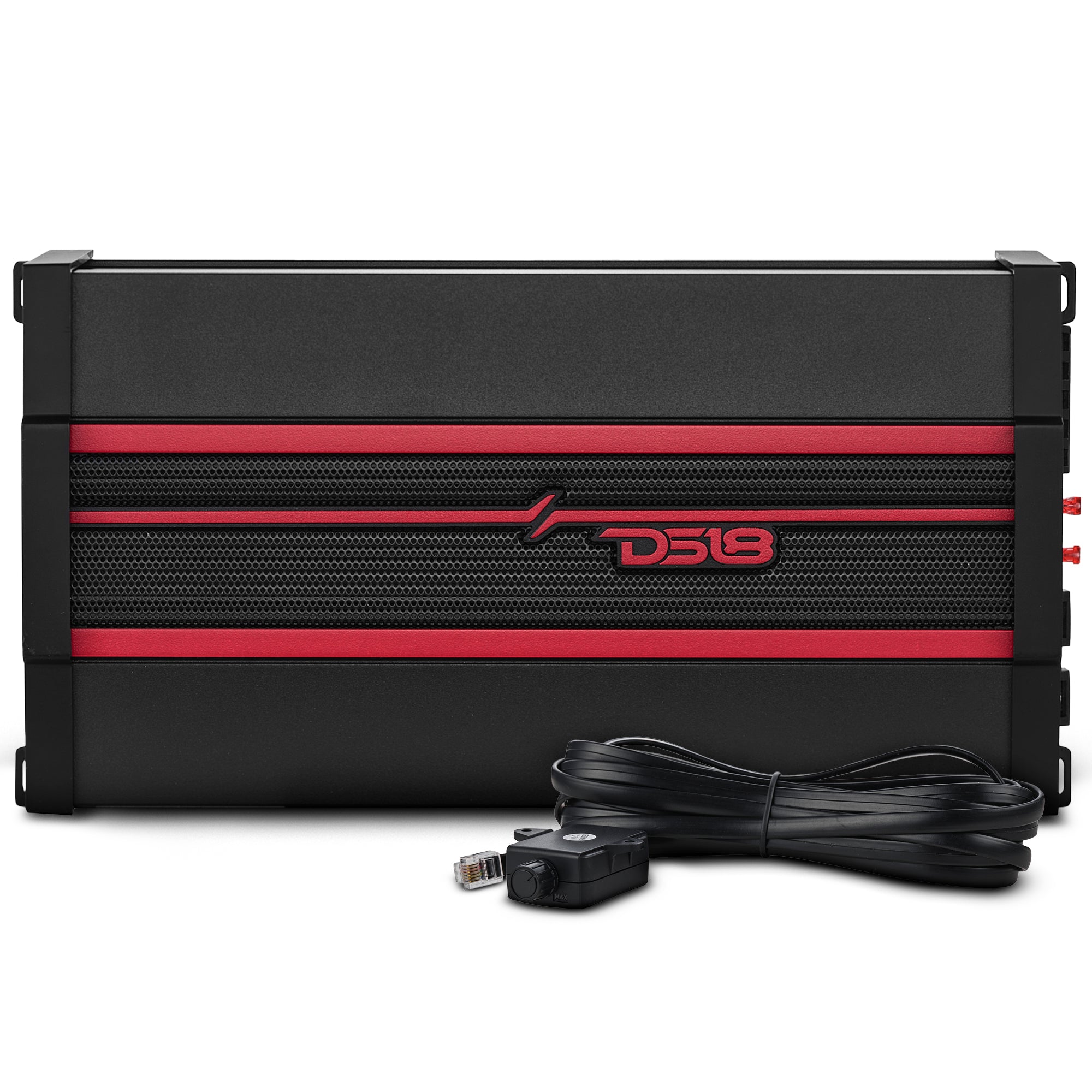

CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
CANDY Compact Full-Range Class D 5-Channel Amplifier 2000 Watts
Sale $305.96 / EACH
Reg.$359.95
15% OFF FOR MOVING SALE!
Channel: 5 Channel
Power: 4 x 120 Watts + 220 Watts (SUB)
Availability:631 Items
-
Key Features
- 5 Channel
- Stereo Full Range + Subwoofer
- 2 ohm St/4 ohm Bridge + 1 ohm (Sub)
- Class D
- Compact Design
- Bass Control Knob
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-X5B
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
120W x 4 + 220W (Sub)
RMS Power @ 2 Ohm
200W x 4 + 360W (Sub)
RMS Power @ 1 Ohm
500W (Sub)
RMS Power @ 4 Ohm Bridge
350W x 2
Audio
Frequency Response
20Hz~20KHz / 20Hz~250Hz (Sub)
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V

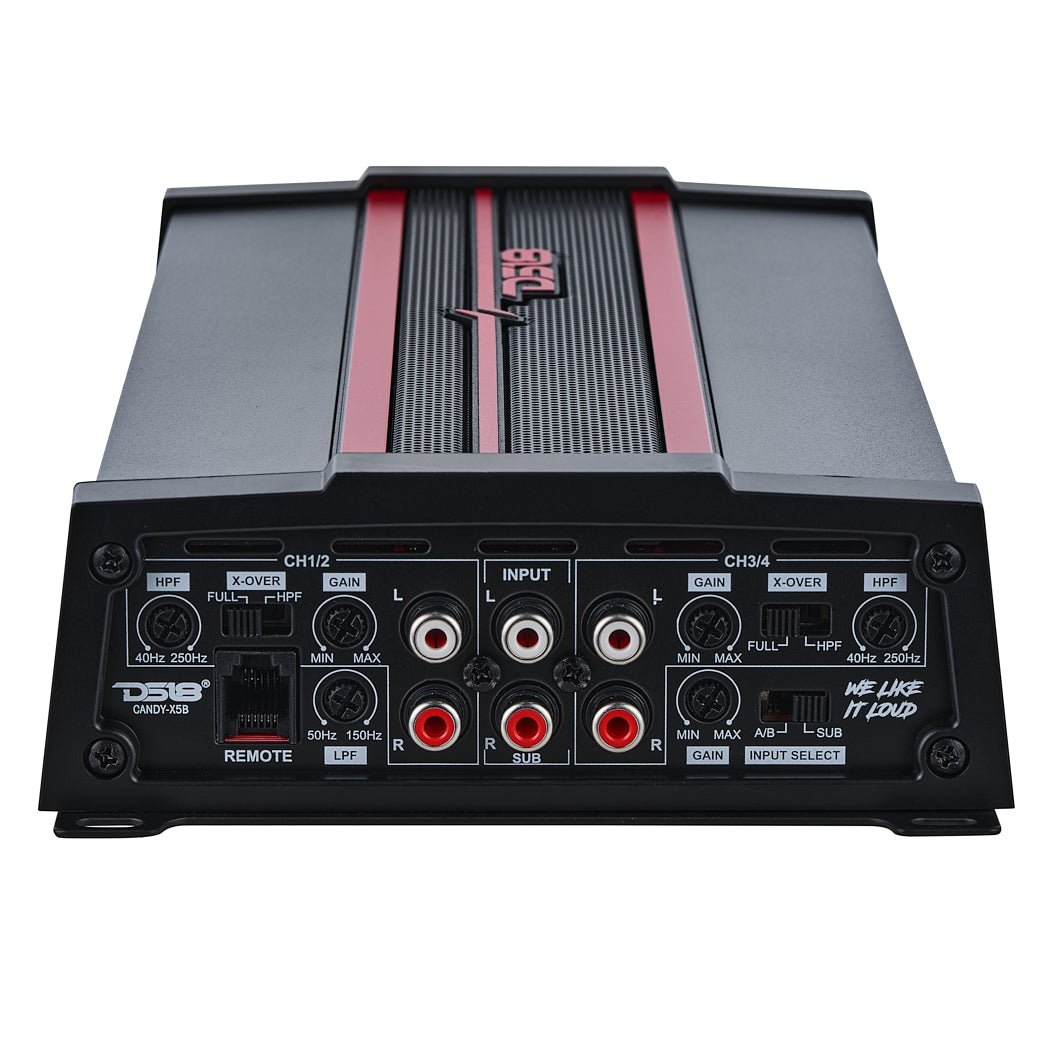

Selectable X-Over
FULL/HPF - Fixed LPF (Sub)
X-Over Filter Range
40Hz~250Hz / 50Hz~150Hz (Sub)
Bass Boost Range
6dB/12dB
Bass Boost Frequency
50Hz
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 ohm St / 4 ohm Bridge + 1 ohm (Sub)
Led Indicator
Power / Protection

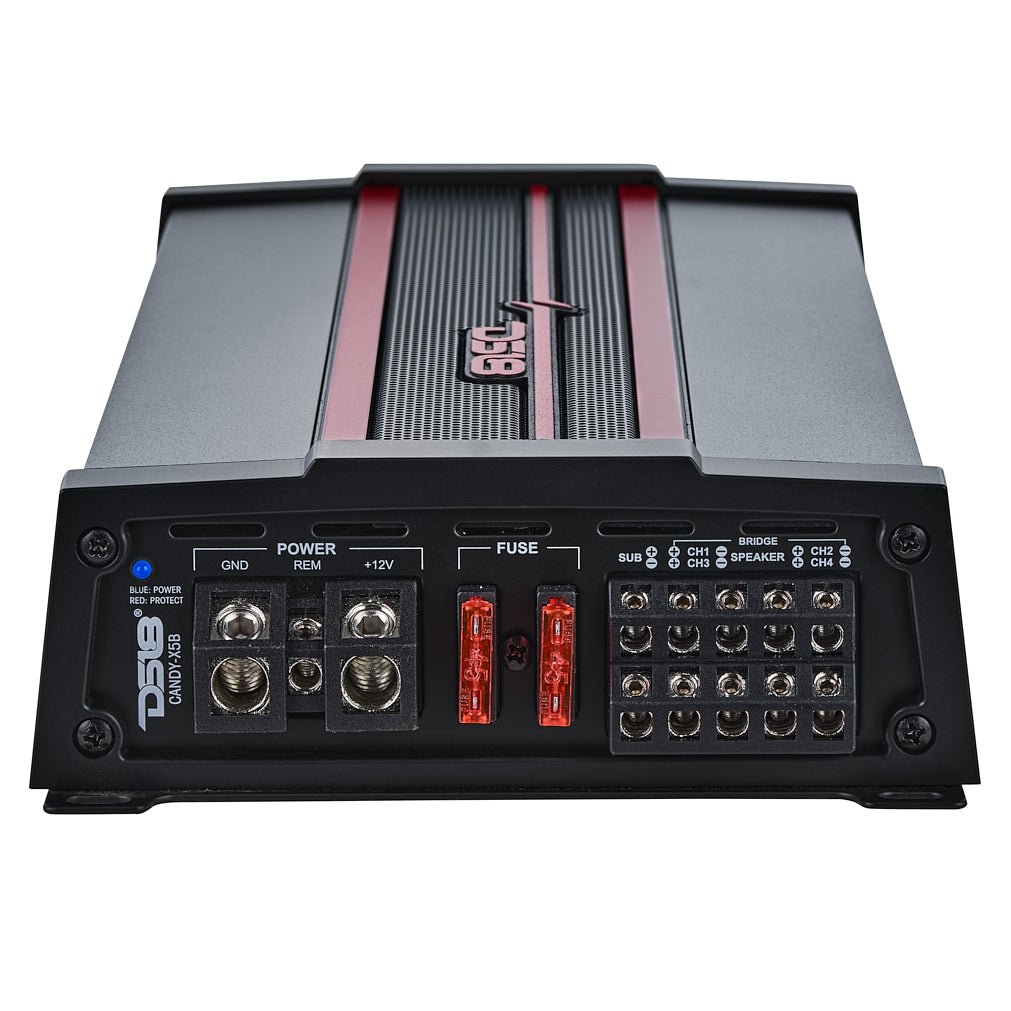

Power Input Terminal Size
4Ga
Fuse Size
40A x 2

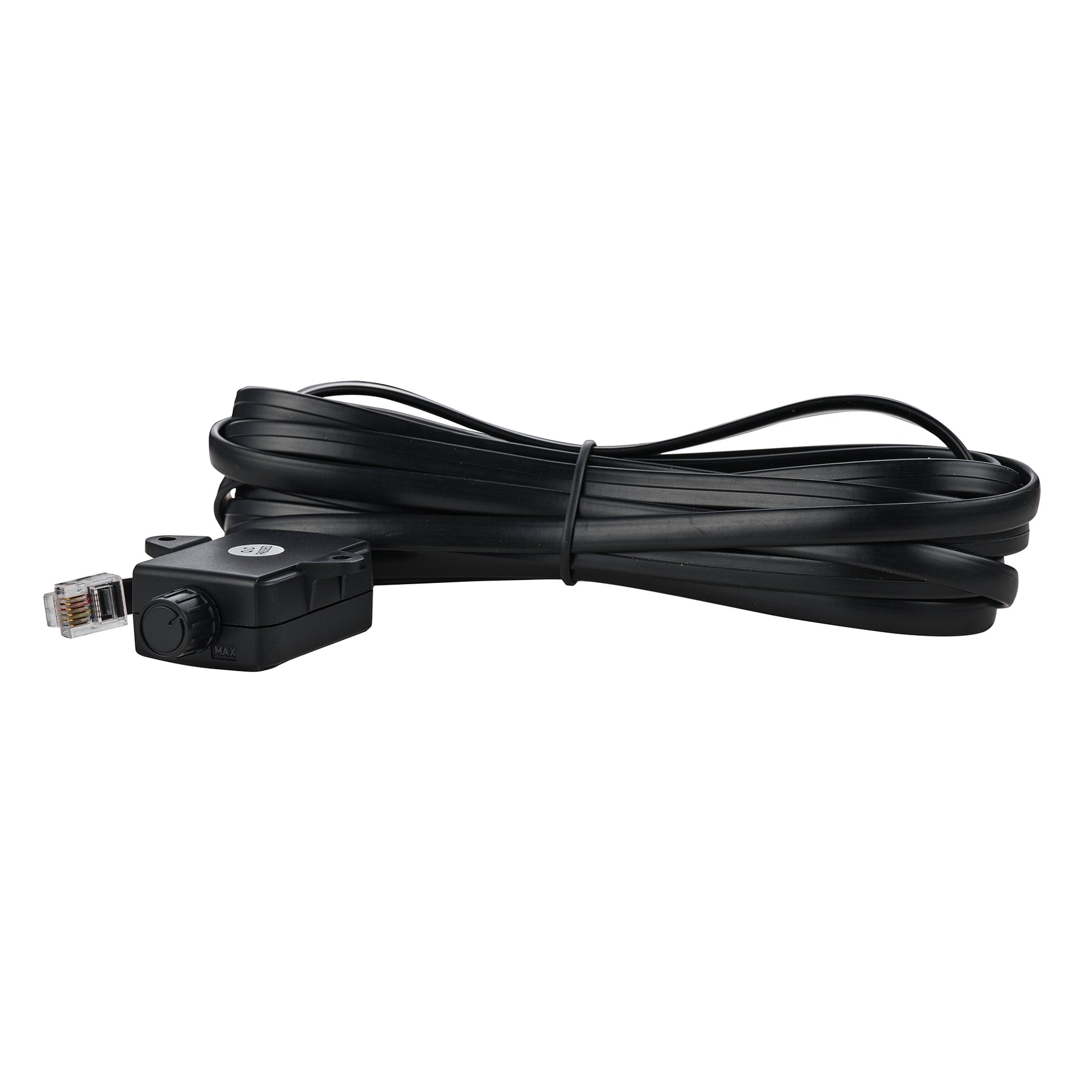

Remote Level Control
Yes / Remote Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>180F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
Extra Features
Hi-Level Input With Auto Turn-On
Yes
Input Selector
Yes (4/5 Channels)
Compact Size to easy Installation for Any Applications
Yes

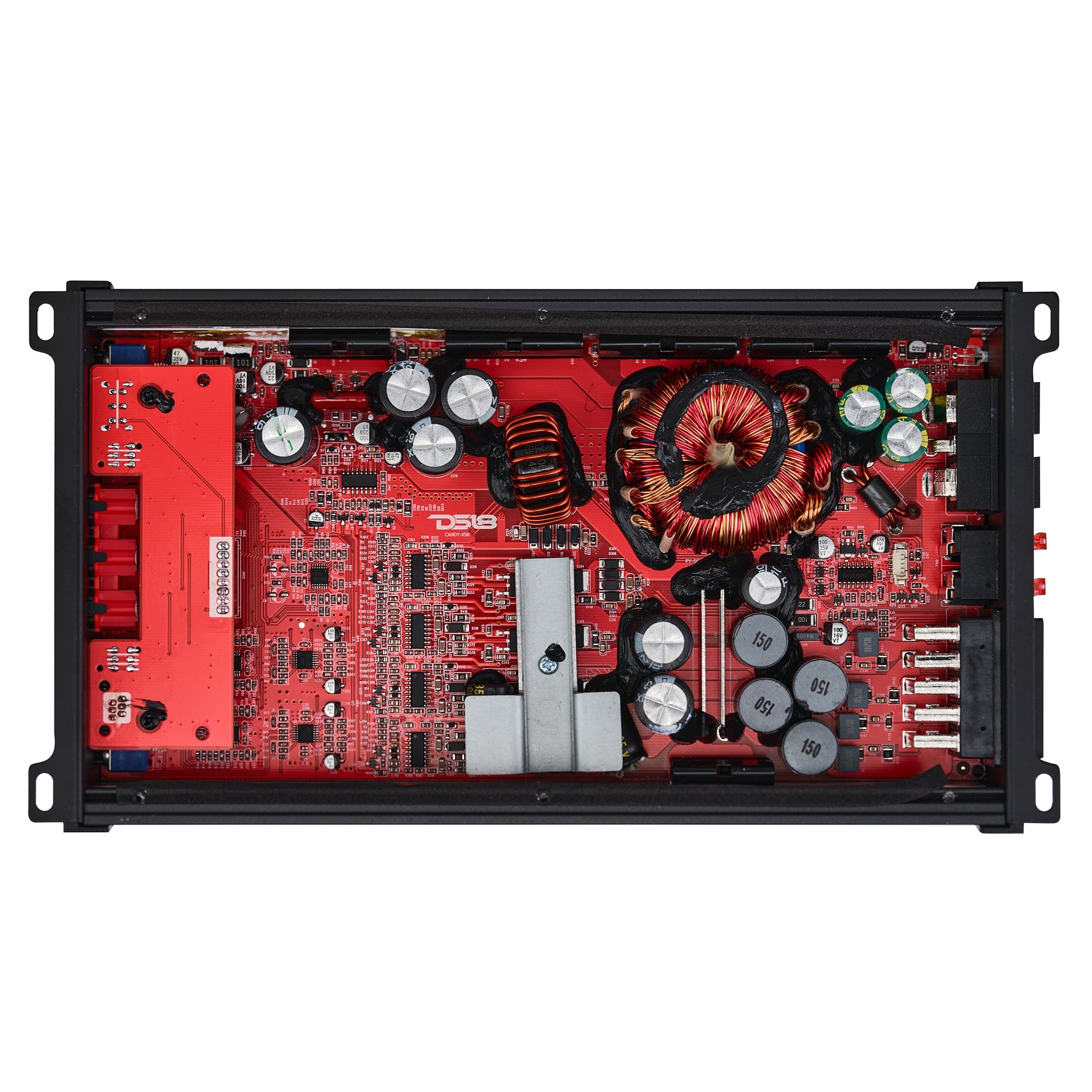

Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Measurement
Overall Length
11" / 280mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
9.8" / 250mm
Gross Single Unit Weight
2Kg
-
Product Overview
Product Overview
DS18 CANDY-X5B DS18’s CANDY-X5B is your all-in-one 5-channel amplifier built for massive power in a compact footprint. This amp drives your mids, highs, and subwoofer without eating up space.
Small Size. Big Performance
The CANDY-X5B delivers 2000W peak power resulting in clean, efficient RMS output across all channels: 4 x 120W at 4Ω, 4 x 200W at 2Ω, and 4 x 140W at 4Ω bridged — plus a dedicated subwoofer channel pushing 1 x 210W at 4Ω, 1 x 360W at 2Ω, and 1 x 500W at 1Ω.
Built-In Sub Channel with Full Control
A dedicated 500W subwoofer channel means you don’t need a separate mono amp. Selectable LPF, bass boost, and phase control let you dial in tight, deep bass just the way you like it.
Runs Cool. Hits Hard
Thanks to its Class D design and >75% efficiency at 4 ohms, this amp stays cool under pressure — perfect for custom installs in tight or hidden spaces.
Plug In. Power Up. Ride Out
OEM-ready with Hi-Level inputs and Auto Turn-On, the CANDY-X5B makes installation smooth. It also includes a remote bass knob, so you can adjust your sub levels on the fly.
DS18 Durability, Inside and Out
Protected against heat, shorts, and voltage swings (9V–16V), this amp is built with Surface Mount Technology and tested for peak precision using Audio Precision gear.
Upgrade to the CANDY-X5B and power your entire system!
