Overview

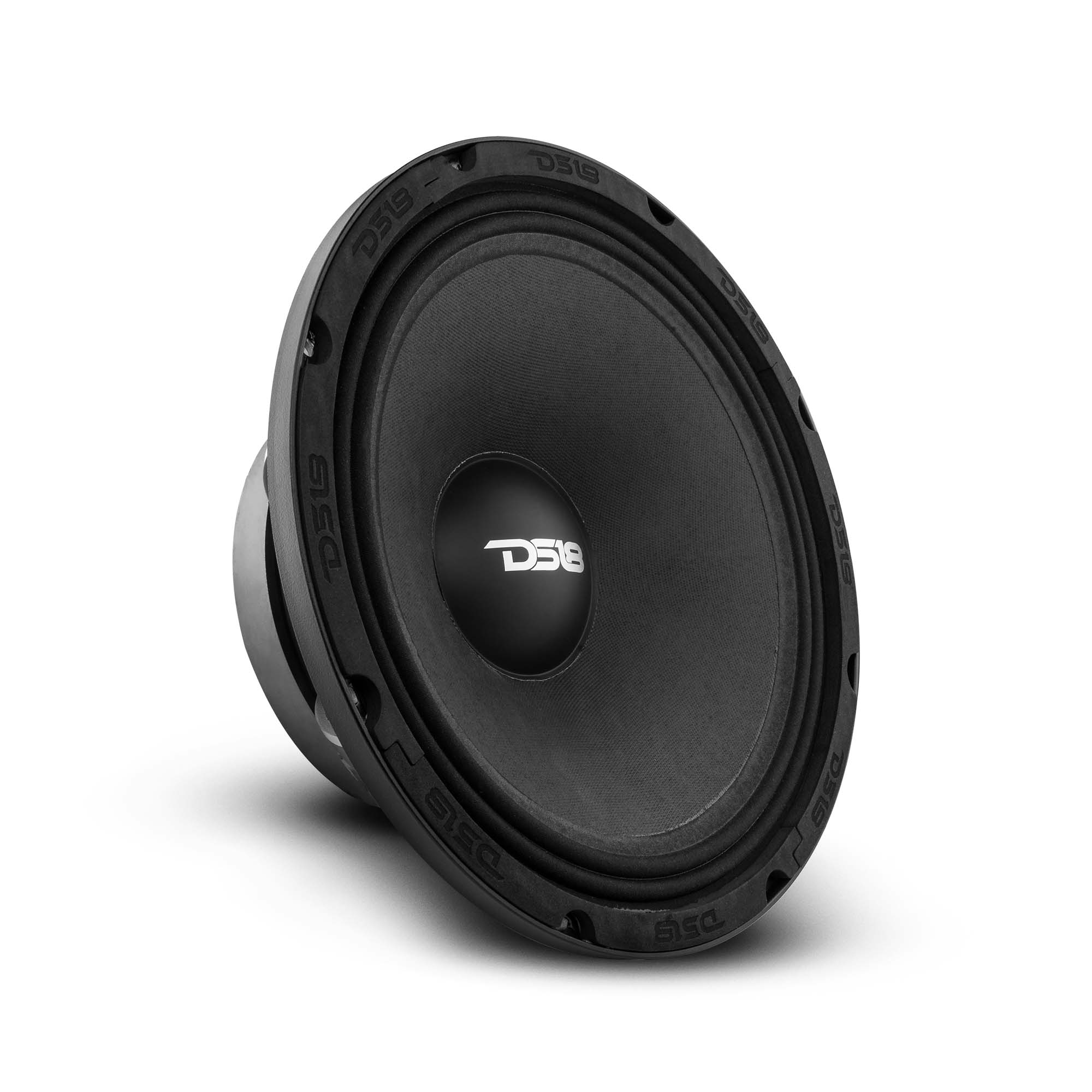

A fresh new DS18 Mid-Range speaker has landed on the pro audio scene! The PRO- FU12.8 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 600 watts RMS and 1200 watts max with extreme efficiency and reliability. The PRO-FU will give you screaming vocals but have enough cone area to help with you with your mid-bass.
Highlights
- Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.
- DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
- High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.
Technical Details
Download PROFU12.8 Product Manual
| Model | PRO-FU12.8 |
| Nominal Diameter | 12" |
| Nominal Impedance | 8 OHMS |
| MAX Power Handling | 1200W |
| RMS Power Handling | 600W |
| Sensitivity (1w/1m) | 97.7 dB |
| Frequency Response | 57hz-10KHz |
| Recommended HI Pass Crossover | 80Hz |
| Motor | |
| Voice Coil Diameter | 3" |
| Voice Coil former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 100 oz. |
| Measurements | |
| Overall Diameter | 12.4" |
| Front Mount Baffle Cutout | 5.39" |
| Mounting Depth | 11.2" |
| Overall Depth | 4.92" |
| Motor Diameter | 7.4" |
