DS18 PRO-NS6.4 6.5" Shallow Neodymium Mid-Range Loudspeaker 300 Watts 4-Ohm
DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 6.5 inch neodymium 1.5" voice coil Mid-Range speaker takes 150w RMS and 300w peak power, so you know they will get loud easily. The 94dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.
- Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
- High efficiency 1.5 inch voice coil that handles 150w RMS and 300w peak power for extreme loudness and frequency precision.
- Shallow mounting depth of only 1.96 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.
|Nominal Diameter||6.5" / 167mm|
|Nominal Impedance||4 Ohms|
|RMS Power Handling||150W|
|MAX Power Handling||300W|
|Sensitivity (1w/1m)||94 dB|
|Frequency Response||100Hz - 12KHz|
|Recommended Hi Pass Crossover||180Hz|
|Pair or Single||Single|
|Voice Coil Diameter||KSV|
|Voice Coil Former Material||Copper|
|Dust Cap Material||Cloth|
|Basket Material||Glossy Red|
|Magnet Material||1.79 Oz|
|THIELE & SMALL PARAMETERS|
|Equivalent Volume||4.8L / 0.169ft3|
|Excursion (one way)||2 mm|
|Free Air Resonance||137 Hz|
|Mechanical Compliance||183.287m cm/N|
|Voice Coil Inductance||2.695mH|
|Cone Area||132.732 Cm3|
|DC Resistance||3.2 ohms|
|Mechanical Mass w/o air/||6.477 g|
|Overall Diameter||6.57” / 167mm|
|Overall Depth||2.2” / 56mm|
|Front Mount Baffle Cutout||5.7” / 145mm|
|Mounting Depth||1.96” / 50mm|
|Motor Diameter||4” / 103mm|

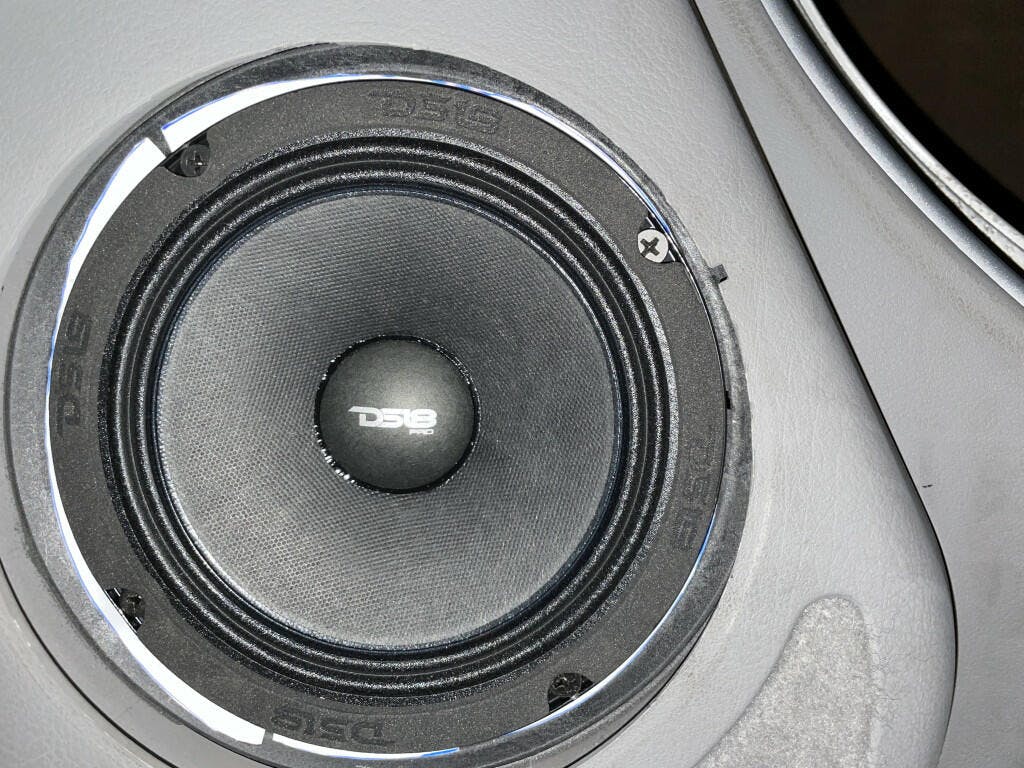

Because of the constraints in my 2002 Eurovan door speakers I needed a 6 1/2 inch speaker under 2 inches in depth. After scouring the Internet I decided to try these. Oh my god they are loud, crisp, and clear!!! Perfect mid above 150hz, and to about 11,000hz. I can’t say enough about the amazing sound quality. Excellent buy!
