DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic Voice Coil 800 Watts 8-ohm

PRO-D2PH

DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic Voice Coil 800 Watts 8-ohm

Name: DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic Voice Coil 800 Watts 8-ohm
Brand: PRO-D2PH
SKU: PRO-D2PH
Price: 129.95 USD
Availability: InStock

Ships Free Next Business Day

New Arrival

PRO-D2PH

$149.95 -$20.00 instant savings $129.95/ EACH

Quantity

FAST FREE SHIPPING

2 YEAR WARRANTY

30-DAY RETURNS

FINANCING SOLUTIONS

Have a Question? Ask a Specialist
305-928-8734 / Live Chat

FAST FREE SHIPPING

2 YEAR WARRANTY

30-DAY RETURNS

FINANCING SOLUTIONS

Overview
Technical Details
Buy This With
Reviews

Overview

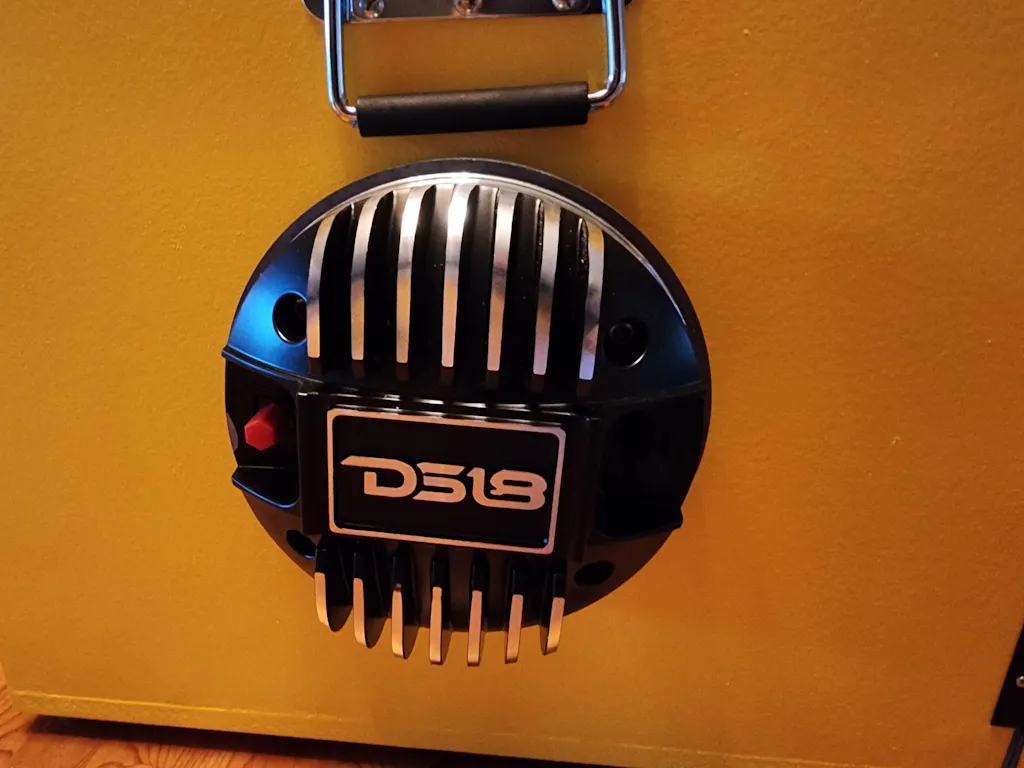

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!

This driver comes with a large phenolic 2 inch voice coil that takes 200 AES and 800 Peak power for extreme decibel production backed with a high efficiency motor.

Highlights

Ferrite motor structure that provides great motor force and loudness.
High strength phenolic voice coil taking 200 AES watts and 800 Peak watts.
Intense high frequency volume without sacrificing sound quality.
Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.

Technical Details

PRO-D2PH Product Manual

Throat Diameter	2" / 50.8mm
Installation Type	Bolt-On
Nominal Impedance	8 Ohms
AES Power Handling	200W
Program Power Handling	400W
Peak Power Handling	800W
Sensitivity	109 dB
Frequency Response	500Hz - 10KHz
Recommended Hi Pass Crossover	800 Hz
MOTOR
Voice Coil Diameter	3" / 76.2mm
Voice Coil Former Material	Kapton
Winding Material	Aluminum
Diaphragm Material	Phenolic
Magnet Material	Ferrite
Magnet Weight	65 oz
Body Material	Aluminum
Body Color / Finish	Black Aluminum / Machined
MEASUREMENTS
Overall Diameter	6.69" / 170mm
Overall Depth	3.2" / 81.4mm
Bolt Pattern Type	4*M6
