12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms

SKU: ZXI-112LD.RG
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms
12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms

12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms

SKU: ZXI-112LD.RG

Sale price$539.95
/EACH
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock
Quantity:
  • Key Features

    • ZXI Subwoofer Enclosure
    • 1 X 12" ZXI12.2D
    • RMS Power: 1000 Watts(2000 Watts Peak)
    • Impedance: 1 Ohm ~ 92dB
    • 3/4" MDF with Black Bed Liner Paint
    • 29 Hz Ported Box
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    ZXI-112LD.RG
    Speaker Type / Size
    Single 12" Subwoofer (ZXI12.2D)
    Total Impedance
    1 ohm
    Total RMS Power Handling
    1000 W
    Total MAX Power Handling
    2000 W
    Sensitivity (1w/1m)
    92dB
    Frequency Response
    15-600 Hz
    Recommended Lo Pass Crossover
    60 HZ

    SPEAKER SPECIFICATIONS

    Voice Coil Diameter
    3" / 76.5mm
    Voice Coil Former Material
    Black Aluminum
    Winding Material
    CCAW
    Cone Material
    Non Pressed Paper
    Dust Cap Material
    PPI
    Surround Material
    Foam
    Basket Material
    Aluminum
    Magnet Material
    Ferrite
    Magnet Weight
    224 Oz (4X56Oz)

    BOX SPECIFICATIONS

    Internal Volume
    79L / 2.8ft3
    Port Tune
    29Hz
    Load Configuration
    Parallel (Dual 2ohm)
    Box Type
    Front Ported
    Box Material
    3/4" / 19mm MDF
    Finish Material
    Black bed liner Paint
    -3Db Dropping Point
    24Hz

    MEASUREMENT

    Height
    14.5" / 368mm
    Width
    23.15" / 588mm
    Depth 1
    17.72" / 450mm
    Depth 2
    19.7" / 500mm
    Port Dimensions (W/H/Length)
    1.96" x 13" x 23.2"

    Load More
  • Product Overview

    Product Overview

    DS18 ZXI-112LD.RG

    Low-Tuned Ported Rugged Enclosure With Single ZXI12.2D Subwoofer Included

    Immerse yourself in powerful booming bass with DS18’s ZXI-112LD.RG!
    The ZXI-112LD.RG is a precisely engineered enclosure, built to maximize the potential of it’s included subwoofer, the ZXI-12.2D. This front ported enclosure, with port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm), ensures optimal air flow, minimizing distortion and maximizing the bass. Crafted from ¾” MDF and finished with rugged black bed liner, DS18’s ZXI-112LD.RG guarantees structural integrity and reduces resonance for powerful output.
    At the heart of this beast lies the ZXI-12.2D, a single 12" subwoofer that embodies DS18’s perfect harmony between precision engineering and raw power. With a dual-ohm configuration, the ZXI-12.2D has an impedance of 2+2-OHM, and is ready to handle a thunderous 1000W of RMS power, and a staggering 2000W of MAX power handling. The ZXI-12.2D boasts an impressive sensitivity of 92 dB, ensuring every nuance of your favorite tracks is reproduced with impeccable clarity and detail. The ZXI12.2D allows you to experience the full spectrum of low frequency response, this masterpiece delivers a frequency response range from 15Hz to 600Hz. With these subwoofers you’ll feel every note of all your favorite songs, immersing you in the audio like never before.
    As you install the ZXI-112LD.RG in your vehicle, its dimensions of 14.5" (368mm) in height, 23.15" (588mm) in width, and 17.72" (450mm) in depth seamlessly blend into your car's interior, ensuring a clean and unobtrusive installation.

FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Levi
Exactly what I was looking for

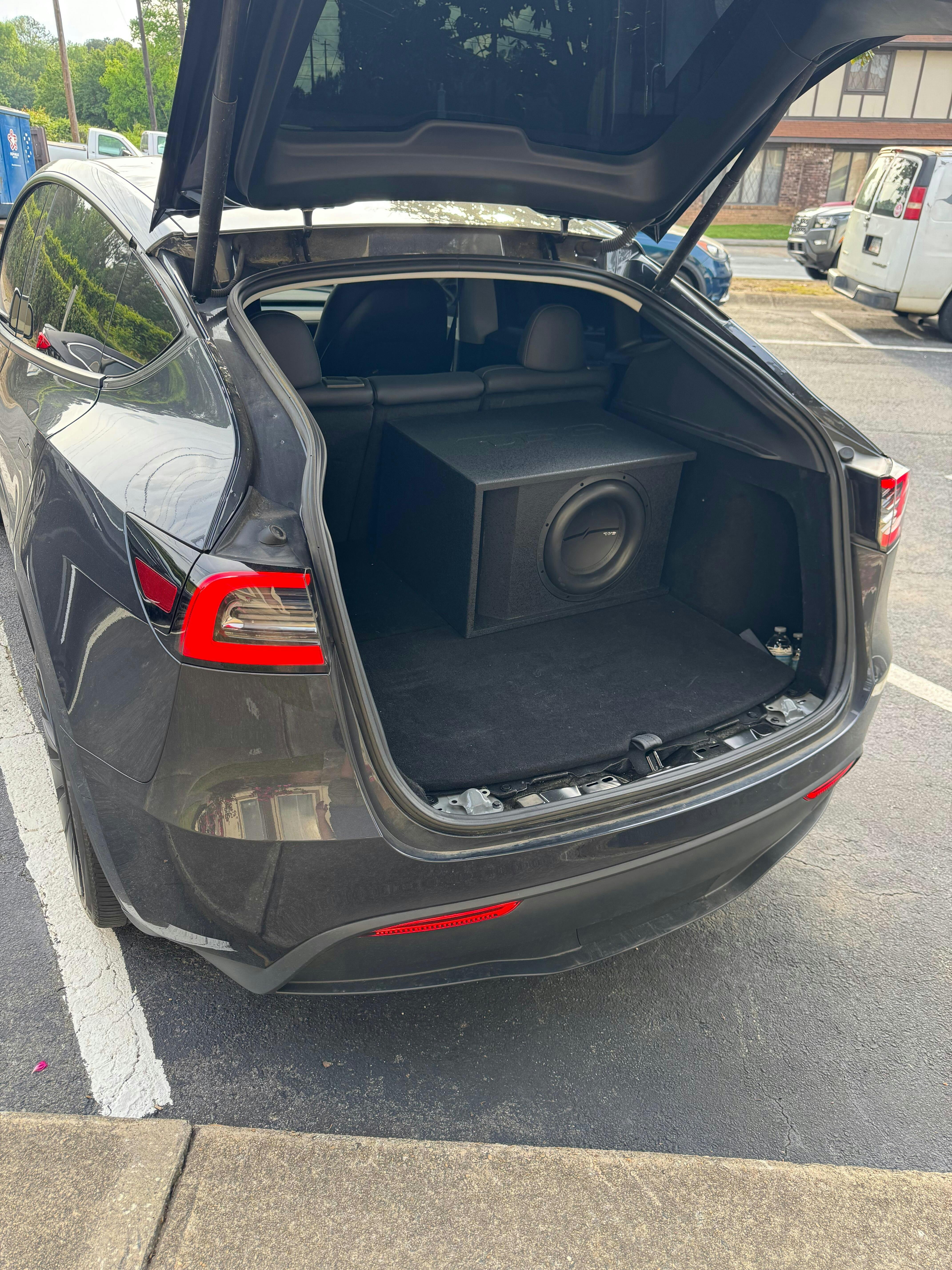

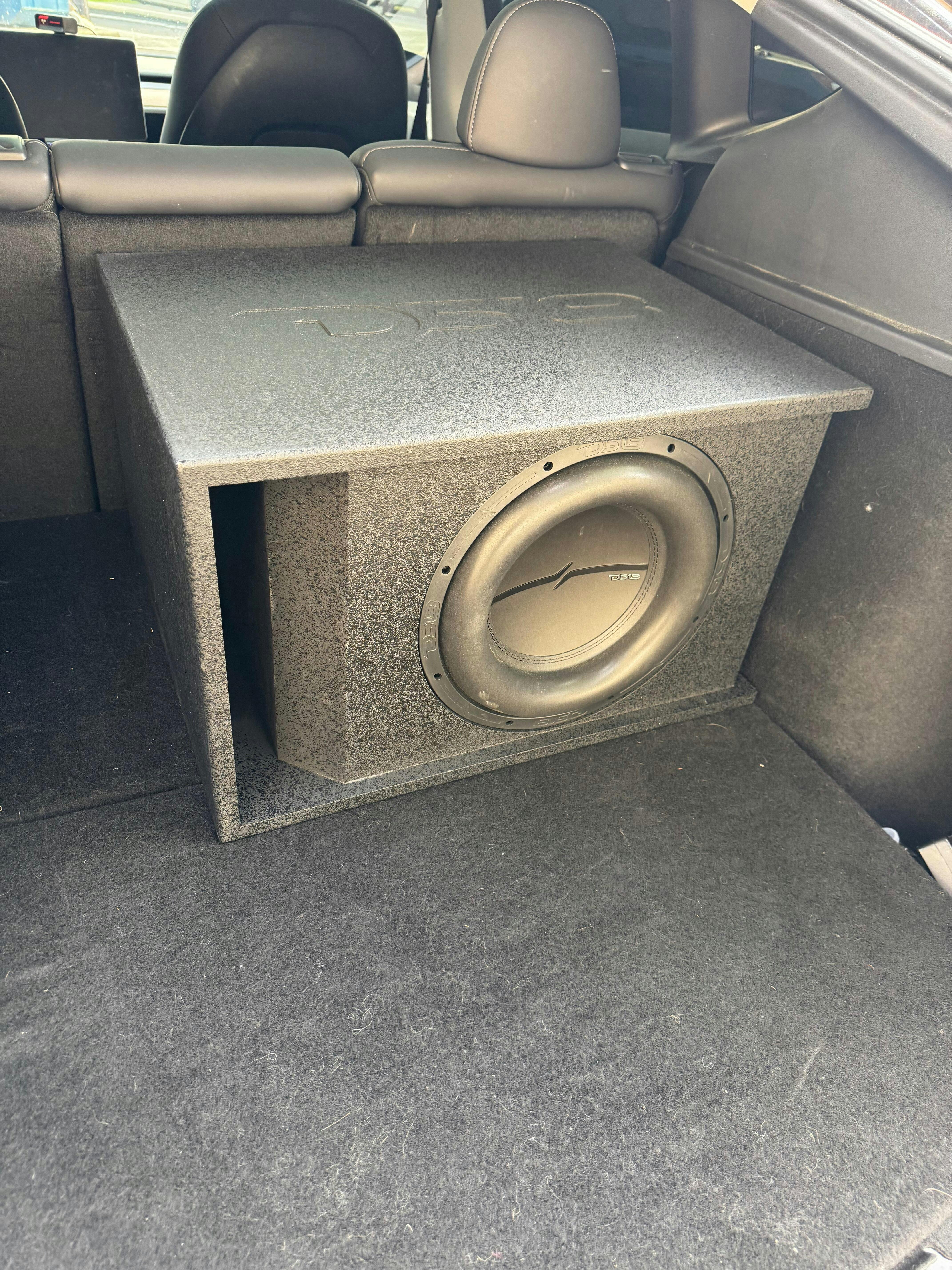

Was looking for a high excursion woofer with a low tuned box. Type of stuff you have to usually build yourself, but DS18 understood the assignment and with 32mm of XMAX travel in this 29hz box, you’ll get some deep lows without having to push over 1000watts RMS. Similar cone of a JL W series the quality is definitely there. Fits and sounds great in my Tesla Model Y. Box is excellent quality too I love the texture, I put some hook and loop patches on the bottom and it doesn’t slide around at all in the car. Side note I’m using a JP13 to push it and it’s taking that extra power like a champ.

D
Dalton
Hits hard looks great

To be honest it was bigger than I expected and hit a lot better than I thought all though it don’t hit all the lows the sub is amazing for one it matched my 2 sundown 12 just with one I will be sticking with this brand

J
Justin W.
BEST loaded enclosure!

The best loaded enclosure!
I bought the single loaded zxi12 and this is the best loaded box I have found to date. It is tuned nice and low, the sub has very impressive excursion to keep air moving down in the 20's. I will be selling off my other subs and exploring Ds18 brand for the foreseeable future. Excellent product! No buyers remorse here

R
Raul Escalera
Loud AF

It’s loud AF in my sons 2023 Honda civic.

N
Nestor Quinonez
WE LIKE IT LOUD💪🏼

This year i decided to run all DS18 products
From mids and highs, amps and i decided to give a try at the single 12 loaded box didnt really know if it was going to be loud and deep to keep up with the mids and highs🤐 and its louder and deep then what it looks 💪🏼💪🏼💪🏼
