SELECT 10" Subwoofer 220 Watts Rms SVC 4-Ohm
SELECT 10" Subwoofer 220 Watts Rms SVC 4-Ohm
Sale $86.66 / EACH
Reg.$101.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 10" Subwoofer
- MAX Power: 440 Watts
- RMS Power: 220 Watts
- Impedance: 4-Ohm 2" SVC
- Ferrite Magnet
- 88dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
SLC-10S
Nominal Diameter
10" / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
220 W
Maximum Power Handling
440 W
Sensitivity (1w/1m)
88 dB
Frequency Response
30Hz-4.5KHz
Recommended Lo Pass Crossover
100Hz
MOTOR
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Paper
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Gloss black
Magnet Material
Ferrite
Magnet Weight
45 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
29.26L / 1.03ft3
Free Air Resonance Fs
40 Hz
Mechanical Factor Qms
5.878
Electrical Factor Qes
0.891
Total Factor Qts
0.774
Moving Mass Mms
131.624 g
Compliance Cms
0.042 mm/H
Bl Factor Bl
11.472
Voice Coil Inductance Le
0.998 mH
Diaphragm Area Sd
365.25 cm2
DC Resistance Re
3.6 ohms
Efficiency Bandwidth Product EBP
44.89
RECOMMENDED ENCLOSURES
Sealed Internal Volume
14.2L / 0.5ft3
Sealed Box Output Response F3
41.5Hz
Ported Internal Volume
35.4L / 1.25ft3
Port Size *Square (W x H x Long)
1.16" x 10.31" x 24.5" / 29.5 x 262 x 622.1mm
Port Tuning Frequency FB
30Hz
Ported Box Output Response F3
24Hz
MEASUREMENTS
Overall Diameter
10.23" / 260mm
Overall Depth
5.71" / 145mm
Front Mount Baffle Cutout
9.13" / 232mm
Mounting Depth
4.45" / 113mm
Motor Diameter
5.94" / 151mm
Gross Single Unit Weight (lb)
8.5
Dimensions W x L x H (Inches)
10.75 x 10.75 x 6.25
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
36
Master Carton Dimensions W x L x H (Inches)
22.25 x 11.5 x 13.25
-
Product Overview
Product Overview

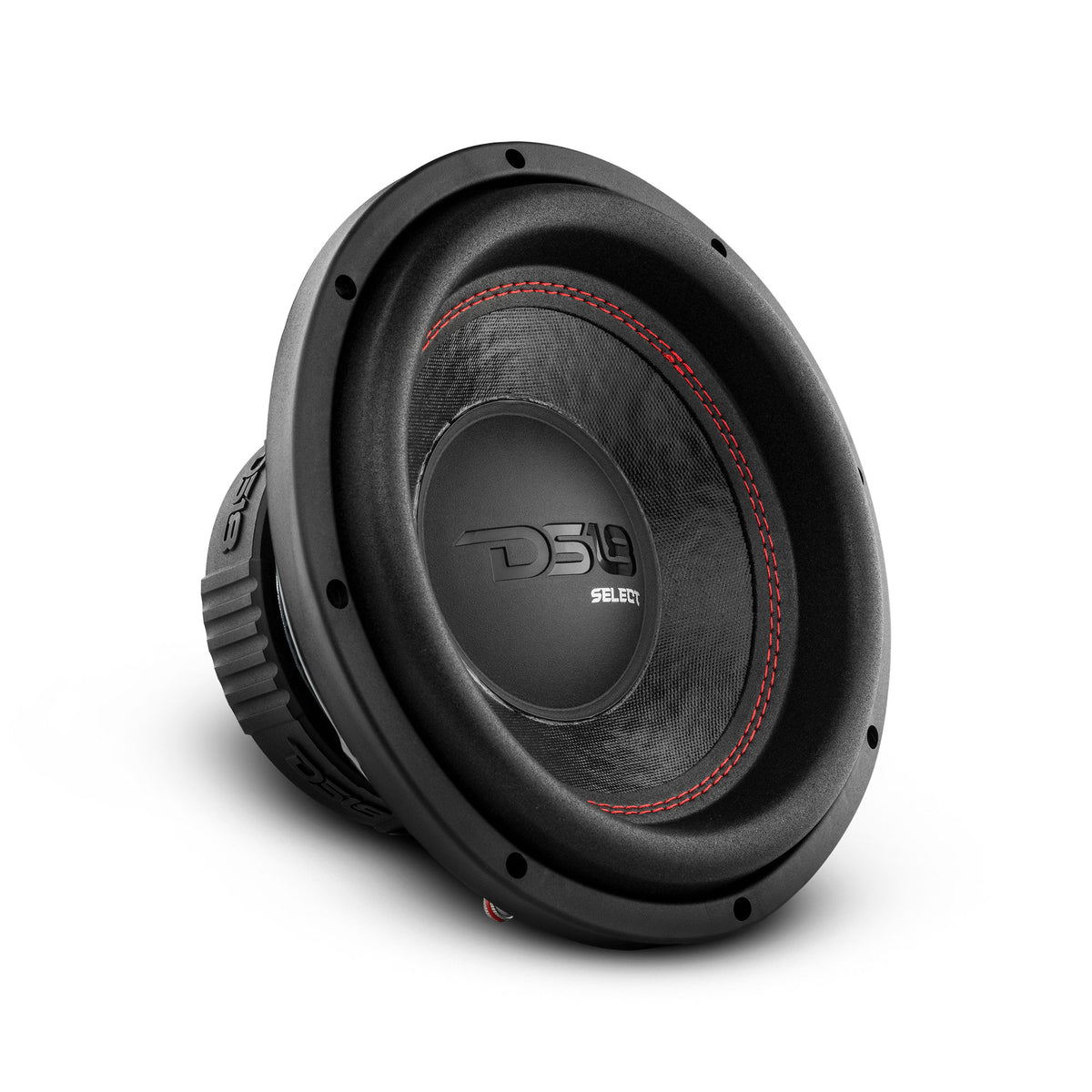

DS18 SLC10S 10” Select Car Subwoofer 440W 4-Ohm SVC
Introducing the DS18 SLC10S, a game-changing subwoofer that will revolutionize any car's audio system.
The Select Series Subwoofers from DS18 are the epitome of excellence in car audio. Available in 8", 10", and 12" sizes, these subwoofers feature sleek black steel baskets that exude confidence and sophistication. Designed for beginning car audiophiles and savvy deal-finders, the Select Series surpasses all other entry-level offerings in terms of quality and RMS power.
The SLC10S also boasts a high-quality ferrite motor with an aluminum voice coil, ensuring exceptional power-to-DB efficiency and unparalleled loudness. These single voice coil subwoofers offer simplicity, compatibility, ease of wiring, flexibility in amplifier selection and wiring configurations, affordability, and a wide variety of options. Its black aluminum voice coil former adds to its durability, ensuring that the SLC10S will never let you down, even during the most intense bass-heavy sessions.
With its 440W of MAX power handling and 220W of RMS power handling, this subwoofer delivers a thunderous audio experience that will leave you breathless. The lower end of the SLC10S’s frequency response (30Hz) allows the SLC10S to reproduce deep, rumbling bass notes with authority. On the upper end of the frequency response (4.5kHz), the SLC10S maintains its fidelity, accurately reproducing midrange frequencies. The wide frequency response of the SLC10S makes it a versatile subwoofer that excels in various genres and applications.
Installation is a breeze, thanks to the SLC10S's thoughtful design. With a mounting cut-out of 9.13" and a shallow mounting depth of 4.45", this subwoofer seamlessly integrates into your vehicle, without compromising valuable space. Its overall diameter of 10.23" and depth of 5.71" guarantee a perfect fit, making it an ideal choice for various car models.
