DS18 SELECT 8" Subwoofer 500 Watts SVC 4-Ohms audio subwoofers. subwofer 8

SELECT 8" Subwoofer 200 Watts Rms SVC 4-Ohm

SELECT 8" Subwoofer 200 Watts Rms SVC 4-Ohm

Name: SELECT 8" Subwoofer 200 Watts Rms SVC 4-Ohm
Brand: SLC8S
SKU: SLC8S
Price: 68.95 USD
Availability: InStock
Rating: 5.0 (4 reviews)

SKU: SLC8S

$68.95

/EACH

Ships Free Next Business Day From Miami, FL, USA

8" Subwoofer
MAX Power: 400 Watts
RMS Power: 200 Watts
Impedance: 4-Ohm 2" SVC
Ferrite Magnet
84dB

In stock

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

8" DIAMETER

SUBWOOFER

4 OHM

VOICE COIL 2"

FERRITE MAGNET

PAPER CONE

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
SLC-8S
Nominal Diameter
8" / 203mm
Nominal Impedance
4 Ohm
RMS Power Handling
200 W
Maximum Power Handling
400 W
Sensitivity (1w/1m)
84 dB
Frequency Response
35Hz-4.5KHz
Recommended Lo Pass Crossover
120Hz

MOTOR

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Paper
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Gloss black
Magnet Material
Ferrite
Magnet Weight
38 Oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
7.78L / 0.27ft3
Free Air Resonance Fs
50 Hz
Mechanical Factor Qms
6.875
Electrical Factor Qes
0.889
Total Factor Qts
0.787
Moving Mass Mms
115.524 g
Compliance Cms
0.034 mm/N
Bl Factor Bl
8.568
Voice Coil Inductance Le
0.455 mH
Diaphragm Area Sd
201.23 cm2
DC Resistance Re
3.4 ohms
Efficiency Bandwidth Product EBP
56.24

RECOMMENDED ENCLOSURES

Sealed Internal Volume
17L / 0.6ft3
Sealed Box Output Response F3
50Hz
Ported Internal Volume
28.3L / 1ft3
Port Size *Square (W x H x Long)
0.87" x 7.99" x 12.1" / 22.2 x 203 x 309.1mm
Port Tuning Frequency FB
35Hz
Ported Box Output Response F3
28Hz

MEASUREMENTS

Overall Diameter
8.42" / 214mm
Overall Depth
4.92" / 125mm
Front Mount Baffle Cutout
7.2" / 183mm
Mounting Depth
3.85" / 98mm
Motor Diameter
5.51" / 140mm
Gross Single Unit Weight (lb)
7
Dimensions W x L x H (Inches)
9 x 9 x 5.75
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
30
M/C Dimensions W x L x H (Inches)
9 x 18.75 x 12

Product Overview

DS18 SLC8S

8” Select Car Subwoofer 400W 4-Ohm SVC

Introducing the DS18 SLC8S, a game-changing subwoofer that will revolutionize any car's audio system.
The Select Series Subwoofers from DS18 are the epitome of excellence in car audio. Available in 8", 10", and 12" sizes, these subwoofers feature sleek black steel baskets that exude confidence and sophistication. Designed for beginning car audiophiles and savvy deal-finders, the Select Series surpasses all other entry-level offerings in terms of quality and RMS power.
The SLC8S also boasts a high-quality ferrite motor with an aluminum voice coil, ensuring exceptional power-to-DB efficiency and unparalleled loudness. These single voice coil subwoofers offer simplicity, compatibility, ease of wiring, flexibility in amplifier selection and wiring configurations, affordability, and a wide variety of options. Its black aluminum voice coil former adds to its durability, ensuring that the SLC8S will never let you down, even during the most intense bass-heavy sessions.
With its 400W of MAX power handling and 200W of RMS power handling, this subwoofer delivers a thunderous audio experience that will leave you breathless. The lower end of the SLC8S’s frequency response (35Hz) allows the SLC8S to reproduce deep, rumbling bass notes with authority. On the upper end of the frequency response (4.5kHz), the SLC8S maintains its fidelity, accurately reproducing midrange frequencies. The wide frequency response of the SLC8S makes it a versatile subwoofer that excels in various genres and applications.
Installation is a breeze, thanks to the SLC8S's thoughtful design. With a mounting cut-out of 7.20" and a shallow mounting depth of 3.85", this subwoofer seamlessly integrates into your vehicle, without compromising valuable space. Its overall diameter of 8.42" and depth of 4.92" guarantee a perfect fit, making it an ideal choice for various car models.

Perfect for a mini truck

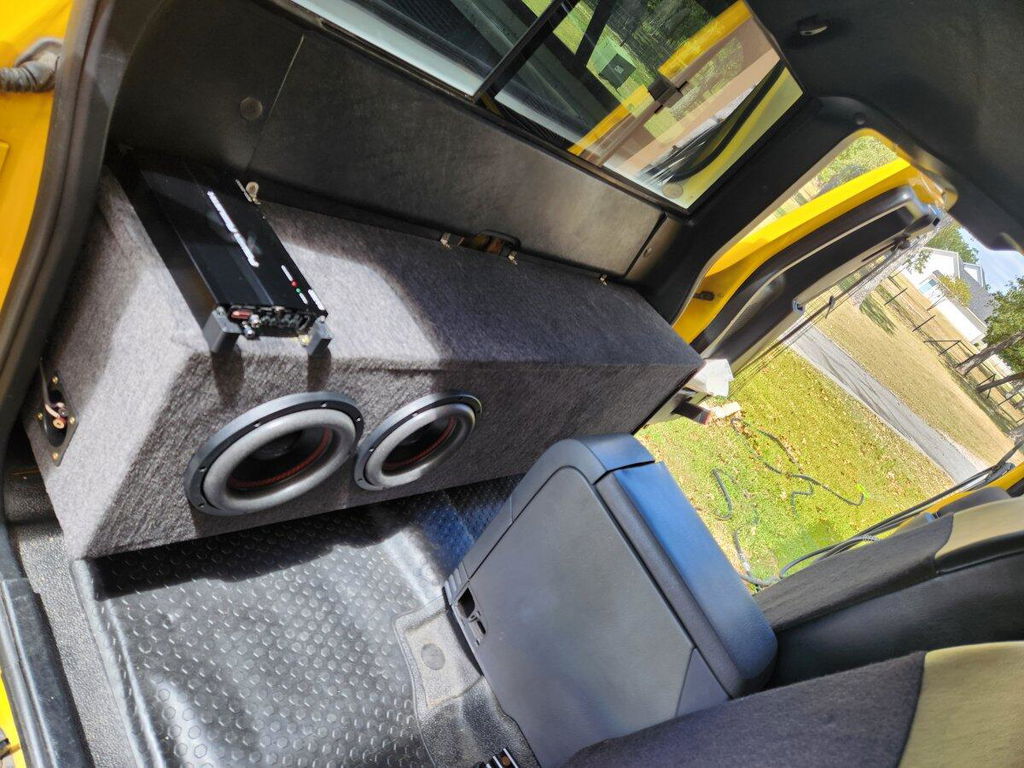

Having a few systems in my back pocket in my past has made me appreciate very much these little wonders. In my 2007 Ranger FX4 Level II having a decent 33Hz tuned Sub box with 2.75Sq Ft, these sound incredible. The 200W version (8" Subwoofer 200 Watts Rms SVC 4-Ohm) are something to love. THanks DS18 for a very well packaged and preforming experience. My background in pro audio tells me that I can recommend these. Combined with my Atoto S8 and a little 450w sub amp, it's all you need to tame the road and make driving a real pleasure even more than expected- Dougie from Texas.

Love my purchase

Nice clean sound great looking speakers pro sm 6.5 damn near perfect mid and 8” pro woofer booming hard find mids and highs that handle 150 rms. I’m doing a little at time , couple of midranges to get but y’all got customer for life good stuff !!!
