PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 4-Ohm

Name: PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 4-Ohm
Brand: PRO-X5.4M
SKU: PRO-X5.4M
Price: 44.95 USD
Availability: InStock
Rating: 4.67 (6 reviews)

SKU: PRO-X5.4M

DS18 PRO-X 5.25" Mid-Range Loudspeaker 300 Watts 4-Ohms (1 Speaker) Car Audio Midrange speakers

PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 4-Ohm

PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 4-Ohm

SKU: PRO-X5.4M

$44.95

/EACH

Ships Free – Dispatches Next Business Day Within the USA

Pay with Affirm on orders over $50.

In stock

Size: 5.25"

5.25"

6.5"

10"

12"

Impedance: 4-Ohm

4-Ohm

8-Ohm

Quantity:

Drop a Hint

Key Features
- 5.25" Mid-Range
- MAX Power: 300 Watts
- RMS Power: 150 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 93dB
- UPC: 810005184663
Technical Data - Manual

DOWNLOAD THE USER MANUAL

SPECS

SKU
PRO-X5.4M
Nominal Diameter
5.25" /133.3mm
Nominal Impedance
4 ohms
RMS Power Handing
150 Watts
Maximum Power Handing
300 Watts
Sensitivity (1w/1m)
93 db
Frequency Response
200Hz-16KHz
Recommended Hi Pass Crossover
250 Hz

SPECS

Voice Coil Diameter
1.2" /30.5 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
18.5 oz

THIELE & SMALL PARAMETERS

Vas
0.827 LTR
Xmax
6.7 mm
Fs
240 Hz
Qms
6.382
Qes
1.625
Qts
1.326
Re
3.2 ohms

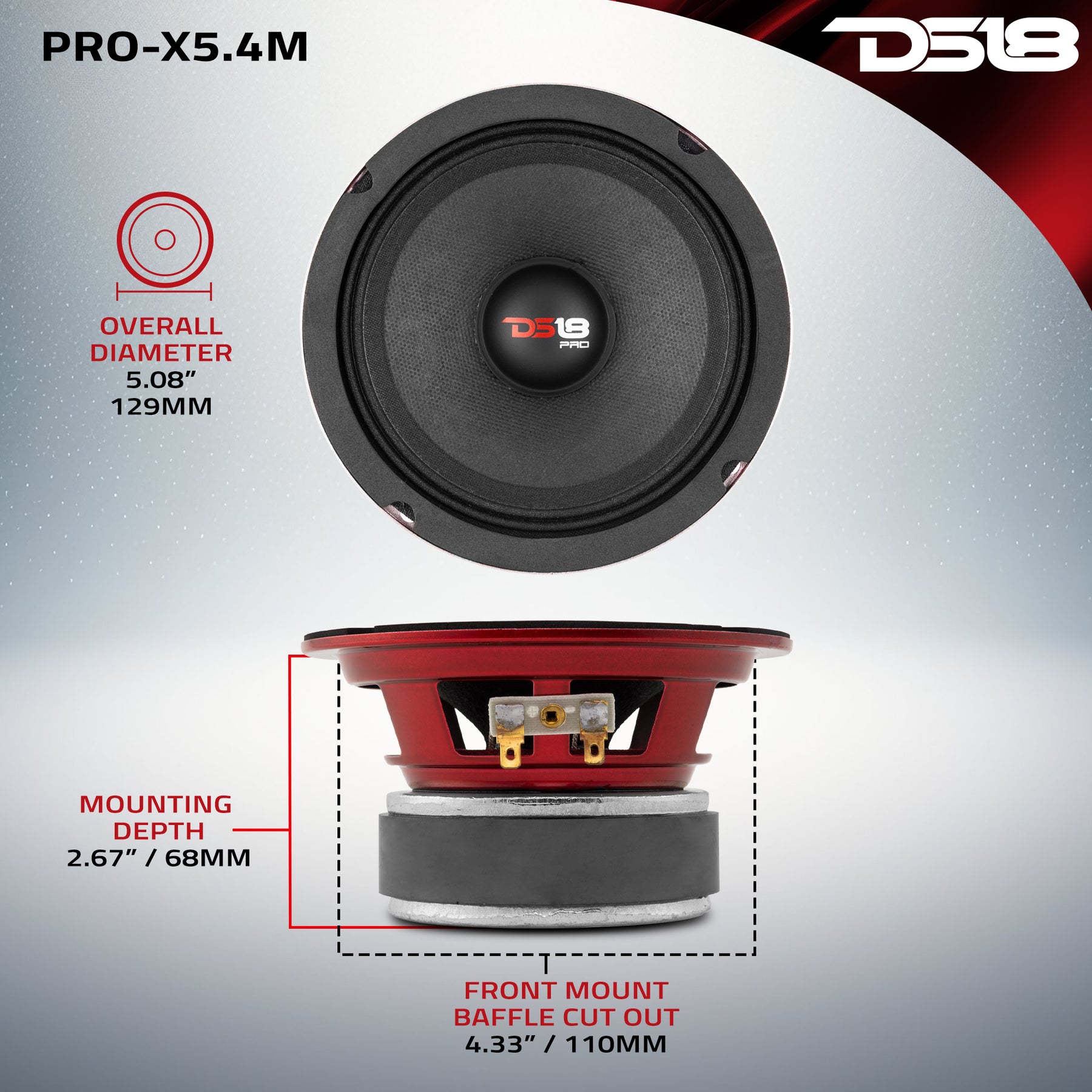

MEASUREMENTS

Overall Diameter
5" / 129mm
Front Mount Baffle Cutout
4.33" / 110mm
Mounting Depth
2.6" / 66mm
Overall Depth
2.83" / 72mm
Product Weight
3 lbs
Product Dimensions
5.5 x 5.5 x 3.25
M/C Weight
51.5 lbs
M/C Dimensions
16.875 x 11.75 x 10.75
M/C QTY
18
Sold In
Piece

Load More Show Less
Product Overview

Product Overview

DS18 PRO-X5.4M

5.25” Mid-Range Loudspeaker 150W RMS 4-Ohm

Step into the world of powerful, high-quality sound with DS18’s PRO-X5.4M 5.25” Mid-Range Loudspeaker! The PRO-X5.4M delivers a concert-like audio experience without any distortion, making it an excellent choice for audiophiles and music enthusiasts alike.
With a high 93dB sensitivity, the PRO-X5.4M lets you crank up the volume without any sound distortion. The 200Hz to 16KHz frequency range provides richer and more accurate tones that any audiophile will immediately notice, making these loudspeakers an excellent choice for those who want to experience music the way it was meant to be heard.
The DS18 PRO-X5.4M can handle up to 150 Watts RMS, making it capable of handling consistent and heavy usage. The 18.5 Oz ferrite magnet and 1.2” Kapton voice coil make for a powerful combination, ensuring that every beat is heard and handled efficiently.
Whether you’re listening to your favorite album or enjoying a live concert, the DS18 PRO-X5.4M will take your audio experience to the next level. Its compact size and 2.6” mounting depth make it easy to install in your car, truck, or home, while its powerful performance ensures that you’ll enjoy high-quality sound for years to come.
DS18’s PRO-X5.4M is a high-quality midrange loudspeaker that delivers crystal-clear audio and powerful performance. Its high sensitivity, wide frequency range, and impressive power handling make it an excellent choice for audiophiles and music enthusiasts who want to enjoy loud, clear music without any distortion. Order your DS18 PRO-X5.4M today and experience the thrill of powerful, high-quality sound!
