2-Way Passive Crossover
SOLD OUT
2-Way Passive Crossover
SOLD OUT
Sale $50.96 / PAIR
Reg.$59.95
15% OFF FOR Labor Day Sale!
-
Key Features
- Passive Crossover
- 2-Way
- 1 X Input
- 1 X High ~ 1 X Mid-Range Output
- 0 ~ -6DB Gain For Tweeter
- Pair
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessCrossover Specifications
SKU
PRO-CFX
Passive Crossover Ways
2-Ways (High and Low Frequency)
Frequency Crossover point
3.5KHz (@ 4 ohms)
Power Handling
Up to 300 Watts
Cut-Off Slope
12dB/oct
Tweeter Attenuation
(-3dB/-6dB)
Top Cover Material
Steel
Bottom Cover Material
Clear Acrylic
Crossover Features
Capacitor Type
NP Mylar
Coil Type
KSV
Terminal Type
Screw-On
Housing Material
Metalic housing + plastic side covers + Clear Acrylic
Adjustments
Tweeter Attenuation
Extra Features
Connectors
TW-: Tweeter (Negative) 0dB: Tweeter (Positive) -3dB: Tweeter Attenuation -3dB (Positive) -6dB: Tweeter Attenuation -6dB (Positive) W+: Woofer (Positive) Connect to Speaker W-: Woofer (Negative) Connect to Speaker IN+: Input (Positive) Connect to Amp IN-: Input (Negative) Connect to Amp
Crossover Measurement
Overall Length
6.3" / 160mm
Overall Depth
3.5" / 88mm
Overall Height
1.5" / 38mm
Gross Single Unit Weight (lb)
2
Single Unit Box Dimensions W x L x H
7.5 x 6.75 x 2
Quantity of Units in Master Carton
10
Gross Master Carton Weight
20.5
Master Carton Dimensions W x L x H
15.75 x 10.75 x 7.5
-
Product Overview
Product Overview
DS18 PRO-CFX 2-Way Passive Crossover (Pair)
The ingeniously designed PRO-CFX opens up a world of possibilities, allowing you to craft your own passive setup and unleash the potential of your speakers.
The PRO-CFX acts as a gatekeeper, skillfully filtering the frequencies for both components, ensuring an audio experience that is nothing short of magical. Embrace the power of choice and create a soundstage tailored to your professional quality standards.
The PRO-CFX is designed to deliver incredibly LOUD sound that will leave you breathless. Engineered to handle an astonishing 300W RMS, the PRO-CFX will make your audio system come alive with raw power and impeccable precision.
What sets the PRO-CFX apart is it’s sensible design. By utilizing only one channel of your amplifier, the PRO-CFX puts the power in your hands to push two speakers to their full potential while skillfully filtering out unwanted frequencies. The PRO-CFX pushes car’s audio system past its limits by ensuring that each speaker adds to your overall sound quality.
Let's not forget about the convenience and ease of installation. The PRO-CFX's compact dimensions, measuring at an overall length of 6.3 inches, depth of 3.5 inches, and height of 1.5 inches, ensure a hassle-free integration into your car audio system. Slip it in, and prepare to be blown away by the transformation it brings.
DS18’s PRO-CFX 2-Way Passive Crossover is the gateway to an exciting world of LOUD concert quality audio. Immerse yourself in the extraordinary power and precision it offers, as it takes your car audio experience to new heights.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
2-Way Passive Crossover
Default Title
Related products

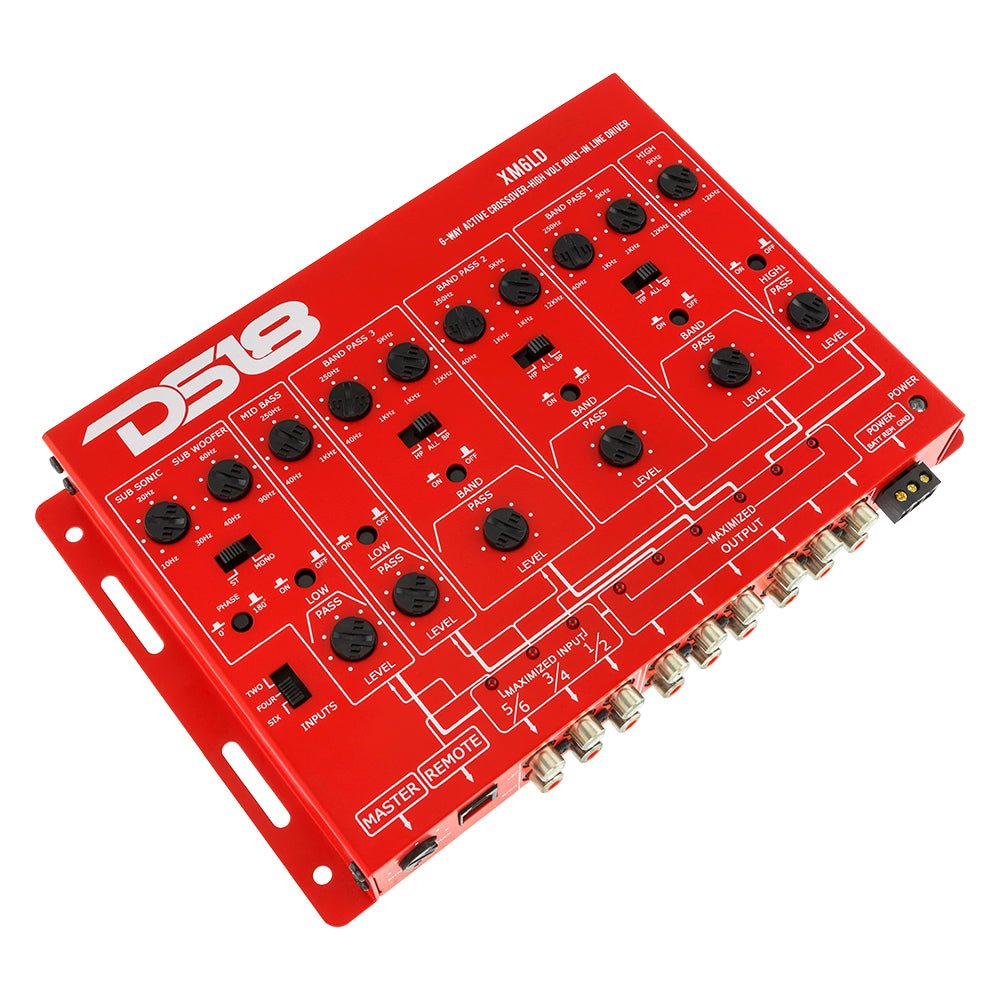

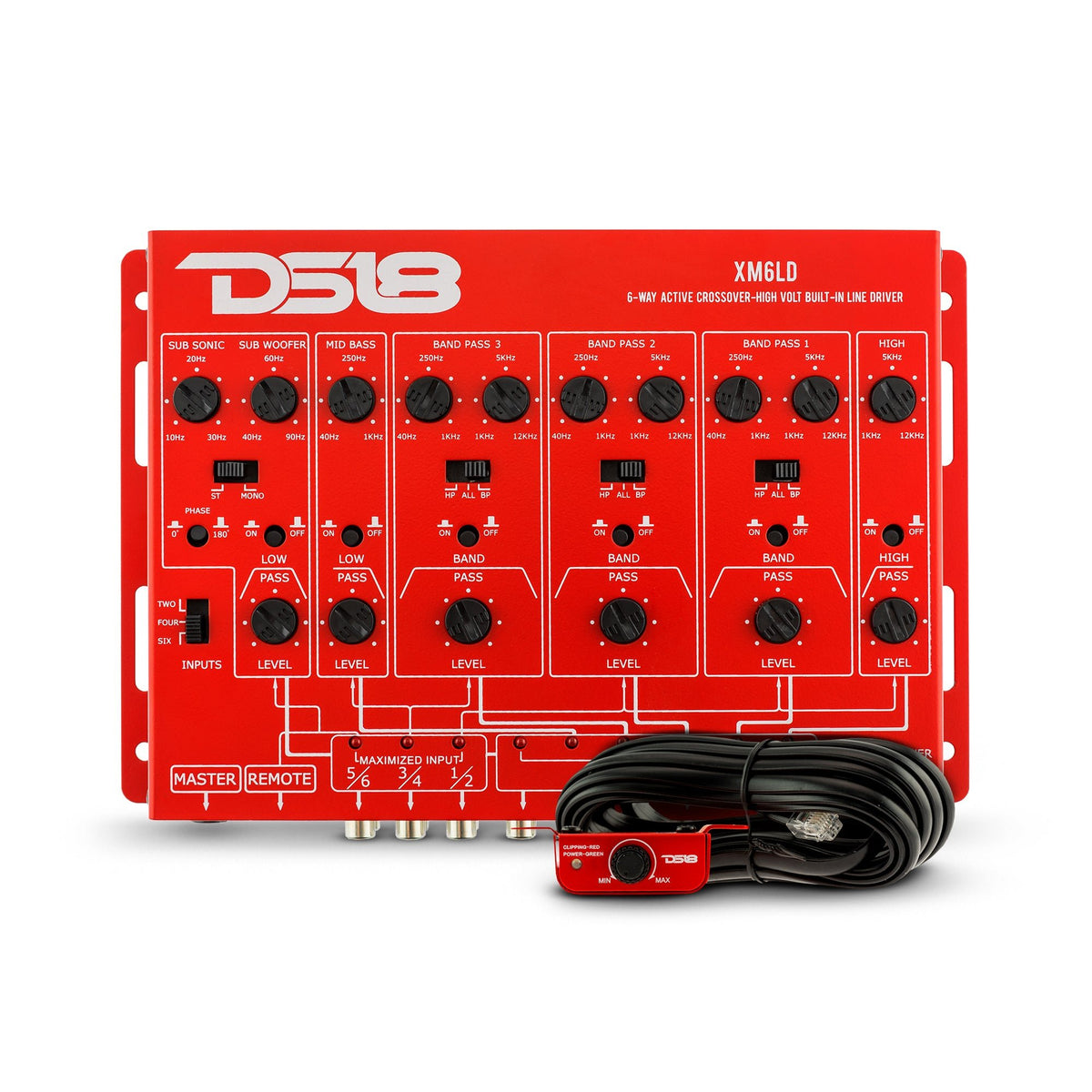

- Active Crossover
- 6-Way
- Front/Rear/Sub Inputs
- High/Band Pass 1,2,3/Mid-Bass/Sub Outputs
- On/Off Button for each Channel
- Bass Control Knob
- Active Crossover
- 6-Way
- Front/Rear/Sub Inputs
- High/Band Pass 1,2,3/Mid-Bass/Sub Outputs
- On/Off Button for each Channel
- Bass Control Knob

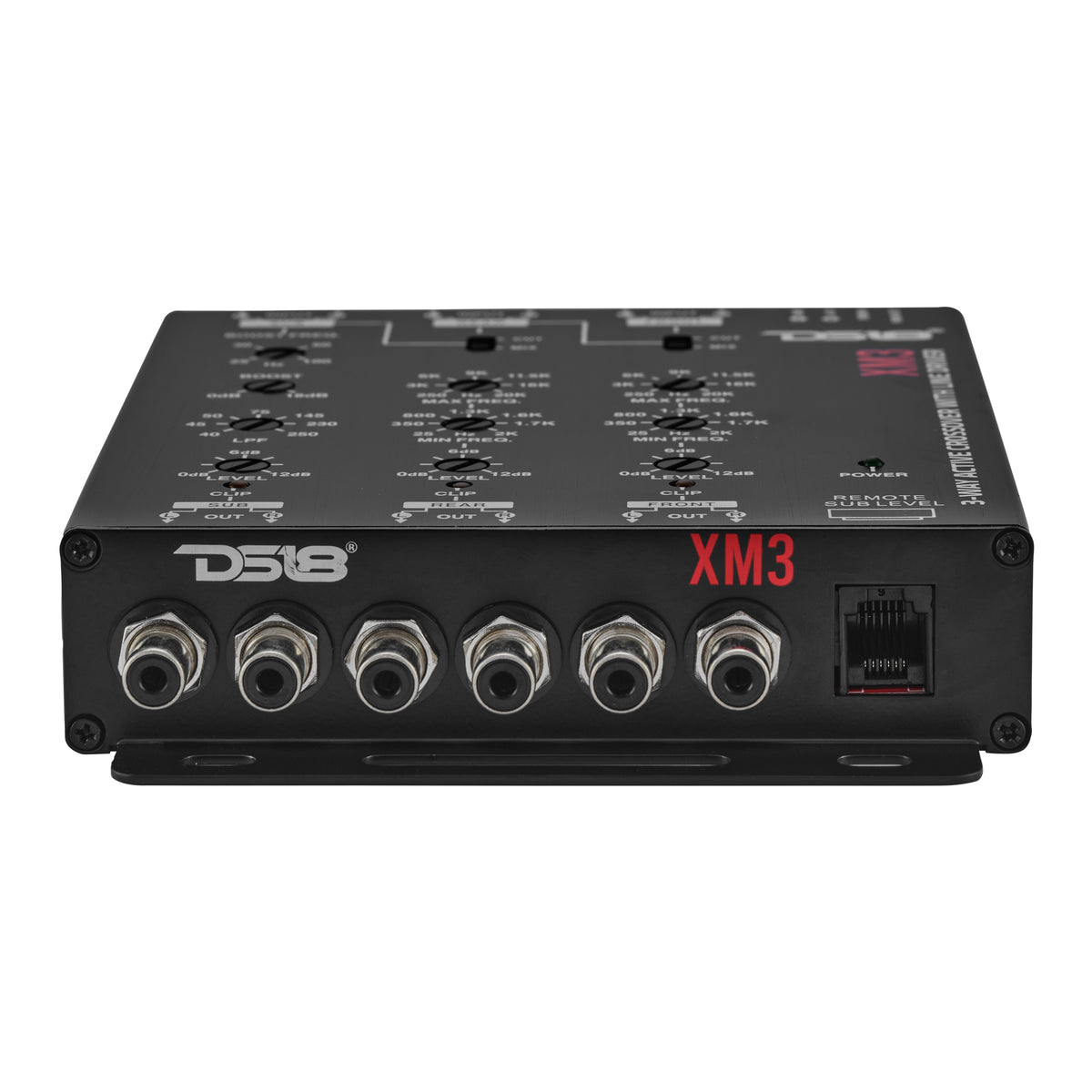

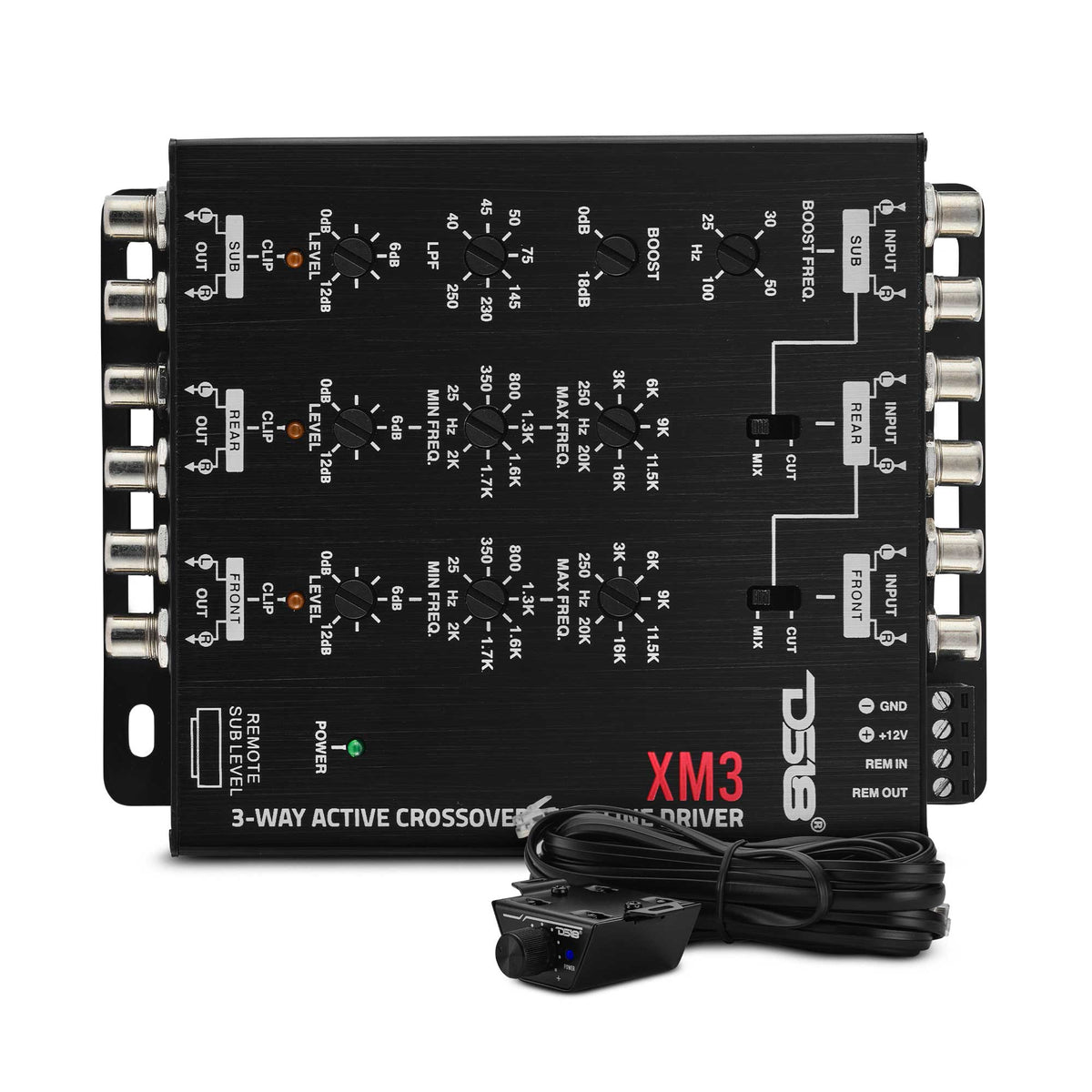

- Full 3-Way Active Crossover (Front/Rear/Sub)
- Up to 11V Output via High-Performance Line Driver
- 0–18dB Adjustable Bass Boost with Frequency Control (25Hz–100Hz)
- Remote Subwoofer Level Controller (Clip Indicator Included)
- Selectable Input Modes (1/2/3-Way)
- Full 3-Way Active Crossover (Front/Rear/Sub)
- Up to 11V Output via High-Performance Line Driver
- 0–18dB Adjustable Bass Boost with Frequency Control (25Hz–100Hz)
- Remote Subwoofer Level Controller (Clip Indicator Included)
- Selectable Input Modes (1/2/3-Way)

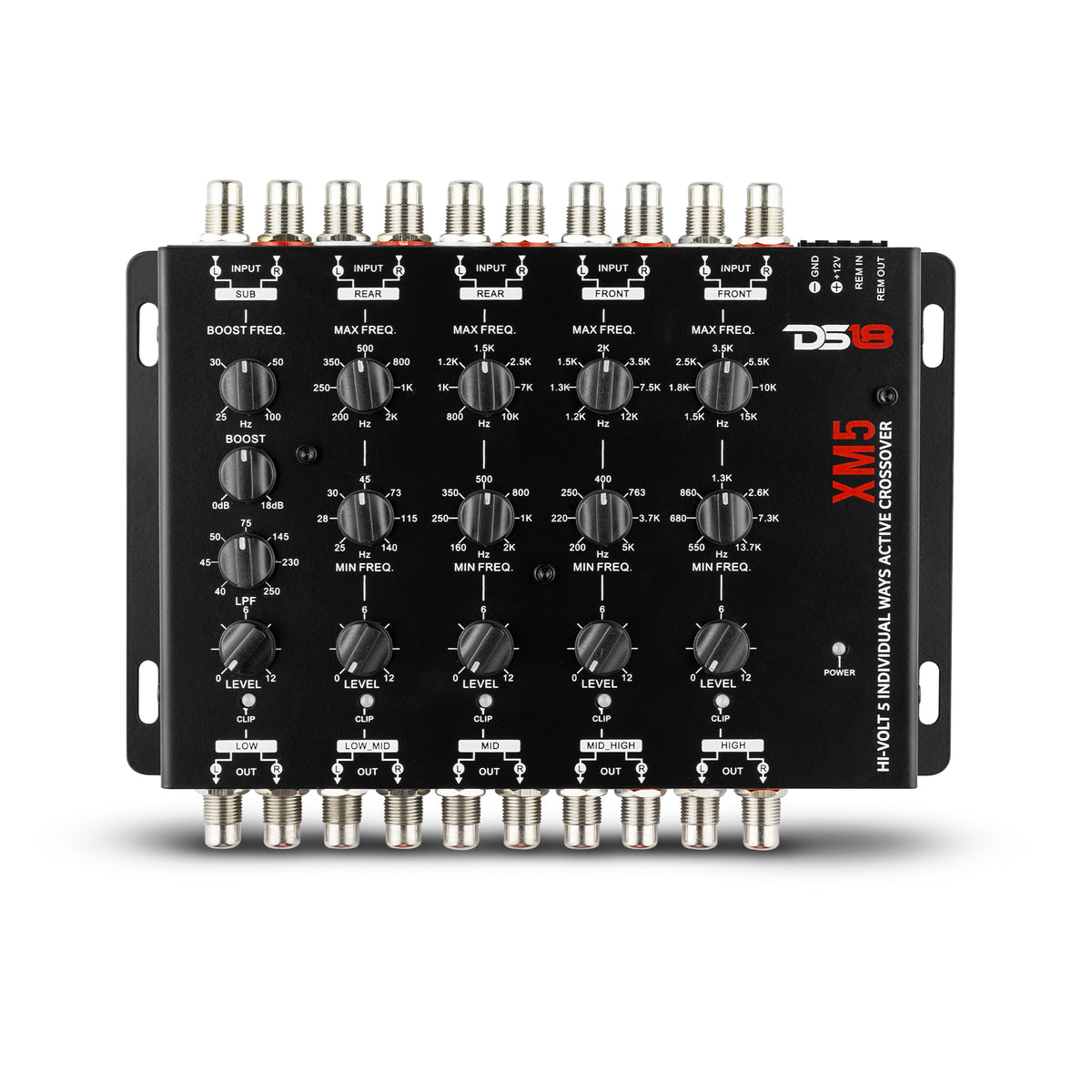

- Active Crossover
- 5-Way
- 2 X Front/2 X Rear/Sub Inputs
- High/Mid High/Mid/Low Mid/Low Outputs
- Clip Indicators
- Active Crossover
- 5-Way
- 2 X Front/2 X Rear/Sub Inputs
- High/Mid High/Mid/Low Mid/Low Outputs
- Clip Indicators

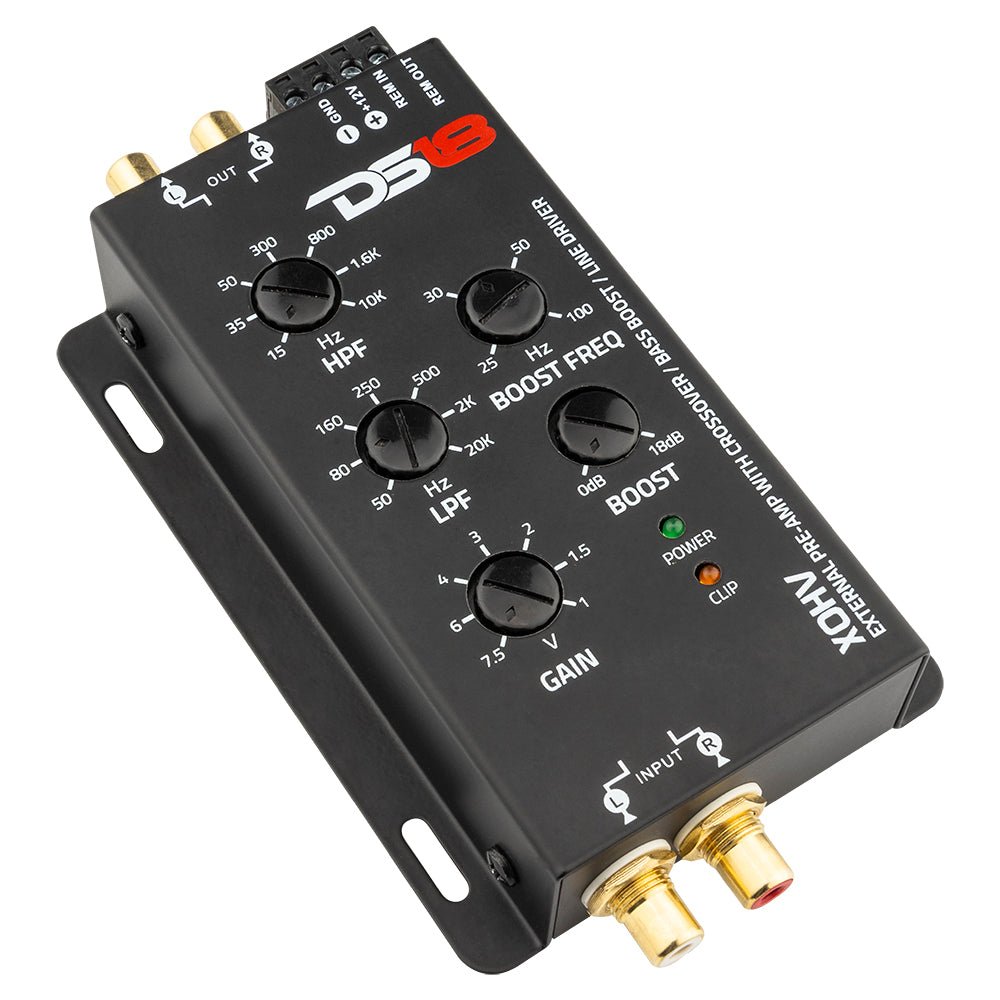

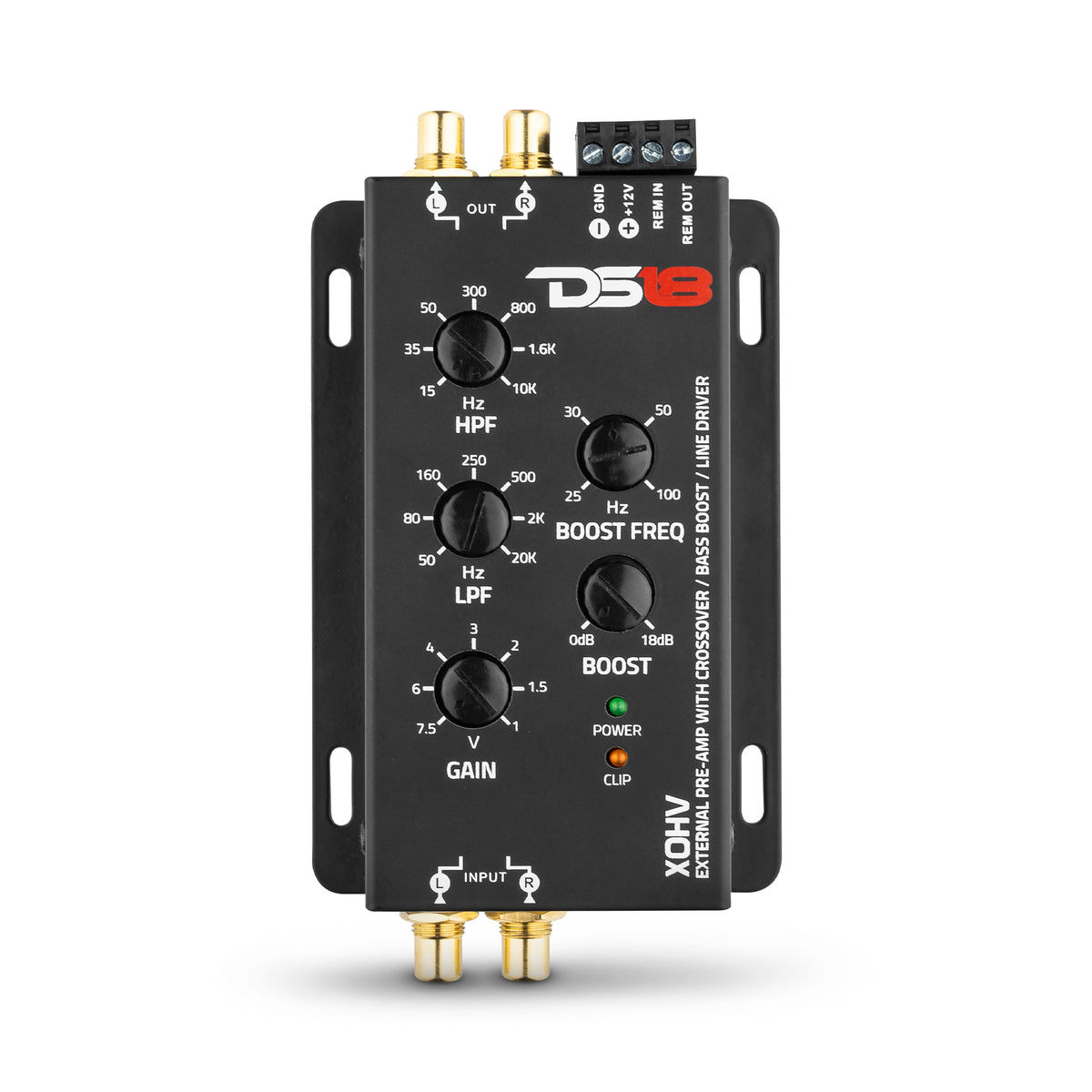

- Pre-Amp
