High Volt 7-Band Equalizer with High Level Input and Auto Turn On

Name: High Volt 7-Band Equalizer with High Level Input and Auto Turn On
Brand: EQX7
SKU: EQX7
Price: 95.95 USD
Availability: InStock
Rating: 4.29 (7 reviews)

SKU: EQX7

High Volt 7-Band Equalizer with High Level Input and Auto Turn On

SKU: EQX7

$95.95

/EACH

Ships Free – Dispatches Next Business Day Within the USA

4 interest-free payments of $24 with Affirm.

In stock

Quantity:

Drop a Hint

Key Features
- 1/2 DIN 7 Band Graphic Equalizer
- Max Output: 8 Volts
- Subwoofer Level Control
- Fader Control L/R
- High Level & AUX Inputs
- Master Volume Control
Technical Data - Manual

DOWNLOAD THE USER MANUAL

SPECS

SKU
EQX7
Type of Equalizer
Graphic
Number of bands
7
Frequency Point HZ
50, 125, 320, 750, 2.2k, 6k, 16k
Boost/Cut
12dB (15dB Subwoofer Frequency)

Crossover Section

Passive Crossover Ways / Type
1 (LPF) (Subwoofer Ch)
Frequency Crossover point
60/120Hz Selectable
Cut-Off Slope
12dB/Oct

Audio Specifications

S/N Ratio
100dB
THD
0.005%
Input Sensitivity
50mV-3V
Input Impedance
20Kohm
Output Voltage
8V
Output Impedance
2Kohm
Head Room
20dB
Stereo Separation
82dB @ 1Khz
Frequency Response
10Hz-30Khz

General Features

Operating Voltage
11-15V
Subwoofer Output
Yes (9V)
Audio Controls
Subwoofer Level, Master Volume, Fader
Audio Inputs
Main (RCA), Auxiliar (RCA)
RCA Type
Gold-plated
Housing Material
Metal / Aluminum
Adjustments
Aux Input Gain
Extra Features
Blue/Red Backlit Color Selectable
Hi-Level Speaker Input
Yes
Auto Turn-on
Yes (Hi-Level input)
Remote Turn-on Input/Output
Yes Input and Output
Color / Finish
Satin Black

Measurements

Overall Length
7" / 178mm
Overall Depth
4.4" / 112mm
Overall Height
1.18" / 30mm
Gross Single Unit Weight (lb)
1.5
Single Unit Box Dimensions W x L x H (Inches)
8.75 x 6.25 x 1.75
Quantity of Units in Master Carton
20
Gross Master Carton Weight (lb)
36
Master Carton Dimensions W x L x H (Inches)
18.5 x 13.5 x 9.5

Load More Show Less
Product Overview

Product Overview

DS18 EQX7

High Volt 7-Band Equalizer with High Level Input, Auto Turn On

The EQX7 allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 7-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams.
Harnessing the power of its seven bands, including frequencies of 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz, the EQX7 ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection.
The EQX7 offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system. With the Auto Turn-On feature, the EQX7 activates automatically when connected directly to the factory radio source, eliminating the need for manual intervention.
DS18 understands the importance of delivering audio with unmatched precision. That's why the EQX7 offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance.
The EQX7 can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

FREE SHIPPING ORDERS +$35

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

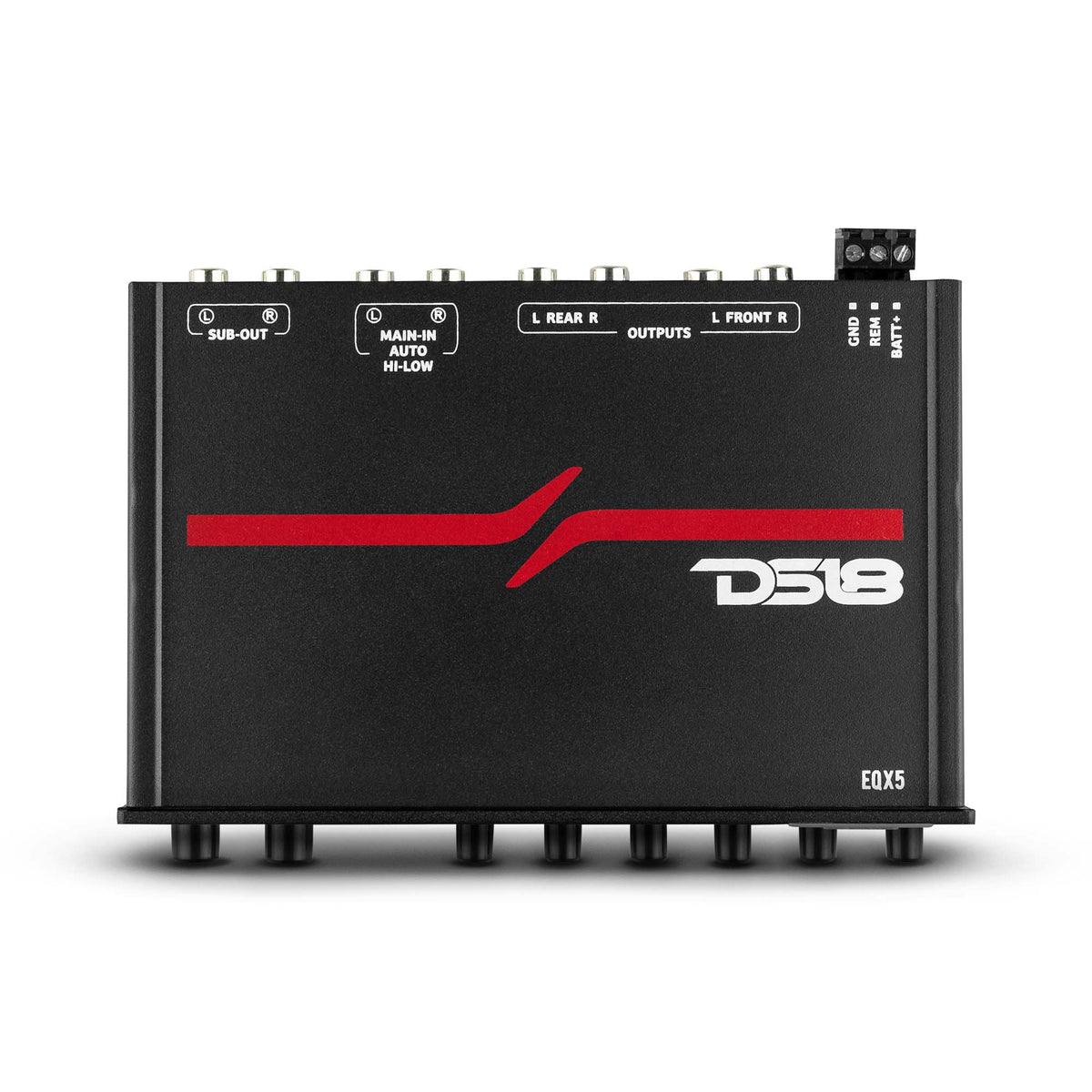

High Volt 5-Band Equalizer with High Level Input
