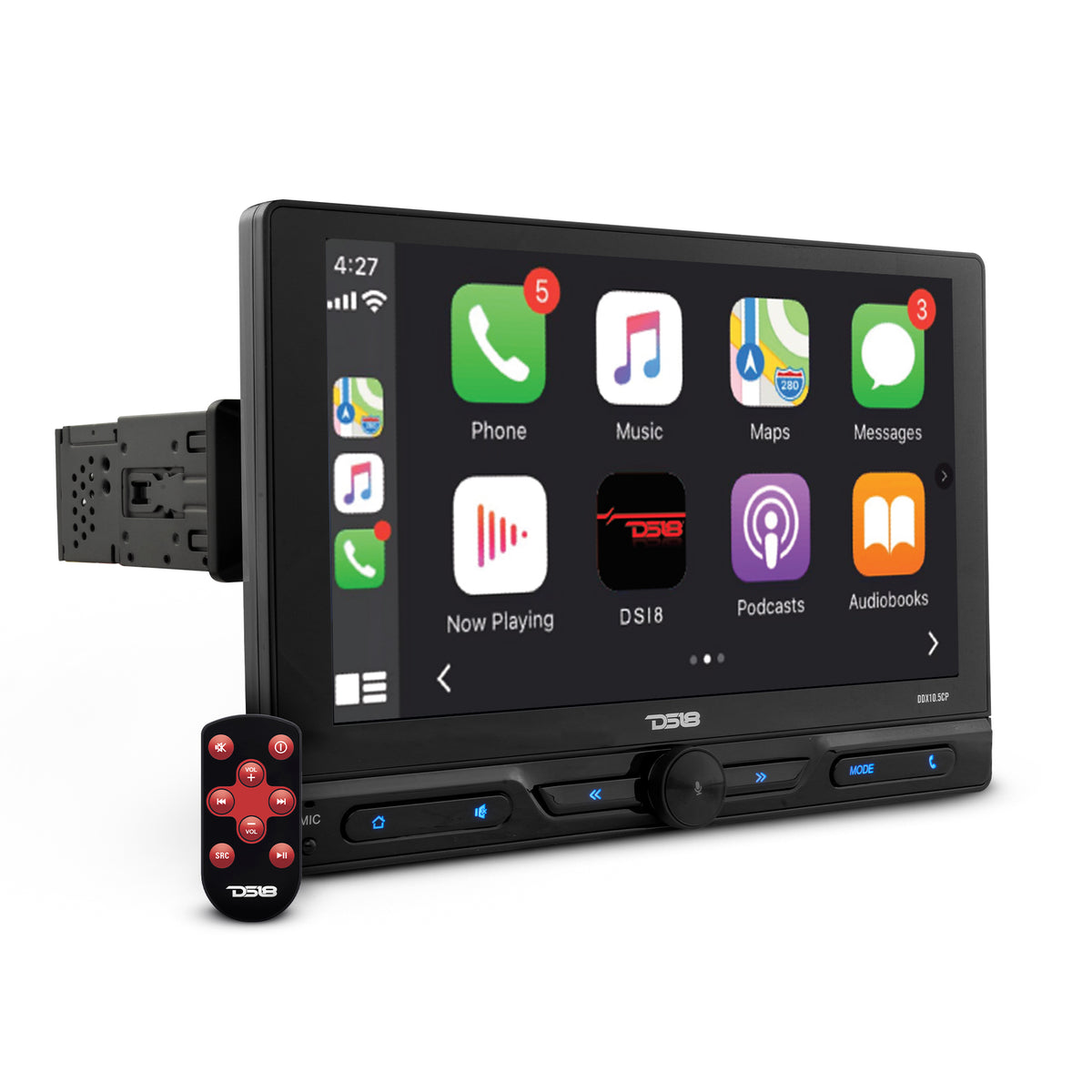

10.5" Floating Adjustable Modular Touchscreen Mechless Single-DIN Head Unit with Bluetooth, Mirror Link and USB
SOLD OUT
Sale $326.36 / EACH
Reg.$383.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 10.5" Single Din Digital Media Receiver
- Floating Display ~ Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Mirror Link IOS and Android
- Touchscreen
- Screen with adjustable angle
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
DDX10.5ML
Rated power source
14.4V DC (10.8V to 15V operation)
Maximum Current Consumption
10 Amp
Dimensions (W x H x D)
Chassis: 178mm x 50mm x 115mm Bezel frame: 170mm x 46mm x 5mm Screen Frame: 266mm x 180mm
Weight
4.5Lb
Display
Screen Size / Aspect Ratio
10.5 inch / Wide 16:9
Pixels
1280 x 720
Display Type
IPS / Full HD / Capacitive Touch Screen
Temperature Operation
-20C to +60C (14F to 140F)
Audio
Maximum Power Output
45W X 4 Ch / 4 ohm
Continuous Power Output
15W x 4 Ch / 4 ohm
Pre-output Level
4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer
16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
Gain
+/- 12dB
Audio Control
Volume / Balance / Fader /Loudness
Tuner
Frequency Range
FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory
30 Stations (18 FM/12 AM)
Region
Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment
LOC (On/Off) / ST (On/Off)
USB / SD Player / Connectivity
Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported
1080P Video
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (USB)
Number of USB Ports
2 (1 x Front, 1 x Rear)
Bluetooth Version / Services
V5.0 / Audio Streaming / Hands Free calls
Camera Input
RCA Analog Video up to HD 720p (Front/Rear)
Video Output
Dual RCA (1 Volt/75 ohm)
A/V Aux Input
Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone
3.5mm Jack external MIC Input
Remote Control
Frontal IR Receptor / Wired (3.5mm jack) Input
-
Product Overview
Product Overview
DS18 DDX10.5ML 10.5” Mechless Single-Din Floating Display Digital Media Receiver With Mirror Link For iOS & Android / BT / AUX / USB / SD / AM / FM
DS18’s DDX10.5ML Receiver takes everything our customers loved about the DDX6.9ML Single Din Multimedia Receiver but upgraded the screen from 6.9” to an incredible 10.5” inches and Single-Din Configuration!
The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.
This receiver will include everything you need to bring your multimedia dreams to life, including Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.
Connecting your head unit to your mobile hotspot makes accessing the available options to this receiver much easier.
These receivers are mech-less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.
Set up Mirror link to display all media from your phone on the device. You can also connect to this device using Bluetooth v5.0, USB, an SD Card, or an AUX cable for direct access to any device. Your new DDX10.5ML also comes with AM/FM stations for when you don’t want to choose between your many audio sources.
This receiver does it all and has the power to support it: with 4CH x 15W RMS and, 4CH x 40W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.
