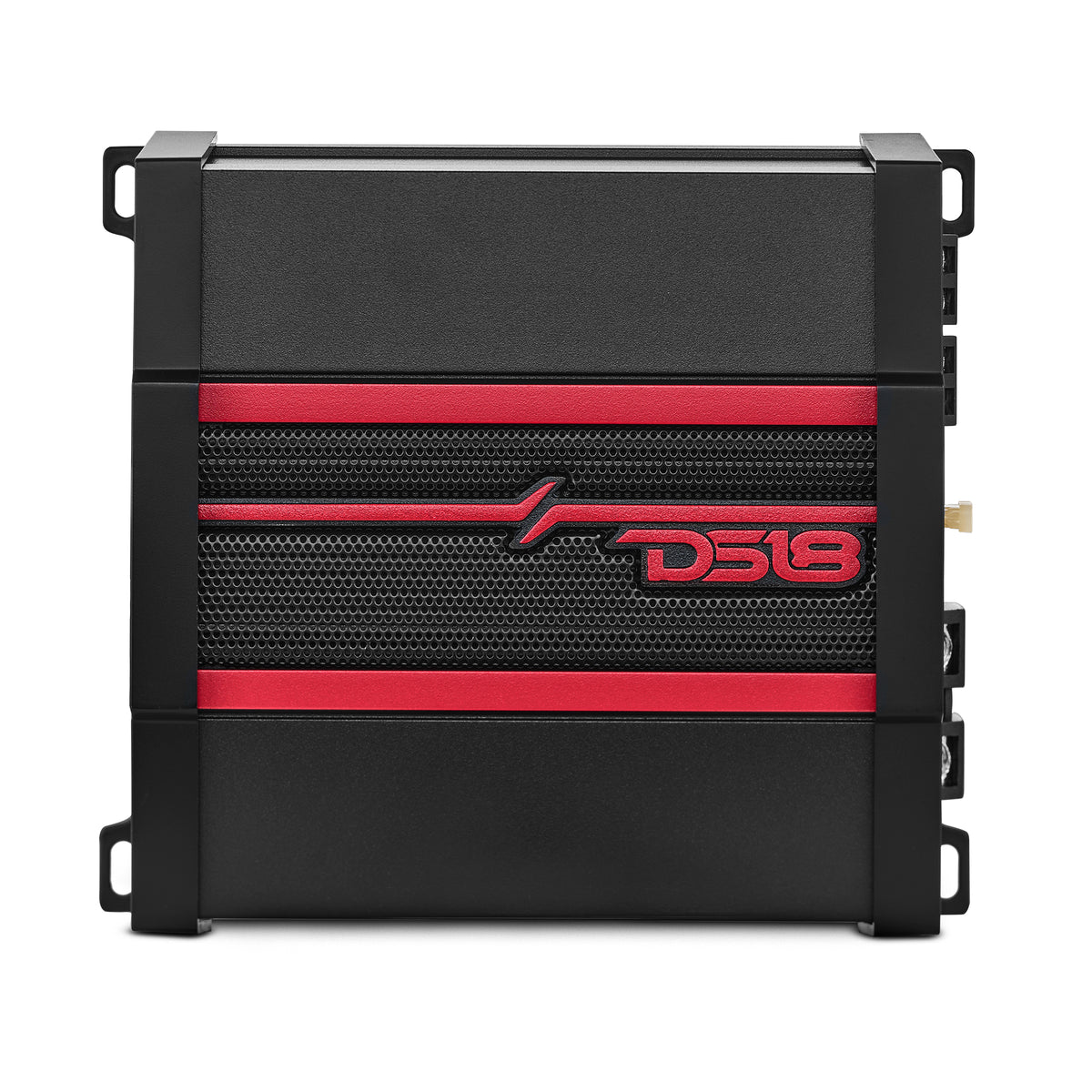

CANDY Compact Full-Range Class D 2-Channel Amplifier 800 Watts
CANDY Compact Full-Range Class D 2-Channel Amplifier 800 Watts
Sale $127.46 / EACH
Reg.$149.95
15% OFF FOR Labor Day Sale!
Channel: 2 Channel
Power: 2 x 120 Watts Rms
Availability:102 Items
-
Key Features
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
CANDY-X2B
Total Watts (Peak)
800W
RMS Power @ 4 Ohm
120W x 2
RMS Power @ 2 Ohm
200W x 2
RMS Power @ 1 Ohm
-
RMS Power @ 4 Ohm Bridge
350W
Audio
Frequency Response
20Hz~20KHz
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V
Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz~2kHz
Bass Boost Range
0/6/12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
No
Phase Selector
No
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
2 ohm St / 4 ohm Bridge
Led Indicator
Power / Protection
Power Input Terminal Size
4Ga
Fuse Size
25A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>158F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
Extra Features
Hi-Level Input With Auto Turn-On
Yes
Input Selector
No
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Measurement
Overall Length
6.5" / 165mm
Overall Width
5.9" / 150mm
Overall Height
2.16" / 55mm
Heatsink Length
5.27" / 134mm
Gross Single Unit Weight
1.7Kg
-
Product Overview
Product Overview
DS18 CANDY-X2B Compact Full-Range Class D 2-Channel Car Amplifier 800W
DS18’s CANDY-X2B is a compact 2-channel amplifier that delivers serious output in the tightest spaces. You can upgrade your OEM system, build a stealth install, or get sweet stereo power with deep tuning control — the CANDY-X2B does it all!
Big Power
With 200W RMS @ 2Ω, 120W RMS @ 4Ω, and 350W RMS bridged @ 4Ω, the CANDY-X2B powers mids, highs, or subs with ease. Run it in stereo or bridged — you get full-system flexibility in a 6.5" chassis.Tuned Your Way
Adjust your crossover filters (LPF/FULL/HPF) from 40Hz–2kHz and use the Bass Boost selector (0/6/12dB) to dial in the perfect sound. Get crystal-clear clarity or pro-level punch, the CANDY-X2B gives you full control.Ready For Your System
Thanks to its Hi-Level Inputs and Auto Turn-On, this amp integrates cleanly into factory audio systems — no remote wire needed. It’s installer-friendly and ready for your system.Clean Power
Enjoy a 20Hz–20kHz frequency response, 0.5% THD, and >75% efficiency for crisp, distortion-free sound. Built-in protection keeps you covered from thermal overload, shorts, and voltage swings (9V–16V).
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
CANDY Compact Full-Range Class D 2-Channel Amplifier 800 Watts
Default Title
Related products
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
- 6 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 6 x 80 Watts @ 4 Ohm
- Built in Crossover
- Compact
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Compact Design
- Bass Control Knob
Channel:
Power Rating:
Channel:
Power:
Color:
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On ready
Channel:
Power Rating:
Channel:
Power:
Color:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable

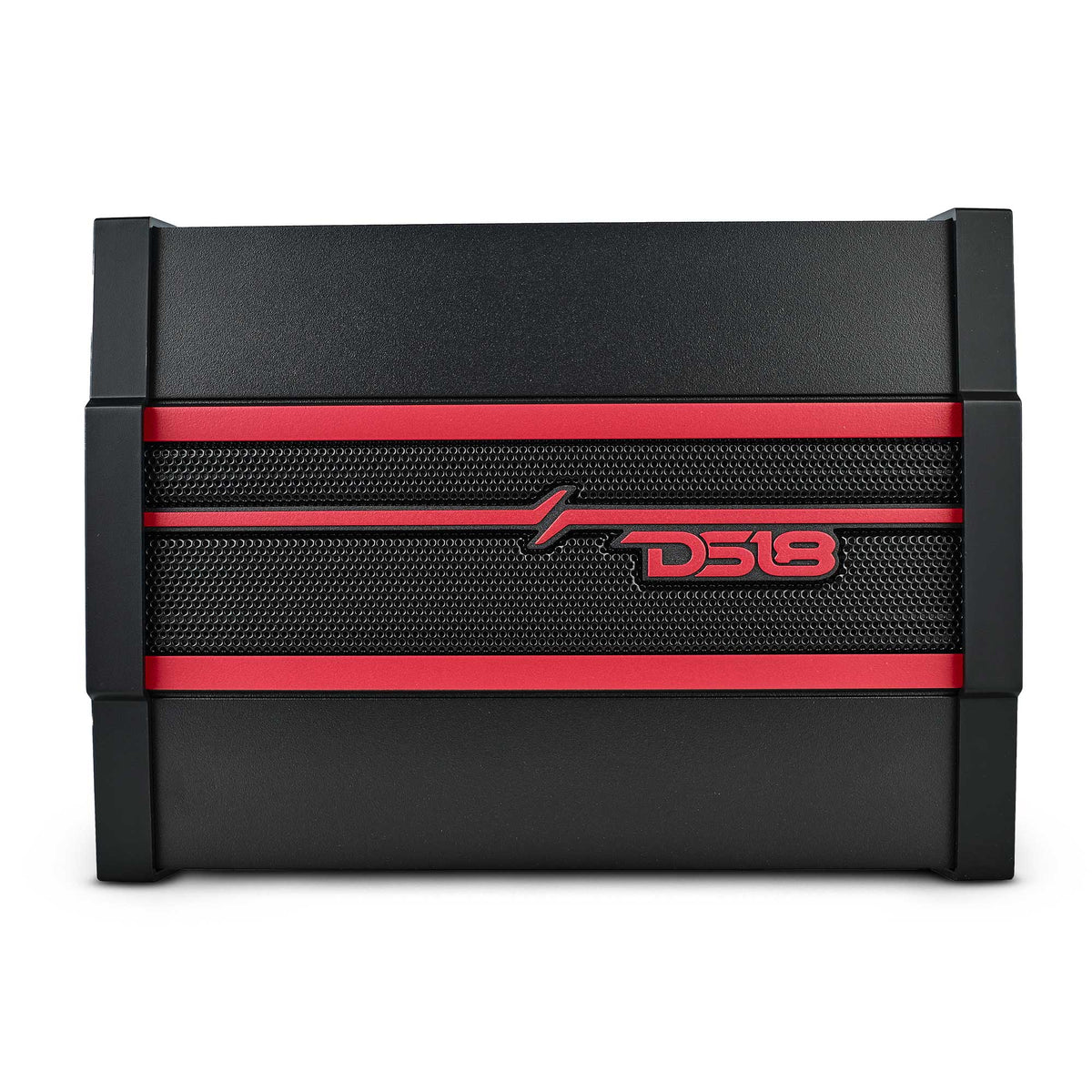

- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 120 Watts @ 4 Ohm
- Compact Design
- Built in Crossover
Channel:
Power Rating:
Channel:
Power:
Color:

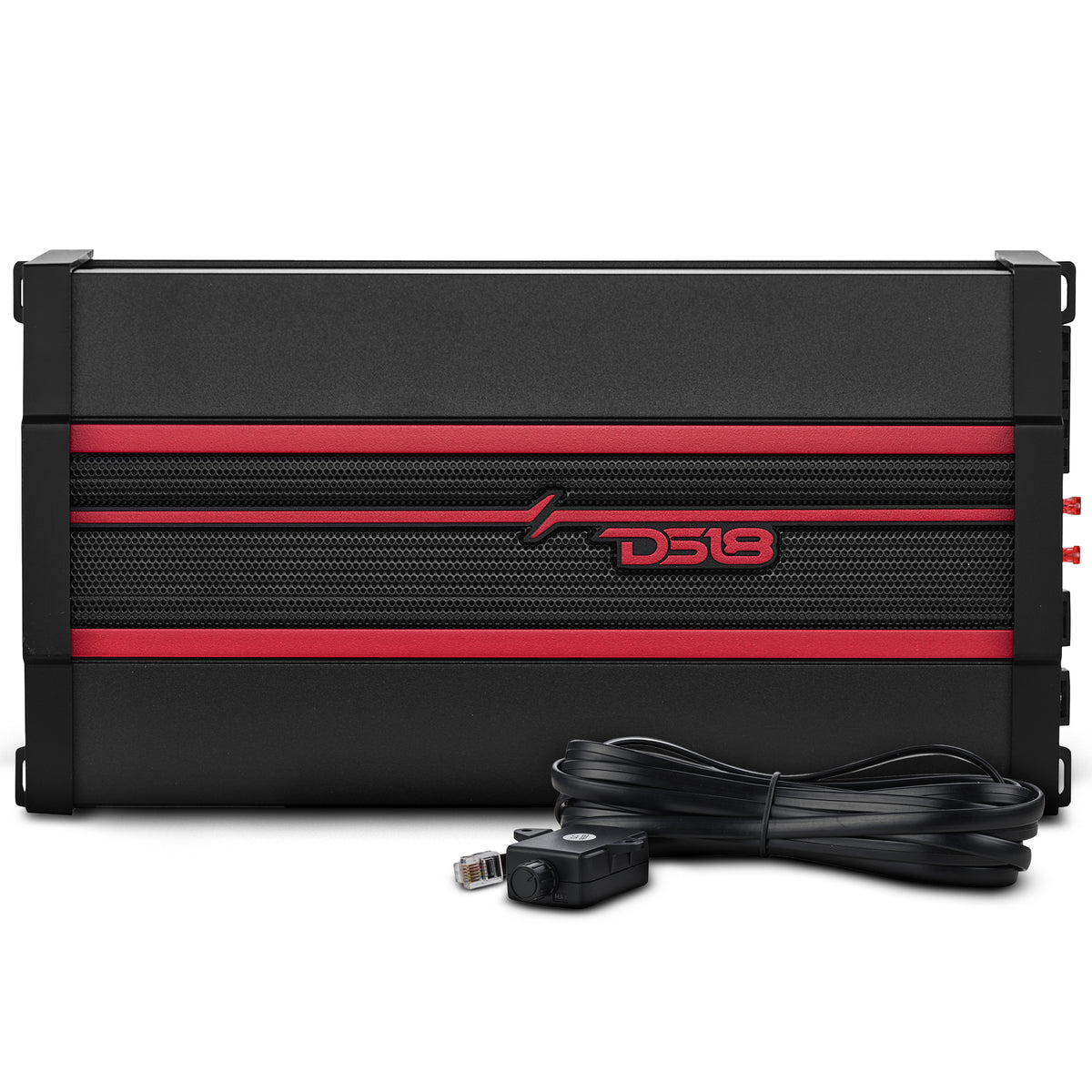

- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
- 4 x 200W + 500W Sub @ 1 Ohm
- HPF (40–250Hz), LPF (50–150Hz), input selector
- Remote subwoofer level control included
Channel:
Power:

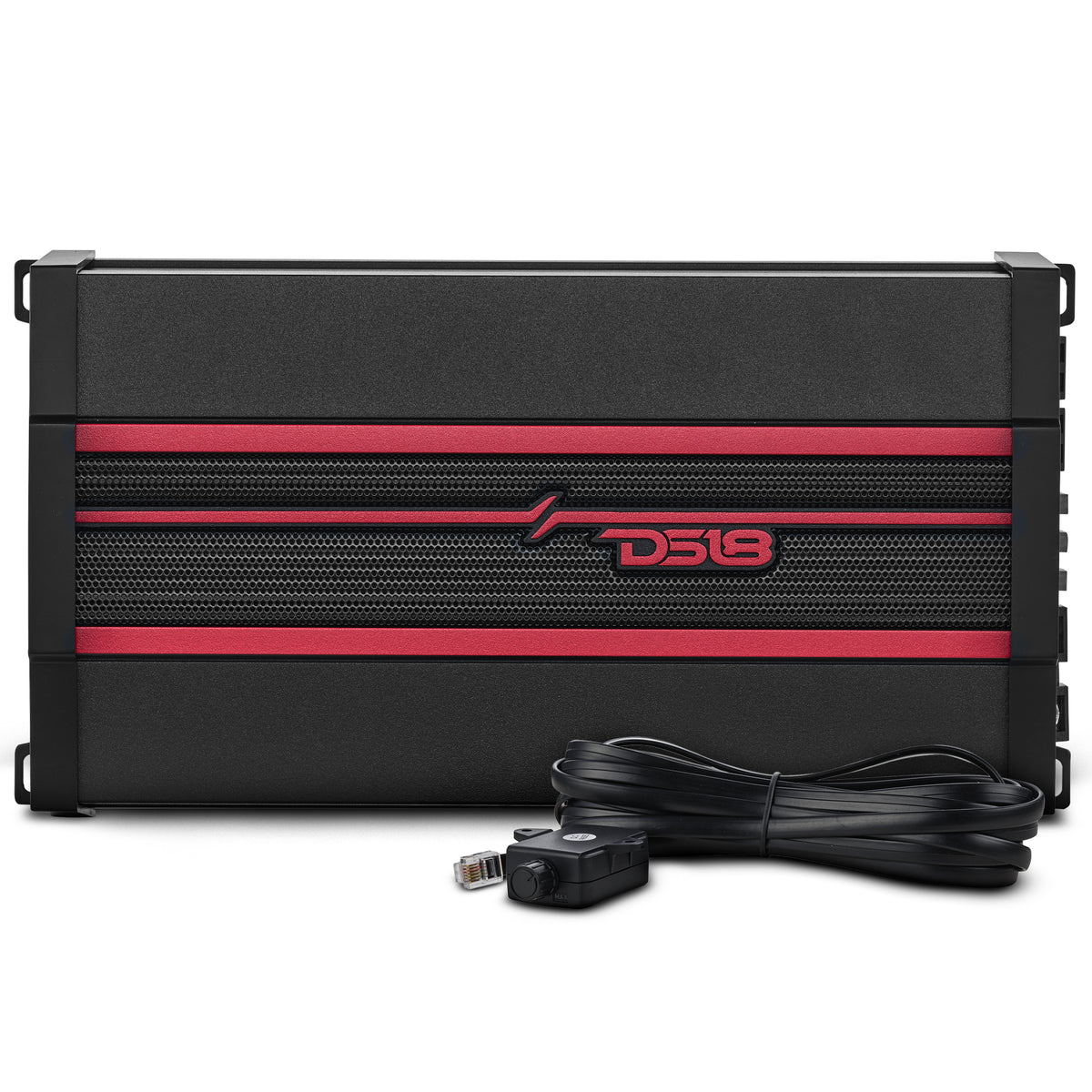

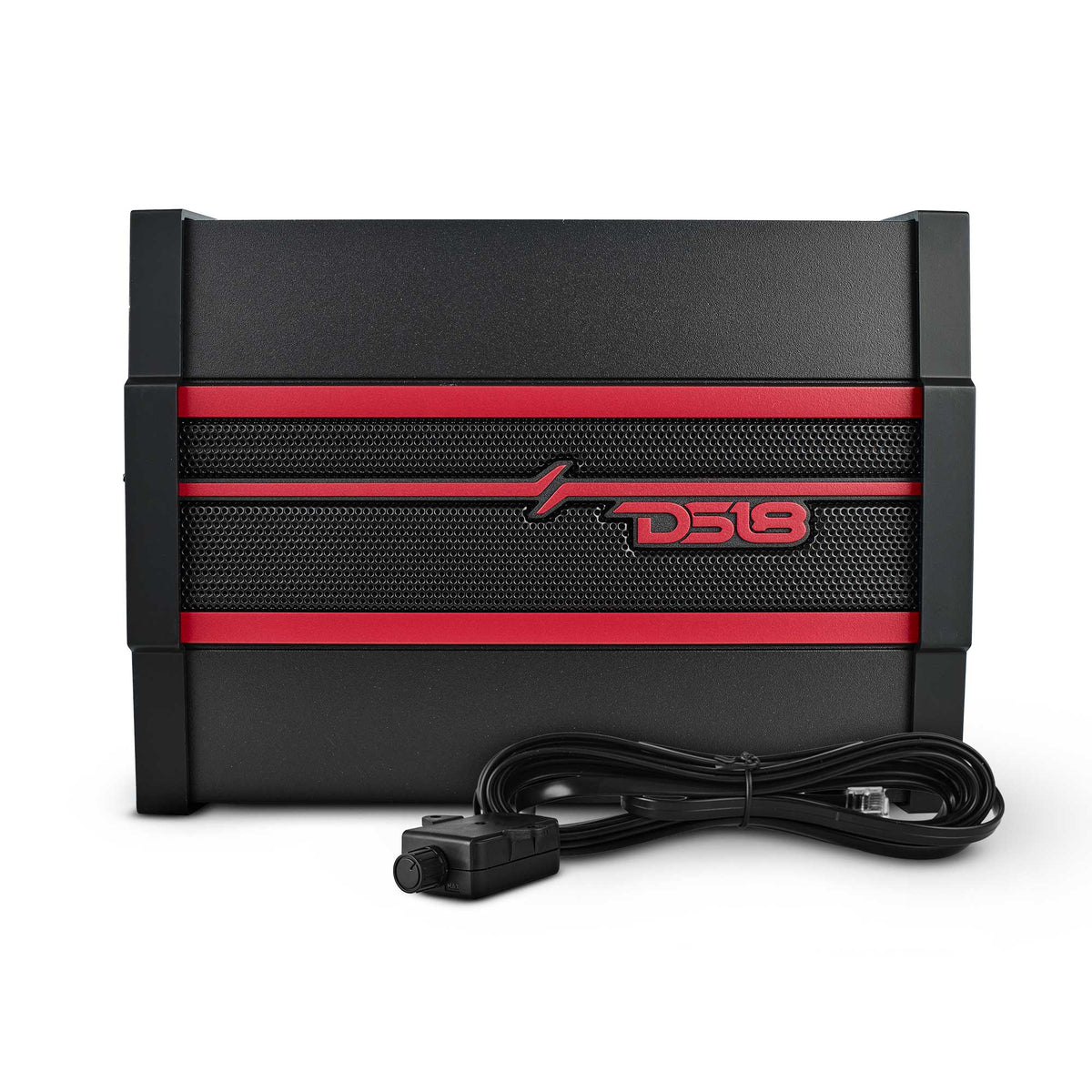

- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Channel:
Power:
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Perfect
Awesome equipment
I recently installed the ds18 candy amp x2b on my envy golf cart. The amp is powering a ds18 sbar 25.
The installation was simple following the provided instructions and provides plenty of power to to sbar 25, this thing gets loud!! Very satisfied overall.
Very nice amp, easy to install.
Small n compact easy to hide
Let customers speak for us
from 3946 reviewsEXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
Wayyy more than I thought great for the price thanks ds18
Good speakers loud and clear
They fit perfectly and they sounds awesome, I definitely recommend them friends of mines are planning on buying them as well
I have (4 ) of these DS18 XL 12s midbass loudspeakers on my stuntwall with a GFX 5K powering them @1 ohm, and they sound absolutely amazing. I have them paired with the (6) Ds18 DKH1 horns that is also on the stuntwall. I couldn't be any more pleased on the sound that it produces.
Very nice product, highly recommend using this on a ATV
Made my sound system complete made it sound way better worth it saving up for the passenger side
I received it haven’t gotten the chance to hook everything up. Still waiting on the rest of my setup to come in.
So i was a DS18 hater for a long time because the "loud" guys would buy the cheap 6.5" louds no tweeter and it sounded awful always. i heard these 6x9 pros and had my mind blown they are clear and clean but also so efficient and loud. i put mine in my 95 honda accord i am running active with a 8k crossover on the tweeters to get those highs. set up is pioneer prs80 with a 5 channel rockford with channels stacked to have active front and back. most people are blown away by how clear it sounds and just how loud it goes. i do have ds18 2.5" Dome Neodymium Tweeter in the front with 6.5" krome audios i was given. now i'm not a wealthy person the headunit is old and tape is holding things and the amp was fix by me after a guy blew up a soda in it and than threw it out i grabbed that cleaned it 5 years later still rocks. i say all this because these speakers aren't the cheapest i saved up but it's worth it they seem well built i play them loud and a year later just thumbs up. thanks ds18
I have this speaker crossed over at 120 htwatts, pass, with a 24 dB slope at 250 watts, it's loud, but better yet it is crystal clear. If they had more I'd buy more.
Bring them back ds18, bring them back. I have 2 other cars with some 6.5 inch vacancies.
