DX3N

Regular price $449.95
/
In Stock - Ships within 24 hrs

Have a Question? Ask a Specialist
305-928-8734
Live Chat

In-House Experts.
We Know Our Products.
Fast Free Shipping
On Orders Over $200
Easy Returns
Open an RMA with our Specialist
Warranty
1-Year Manufacturer Warranty
DS18 has an amazing line of component sets that are sure to leave you with goosebumps when you hear the full and rich sound they produce.

The DX3N Gold line has been developed with the greatest care and over engineered to give you the highest quality along with strength that will last ages.

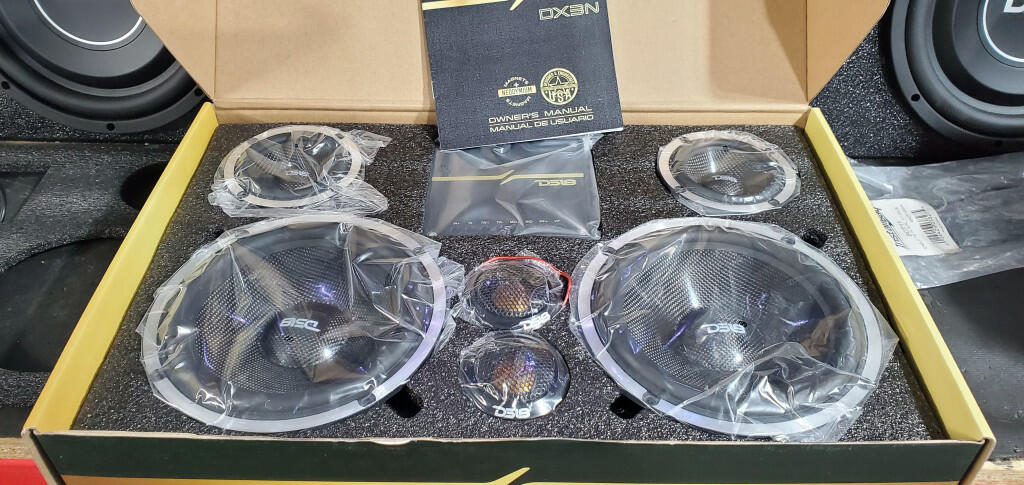

This set comes with the DX3NW which is the 6.5 inch woofer, the DX3NT 1.18" tweeter, 3.5 inch DX3NM midrange, and passive three way crossover.

The woofer comes with a sturdy carbon fiber cone and beautiful machined basket with neo motor that will play clear low end music 50hz and up to 12khz with a 4 ohm impedance.

To accompany that, the tweeter will fill the gap with Crisp and clear highs so you have a complete range of frequencies and boost overall sound quality, also at 4 ohms.

To fill in the midrange the 3.5" DX3NM will bring out all the vocals with crystal clarity and force.

The final piece of this HQ SQ component set is the included 3 way passive crossover. This crossover accurately separates wattage and frequencies for your component set and will ensure long lasting and great sounding experiences. The TW ATT options give you a selection of 0DB, 2DB, and 4DB loudness options at 12db/oct.

To be sure if you are looking for a high sound quality experience the DS18 DX3N is in your best interests!
  • DX3NW 6.5 inch woofer which handles 100w AES. Featuring a carbon fiber cone, machined basket, and high quality terminals.
  •  DX3NT high fidelity tweeter that is easy to mount and will complete your HQ full range experience.
  • DX3NM midrange will clearly define any mids and vocals needed through precise filtering.
  • Neodymium motor structure which handles more power and also handles that power more efficiently while also being lighter than traditional ferrite motors.
  • DX3N 3 way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the proper speaker with ease.
WOOFER
Nominal Diameter 6.5”
Nominal Impedance 4 OHMS
Peak Power Handling 400W
Program Power Handling 200W
AES Power Handling 100W
Sensitivity (1w/1m) 89 dB
Frequency Response 50hz-12KHz
Recommended HI Pass Crossover 45 Hz
MOTOR
Voice Coil Diameter 1.4”/35.5 mm
Voice Coil Former Material Kapton
Winding Material SV
Cone Material Carbon Fiber + Resin
Surround Materia Rubber Edge
Basket Materia Aluminum
Magnet Materia Neodymium
Magnet Weight 3.1 oz
Measurements
Overall Diameter 6.49”/165 mm
Front Mount Baffle Cutout 5.62”/143 mm
Mounting Depth 2.81”/71.5 mm
Overall Depth 3.20/81.5mm
Motor Diameter 3.14”/80mm



MIDRANGE
Nominal Diameter 3.5”
Nominal Impedance 4 OHMS
Peak Power Handling 120W
Program Power Handling 60W
AES Power Handling 30W
Sensitivity (1w/1m) 90 dB
Frequency Response 80hz-20KHz
Recommended HI Pass Crossover 800 Hz
MOTOR
Voice Coil Diameter 1”/25 mm
Voice Coil Former Material TIL
Winding Material CCAW
Cone Material Carbon Fiber + Resin
Surround Materia Rubber Edge
Basket Materia Aluminum
Magnet Materia Neodymium
Magnet Weight 1.1 oz
Measurements
Overall Diameter 3.6”/91.5 mm
Front Mount Baffle Cutout 3”/77 mm
Mounting Depth 1.5”/38.5 mm
Overall Depth 1.76”/44.9mm
Motor Diameter 2.16”/55mm



TWEETER
Nominal Diameter 1.18”
Nominal Impedance 4 ohms
Peak Power Handling 60 Watts
Program Power Handling 30 Watts
AES Power Handling 15 Watts
Sensitivity (1w/1m) 90dB
Frequency Response 800Hz-20Khz
Recommended HI Pass Crossover 3.8 KHz
MOTOR
Voice Coil Diameter 0.98”
Voice Coil Former Material KVC
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Magnet Weight 14 oz
Body Material Aluminum
MEASUREMENT
Overall Diameter 2.28” / 58mm
Overall Depth 1"/26 mm
Front Mount Baffle Cutout 1.85" x 47 mm
Mounting Depth 0.65” / 16.5 mm



CROSSOVER
Passive Crossover Ways 3 Ways
Frequency Crossover 800HZ (Mid) 3.8 Khz (Tw)
Power Handling 300 Watts
Cut Off Slope 6dB (Mid) 12dB (Tw)/ Oct
Tweeter Attenuation (+/-) 3dB
FEATURES
Capacitor Type Metac Film
Coil Type Inductor
Terminals Type Screw Terminal
Housing Material ABS
Adjustments Tw Att Switch
Extra Features Spk Phase Switch
MEASUREMENT
Overall Lenth 4.3”/110 mm
Overall Depth 4.3”/110 mm
Overall Heigh 1.37”/35 mm

INTRODUCING THE NEW DX2W WOOFER

Neodymium magnet tweeter

CARBON FIBER CONE MIDRANGE

3 WAY PASSIVE CROSSOVER
