XL 12" Mid-Range Loudspeaker 750 Watts Rms 4-Ohm







XL 12" Mid-Range Loudspeaker 750 Watts Rms 4-Ohm
Sale / EACH
Reg.
15% OFF FOR 4th of July Sale!
-
Key Features
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.7dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SKU
SPECS
12XL1500-4
Nominal Diameter
12" / 305mm
Nominal Impedance
4 Ohm
RMS Power Handling
750 watts
MAX Power Handling
1500 watts
Sensitivity (1w/1m)
98.7 dB
Frequency Response
45Hz-6.5KHz
Recommended HI Pass Crossover
60Hz
Sold in Pair or Single
Single
Grill Included
No
Motor
Voice Coil Diameter
3.5" / 89mm
Voice Coil Former Material
Kapton
Winding Material
CCAW (2 Layers IN/OUT)
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Ferrite
Magnet Weight
93 Oz
Displacement Volume
2.2L / 0.09ft3
Thiele & Small Parameters
Equivalent Volume
62.7L / 2.21ft3
Excursion (one way)
4.5mm
Free Air Resonance
54Hz
Mechanical Factor
6.98
Electrical Factor
0.41
Total Factor
0.38
Mechanical Mass
58.394g
Mechanical Compliance
0.16mm/N
BL Factor
16.92
Voice Coil Inductance
0.12mH
Cone Area
526.85cm2
DC Resistance
3.6 ohm
Mechanical Mass w/o air
60g
Measurement
Overall Diameter
12.3" / 312mm
Overall Depth
5.76" / 146.2mm
Front Mount Baffle Cutout
10.9" / 278mm
Mounting Depth
5.23" / 133mm
Motor Diameter
7.48" / 190mm
-
Product Overview
Product Overview
DS18 12XL1500-4 DS18’s 12XL1500-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 12XL1500-4 stands head and shoulders above the mid-range competition. This 12-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 750W RMS and 1500W MAX these speakers are guaranteed to blow you away. The frequency response of 45Hz-6.5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98.7 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 12XL1500 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 12XL1500-4!




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
XL 12" Mid-Range Loudspeaker 750 Watts Rms 4-Ohm
Related products
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
- Re Cone Kit
- For 12XL1500-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For 12XL1500-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Size:

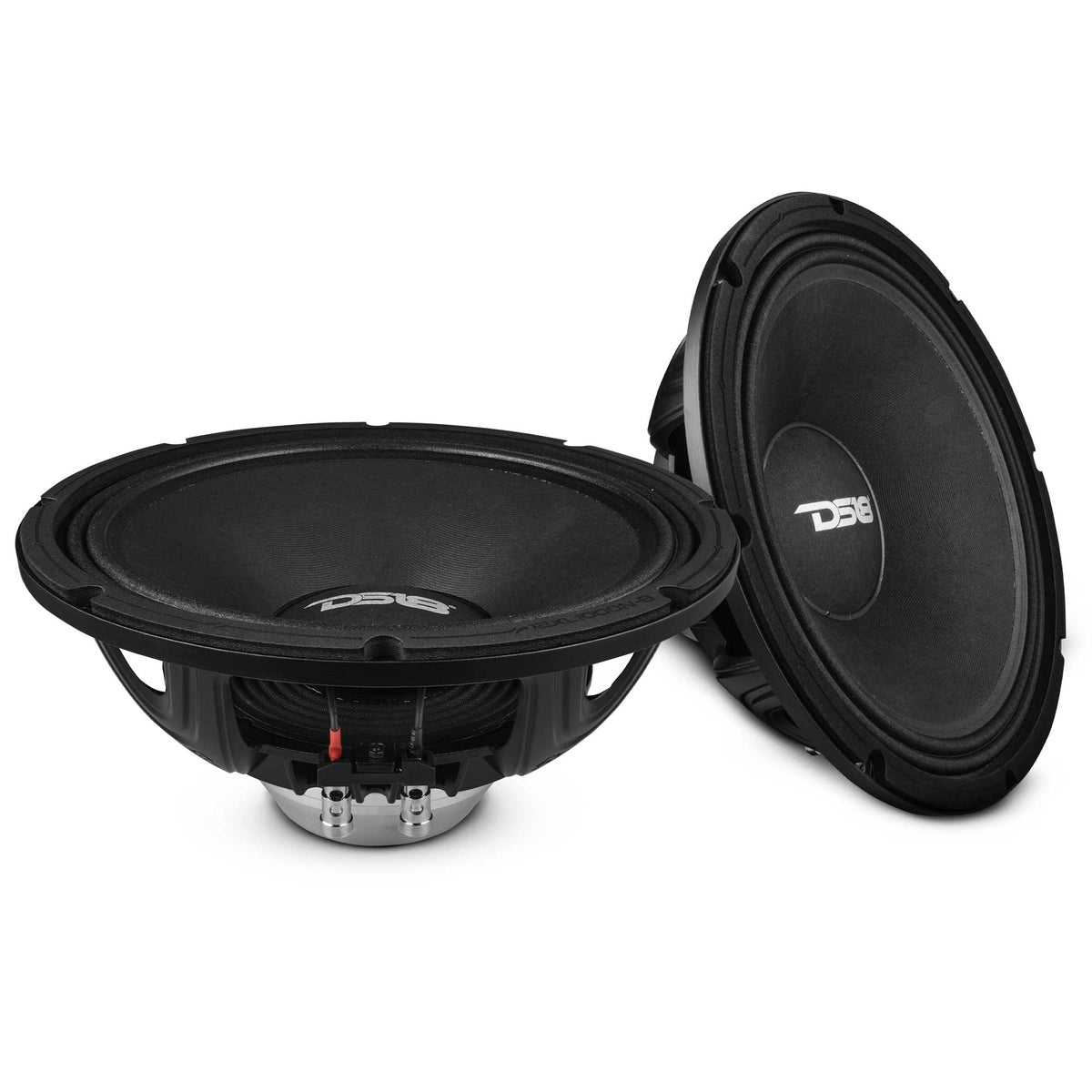

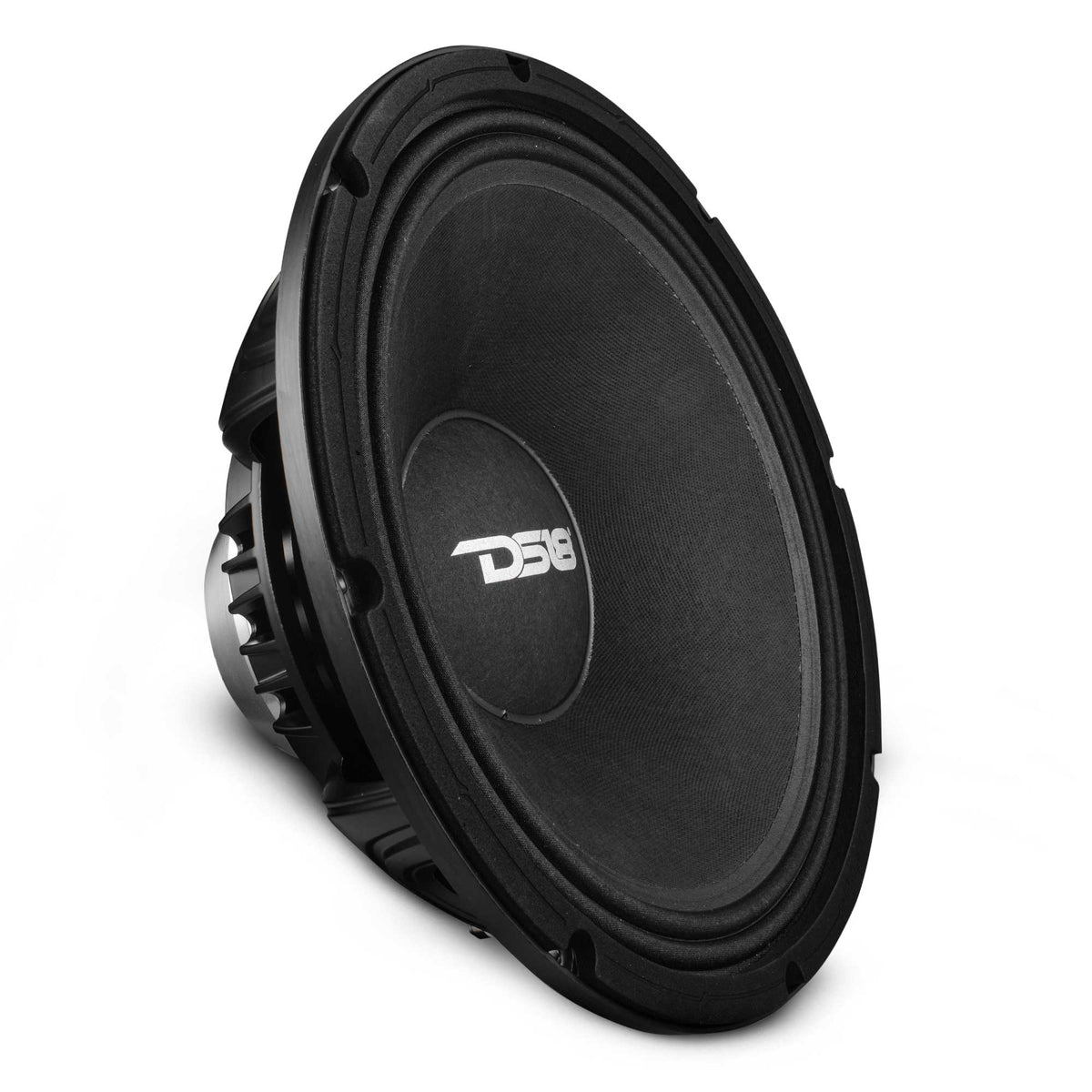

- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:

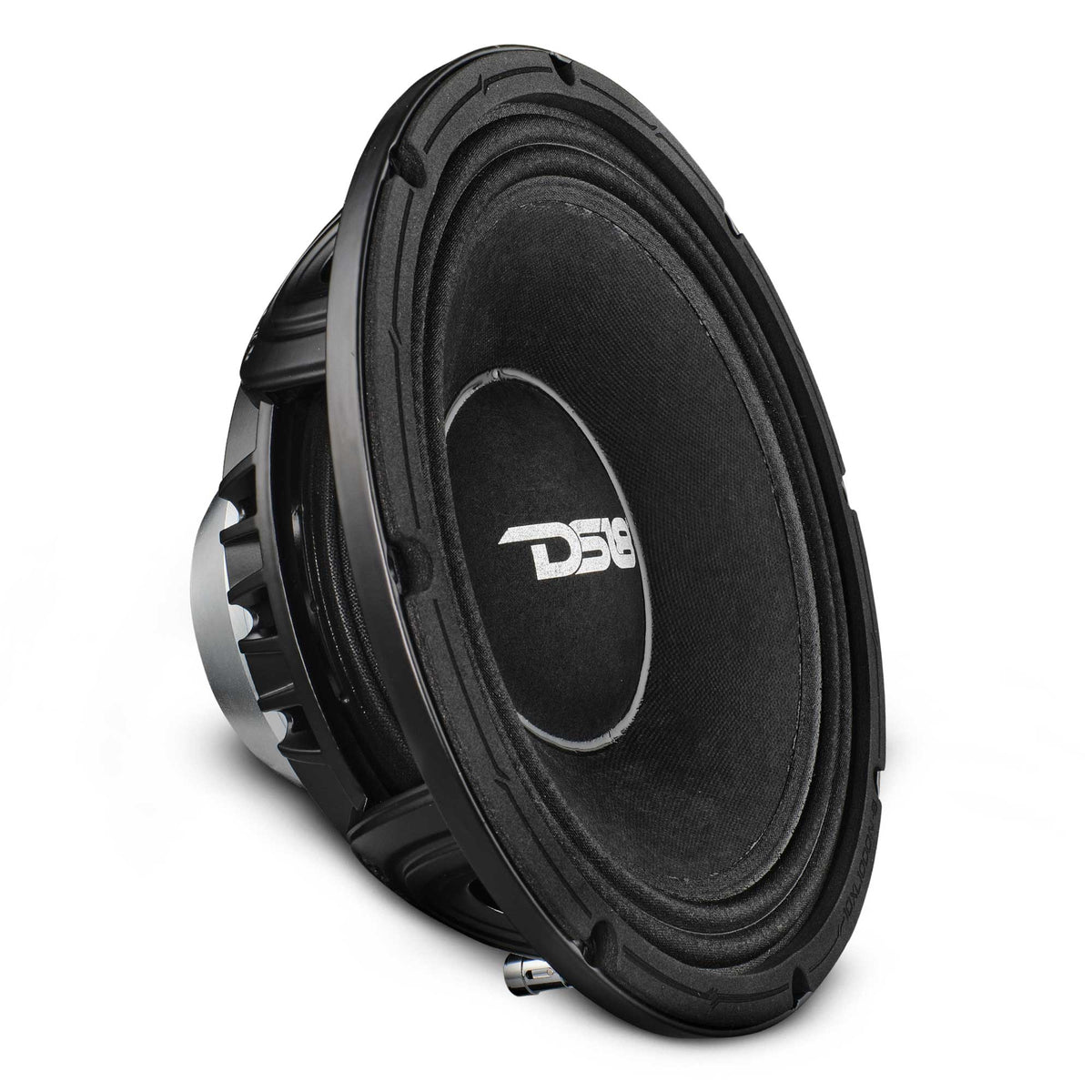

- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
XL 12" Mid-Range Loudspeaker 750 Watts Rms 4-Ohm
Let customers speak for us
from 3729 reviewsPut these in my ram 1500 under the rear seats, I don’t have much space, these bump. Great travel/clean cut base/they look nice. Currently have them hooked up to a 800x1 kicker amp on a low setting for break in and am going to put in ds18’s 2500x1 amp, they can take a lot of abuse, personally I’d say best shallow mounting sub for the money, I’ve been thru a few! Hit like there a big magnet deep mounting sub!

Great amp

I love them they sound great along with the looks I have to say that I don't agree with the filters that they come with I feel that they do distort a little bit and so I gotten the 4.7uf 100v and that cleaned them up Alot on clarity the ones that come with these tweeters are 4.7 UF 250v if you change them to the ones I have you won't be disappointed these tweeters perform beautiful highs I have the paired with my pro x 6.5 witch I'm planning to get another pair of the mids in future !

There was a break-in time, maybe 15 minutes, but after that they have sounded great, a nice clear bottom to the sound.
Lexus door woofer.

Had 1 speaker out of the 4 ordered come damaged. Emailed DS-18 and they sent me a free replacement, great customer service, fast responses. Will definitely be ordering more from them!

Sounds great loud and I like loud

Nice speakers

honestly this should have been called at least 6000, very happy

FULL RANGE POWERRRRR IN A SMALL A... AMPLIFIER

all i need was 3500 watts , this gave me much more and cleannnnnn

wasnt sure before buying but now i am a DS18 fan, great prduct

powerful and clean, so much power in small size

looks good, sounds good and easy to install

lots of power


We are loading your cart...
