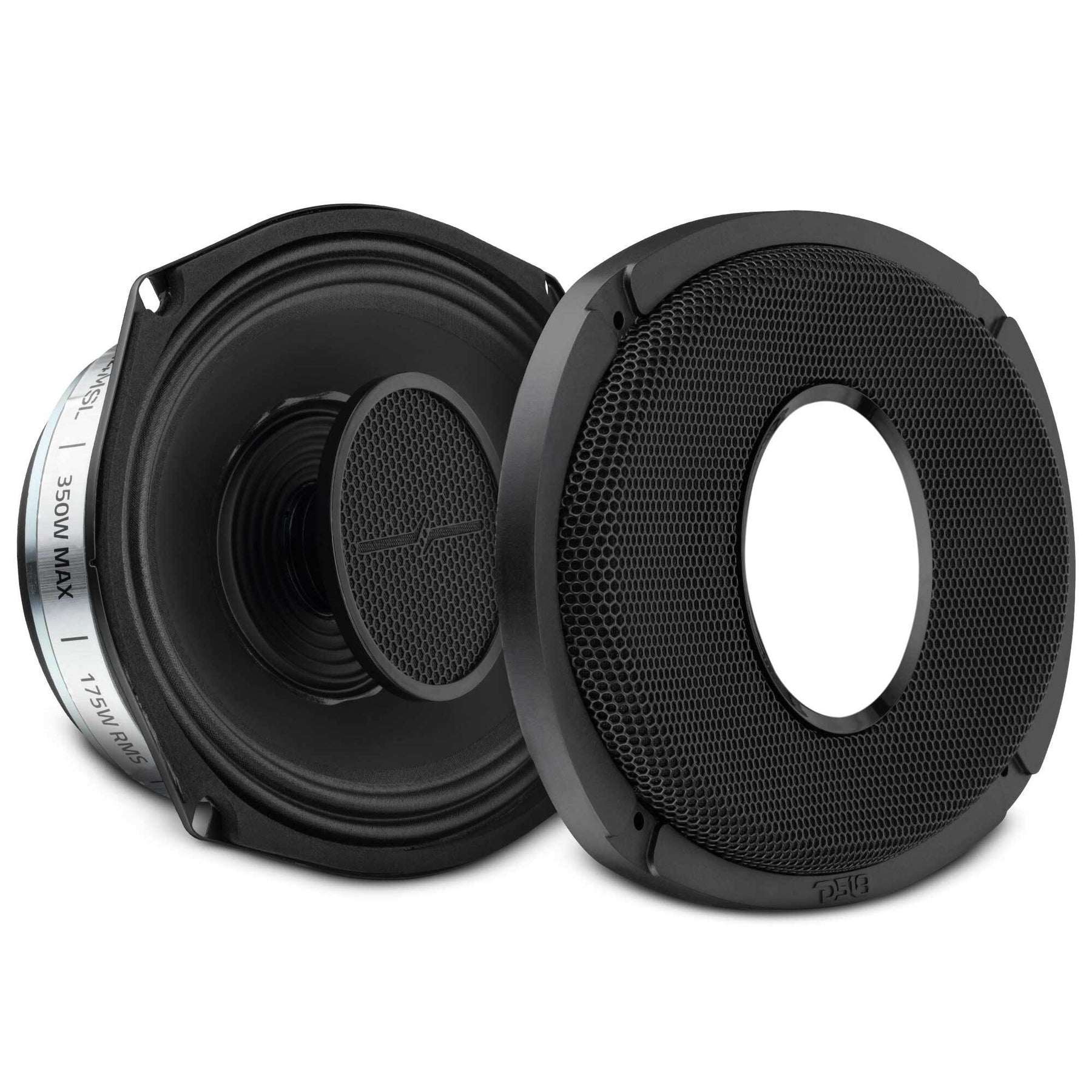

PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm

SKU: PRO-HY69.4MSL

NEW ARRIVAL

PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm
PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm

PRO 6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn | 175W RMS 4-Ohm

SKU: PRO-HY69.4MSL

NEW ARRIVAL

Precio de venta$119.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Size: 6x9"

Impedance: 4-Ohm

2-Ohm
4-Ohm
Cantidad:
  • Key Features

    • 6x9” Slim Hybrid Loudspeaker
    • 175W RMS / 350W MAX
    • 1” Titanium Compression Driver
    • IP65 Rated + Grille w/ Water/Sun Protection Cloth
    • Neodymium Driver Magnet / Ferrite Woofer Magnet
    • Mounting Depth: 3.4”
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General Specifications

    Nominal Diameter
    6x9" / 152x228mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    175W
    MAX Power Handling
    350W
    Sensitivity (1w/1m)
    97dB
    Frequency Response
    60Hz - 20kHz
    Recommended High-Pass Crossover
    80Hz
    Number of Ways
    2 ways
    Water-Resistant Rating
    IP65
    Pair or Single
    Single
    Grille Included
    Yes, With Water and Sun Protection Cloth

    Woofer Specifications

    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    KSV
    Winding Material
    CCAW
    Cone Material
    Water-Resistant Paper
    Surround Material
    Treated Cloth
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Ferrite
    Magnet Weight
    25.5 Oz

    Thiele & Small Parameters

    Equivalent Volume
    5.68L / 0.2ft3
    Excursion (one way)
    2mm
    Free Air Resonance
    117Hz
    Mechanical Factor
    7.821
    Electrical Factor
    0.979
    Total Factor
    0.87
    Mechanical Mass
    15.242g
    Mechanical Compliance
    0.103 mm/N
    BL Factor
    5.312
    Voice Coil Inductance
    0.59mH
    Cone Area
    156.2 cm2
    DC Resistance
    3.2 Ohms
    Mechanical Mass w/o air
    12.3g

    Driver Specifications

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Titanium
    Magnet Material
    Neodymium
    Horn Diameter
    3.15" / 80mm

    Speaker Measurement

    Overall Diameter (Without Grill)
    6.4"x9.2" / 164x234mm
    Overall Diameter (With Grill)
    7"x9.9" / 180x252mm
    Overall Depth (Without Grill)
    3.9" / 100mm
    Overall Depth (With Grill)
    4.2" / 107mm
    Front Mount Baffle Cutout
    5.7"x8.6" / 144x218mm
    Mounting Depth
    3.4" / 86mm
    Motor Diameter
    4.7" / 120mm

    Load More
  • Product Overview

    Product Overview

    6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn

    The PRO-HY69.4MSL is a slim hybrid 6x9” speaker made to give riders the best of both worlds: big volume that fits and is extremely durable.

    2-Way Hybrid = Full-Range Output
    We’ve combined a water-resistant woofer with a 1” titanium compression driver, all in one slim speaker. This combination delivers wide-bandwidth sound from 60Hz to 20kHz with 97dB sensitivity.

    Easy Fit
    At just 3.4” mounting depth, the PRO-HY69.4MSL installs cleanly in fairings, pods, or panels, especially in motorcycles, UTVs, Slingshots, and Jeeps where space is tight.

    IP65-Rated Water Resistance
    Rain, washdowns, and trail spray are no threat. The water-resistant paper cone and cloth surround hold up against the elements, while the grille’s built-in sun/water protection cloth keeps your internals safe.

    Ferrite + Neodymium = Lightweight Power
    A 25.5 oz ferrite magnet drives the woofer, while a neodymium motor powers the compression driver. This combo delivers the output of a full-size system in a lighter, more compact form.

    Ready for Real Builds
    With a 4Ω impedance, it pairs easily with most aftermarket amps and factory systems. Build out your custom audio setup with a driver that drops in and turns heads easily.

    The PRO-HY69.4MSL is a hybrid speaker made to play LOUD, stay tough, and fit where others can’t: order yours today and get the best of both worlds!
