6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm

SKU: 6PRO500NMR-4

NEW ARRIVAL

6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm

6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 250W RMS 4-Ohm

SKU: 6PRO500NMR-4

NEW ARRIVAL

Precio de venta$149.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Size: 6.5" 250W RMS

Cantidad:
  • Key Features

    • 6.5” High-Sensitivity Midrange Speaker (103 dB Output)
    • 250W RMS / 500W Peak Power Handling
    • Neodymium Magnet for Lightweight, High Efficiency
    • 120 Hz–17 kHz Frequency Range for Clear Vocals
    • Aluminum Basket with High-Performance Voice Coil
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    6.5" / 165mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    250W
    MAX Power Handling
    500W
    Sensitivity (1w/1m)
    103dB
    Frequency Response
    120Hz-17kHz
    Recommended High-Pass Crossover
    140Hz
    Sold as
    Single unit
    Demodulating Rings
    Copper Ring
    Cone Shape
    Curvilinear
    Speaker Terminals
    Push 16ga

    Motor

    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Dust Cap Material
    Paper
    Surround Material
    Cloth
    Leads Connection Type
    Spider Crossed
    Basket Material
    Aluminum
    Basket Color/Finish
    Black
    Magnet Material
    Neodymium
    Magnet Weight
    8 Oz

    Thiele & Small Parameters

    Equivalent Volume
    6L / 0.211ft3
    Excursion (one way)
    1.65mm
    Free Air Resonance
    125Hz
    Mechanical Factor
    2.23
    Electrical Factor
    0.45
    Total Factor
    0.38
    Mechanical Mass
    8.1g
    Mechanical Compliance
    0.19mm/N
    BL Factor
    8.78
    Voice Coil Inductance
    0.42mH
    Cone Area
    149.57 Cm2
    DC Resistance
    3.3 Ohms

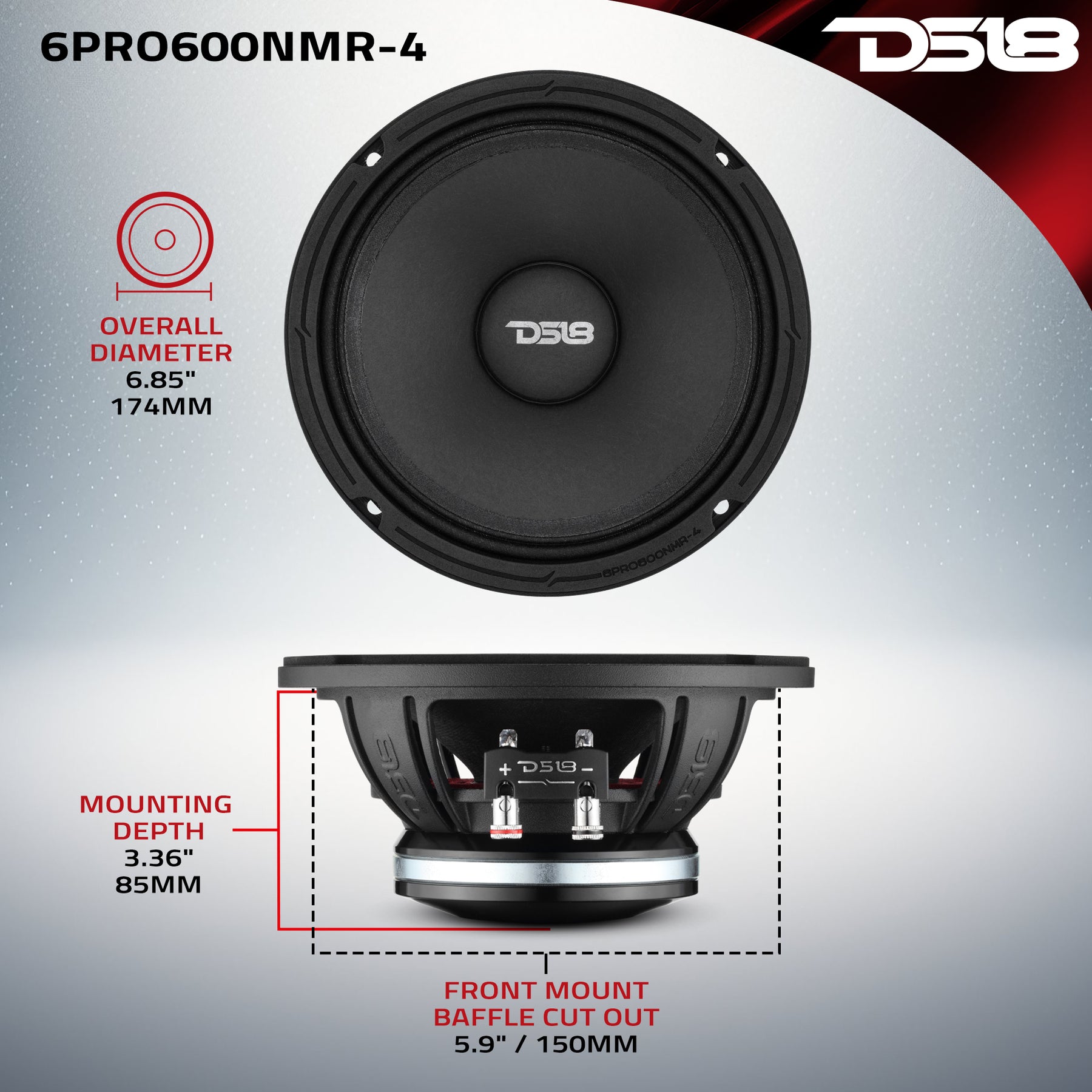

    Measurement

    Overall Diameter
    6.85" / 174mm
    Overall Depth
    3" / 77mm
    Front Mount Baffle Cutout
    5.9" / 150mm
    Mounting Depth
    2.6" / 66.5mm
    Motor Diameter
    3.5" / 90mm

    Load More
  • Product Overview

    Product Overview

    6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet

    Neodymium Precision

    The 6PRO500NMR-4 is a 6.5” high-sensitivity professional mid-range built for extreme output and clarity. With 250W RMS and 500W MAX power handling, this 4-ohm driver delivers aggressive, detailed mids that cut through the loudest systems.

    Pure Projection
    Powered by a neodymium motor, the 6PRO500NMR-4 delivers an impressive 103 dB sensitivity and a focused 120 Hz–17 kHz frequency response. Every vocal and instrument stays sharp, present, and commanding at high volume.

    Lightweight, Loud, Reliable
    An aluminum basket provides structural rigidity while keeping weight down. The cloth surround ensures durability, and its 2.6” mounting depth allows for versatile installation across a wide range of applications.

    Pro-Level Performance
    A 1.5” Kapton voice coil with CCAW winding ensures efficient heat dissipation and consistent power handling. The copper demodulating ring enhances clarity while reducing distortion, keeping your mids clean even under heavy demand.

    Engineered to Be Heard
    Designed for high-output applications, the 6PRO500NMR-4 is built for serious sound enthusiasts who demand projection, efficiency, and reliability. Available in 6”, 8”, and 6x9” options.
