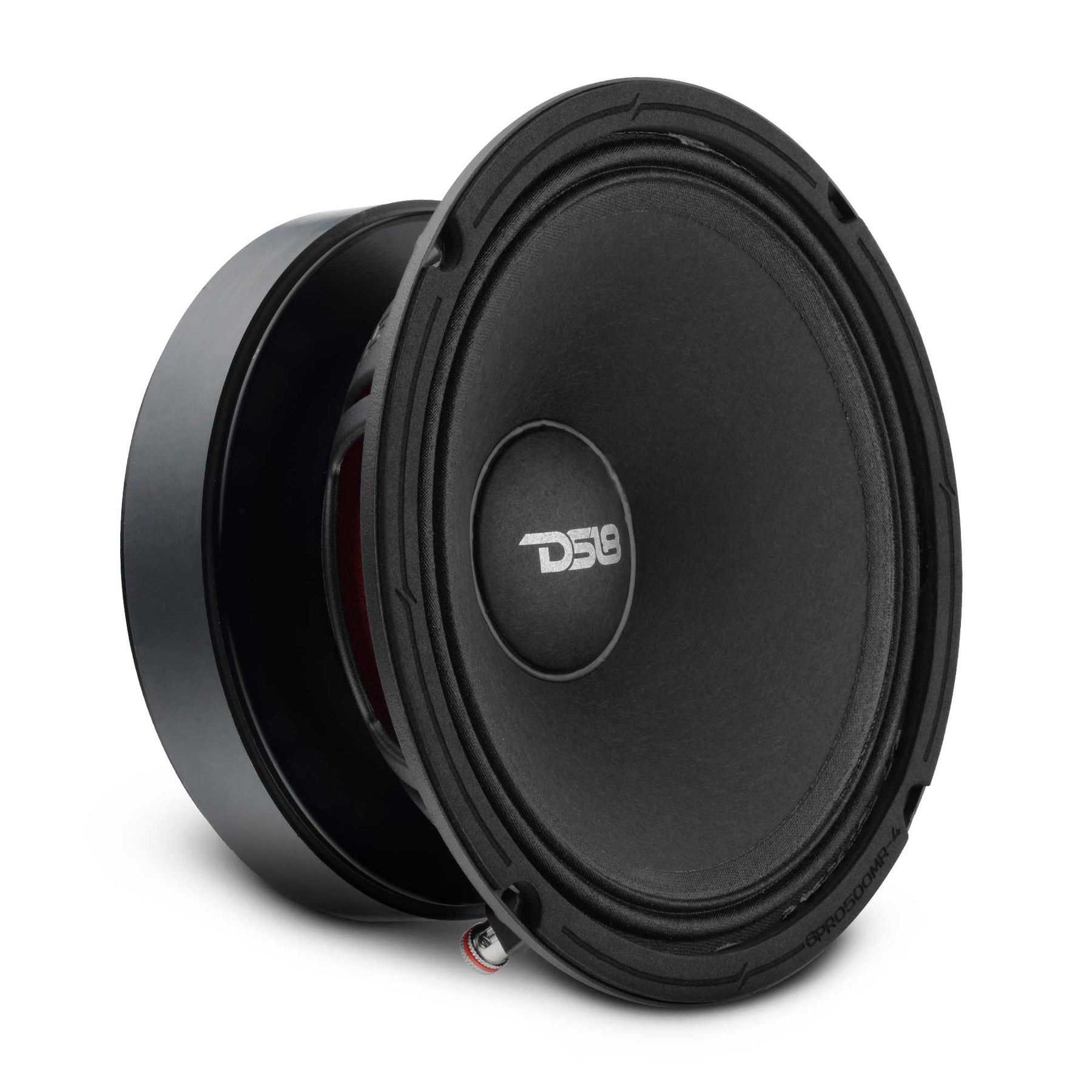

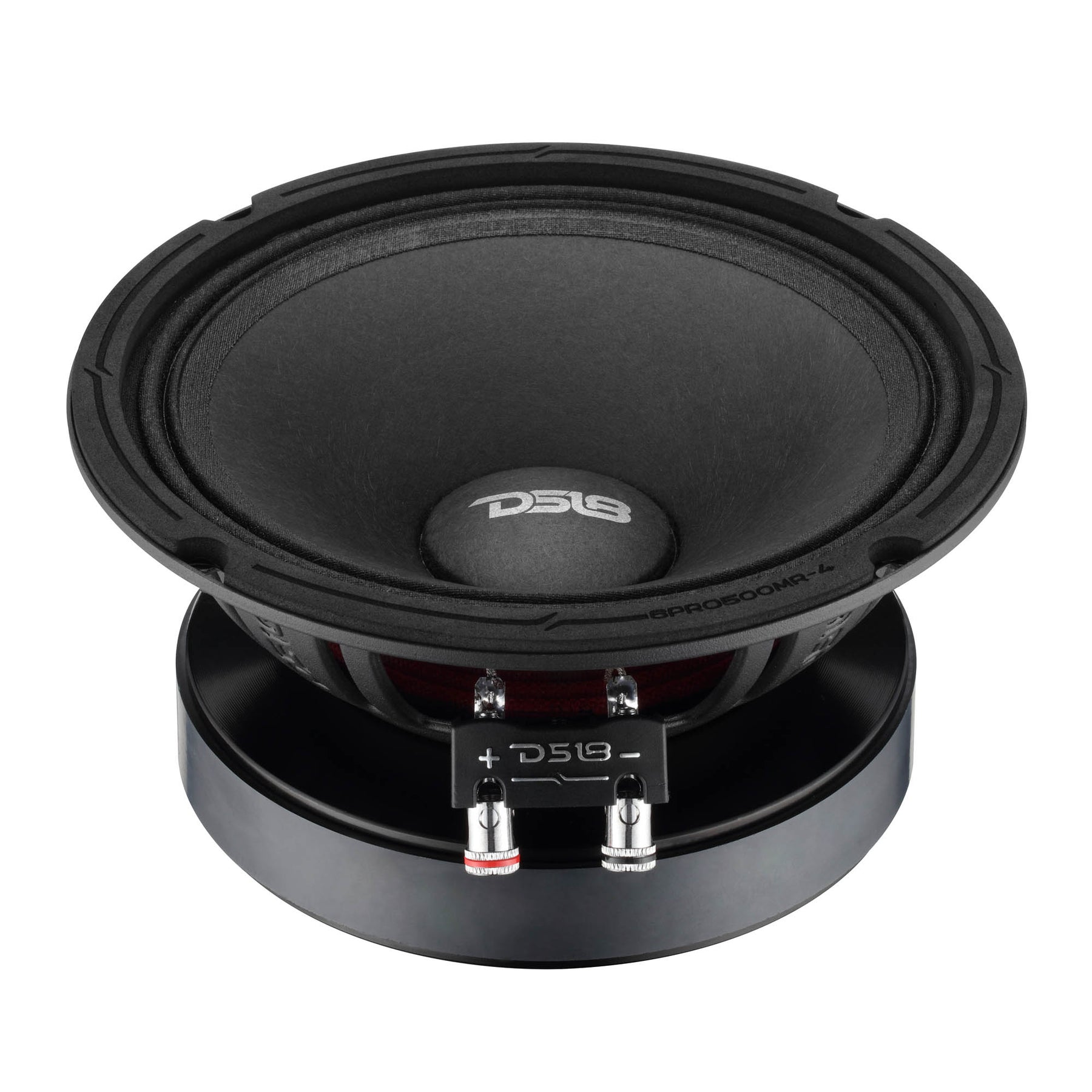

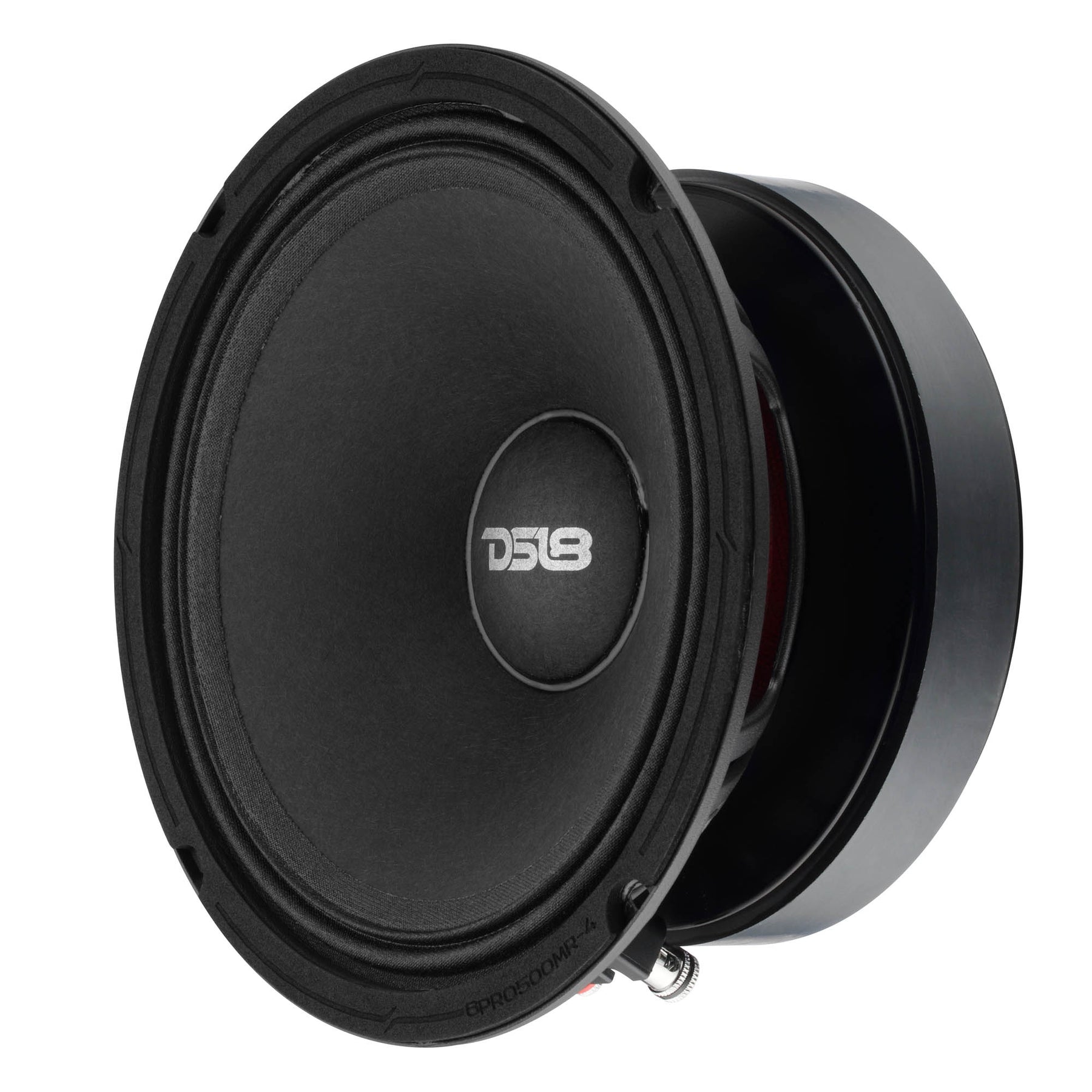

6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm

SKU: 6PRO500MR-4

NEW ARRIVAL

6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm
6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm

6.5” High-Sensitivity Midrange Loudspeaker with Ferrite Magnet | 250W RMS 4-Ohm

SKU: 6PRO500MR-4

NEW ARRIVAL

Precio de venta$89.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Channel:

Power Rating:

:

:

Color:

Cantidad:
  • Key Features

    • Professional High-Power Performance – 250W RMS / 500W MAX
    • Ultra-High Sensitivity (103dB)
    • Wide Frequency Range (100Hz–12.5kHz)
    • Durable Pro-Grade Build
    • Precision Engineered Voice Coil
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    6.5" / 165mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    250W
    MAX Power Handling
    500W
    Sensitivity (1w/1m)
    103dB
    Frequency Response
    100Hz-12.5kHz
    Recommended High-Pass Crossover
    140Hz
    Sold in Pair or Single
    Single
    Demodulating Rings
    Copper Ring
    Cone Shape
    Curvilinear
    Speaker Terminals
    Push 16ga

    Motor

    Voice Coil Diameter
    1.75" / 44.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Dust Cap Material
    Paper
    Surround Material
    Cloth
    Spider Diameter
    3.8" / 96mm
    Leads Connection Type
    Spider Crossed
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Ferrite
    Magnet Weight
    48 Oz
    Displacement Volume

    Thiele & Small Parameters

    Equivalent Volume
    7.25L / 0.256ft3
    Excursion (one way)
    1.1mm
    Free Air Resonance
    130Hz
    Mechanical Factor
    1.17
    Electrical Factor
    0.32
    Total Factor
    0.25
    Mechanical Mass
    7.59g
    Mechanical Compliance
    0.19mm/N
    BL Factor
    7.95
    Voice Coil Inductance
    0.33mH
    Cone Area
    165.13cm2
    DC Resistance
    3.2 Ohms
    Mechanical Mass w/o air

    Measurement

    Overall Diameter
    6.85" / 174mm
    Overall Depth
    3.6" / 92mm
    Front Mount Baffle Cutout
    5.9" / 150mm
    Mounting Depth
    3.36" / 85mm
    Motor Diameter
    5.5" / 140mm

    Load More
  • Product Overview

    Product Overview

    Mid-Range Authority
    The 6PRO500MR-4 is a 6.5” high-sensitivity professional mid-range engineered for serious output. With 250W RMS and 500W MAX power handling at 4 ohms, this speaker delivers aggressive, commanding mids that stay clear at extreme volume.

    Power and Precision
    Featuring a ferrite motor structure, the 6PRO500MR-4 achieves 103 dB sensitivity and a 100 Hz–12.5 kHz frequency response. Vocals and instruments project forward with intensity while maintaining tonal accuracy.

    Built for Loud Systems
    A 1.75” Kapton voice coil with CCAW winding improves thermal handling and efficiency. The integrated copper demodulating ring reduces distortion, keeping your mids clean and controlled even under heavy load.

    Competition Ready
    A steel basket provides structural rigidity while keeping weight down. The cloth surround ensures durability, making this mid-range ideal for daily drivers and high-output builds alike.

    Engineered for Extreme Output
    Designed for high-output applications, the 6PRO500MR-4 is built for enthusiasts who demand projection, efficiency, and reliability. Available in 6”, 8”, and 6x9” options to match your system’s needs.

Complete your System
