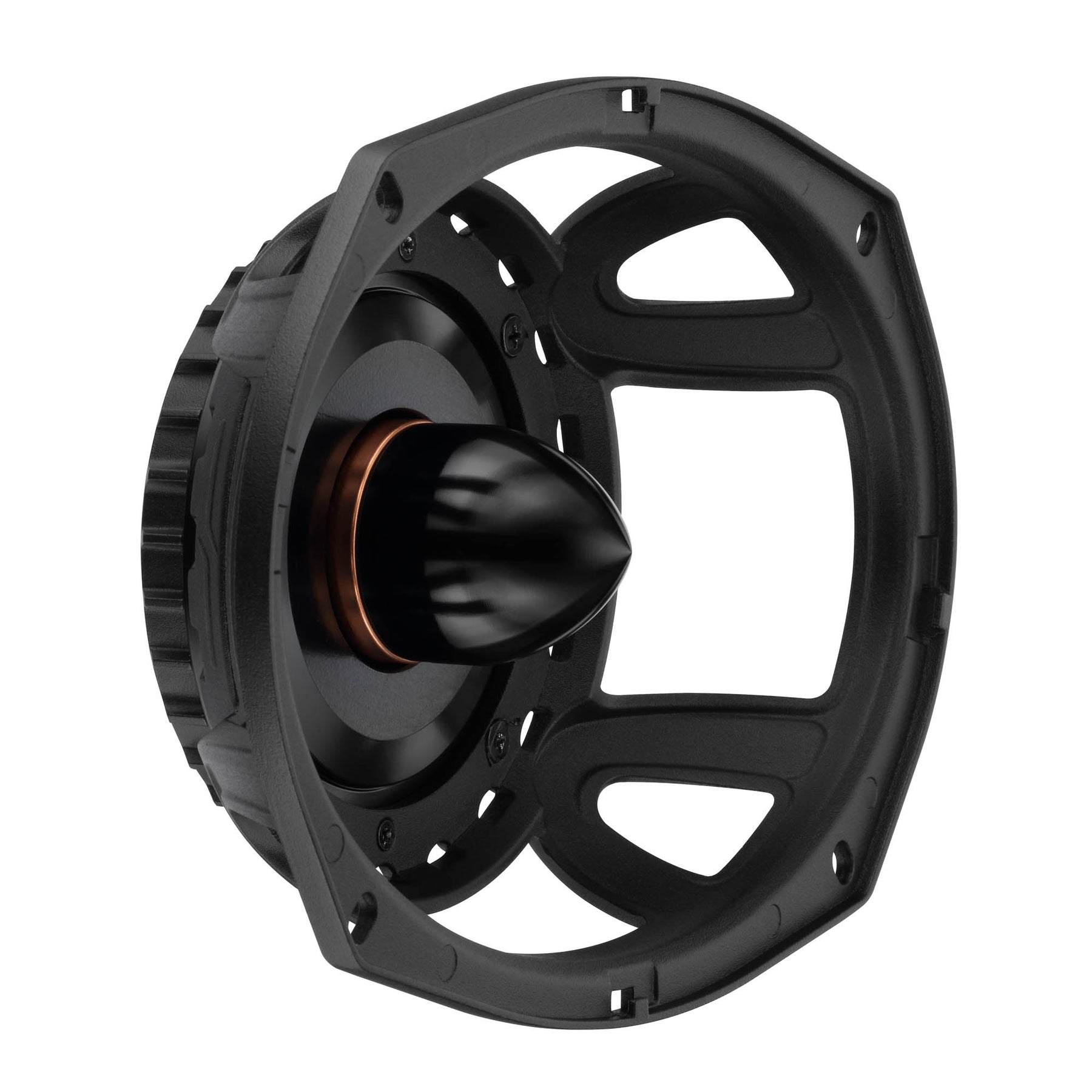

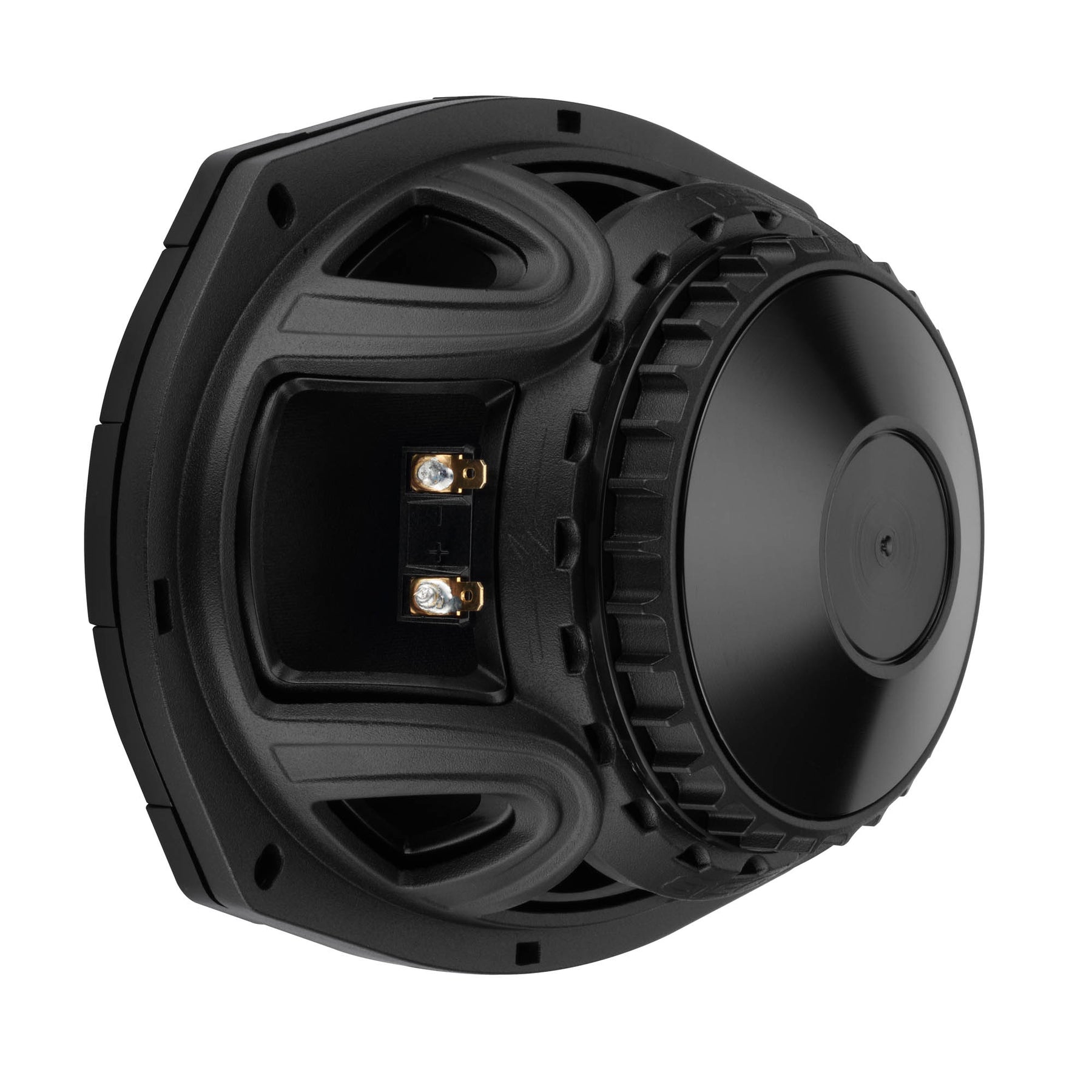

PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair

SKU: PROJECT360.698BN

🚨 New Arrival

PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair
PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker With Neodymium Magnet and Bullet - 350W RMS 8-Ohm - Rotating Recone Design For Quick Repair

SKU: PROJECT360.698BN

🚨 New Arrival

Precio de venta$264.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
Sólo queda 1 unidad

Channel:

Power Rating:

Size: 6x9"

Impedance: 8-Ohm

8-Ohm

Color:

Cantidad:
  • Key Features

    • 350W RMS / 700W MAX power handling / Neodymium Magnet
    • CNC Aluminum Bullet
    • Curvilinear cone for improved response
    • Aluminum basket construction
    • Plug-and-play recone system – no glue required
    • Patent-Pending rotating recone design for instant repairs



  • Technical Data - Manual

    Specifications

    Nominal Diameter
    6X9" / 152x228mm
    Nominal Impedance
    8 Ohms
    RMS Power Handling
    350 W
    MAX Power Handling
    700 W
    Sensitivity (1w/1m)
    102 dB
    Frequency Response
    95Hz-17kHz
    Recommended High-Pass Crossover
    120 Hz
    Sold as
    Single unit
    Grill Included
    No
    Demodulating Rings
    Yes
    Improved Heat Dissipation
    Yes
    Cone Shape
    Curvilinear
    Speaker Terminals
    Spade
    Easy Recone Design
    Yes

    Motor

    Voice Coil Diameter
    1.75" / 44.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Bullet Material
    CNC Aluminum
    Bullet Color
    Black
    Surround Material
    Cloth
    Spider Diameter
    4" / 102mm
    Leads Connection Type
    Round Crossed
    Basket Material
    Aluminum
    Basket Color/Finish
    Black
    Magnet Material
    Neodymium
    Magnet Weight
    12.8 oz

    Thiele & Small Parameters

    Equivalent Volume
    3.228L / 0.113ft3
    Excursion (one way)
    0.85 mm
    Free Air Resonance
    176 HZ
    Mechanical Factor
    11.107
    Electrical Factor
    0.416
    Total Factor
    0.401
    Moving Mass
    18.972 g
    Mechanical Compliance
    0.043 mm/N
    BL Factor
    15.951
    Voice Coil Inductance
    0.0446 mH
    Cone Area
    230.90 cm2
    DC Resistance
    5.2 Ohms

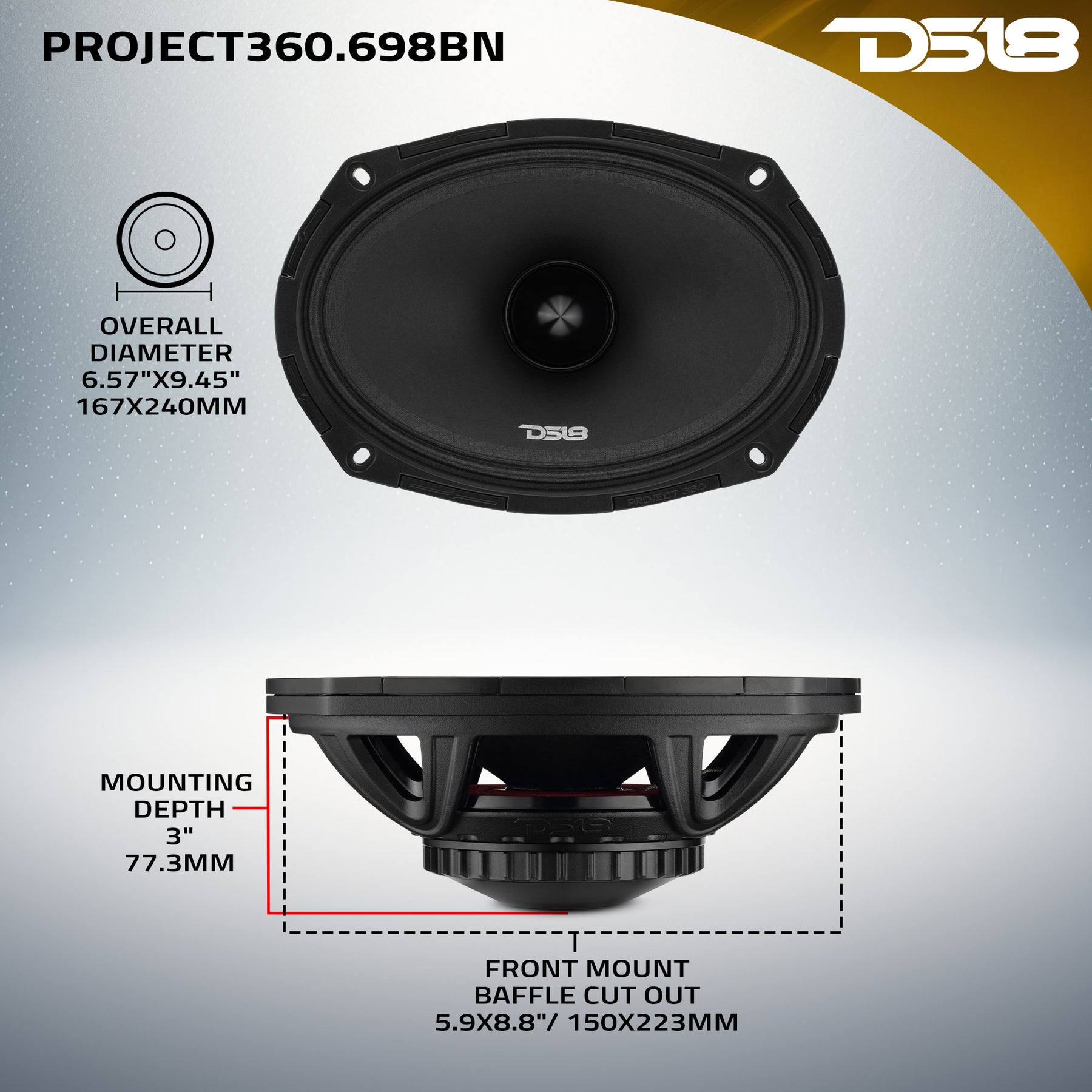

    Measurement

    Overall Diameter
    6.57x9.45" / 167x240mm
    Overall Depth
    3.59" / 91.2mm
    Front Mount Baffle Cutout
    5.9x8.8"/ 150x223mm
    Mounting Depth
    3" / 77.3mm
    Motor Diameter
    3.94" / 100mm

    Load More
  • Product Overview

    Product Overview

    The PROJECT360.BN Series
    Designed for enthusiasts who demand powerful midrange and crisp highs, these speakers deliver consistent sound quality whether you're building a daily system or pushing the limits in a high-performance setup. Each speaker is built with a bullet design for better heat dissipation and directional sound projection. Neodymium magnets keep these speakers lightweight, providing powerful performance from a compact footprint.

    Exclusive DS18 Technology

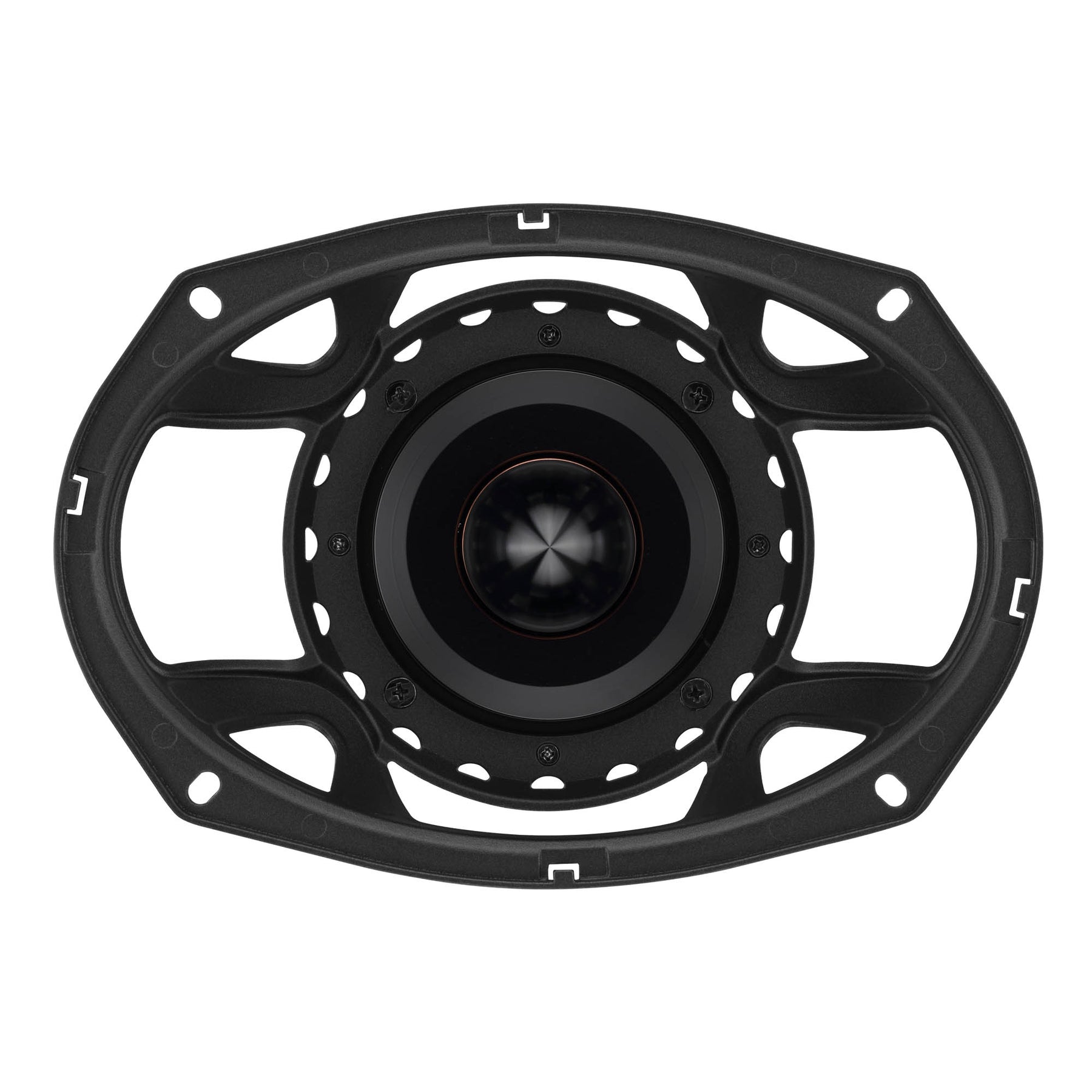

    What sets PROJECT360 apart is its patent-pending Rotating Recone Design, an innovative, serviceable system that allows for quick and easy maintenance and repair. Built with durable materials and engineered for efficiency you can spend more time enjoying your system and less time working on it.

    Patent-Pending Rotating Recone Design
    Designed for quick and easy replacement of the speaker’s moving components.

    Crystal-Clear Highs
    Clean vocal projection and enhanced sound reproduction with minimal distortion.

    Competition-Level Output
    Impressive performance with minimal amplifier power.

    No Glue. No Downtime
    The patent-pending rotating design eliminates the traditional glue curing process.

    High Power Handling
    1.75” voice coil and carefully selected materials increase power handling while enhancing thermal management.

    How PROJECT360 Is Changing the Game
    When you’re in the middle of an audio competition, every second counts. Traditionally, if you push your speaker past its limit, the repair process can take hours, even days. With PROJECT360, simply remove the damaged module, clean the basket, and install a new recone, quickly and efficiently, all on your own.
