Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.

SKU: PRO-TW820
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.
Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.

Tweeter Super Bullet de neodimio de alta compresión de 2,3" y 100 vatios. Altavoz de graves de aluminio de 1,4" y 4 ohmios.

SKU: PRO-TW820

Precio de venta$71.95
/CADA
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Channel:

Power Rating:

:

:

Color:

Cantidad:
  • Key Features

    • Tweeter Super Bala de Alta Compresión de 2,3"
    • Potencia máxima: 200 vatios
    • Potencia RMS: 100 vatios
    • Imán de neodimio
    • Montaje en superficie ajustable / Individual
    • Fácil de reparar con el PRO-TW820VC
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    PRO-TW820
    Nominal Diameter
    2.3"-3"
    Nominal Impedance
    4 Ohm
    AES Power Handling
    50W
    Program Power Handling
    100W
    Peak Power Handling
    200W
    Sensitivity (1w/1m)
    105dB
    Frequency Response
    700Hz-20kHz
    Recommended Hi Pass Crossover
    3KHz

    MOTOR

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    KAPTON
    Winding Material
    CCA
    Diaphragm Material
    Aluminum
    Magnet Material
    Neodymium
    Body Material
    Aluminum

    MEASUREMENT

    Overall Diameter
    2.28" / 58mm
    Overall Depth
    2.67" / 68mm
    Front Mount Baffle Cutout
    1.69" / 43mm
    Mounting Depth
    1.65~2.55" / 42~65mm
    Gross Single Unit Weight (lb)
    1.5
    Single Unit Box Dimensions W x L x H (Inches)
    3.25 x 2.75 x 3
    Quantity of Units in Master Carton
    30
    Gross Master Carton Weight (lb)
    38
    Master Carton Dimensions W x L x H (Inches)
    14 x 10.25 x 7.25

    Load More
  • Product Overview

    Product Overview

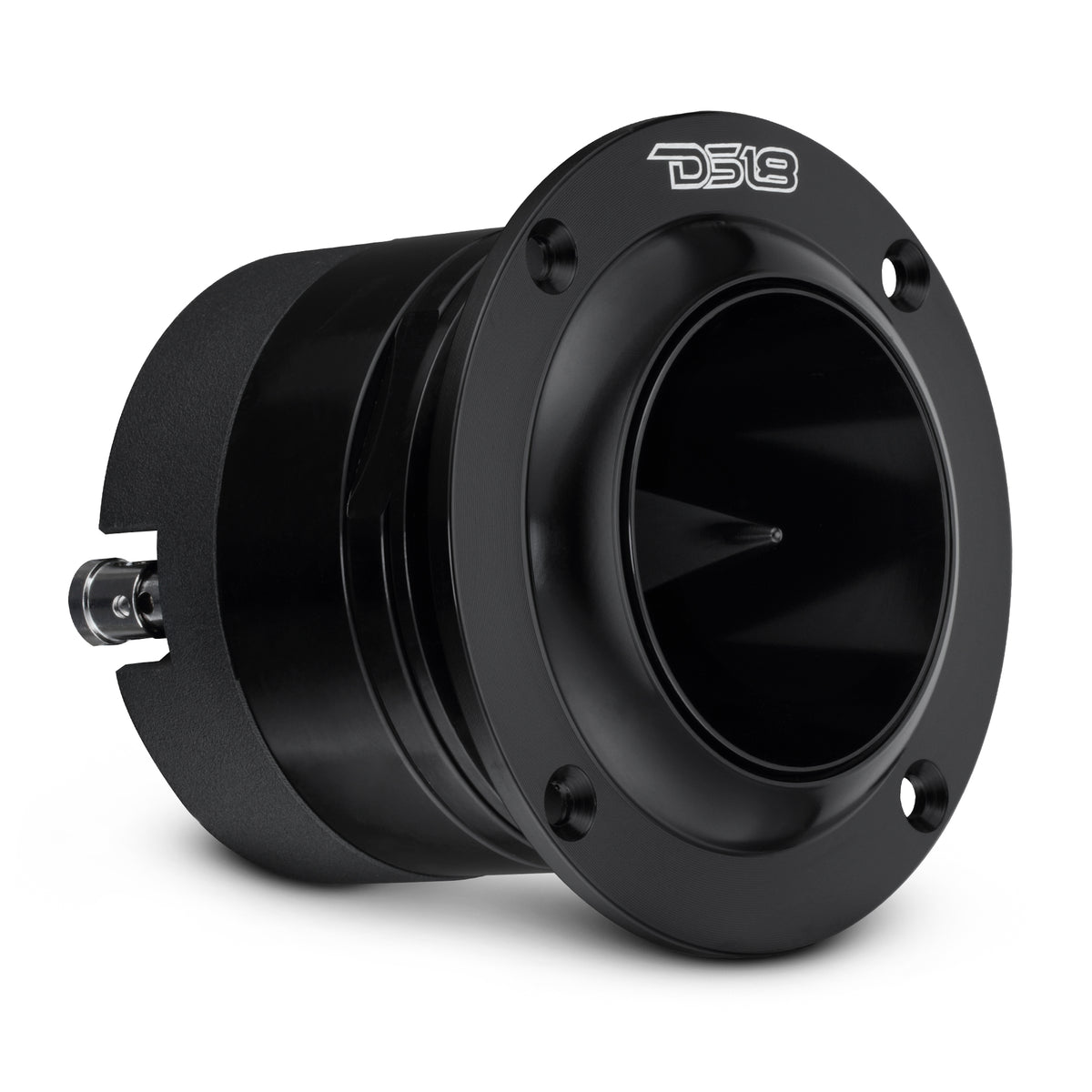

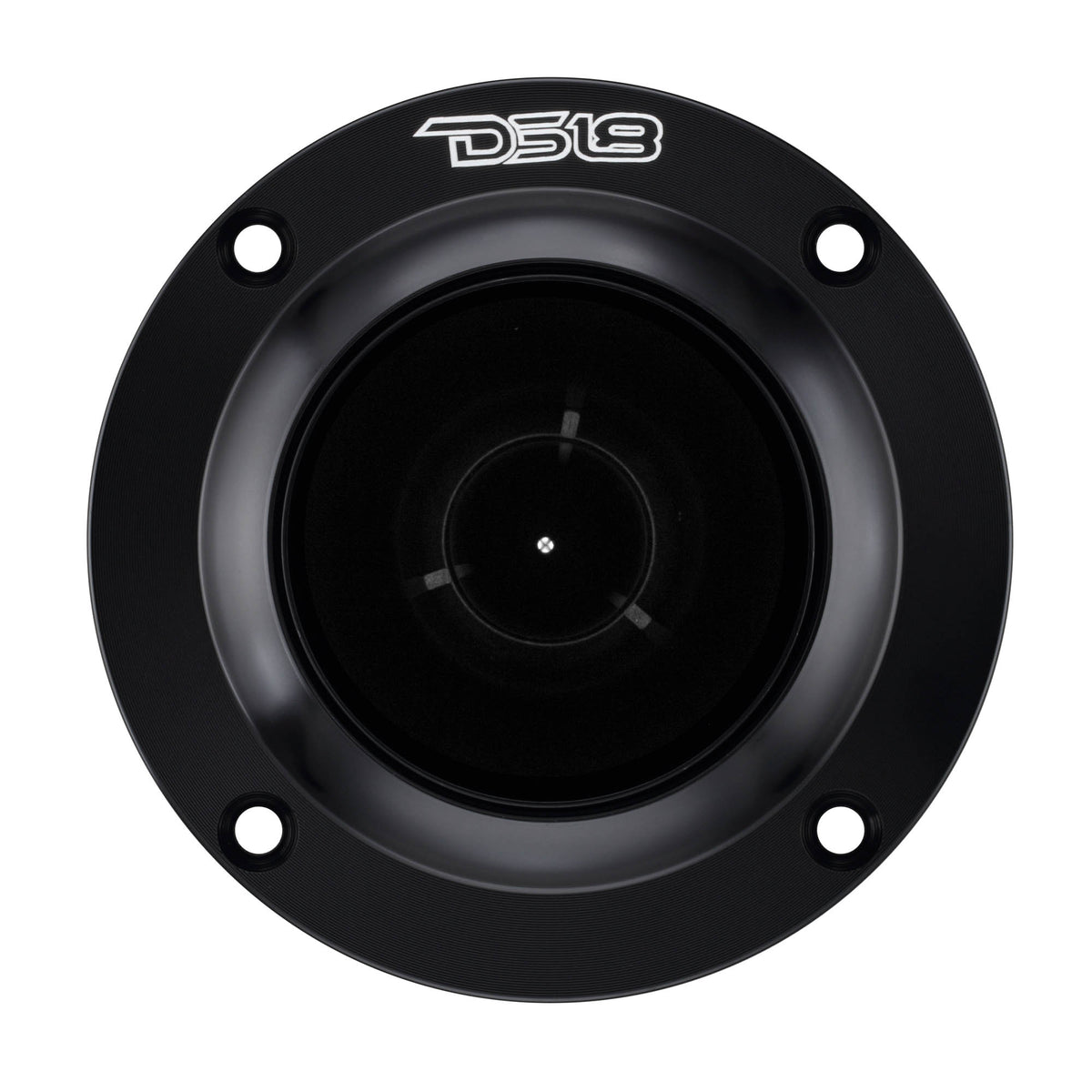

    DS18’s PRO-TW820 is a 2.3” high-compression super bullet tweeter engineered for show-stopping pro audio setups.

    Clean, Aggressive Highs
    With a 1" aluminum voice coil and neodymium magnet, the PRO-TW820 pumps out up to 50W AES Power, 100W Program Power, and 200W peak power at 105dB sensitivity, delivering razor-sharp highs with minimal distortion.


    Neodymium Motor + CNC Aluminum Bullet
    Neodymium gives you stronger magnetic force with less weight, while the precision CNC aluminum bullet projects sound with pinpoint accuracy. Every high note hits fast, clean, and loud.


    Custom Mounting
    Mounting is easy thanks to the updated aluminum mounting ring with pre-drilled holes, plus 1 thin and 1 thick rubber gasket, giving you total flexibility for flush or elevated installs on doors, dashes, or pods. Mounting depth is adjustable from 1.65” to 2.26”, making it perfect for custom builds.


    Easy to Service
    Push them hard—these tweeters are made to take it. And if you need to swap a diaphragm or ring? You can break it down and rebuild in under 60 seconds with basic tools.


    Wide Range
    Plays from 700Hz–20kHz with a recommended high-pass crossover at 3kHz. Includes a 3.3μf/50V bass blocker for added protection out of the box.


    Add the PRO-TW820 to your SPL system or pro build for sharp highs that slice through any mix.



Complete your System
